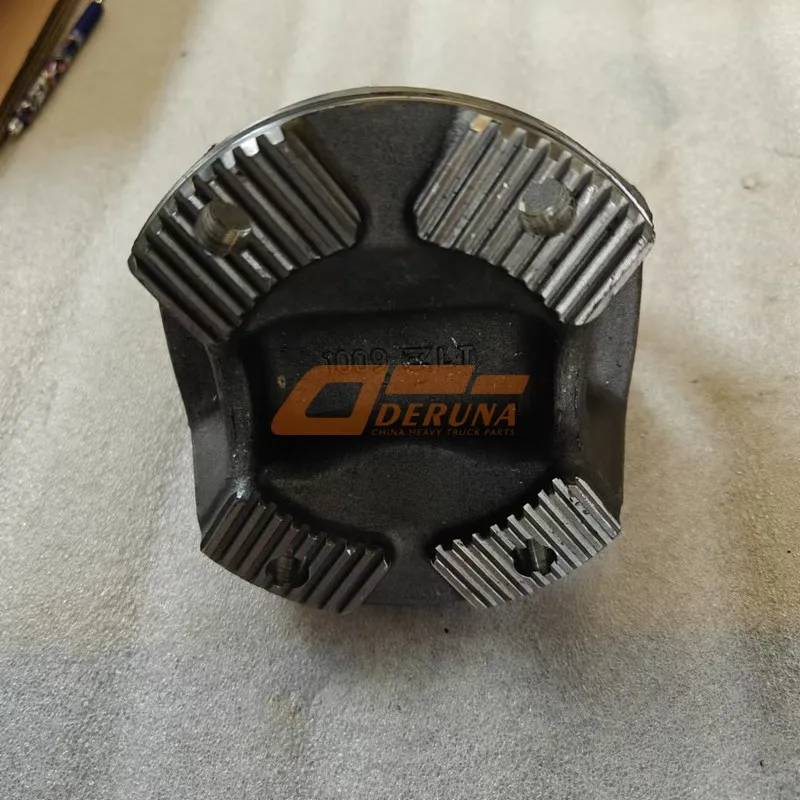

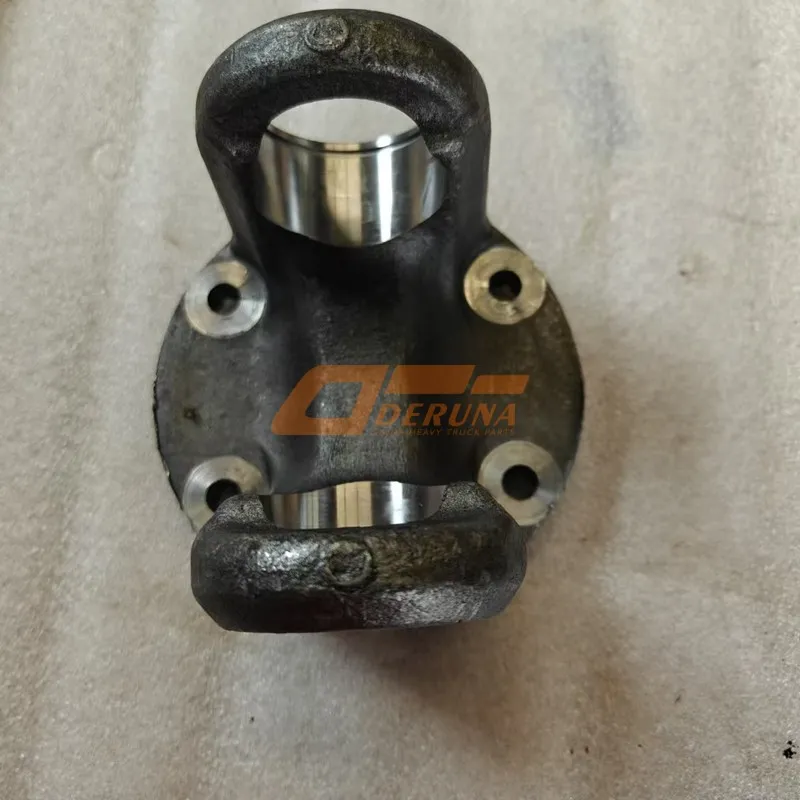

Genuine YD052201021 Driveshaft Fork Flange: Critical Drivetrain Connection for FOTON Trucks

Essential Role in the Drivetrain System

The Driveshaft Fork Flange, identified by the OEM part number YD052201021, is a crucial connecting component within a truck’s propeller shaft (driveshaft) assembly. It serves as the interface between the driveshaft’s universal joint (U-joint) yoke and the companion flange mounted on the transmission output shaft, transfer case, or rear differential. The primary function of the YD052201021 is to provide a rigid, precisely located mounting point for the U-joint cross bearing. This creates a flexible yet strong coupling that transmits rotational power while accommodating minor angular misalignments and variations in the distance between components as the suspension moves.

Without a properly functioning flange like the YD052201021, the driveline cannot maintain its integrity. This component must endure constant rotational stress, torsional vibration, and exposure to the elements. A failure in the YD052201021 can lead to severe vibration, unusual clunking noises during acceleration or deceleration, and ultimately, a complete separation of the driveshaft, which is a dangerous and costly roadside failure. For FOTON trucks designed for heavy hauling, the durability and precision of the genuine YD052201021 are non-negotiable for reliable operation.

Precision Engineering and Material Strength

The genuine YD052201021 is manufactured to exacting tolerances from high-grade materials. Typically, it is forged or precision-cast from high-strength alloy steel, providing an optimal balance of toughness, fatigue resistance, and weight. The forging process aligns the metal grain structure, enhancing the part’s ability to withstand the cyclic loading experienced in driveline applications. Critical surfaces, such as the machined face that mates with the companion flange and the bore for the U-joint bearing cups, are finished to micron-level precision on the YD052201021. This ensures perfect alignment, which is essential for minimizing vibration and wear.

The bolt holes in the YD052201021 are drilled and tapped with precise thread pitch and alignment to match the mating flange. The part is often treated with a protective coating, such as phosphate or zinc plating, to resist corrosion caused by road spray, salt, and moisture. This attention to material science and manufacturing detail in the YD052201021 guarantees that it can handle the rated torque of the drivetrain without warping, cracking, or suffering from bolt hole elongation, which are common failure modes in inferior components.

Technical Specifications: YD052201021

Installation Procedure and Driveline Balancing

Replacing a driveshaft fork flange requires attention to detail and proper torque procedures. Installation of the YD052201021 typically involves removing the driveshaft from the vehicle. The old U-joint is pressed out of the worn flange, and the new YD052201021 is installed in its place using a hydraulic press or dedicated U-joint tooling. It is critical to support the flange correctly during this process to avoid bending or distorting the ears. Once the new U-joint is secured in the YD052201021, the assembly must be reattached to the companion flange on the transmission or differential.

The bolts must be tightened in a star pattern to the manufacturer’s specified torque using a calibrated torque wrench. A key step often overlooked is marking the alignment of the driveshaft before removal to ensure it is reinstalled in the same rotational orientation, which helps maintain any existing balance. While the YD052201021 itself is a balanced component, improper installation or a damaged U-joint can introduce vibration. After installation, a road test should be conducted to check for any unusual vibrations at various speeds, indicating a need for professional driveline balancing.

Symptoms of a Worn or Damaged Fork Flange

Several clear signs indicate potential failure of the driveshaft fork flange. The most common symptom is a pronounced clunking or banging noise when shifting from drive to reverse or during rapid acceleration/deceleration. This indicates excessive play in the U-joint connection due to worn bearing cups or a damaged flange like the YD052201021. Severe vibration felt through the vehicle floor, especially at certain highway speeds, can be caused by a flange that is out of true, has elongated bolt holes, or has caused an imbalance in the driveline.

Visible signs include rust weeping from the U-joint area (indicating failed seals and lubrication loss), obvious physical damage such as cracks on the flange ears, or shiny wear marks around bolt holes indicating movement. Ignoring these symptoms related to the YD052201021 can lead to a catastrophic driveline failure, resulting in a disconnected driveshaft that can cause extensive damage to the undercarriage and create an immediate safety hazard. Regular inspection during service intervals is recommended to catch wear early.

Why the Genuine YD052201021 is the Superior Choice

Choosing the authentic YD052201021 over aftermarket alternatives guarantees performance and safety. The genuine part is manufactured to the exact dimensional and material specifications required for the specific FOTON drivetrain. This ensures perfect bolt hole alignment, correct U-joint bore size, and the necessary metallurgical properties to handle the engine’s torque without fatigue. The precise machining of the YD052201021 ensures that the mating surface is perfectly flat, preventing leaks from sealed connections and ensuring the U-joint cross is square, which is critical for smooth rotation and long bearing life.

Aftermarket flanges may be made from inferior castings or softer steels, leading to premature wear, bolt hole elongation, and imbalance. The genuine YD052201021 undergoes rigorous quality control, including magnetic particle inspection for cracks, to ensure it is free from defects. For fleet managers and repair shops, using the genuine part eliminates guesswork, reduces the risk of comebacks due to vibration issues, and protects the substantial investment in the vehicle’s driveline. The total cost of ownership is lower when considering the avoidance of secondary damage and downtime.

Conclusion: The Vital Link for Uninterrupted Power Transfer

The YD052201021 Driveshaft Fork Flange is a fundamental component that ensures the reliable and smooth transfer of power from the transmission to the wheels of your FOTON truck. Its precision engineering, robust construction, and perfect fit make it the only reliable choice for driveline repairs and maintenance. By selecting the genuine YD052201021, you invest in eliminating driveline vibration, preventing dangerous failures, and ensuring the long-term integrity of your vehicle’s powertrain. Trust the OEM specification to maintain the critical connections that keep your truck moving forward—specify the YD052201021 for your driveline service needs.

Always confirm the application of part number YD052201021 using your truck’s VIN or an official FOTON parts catalog. Driveline work requires specialized knowledge and tools and should be performed by qualified technicians.
