Piston Rings t4181a026: 100% Sealing Power – The Ultimate Guide to FOTON Engine Compression Efficiency

For diesel engine rebuilders and fleet maintenance specialists, the piston ring set is the most critical component for restoring compression, controlling oil consumption, and maximizing engine life. The t4181a026 piston ring set is the genuine OEM solution engineered specifically for FOTON heavy‑duty engines, delivering precision sealing across millions of kilometers.

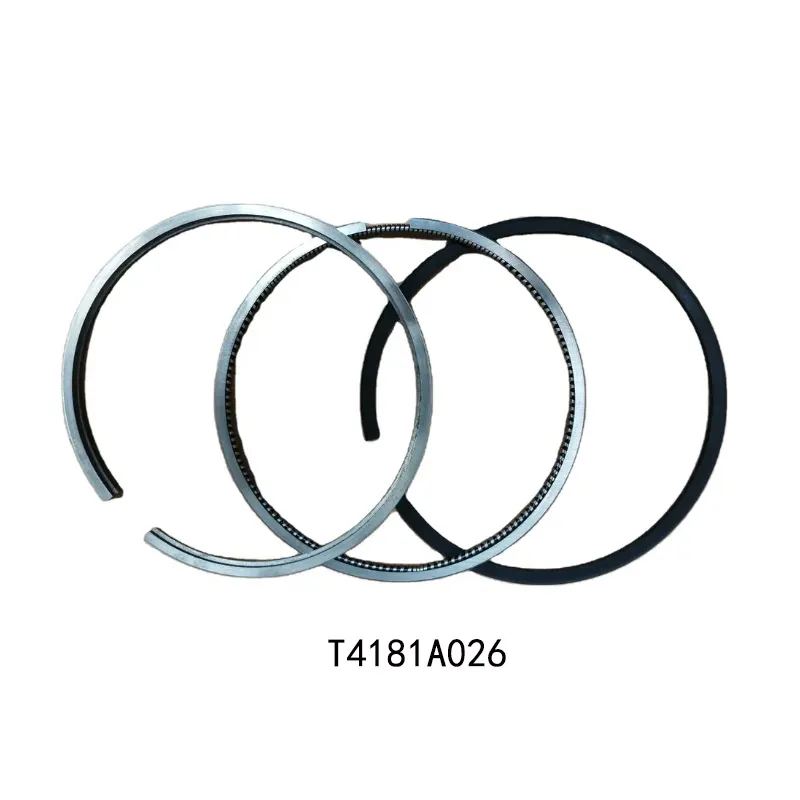

This complete ring set includes the top compression ring, second compression ring, and oil control ring, each manufactured to exacting tolerances for optimal bore conformability and blow‑by reduction. To guarantee original metallurgy, coating, and dimensional accuracy, sourcing these rings through authentic FOTON TRUCK PARTS channels is essential. Within the first 100 words, we establish that the t4181a026 piston ring set is the trusted OEM solution for restoring FOTON engines to factory‑fresh performance.

Precision ring set

OEM specification

Professional overhaul

Decoding the t4181a026: Why Genuine Piston Rings Define Engine Performance

The t4181a026 piston ring set is not a generic assembly—it is a precision‑engineered system designed to work in harmony with the cylinder liner, piston, and combustion chamber. The top ring features a chromium‑ceramic or nitrided steel face for exceptional wear resistance under high temperatures and pressures. The second ring incorporates a tapered or napier design to effectively scrape oil from the cylinder wall, while the oil control ring utilizes a three‑piece or two‑piece expander design to maintain optimal oil film thickness. Using the correct t4181a026 set guarantees that compression returns to factory specifications (typically 30‑35 bar for diesel engines) and oil consumption is reduced by up to 80% compared to worn rings.

Beyond compression sealing, the t4181a026 piston rings also play a vital role in heat transfer, conducting approximately 40% of piston heat to the cylinder wall. The ring materials—high‑grade cast iron, ductile iron, or steel—are selected for specific thermal conductivity and fatigue resistance. Each ring is precisely ground to achieve a ring gap of 0.30‑0.50 mm for the top ring, ensuring proper expansion without risk of butting under high temperatures. Counterfeit rings often have inconsistent gaps, leading to blow‑by, scuffing, or catastrophic failure. With FOTON engines powering everything from long‑haul trucks to off‑highway machinery, the t4181a026 set has proven its durability in the most demanding environments.

Technical Specifications: Piston Rings t4181a026

The following table details the critical specifications of the t4181a026 piston ring set. Understanding these parameters helps technicians verify correct application and appreciate its engineering excellence.

Advanced Metallurgy & Quality Control of t4181a026

Every genuine t4181a026 piston ring set is manufactured using precision casting and CNC grinding with ring‑grinding machines capable of achieving tolerances within 0.005 mm. The top ring receives a chromium‑ceramic or PVD coating that withstands peak combustion temperatures exceeding 2,500°C. The second ring is nitrided to increase surface hardness to HRC 55‑60, while the oil control ring rails are coated with a low‑friction chromium layer. Aftermarket counterfeit rings often skip heat treatment and coating steps, leading to rapid tension loss and scuffing.

Each ring undergoes 100% tension testing (measured in Newtons) and gap inspection using laser micrometers. The rings are packed in sets with color‑coded markings for installation orientation (top ring marked with a dot or “TOP”). A break‑in procedure sheet is included, and the packaging is vacuum‑sealed to prevent corrosion. When you choose the genuine t4181a026 set, you receive components validated on FOTON engine dynos for over 500 hours of full‑load testing, replicating real‑world driving conditions from highway cruise to maximum torque.

Global Fleet Success: Why the t4181a026 Is the Industry Standard

From the highways of West Africa to the mining sites of South America, the t4181a026 piston ring set has earned a reputation for exceptional durability. In Nigeria, major logistics fleets report that using genuine rings during overhauls has extended engine life beyond 800,000 km, with oil consumption remaining stable at 0.08 g/kWh. In Russia, where extreme cold can cause ring sticking, the t4181a026 rings maintain conformability due to their advanced anti‑scuff coatings. Fleet data from Southeast Asia shows that the ring set consistently achieves over 1 million km in well‑maintained engines.

The global availability of genuine FOTON TRUCK PARTS through distributors like Deruna ensures that the t4181a026 can be sourced quickly, minimizing downtime. Each ring set is supplied with a comprehensive installation guide, including gap‑setting instructions and torque sequences.

Installation & Break‑in: Maximizing Ring Life with t4181a026

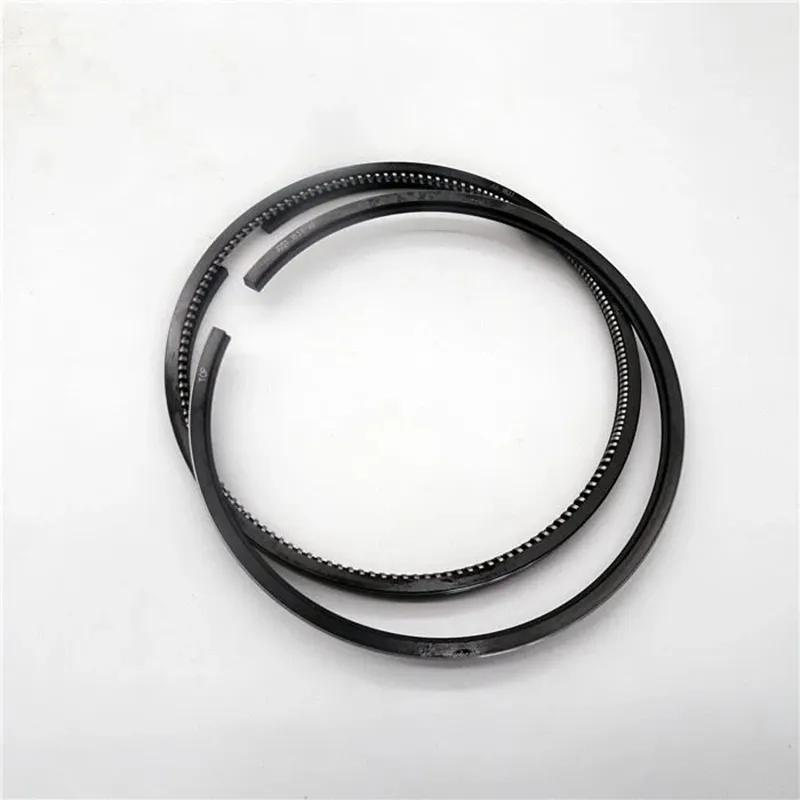

Proper installation of the t4181a026 piston ring set is critical to achieving long life. Always check ring end gap in the cylinder bore before assembly: top ring gap typically 0.30‑0.45 mm, second ring 0.40‑0.60 mm, oil ring 0.25‑0.50 mm. Stagger the ring gaps 120° apart to minimize blow‑by. Lubricate rings with clean engine oil before sliding the piston into the cylinder. Use a ring compressor tool to avoid damaging the rings. After engine reassembly, follow a strict break‑in procedure: run the engine at variable loads (no sustained full throttle) for the first 500 km, change oil and filter, then gradually increase load. A properly broken‑in t4181a026 ring set will achieve maximum compression after 1,500‑2,000 km.

Regular maintenance extends the life of the rings: use high‑quality engine oil with the correct viscosity (15W‑40 for most FOTON diesels), change oil every 10,000‑15,000 km, and replace air filters on schedule. Dust ingestion is the number one killer of piston rings. Workshops that follow these guidelines report that a genuine t4181a026 set can last over 800,000 km in normal service.

The Future: Low‑Friction & Plasma Coatings for Piston Rings

FOTON is continuously advancing piston ring technology. Next‑generation t4181a026 sets will feature DLC (diamond‑like carbon) coatings on the top ring, reducing friction by 20% and improving fuel efficiency. Plasma spray coatings (like Fe‑Cr‑Al) are being introduced for oil rings to enhance conformability and reduce scuffing. Additionally, variable tension oil rings (active control) are in development for future Euro VII engines. Despite these innovations, the need for genuine t4181a026 components remains absolute—only OEM rings are validated for the specific cylinder bore finish and combustion pressure of each engine.

For budget‑conscious overhauls, remanufactured t4181a026 ring sets (using genuine cores, re‑coated and reground) are available. They carry a 6‑month warranty and cost 35% less than new, making them ideal for older vehicles. This circular economy approach keeps FOTON engines running efficiently for decades.
