The BEIBEN A0009921603 Cabin Bushing is a crucial vibration-damping and mounting component designed to secure the truck cabin to the chassis frame. This OEM rubber-metal bushing, identified by part number A0009921603, plays a vital role in isolating the driver and passengers from road shocks, vibrations, and noise transmitted from the suspension and drivetrain. As a fundamental element for cabin comfort and structural integrity, it is a prime example of the precision engineering found in genuine Beiben truck parts.
The A0009921603 bushing ensures the cabin remains stable and properly aligned during cornering and braking, while its elastic properties absorb impacts from uneven road surfaces. This component is essential for preventing metal-to-metal contact between the cabin and frame, thereby reducing wear and enhancing the overall driving experience in BEIBEN trucks.

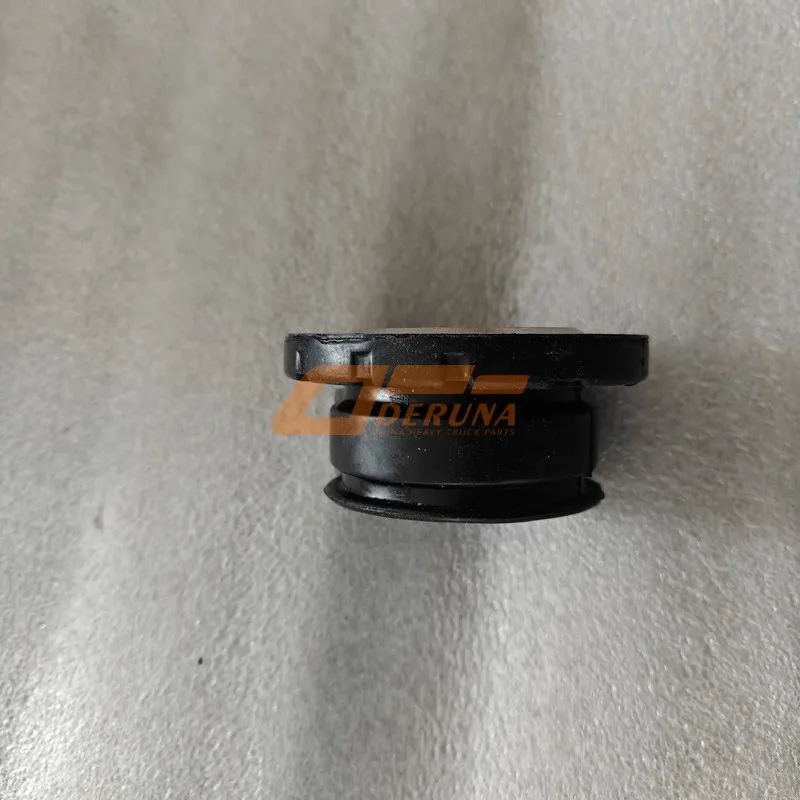

Cabin Bushing A0009921603

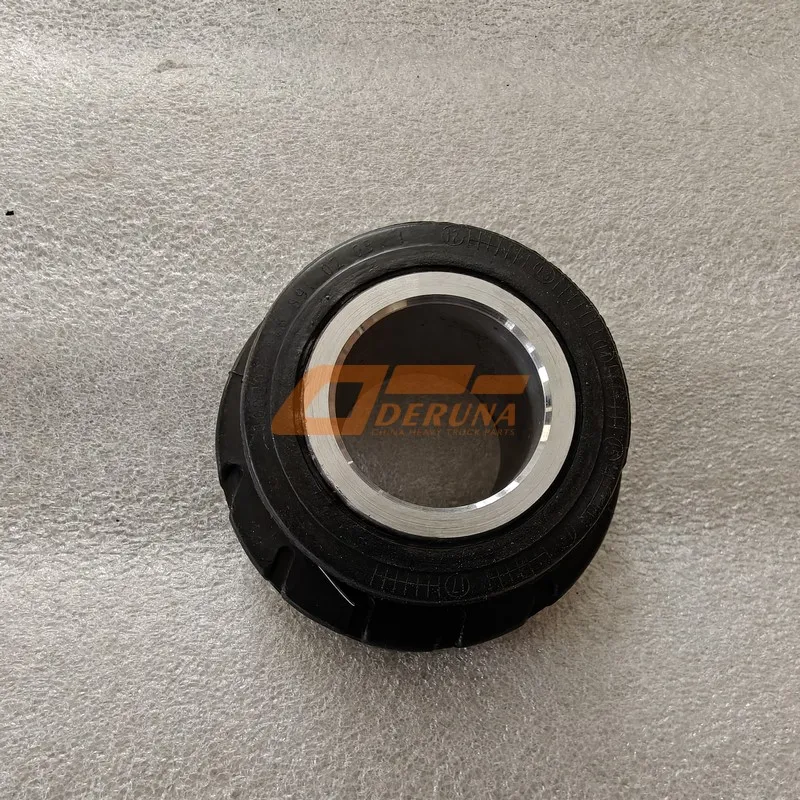

Втулка кабины A0009921603
Buje de Cabina A0009921603
The BEIBEN A0009921603 Cabin Bushing is a suspension element for the truck’s cabin itself. It is typically installed at the mounting points where the cabin attaches to the chassis frame. Its primary function is threefold: to provide a flexible connection that allows for slight cabin movement, to dampen vibrations and shocks from the road, and to reduce noise transmission into the driver’s compartment. Without a component like the A0009921603, every bump and vibration from the axles would be directly transferred to the cabin, leading to extreme driver fatigue, potential structural damage from stress, and increased noise levels.
Comfort & Isolation: The A0009921603 bushing acts as a critical isolation barrier, significantly reducing the transmission of harsh vibrations and audible noise from the chassis into the cabin, creating a quieter and less fatiguing environment.
The BEIBEN A0009921603 is engineered as a bonded rubber-metal bushing. It consists of an inner metal sleeve (often a bolt passes through this), a thick outer metal casing, and a specially formulated rubber compound that is vulcanized (permanently bonded) to both metal components. This construction ensures that the rubber does not slip or separate under load. The rubber compound is a critical aspect of the A0009921603’s performance; it is typically a high-grade, oil-resistant synthetic rubber (like NBR or polyurethane) designed to maintain its elasticity and damping properties across a wide temperature range, from freezing cold to desert heat.
The vulcanized bond in the A0009921603 between rubber and metal prevents separation and ensures consistent damping performance throughout the bushing’s service life.
The specialized rubber in the A0009921603 retains its flexibility and damping characteristics in extreme weather, preventing it from becoming too hard or too soft.
The compound used in the A0009921603 resists degradation from road oils, fuels, and cleaning chemicals, which extends its lifespan significantly.
The following table details the key technical parameters and dimensions for the genuine BEIBEN Cabin Bushing with OEM number A0009921603. This information is crucial for mechanics and parts specialists to verify the correct component for replacement. Accurate dimensions ensure proper fitment and function. Always confirm the OEM number A0009921603 against your truck’s parts manual or the original bushing before procurement.
| Parameter | Specification |
|---|---|
| OEM Part Number | A0009921603 |
| Product Name | Cabin Mounting Bushing / Stabilizer Bushing |
| Brand | BEIBEN |
| Type | Bonded Rubber-Metal Bushing |
| Outer Diameter (Housing) | Approx. 60 mm (Subject to specific design) |
| Inner Diameter (Sleeve) | Approx. 14 mm (For M12 or M14 bolt) |
| Overall Height/Width | Vehicle-Specific Dimension |
| Rubber Compound | Oil-Resistant Synthetic Rubber (NBR/Polyurethane blend) |
| Metal Components | Galvanized or Zinc-Plated Steel for Corrosion Resistance |
| Primary Application | BEIBEN Truck Cabin Mounting Points (Front & Rear) |
| Load Type | Dynamic (Shear & Compression) |
Identifying a failing BEIBEN A0009921603 Cabin Bushing is key to maintaining comfort and safety. The most common symptom is a noticeable increase in cabin vibration, especially at idle or on rough roads. Drivers may feel a constant shudder or buzz through the floor and steering column. Audible clues are also prominent; worn bushings can cause loud clunks, bangs, or creaking sounds when going over bumps, during sharp turns, or when applying brakes, as the cabin shifts excessively on its mounts.
Safety Note: Severely worn A0009921603 bushings can allow excessive cabin movement, potentially affecting vehicle handling feel and, in extreme cases, the security of the cabin mount. Prompt replacement is recommended.
Replacing the A0009921603 Cabin Bushing requires careful work due to the weight of the cabin. It is highly recommended to support the cabin securely using appropriate lifting equipment or support stands before loosening any mounts. Begin by safely raising the cabin slightly to relieve pressure from the bushing. Remove the central mounting bolt that passes through the inner sleeve of the old A0009921603 bushing.
The old bushing may need to be pressed out using a hydraulic press or a specialized bushing removal tool, as they are often a tight fit in the mounting bracket. Clean the mounting bracket thoroughly of any rust or debris. Press the new, genuine A0009921603 bushing into place, ensuring it is seated squarely. Reinstall the mounting bolt and torque it to the manufacturer’s specification. Lower the cabin carefully back onto its mounts and check all other mounting points for tightness.
The BEIBEN A0009921603 bushing is designed for specific mounting points on BEIBEN truck models. These bushings are typically used at the front, rear, or sometimes the side mounting locations of the cabin. The exact number and position vary by truck model and cabin type (e.g., day cab, sleeper cab). It is crucial to use the A0009921603 bushing where specified, as using a bushing with incorrect stiffness (durometer) or dimensions can negatively affect cabin dynamics, leading to poor vibration isolation or excessive cabin roll.
Installing a new A0009921603 bushing dramatically reduces noise and vibration, transforming a harsh ride back into a comfortable and professional driving environment.
The A0009921603 absorbs stress that would otherwise be transferred directly to the cabin frame and mounting brackets, preventing cracks and fatigue failures.
Choosing a genuine BEIBEN A0009921603 Bushing over a generic aftermarket part is a decision that impacts long-term performance. The genuine bushing is manufactured to exact OE specifications for rubber durometer (hardness), dimensions, and bonding strength. This ensures it provides the intended level of vibration isolation and load-bearing capacity. Aftermarket copies may use inferior rubber compounds that harden prematurely, lose elasticity in cold weather, or crack quickly.
Their metal components may lack proper corrosion protection. The bonding process may also be substandard, leading to premature de-bonding. The genuine A0009921603 is engineered as part of a complete cabin mounting system, guaranteeing compatibility and performance that protects both driver comfort and vehicle structure, offering better value over its entire service life.
The Cabin Bushing is a maintenance-free component in the sense that it requires no lubrication or adjustment. However, its lifespan can be extended through preventive care. Regularly inspect the bushings during routine service intervals for early signs of cracking, tearing, or oil saturation. Keep the area around the cabin mounts clean from accumulated mud and road salt, which can trap moisture and accelerate corrosion of the metal parts.
< p> Avoid using high-pressure washers directly on the bushing, as this can force water and contaminants into micro-cracks. Addressing other suspension and driveline issues (like unbalanced tires or worn engine mounts) reduces the overall vibrational load on the A0009921603 bushings. When carrying out other work near the cabin mounts, avoid using the cabin as a leverage point, which can over-stress the bushings.The BEIBEN Cabin Bushing is a small but vital component that has a profound impact on ride quality, cabin integrity, and driver comfort. Recognizing the symptoms of wear and undertaking timely replacement with a genuine part is essential. Always use the correct OEM number A0009921603 and follow proper installation procedures, preferably with professional assistance due to the weight of the cabin. Investing in genuine BEIBEN bushings ensures that your truck’s cabin remains a secure, quiet, and comfortable space, directly contributing to reduced driver fatigue and the professional operation of your vehicle.
For all your cabin mounting and suspension needs, ensure you select authentic BEIBEN components designed for durability and perfect fit.
This product description is based on standard specifications for the part number A0009921603. Dimensions and applications may vary slightly between specific BEIBEN truck models and years. Always confirm compatibility using your vehicle identification number (VIN) or by comparing with the original part. Professional installation is recommended for cabin mounting components.
