The BEIBEN FUSE 30A U is a critical blade-type fuse designed to provide reliable overcurrent protection for electrical circuits in heavy-duty trucks. This OEM component, identified by the standard designation FUSE 30A U, acts as a sacrificial safety device that interrupts power flow in the event of a short circuit or excessive current draw. As an essential and consumable part of a truck’s electrical system, it is a fundamental element within the range of genuine Beiben truck parts. The FUSE 30A U is engineered to a precise 30-ampere rating, ensuring that sensitive wiring, electronic control units (ECUs), lights, and accessories are safeguarded from damage that could lead to costly repairs or electrical fires.
U 30-Amp Fuse FUSE 30A U

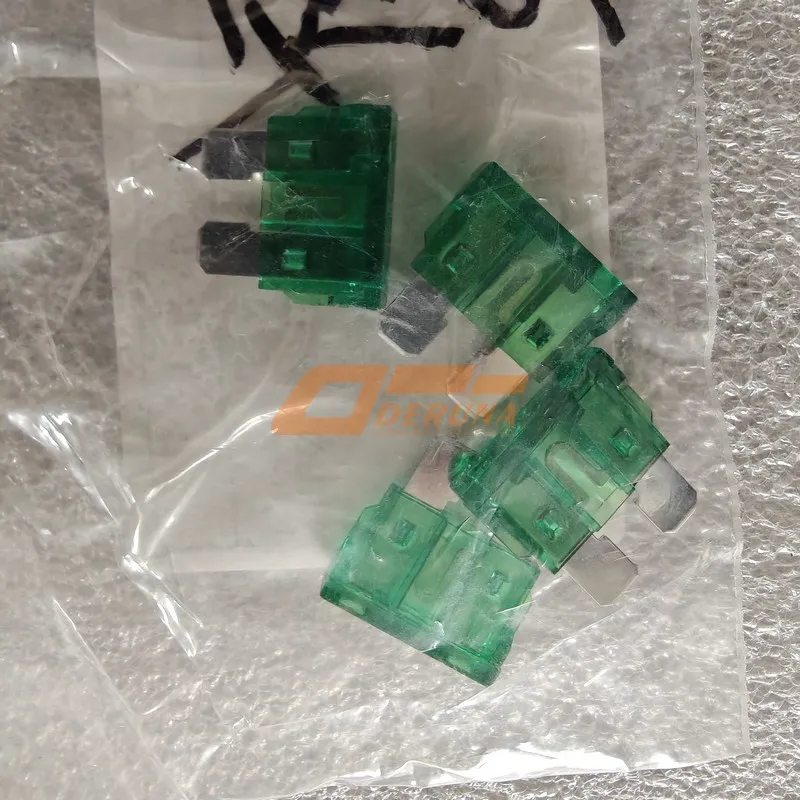

Предохранитель 30A U FUSE 30A U
Fusible 30A U FUSE 30A U
The primary function of the BEIBEN FUSE 30A U is to serve as the weakest link in a protected electrical circuit. It is installed in-line on the positive wire leading to a specific component or group of components. Under normal operating conditions, current flows freely through the fuse’s calibrated metal element. However, if a fault occurs—such as a short to ground, a wiring harness pinch, or a failed motor drawing too much current—the circuit experiences a current surge exceeding the 30-amp rating. This causes the thin element inside the FUSE 30A U to heat up rapidly and melt, intentionally breaking the circuit.
Critical Safety Role: The FUSE 30A U is a first-line defense against electrical fires. By interrupting fault currents instantly, it prevents excessive heat buildup in wiring, which is a primary cause of vehicle fires.
The BEIBEN FUSE 30A U is built to industry-standard dimensions for a standard blade (ATO/ATC) fuse. Its housing is made from durable, transparent plastic, allowing for quick visual inspection to see if the internal element is intact or broken. The conductive blades are made from tin-plated copper or brass, providing excellent electrical conductivity and corrosion resistance. The critical fuse element inside is a precisely calibrated strip of zinc, copper, or silver alloy with a specific cross-sectional area designed to melt at just above 30 amps under defined time-current conditions.
The clear housing of the FUSE 30A U allows mechanics and drivers to instantly verify its status without needing test equipment, speeding up diagnostics.
The internal element in the FUSE 30A U is engineered to blow at a consistent 30-amp threshold, providing predictable and reliable circuit protection.
Constructed to withstand the harsh environment of a truck, the FUSE 30A U will not fail due to shaking or temperature fluctuations under normal use.
The table below outlines the detailed technical specifications for the genuine BEIBEN fuse with the designation FUSE 30A U. This data is essential for understanding its electrical characteristics and ensuring the correct replacement is used. Never substitute a fuse with a different amperage rating, as this compromises safety. Always match the OEM specification FUSE 30A U exactly.
| Parameter | Specification |
|---|---|
| OEM Part Number / Designation | FUSE 30A U |
| Product Name | 30 Amp Blade Fuse (Standard) |
| Brand | BEIBEN |
| Rated Current (In) | 30 Amperes |
| Rated Voltage | 32V DC (for automotive 12V/24V systems) |
| Type / Standard | Blade Type (ATO/ATC), DIN/ISO 8820-3 |
| Blade Dimensions (L x W x H) | Approx. 19.1mm x 5.1mm x 18.5mm |
| Color Code (Standard) | Green |
| Interrupting Capacity | High (Suitable for automotive applications) |
| Housing Material | Transparent PVC or Phenolic |
| Element Material | Zinc/Copper Alloy |
| Primary Application | BEIBEN Truck Fuse Panels (Protecting circuits for fans, horns, power seats, etc.) |
The FUSE 30A U is commonly used to protect circuits that power devices with moderate to high current draw. Typical applications within a BEIBEN truck include the primary cooling fan motor circuit, the horn circuit, the power window and door lock system, the heated mirror circuit, the trailer light connection, and auxiliary power outlets (cigarette lighter sockets). It may also protect the circuit for a hydraulic tailgate pump or a cab air conditioning blower motor.
< p> The specific placement of each FUSE 30A U is detailed in the vehicle’s wiring diagram and owner’s manual. It is crucial to replace a blown fuse with one of the identical amperage rating; using a higher-rated fuse (like a 40A) in a slot designed for a FUSE 30A U can lead to wiring damage before the fuse blows.Warning: A blown FUSE 30A U is a symptom of an underlying problem. Always investigate the cause of the overload (short circuit, faulty component) before replacing the fuse. Simply replacing it without diagnosis may lead to immediate re-blowing or component damage.
Diagnosing a blown FUSE 30A U is straightforward. If an electrical component stops working, consult the truck’s fuse panel diagram to locate the corresponding fuse. Visually inspect the suspected FUSE 30A U; a broken metal element or discolored, melted housing indicates it has blown. For confirmation, use a multimeter set to continuity mode; there should be no continuity (open circuit) across the fuse blades. To replace it, first ensure the related electrical component is turned off.
< p>Use a fuse puller tool or needle-nose pliers to gently but firmly extract the blown FUSE 30A U from its slot. Insert a new, genuine BEIBEN FUSE 30A U, pressing it fully into place until seated. Restore power and test the component. If the new fuse blows immediately, a serious fault exists that requires professional electrical diagnosis.The BEIBEN FUSE 30A U is manufactured to universal automotive industry standards for blade fuses (specifically ATO/ATC). This means it is physically and electrically interchangeable with other standard 30-amp green blade fuses from quality manufacturers. However, for optimal reliability and guaranteed performance, using the genuine BEIBEN-specified part is recommended. It ensures the fuse meets the exact material and timing specifications required for the vehicle’s unique electrical load profiles. The FUSE 30A U is compatible with all BEIBEN truck models that utilize standard blade fuse panels in their 12V or 24V electrical systems. .
The genuine FUSE 30A U complies with international automotive safety standards (ISO, DIN), ensuring its performance is predictable and safe for your vehicle’s specific circuits.
Due to its critical role and potential to fail, carrying spare FUSE 30A U fuses is considered essential for any truck driver or fleet maintenance kit.
While generic fuses may look identical, genuine BEIBEN FUSE 30A U components offer assured quality. Counterfeit or substandard fuses may use incorrect element materials or thinner blades, leading to inaccurate trip characteristics. They might blow prematurely under normal load or, more dangerously, fail to blow during a mild overload, allowing wires to overheat. The housing material on genuine fuses is flame-retardant and provides clear visibility. The precise calibration of a genuine FUSE 30A U ensures it protects the circuit as the vehicle’s engineers intended. In electrical safety, there is no room for compromise.
Fuses themselves require no maintenance, but proactive checks are wise. Periodically inspect the main fuse panels for any signs of corrosion on the fuse blades or terminals, as this can increase resistance and cause overheating. Keep a selection of spare fuses, including the FUSE 30A U, in a dry, clean container within the truck. Store them in their original packaging if possible to prevent contamination or bending of the blades.
< p>When handling fuses, ensure your hands are dry to avoid transferring moisture or oils to the contacts. During vehicle servicing, a visual check of all fuses can identify potential weak points before they lead to a failure on the road. Educating drivers on the location of the fuse box and basic fuse replacement can minimize downtime for minor electrical issues.The BEIBEN FUSE 30A U is a small, inexpensive, yet vitally important component for electrical safety and reliability. Understanding its function, knowing how to diagnose and replace it, and always using a genuine replacement of the correct rating are fundamental skills for any truck owner or technician. Never bypass a fuse or use a higher amperage rating as a fix. Always investigate the root cause of a blown fuse.
For a complete range of BEIBEN electrical protection components, from fuses to relays, consult our catalog to keep your vehicle’s electrical system in specification.
This product information is based on industry standards for a 30-amp blade fuse. The designation FUSE 30A U is a generic OEM identifier. Always confirm the specific fuse rating and type from your vehicle’s fuse panel diagram or owner’s manual before replacement. Electrical work should be performed with the battery disconnected to prevent short circuits.
