BEIBEN 881-545-02-24 Combination Switch | Truck Control

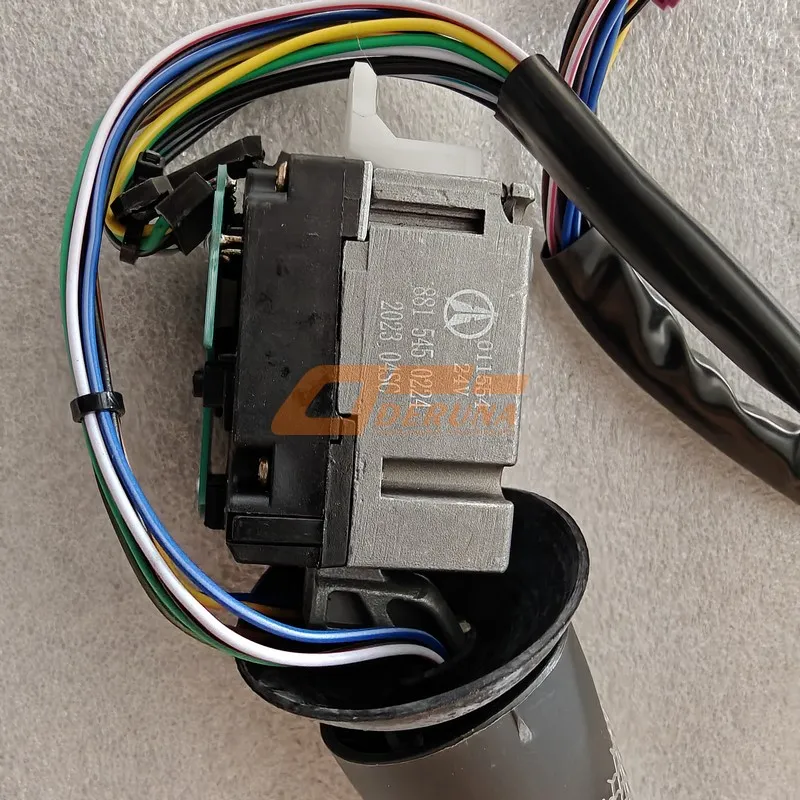

The BEIBEN 881-545-02-24 Combination Switch is an integrated control unit that consolidates multiple steering column functions into a single, ergonomic module for heavy-duty trucks. This OEM component, identified by part number 881-545-02-24, serves as the primary interface for the driver to operate lighting, wipers, turn signals, and auxiliary systems without removing hands from the wheel. As a critical part of the driver-vehicle interaction, it exemplifies the thoughtful design found in genuine Beiben truck parts. Engineered for durability and tactile precision, the 881-545-02-24 switch ensures reliable operation through thousands of cycles, enhancing both convenience and safety during long hauls or complex maneuvers.

Primary Functions of the 881-545-02-24 Switch

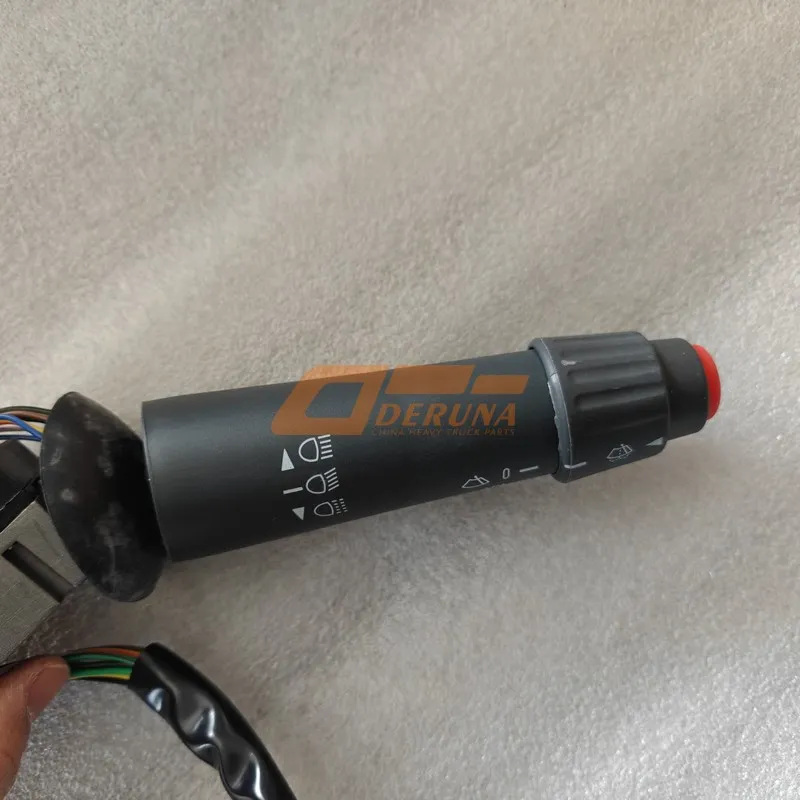

The BEIBEN 881-545-02-24 Combination Switch masterfully controls a wide array of vehicle functions from the steering column. Its primary levers and stalks allow the driver to activate left and right turn signals, as well as control the headlight functions—typically switching between parking lights, low beam, and high beam. A dedicated rotary control or toggle often manages the front and rear wiper systems, including intermittent, low, and high speeds, along with the windshield washer function.

< p> Additional buttons or a separate stalk on the 881-545-02-24 module may be assigned for cruise control activation and setting, controlling the engine exhaust brake, or operating momentary functions like the horn or headlight flasher. This integration eliminates the need for multiple separate switches, reducing cabin clutter and improving operational efficiency.

Ergonomic Design and Durability Features

Designed for driver comfort and long-term reliability, the 881-545-02-24 Combination Switch features ergonomically shaped levers with positive detent positions for precise tactile feedback. The housing is constructed from high-strength, UV-resistant plastics that prevent fading and cracking. Internal contacts are made from precious metals like silver or gold-plated alloys to ensure minimal electrical resistance and prevent corrosion, which is critical for consistent signal transmission. The wiring harness connector on the 881-545-02-24 is a keyed, multi-pin design that prevents incorrect installation and ensures a secure, vibration-resistant connection to the truck’s main wiring loom.

Technical Specifications for 881-545-02-24

The table below provides the detailed technical specifications for the genuine BEIBEN Combination Switch with OEM number 881-545-02-24. This data is essential for verifying the component’s capabilities and ensuring correct compatibility during the replacement process. Always match the part number 881-545-02-24 exactly when ordering to guarantee a perfect fit and full functionality for your specific BEIBEN truck model and production year.

Parameter	Specification
OEM Part Number	881-545-02-24
Product Name	Combination Switch (Multifunction Switch)
Brand	BEIBEN
Mounting Location	Steering Column (Left-Hand Side)
Controlled Functions	Turn Signals, Headlights (Lo/Hi), Wiper/Washer, Cruise Control, Exhaust Brake
Electrical Rating	12V/24V DC, up to 15A per circuit
Connector Type	Multi-pin, Vehicle-Specific Harness Plug
Housing Material	Glass-Filled Nylon (Heat & Impact Resistant)
Mechanical Life	> 100,000 actuations per function
Compatibility	BEIBEN Heavy-Duty Truck Models (Specific Years/Series)

Common Failure Symptoms and Diagnosis

A failing BEIBEN 881-545-02-24 Combination Switch often presents clear, identifiable symptoms. The most common issues include intermittent or non-functional turn signals where the indicator may not light up on the dashboard or externally, or it may fail to self-cancel after a turn. Problems with headlight control are also frequent, such as the inability to switch from low to high beam, or certain lighting modes not working. Wiper functions that operate erratically, stay on continuously, or fail to activate are another strong indicator.

< p>Sometimes, a faulty 881-545-02-24 can cause parasitic battery drain if internal contacts short. Diagnosis involves checking for power and ground at the switch connector, testing continuity for each function position, and inspecting the switch for physical damage or worn internal components. Often, replacing the entire 881-545-02-24 unit is the most reliable repair.

Installation and Replacement Procedure

Replacing the 881-545-02-24 Combination Switch is a moderately complex task that requires careful attention. First, disconnect the negative terminal of the truck’s battery to eliminate any risk of short circuits. Remove the steering column shroud or covers to gain access to the switch assembly. The 881-545-02-24 switch is typically held in place by several screws or plastic clips. Carefully disconnect the main wiring harness plug from the rear of the switch.

< p>Note the routing of any cables to assist with reinstallation. Remove the old unit and position the new, genuine 881-545-02-24 combination switch in its place. Secure it with the screws or clips, and firmly reconnect the wiring harness. Reassemble the column covers and reconnect the battery. Finally, test all functions—turn signals, headlights, wipers, and cruise control—to confirm the new 881-545-02-24 switch is operating correctly.

Compatibility and Vehicle-Specific Design

The BEIBEN 881-545-02-24 Combination Switch is not a universal part; it is designed for specific BEIBEN truck models, often varying by model year and cab configuration. The switch’s internal circuitry, connector pinout, and included functions (like the presence of an exhaust brake button) are tailored to the vehicle’s wiring architecture and available features. Therefore, it is crucial to verify the OEM number 881-545-02-24 against your truck’s parts catalog or the original switch. Installing an incorrect switch can lead to malfunctions, with some functions not working or causing electrical conflicts.

Why Choose a Genuine 881-545-02-24 Over Aftermarket?

Opting for a genuine BEIBEN 881-545-02-24 Combination Switch provides assurance of quality, safety, and longevity that aftermarket copies cannot match. Genuine parts use higher-grade materials for contacts and housing, undergo rigorous testing for electrical and mechanical endurance, and are guaranteed to match the vehicle’s specifications. Aftermarket switches may feel flimsy, use inferior plastics that crack, or have contacts that wear out or overheat quickly, leading to premature failure and potential safety hazards.

< p>The genuine 881-545-02-24 also ensures proper integration with any vehicle CAN bus systems, preventing error codes. The investment in the authentic part, while sometimes higher initially, avoids the cost and downtime of a second replacement and protects the reliability of your truck’s critical control systems.

Maintenance and Care for Longevity

The 881-545-02-24 Combination Switch requires minimal direct maintenance but benefits from a clean and dry operating environment. Avoid spilling liquids on or near the steering column, as moisture can seep into the switch and corrode internal contacts. When cleaning the cabin, use a dry or slightly damp cloth to wipe the switch levers, avoiding harsh chemicals or excessive moisture. If the switch begins to feel sticky or rough in operation, it may indicate internal contamination or wear, signaling that the 881-545-02-24 may need future replacement.

This product information is based on manufacturer data for part number 881-545-02-24. Specifications and compatibility may vary by vehicle model and year. Always verify the part number from your original component or vehicle manual before purchase. Installation should be performed by a qualified technician familiar with vehicle electrical systems.
