Maintaining a reliable and contamination-free lubrication system is fundamental to engine health and longevity, starting with the selection of authentic Foton truck parts. The 1124116300006 Oil Tank Assy (Oil Tank Assembly) is a critical OEM component engineered specifically for FOTON commercial trucks. This assembly serves as the central reservoir for engine oil, providing consistent supply, aiding in cooling, and facilitating the separation of air and contaminants from the lubricant. Precision-manufactured to exact factory specifications, the 1124116300006 ensures perfect fitment, robust durability, and reliable performance under demanding operational conditions. For fleet managers and owner-operators, this component is vital for preventing lubrication-related failures and minimizing costly downtime.

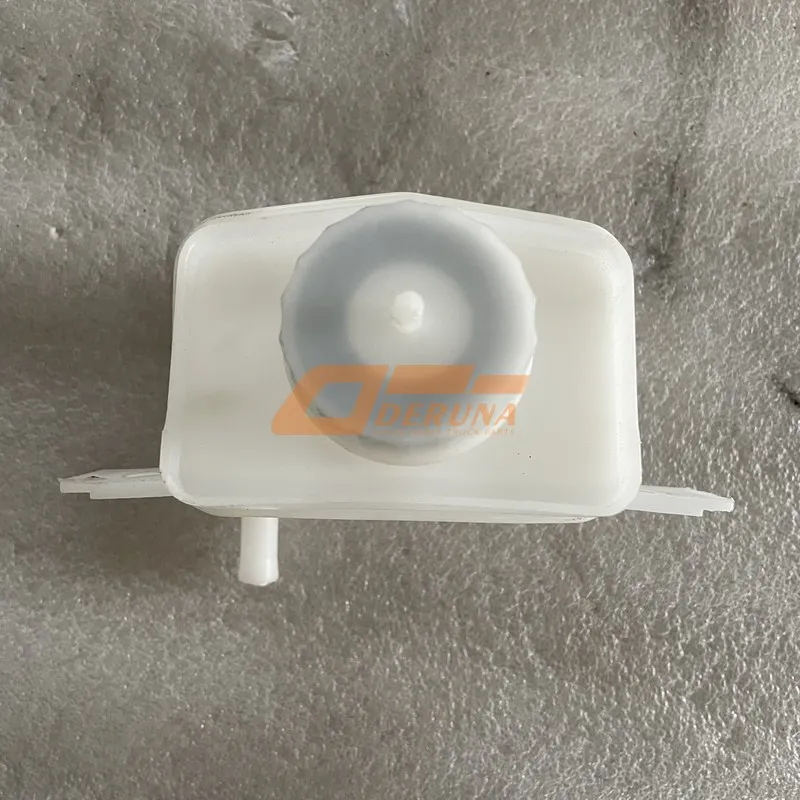

Oil Tank Assy (Assembly)
Сборка масляного бака
Conjunto del Tanque de Aceite
The 1124116300006 Oil Tank Assy is a complete, genuine OEM lubrication system component designed for FOTON trucks. It functions as the main storage and management unit for engine oil, typically integrated into systems such as engine lubrication, hydraulic circuits for accessories, or specific auxiliary systems. This assembly is more than a simple reservoir; it is an engineered system that often includes the tank body, mounting brackets, integrated oil passages, pickup tube, return line connections, and a breather or venting mechanism. Its design ensures a consistent and air-bubble-free supply of oil to the pump, which is critical for maintaining oil pressure and preventing cavitation.
Constructed from high-quality, stamped steel or aluminum with corrosion-resistant coatings, the 1124116300006 is built to withstand internal pressure, engine vibration, and exposure to heat and road chemicals. The tank’s internal baffling helps control oil sloshing during vehicle motion, ensuring the pickup tube is always submerged, even during sharp turns or on steep inclines. This is essential for heavy-duty trucks operating in construction, logging, or on uneven terrain. For mechanics and fleet managers, the genuine 1124116300006 assembly guarantees compatibility and performance, replacing a complex set of parts with one reliable unit that restores system integrity.
Using the OEM 1124116300006 assembly ensures that all critical interfaces—such as mounting points, hose connections, and sensor ports—align perfectly with the vehicle’s existing architecture. This eliminates leaks, reduces installation time, and provides peace of mind that the lubrication system will function as designed by FOTON engineers, protecting the engine from oil starvation and excessive wear.
The 1124116300006 assembly features internal baffles and a strategically placed pickup tube to ensure a consistent oil supply, preventing oil starvation during dynamic vehicle maneuvers and promoting effective air separation from the oil.
Manufactured from robust materials with protective coatings, the tank resists corrosion from oil additives and external elements, ensuring long-term structural integrity and preventing leaks that could lead to system failure.
As a genuine assembly numbered 1124116300006, it includes all necessary components for a direct replacement. This guarantees perfect alignment with mounting brackets, hose fittings, and sensor connections, eliminating modification needs.
Additional benefits include integrated cooling fins or mounting provisions for oil coolers on some models, which help manage oil temperature under heavy loads. The assembly also simplifies inventory and repair processes; instead of sourcing individual gaskets, lines, and the tank separately, the 1124116300006 provides a complete, ready-to-install solution. This reduces the chance of installation errors and ensures all internal components, such as the pickup screen, are clean and properly installed from the factory, safeguarding the engine’s lubrication circuit from the moment of installation.
| Parameter | Specification | Description |
|---|---|---|
| OEM Part Number | 1124116300006 | Genuine FOTON Identification Code |
| Product Name | Oil Tank Assy | Complete Oil Tank Assembly |
| Compatible Brand | FOTON Trucks | Commercial Vehicle Manufacturer |
| Primary Material | Stamped Steel / Aluminum Alloy | Coated for Corrosion Resistance |
| Tank Capacity | Model-Specific (e.g., 15-30 Liters) | Designed for System Requirements |
| Internal Design | Baffled | Controls Oil Surge & Aeration |
| Included Components | Tank, Pickup Tube, Mounts, Gaskets | Complete Assembly Ready for Installation |
| Connection Ports | Suction, Return, Breather, Drain | Standardized Fittings for System Integration |
| Pressure Rating | Atmospheric / Low-Pressure | Designed for Lubrication System Use |
| Application | Engine Lubrication / Hydraulic System | Primary Oil Reservoir |
The 1124116300006 Oil Tank Assy plays several indispensable roles. Primarily, it serves as a storage reservoir, holding an adequate volume of oil to accommodate system demands, thermal expansion, and gradual consumption between service intervals. Secondly, it acts as a settling and de-aeration chamber. As oil returns from the engine, it can contain air bubbles and fine contaminants. The tank’s design allows these to separate from the oil before it is drawn back into the pump, ensuring only dense, air-free oil is circulated—critical for maintaining oil pressure and effective lubrication.
Furthermore, the assembly aids in cooling. By providing a large surface area, it allows heat to dissipate from the oil. In some configurations, it directly mounts an oil cooler. The tank also houses the oil pickup tube and screen, which are the gateway to the lubrication pump. A damaged or poorly seated pickup tube in a non-genuine tank can lead to oil starvation, the leading cause of catastrophic engine bearing failure. The genuine 1124116300006 ensures this critical component is correctly positioned and secure.
A failure in the oil tank—such as a leak, internal baffle collapse, or pickup tube breakage—compromises the entire lubrication system. Therefore, the 1124116300006 is not a passive container but an active, engineered component vital for system reliability, engine protection, and overall vehicle uptime.
Step 1: Drain all oil from the old tank and system. Disconnect all hoses, electrical sensors (level, temperature), and mounting hardware.
Step 2: Remove the old assembly. Thoroughly clean the mounting area and inspect all connecting hoses and lines for wear.
Step 3: Transfer any necessary sensors or fittings to the new 1124116300006 assembly, using new gaskets or seals provided.
Step 4: Position the new assembly, aligning all mounting points. Secure it with the correct fasteners, tightening to the specified torque sequence.
Step 5: Reconnect all hoses and sensors. Refill with the correct grade and quantity of oil. Start the engine and check meticulously for leaks while monitoring oil pressure.
• Regular Visual Checks: During oil changes, inspect the 1124116300006 tank exterior for signs of corrosion, dents, or oil seepage, especially around welds and fittings.
• Internal Inspection: If possible during major service, check the interior for sludge buildup or debris that could indicate a failing internal component or contaminated oil.
• Seal & Gasket Integrity: Always replace the drain plug gasket and any flange gaskets during service to prevent leaks.
• System Flushing: If replacing a failed tank due to contamination, flush the entire oil system to remove debris before installing the new 1124116300006 assembly.
Professional installation is recommended due to the critical nature of the lubrication system. Ensuring all connections are leak-free and the pickup tube is properly oriented is essential. After installation, run the engine at idle and then under load, checking for proper oil pressure and the absence of unusual noises that could indicate air in the system (aeration).
Opting for the authentic 1124116300006 Oil Tank Assy over aftermarket copies provides definitive advantages in safety, reliability, and cost-effectiveness. The foremost benefit is guaranteed system integration. The genuine assembly is designed from the original FOTON CAD data, ensuring every bracket, port, and internal passage matches the vehicle perfectly. A poorly fitting aftermarket tank can stress mounting points, misalign hoses, and lead to premature failure.
Secondly, material and construction quality are paramount. The genuine 1124116300006 uses materials with verified chemical and corrosion resistance, and its welds and baffles are manufactured to withstand years of vibration and thermal cycling. Inferior tanks may use thinner gauge metal or lack proper baffling, risking collapse or inadequate oil control.
Using the OEM 1124116300006 also preserves the vehicle’s warranty and is a key factor for resale value, demonstrating proper maintenance. Economically, while the initial cost may be higher, it prevents the immense downstream costs of engine failure due to oil starvation caused by a faulty tank. The complete assembly also saves labor time and eliminates the risk of missing a critical sub-component during repair.
In summary, the 1124116300006 is a foundational component of the lubrication system. Choosing the genuine part is a direct investment in engine protection, operational reliability, and long-term asset value for your FOTON truck.
A: The genuine OEM part number is 1124116300006. This number identifies the complete Oil Tank Assy designed for specific FOTON truck models and their lubrication systems.
A: Symptoms include visible oil leaks from the tank body or seams, persistent low oil pressure (potentially from a cracked pickup tube), excessive engine noise due to aeration (foamy oil), or visible external damage like deep dents that reduce capacity or affect internal baffles.
A: It is not recommended. The 1124116300006 is a pressurized component subject to vibration and heat cycles. Welds or sealants used in repair may fail, leading to sudden oil loss and engine damage. Replacement with a new, genuine assembly is the only safe course of action.
A: Yes, the genuine 1124116300006 Oil Tank Assy typically includes the tank, integrated pickup tube and screen, mounting brackets, and often the necessary gaskets for a complete installation. Always verify the contents upon receipt against the OEM parts list.
The 1124116300006 Oil Tank Assy is an essential OEM component that forms the heart of the lubrication system in FOTON trucks. Its precision engineering, durable construction, and complete assembly design ensure reliable oil storage, de-aeration, and supply—functions critical to preventing engine wear and catastrophic failure.
Investing in the genuine 1124116300006 is a proactive measure that safeguards your engine, reduces unscheduled downtime, and optimizes long-term operating costs. It provides the assurance of perfect fitment, material integrity, and system compatibility that aftermarket parts cannot match.
Incorporate inspection of the oil tank into your routine maintenance schedule and replace it promptly with the authentic 1124116300006 assembly at the first sign of compromise. This commitment to quality components is fundamental to achieving maximum reliability and service life from your FOTON commercial vehicle in any operating environment.
