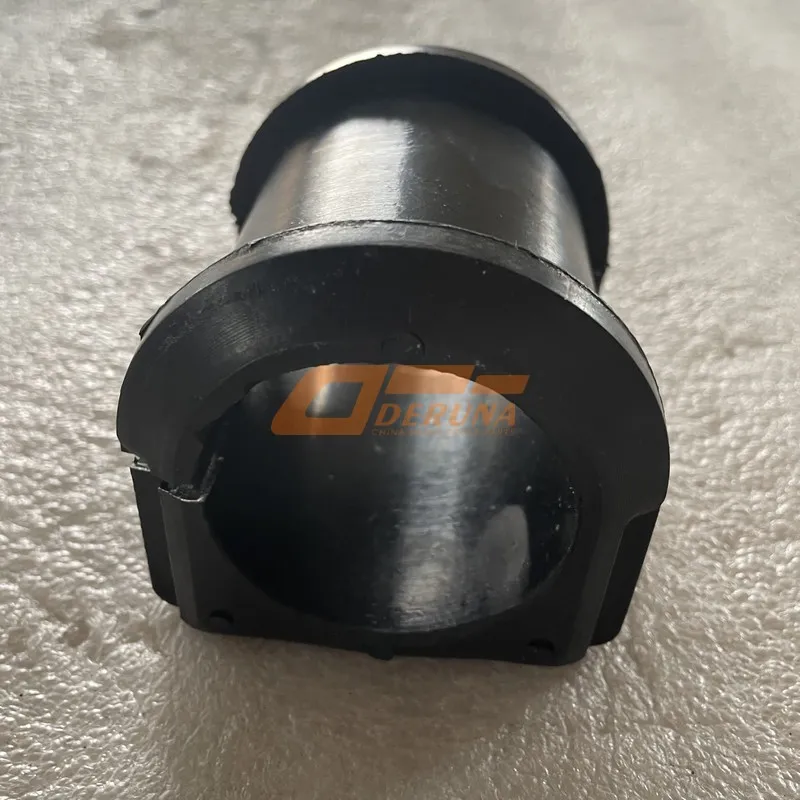

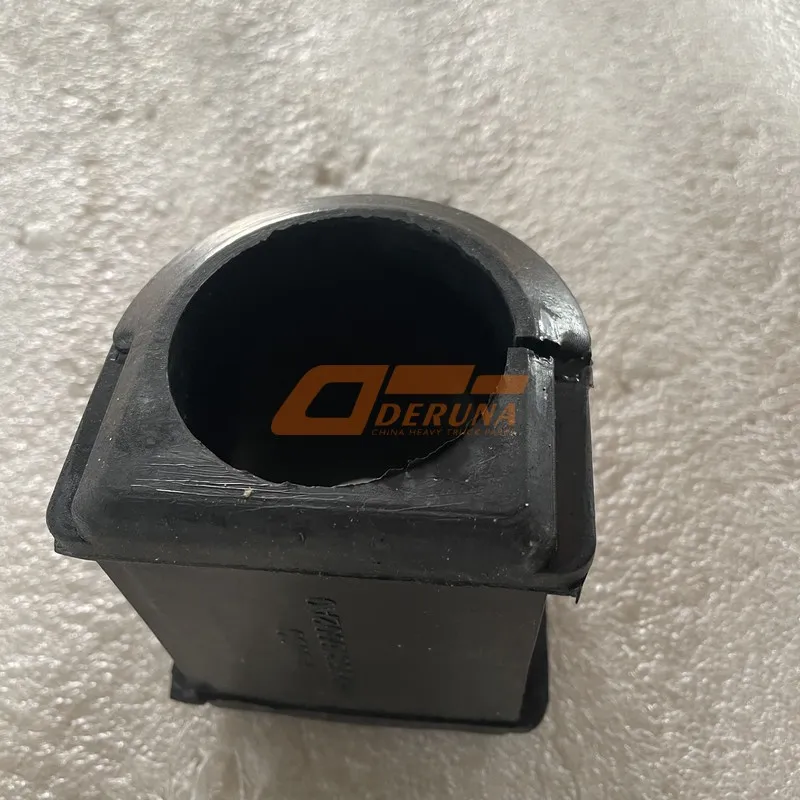

A smooth and controlled ride is essential for driver comfort and vehicle stability, especially in a commercial truck. As a premier supplier of high-performance Foton truck parts, we present the crucial Rear Stabilizer Bar Rubber, identified by the official OEM part number H4295310002A0. This component, often called a stabilizer bar bushing or link kit rubber, is a vital part of the suspension system on many FOTON trucks. It serves as the flexible connection point between the rigid stabilizer bar (anti-roll bar) and the vehicle’s chassis or suspension arms. The specific bushing, part number H4295310002A0, is engineered to absorb road shocks, reduce body roll during cornering, and minimize noise and vibration for a more stable and comfortable driving experience.
Rear Stabilizer Bar Rubber (English)
Резиновая втулка стабилизатора (Russian)
Goma de la Barra Estabilizadora Trasera (Spanish)
The Rear Stabilizer Bar Rubber, part number H4295310002A0, plays a pivotal role in the truck’s anti-roll bar system. The stabilizer bar itself is a torsion spring that connects the left and right wheels, resisting the vehicle’s tendency to lean or roll during turns.
This specific rubber bushing, H4295310002A0, is mounted in a bracket that clamps the bar to the chassis. It allows the bar to twist freely while preventing metal-to-metal contact. This controlled flex is what transfers force from one side of the suspension to the other, keeping the truck more level and improving tire contact with the road surface during cornering maneuvers, especially when carrying a load.
Without a functional bushing, the bar can rattle, clunk, or bind, leading to imprecise handling, increased tire wear, and a noticeable degradation in ride quality and safety. Therefore, the condition of bushing H4295310002A0 directly impacts vehicle dynamics.
The genuine H4295310002A0 bushing is manufactured from a specialized rubber compound, typically a synthetic rubber like EPDM or polyurethane. This material is selected for its excellent elasticity, resistance to ozone and UV degradation, and ability to maintain its properties across a wide temperature range.
The bushing is often molded with specific internal grooves or channels. These features allow for controlled deflection and can also be filled with lubrication during installation to minimize friction and squeaking. Some designs may include a metal sleeve or outer casing for added strength and precise fitment within the mounting bracket.
The compound is tested for its durometer (hardness), tensile strength, and compression set to ensure it provides the correct balance of flexibility and firmness required for the specific weight and dynamics of the FOTON truck model.
A deteriorating Rear Stabilizer Bar Rubber, part number H4295310002A0, produces several identifiable symptoms. The most common is a loud clunking or knocking sound from the rear of the truck when driving over bumps or uneven surfaces.
Handling will feel less precise, with increased body roll or a vague, “floaty” sensation during turns. In severe cases, the driver might feel a slight rear-end shimmy or vibration. Visually, a worn bushing may exhibit cracks, splits, or appear flattened and deformed. In extreme cases, it may have completely separated or extruded from its bracket.
Ignoring these signs allows excessive movement of the stabilizer bar, which can lead to accelerated wear on other suspension components and potentially affect the alignment, leading to uneven tire wear. Timely replacement of the H4295310002A0 bushing is a cost-effective maintenance item.
The table below provides the detailed technical data for the genuine FOTON Rear Stabilizer Bar Rubber. This information is essential for correct identification and understanding of its specifications.
| Parameter | Specification | Details / Notes |
|---|---|---|
| OEM Part Number | H4295310002A0 | Genuine FOTON Identification |
| Product Name | Rear Stabilizer Bar Rubber | Stabilizer Bar Bushing / Link Bushing |
| Brand | FOTON | Original Equipment Manufacturer |
| Primary Material | Synthetic Rubber (EPDM/Polyurethane) | High-grade, oil-resistant compound |
| Mounting Type | Bracket-Mounted Bushing | Clamps around the stabilizer bar |
| Application | Rear Suspension | Anti-roll / Stabilizer bar system |
| Function | Vibration Damping & Articulation | Allows bar twist, reduces noise and roll |
| Compatibility | Specific FOTON Truck Models | Check vehicle application guide |
Replacing the rear stabilizer bar bushing H4295310002A0 requires lifting the vehicle and supporting it securely on jack stands. The rear wheels may need to be removed for access. The old bushing is held in place by a bracket secured with bolts.
After removing the bracket bolts, the bracket can be separated, and the worn bushing removed from the bar. The bar should be cleaned thoroughly at the contact point. The new bushing, part number H4295310002A0, should be lubricated with the specified silicone-based grease (if included or recommended) to prevent squeaks.
It is then positioned on the bar, and the bracket is reassembled around it. The bracket bolts must be tightened to the manufacturer’s specified torque in the correct sequence to ensure even clamping pressure. Professional installation is recommended to ensure proper alignment and torque specification.
Regular inspection of suspension bushings, including H4295310002A0, can prevent handling issues and costly repairs.
Visual Inspection: During routine service, visually inspect the bushing for cracks, tears, excessive hardening, or separation from the metal sleeve. Check for signs of the bushing being “squeezed out” of its bracket.
Physical Test: With the vehicle safely lifted, try to move the stabilizer bar vertically. Excessive free play or a visible shift in the bushing within the bracket indicates wear. Listen for clunking sounds as the bar is moved.
Replacement Interval: There is no fixed mileage, but inspect bushings every 50,000 miles or during major suspension service. Proactively replacing worn bushings like H4295310002A0 restores handling precision and comfort.
System Check: When replacing this bushing, it is wise to inspect the stabilizer bar links and other suspension bushings for wear, as they often have similar service lives.
The specific compound and dimensions of the H4295310002A0 bushing are calibrated by FOTON engineers. Aftermarket bushings may use a harder or softer rubber, altering the vehicle’s handling characteristics—potentially making it too stiff or too loose.
Incorrect dimensions can lead to improper fit, causing the bushing to shift, bind, or wear out rapidly. The genuine part is designed to provide the optimal balance between comfort and control for that specific truck model, whether empty or laden.
Investing in the OEM bushing ensures predictable performance, longevity, and the preservation of the vehicle’s original driving dynamics. The part number H4295310002A0 guarantees this precise engineering.
The Rear Stabilizer Bar Rubber, OEM part H4295310002A0, is a small but mighty component that significantly influences ride quality, safety, and vehicle control. Its role in managing body roll and isolating vibrations is indispensable for a professional driving experience.
Choosing the genuine FOTON part ensures you restore your truck’s suspension to its designed performance level. It guarantees material integrity, perfect fitment, and durability under the stresses of commercial use.
Do not compromise on suspension components that affect stability. Insist on the authentic H4295310002A0 bushing for your FOTON truck’s suspension maintenance. For all your chassis and suspension needs, explore our comprehensive catalog of genuine and high-quality replacement parts to ensure your fleet remains stable, comfortable, and safe on every journey.
