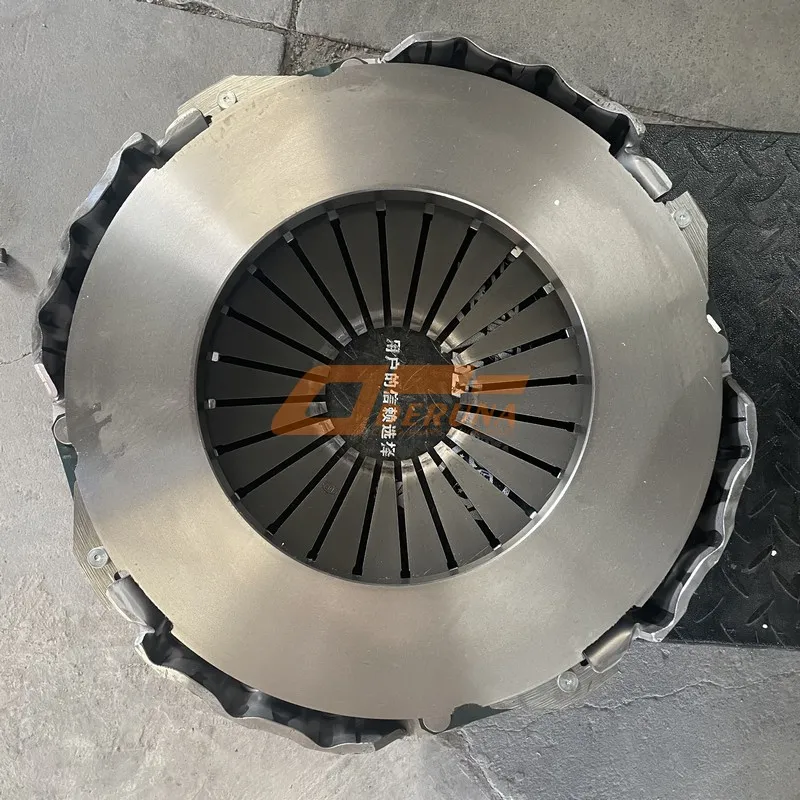

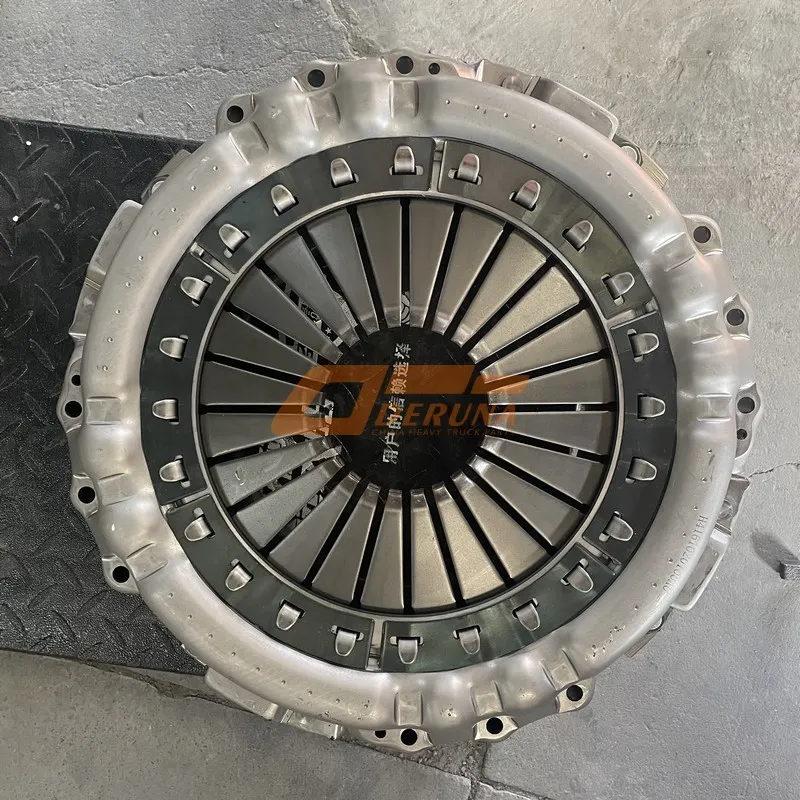

Genuine H4161020100A0 Clutch Basket: Robust Foundation for FOTON Truck Clutch Systems

Core Function and Integral Role in the Clutch Assembly

The clutch basket, also known as the clutch cover or pressure plate assembly, is the stationary housing that contains the pressure plate, diaphragm spring, and release mechanism. The component identified by the OEM number H4161020100A0 is a complete, pre-assembled unit that bolts directly to the engine’s flywheel. Its primary function is to apply and release clamping force on the clutch disc. When the clutch pedal is released, the diaphragm spring within the H4161020100A0 basket exerts tremendous pressure, squeezing the clutch disc against the flywheel, thereby engaging the transmission of engine power. When the pedal is depressed, the release mechanism retracts the pressure plate, disengaging the power flow.

The structural integrity of the H4161020100A0 is paramount. It must remain perfectly rigid to maintain even pressure distribution across the entire surface of the clutch disc. Any warping, cracking, or fatigue in the basket can lead to inconsistent clamping, causing clutch slippage, shuddering, uneven wear, and premature failure of the friction disc. For FOTON trucks subjected to constant engagement cycles and high torque, the genuine H4161020100A0 is engineered from high-grade materials and manufactured to precise tolerances to withstand these repetitive stresses without deformation, ensuring consistent performance throughout its service life.

Advanced Engineering and Construction Details

The genuine H4161020100A0 Clutch Basket is a masterclass in heavy-duty engineering. The main housing is typically constructed from high-strength, heat-treated cast iron or pressed steel, providing an optimal balance of durability, rigidity, and heat dissipation. Integrated into this housing is a precision-machined pressure plate, which provides the flat, smooth surface that contacts the clutch disc. The heart of the assembly is the diaphragm spring, a Belleville-type spring made from special-grade spring steel. This spring in the H4161020100A0 is designed to provide a high clamping force with a relatively low pedal effort, offering a favorable leverage ratio.

The basket also incorporates multiple release levers or fingers that are actuated by the throw-out bearing. These levers in the H4161020100A0 are engineered for consistent movement and minimal wear. Ventilation windows or fins are often cast into the design to promote airflow and dissipate the tremendous heat generated during clutch operation. All internal components are balanced as a complete unit to prevent vibration at high engine speeds. The bolt holes are precision-drilled to ensure perfect alignment with the flywheel, guaranteeing that the H4161020100A0 mounts concentrically, which is crucial for smooth engagement and longevity.

Technical Specifications: H4161020100A0 Clutch Basket

Installation Protocol and Critical Compatibility Factors

Replacing a clutch basket is a major drivetrain service that demands technical expertise. Installation of the H4161020100A0 requires the removal of the transmission to access the clutch assembly. It is highly recommended to replace the entire clutch kit—including the basket (H4161020100A0), clutch disc, and release bearing—as a set. This ensures all components wear evenly and operate in harmony. Before installation, the flywheel must be inspected for cracks, hot spots, and warpage, and should be resurfaced or replaced if necessary to provide a true mating surface.

The new H4161020100A0 must be aligned carefully using a clutch alignment tool before the mounting bolts are torqued to the manufacturer’s specification in a star pattern to ensure even pressure. Compatibility is non-negotiable: the H4161020100A0 must match the engine’s flywheel bolt pattern, diameter, and the required clamping force for the engine’s torque output. Using the genuine part guarantees this fit and performance. Post-installation, a proper break-in period of several hundred miles of moderate driving allows the new components to seat correctly, ensuring maximum lifespan for the H4161020100A0 and the associated clutch disc.

Symptoms of a Failing Clutch Basket and System Implications

A failing clutch basket presents distinct symptoms that should not be ignored. The most common is clutch slippage under load, where engine RPM rises without a corresponding increase in vehicle speed. This can be caused by a weakened diaphragm spring in the H4161020100A0 that no longer provides adequate clamping force. Severe shuddering or vibration during clutch engagement often points to a warped pressure plate or housing. A noisy clutch that rattles when disengaged may indicate worn or broken release lever components inside the basket.

Continuing to operate with a faulty H4161020100A0 basket accelerates the wear of the clutch disc, can score or damage the flywheel, and places undue stress on the transmission input shaft. In extreme cases, a catastrophic failure of the basket can send metal fragments through the clutch housing. Diagnosing and replacing the assembly with a genuine H4161020100A0 at the first signs of these issues is a proactive investment that prevents more extensive and expensive drivetrain damage, ensuring vehicle safety and reliability.

The Superior Value of the Genuine H4161020100A0

Opting for the authentic H4161020100A0 Clutch Basket over aftermarket alternatives provides unmatched long-term value. The genuine part is engineered as a complete system with the specific FOTON engine and transmission in mind. The metallurgy of the housing, the temper of the diaphragm spring, and the balance of the entire assembly are all calibrated for precise performance, durability, and heat management. This results in a predictable pedal feel, consistent engagement characteristics, and a service life that meets original expectations.

Aftermarket baskets may use inferior castings or springs that can lead to premature warping, fatigue, or inconsistent clamping. Such failures often necessitate a repeat of the costly labor-intensive repair. The genuine H4161020100A0 guarantees a perfect fit, eliminating installation guesswork and ensuring optimal alignment. For fleet managers and repair shops, this translates to reliable repairs, reduced vehicle downtime, and protection of the significant labor investment in a clutch job. The total cost of ownership for the genuine H4161020100A0 is demonstrably lower when considering extended service intervals and the avoidance of collateral damage to other drivetrain components.

Conclusion: The Structural Heart of Clutch Reliability

The H4161020100A0 Clutch Basket is the essential structural and functional core of your FOTON truck’s clutch system. Its OEM-engineered construction ensures the rigidity, clamping force, and thermal management required for reliable power transfer under the most demanding conditions. Choosing the genuine H4161020100A0 for clutch repairs is a definitive decision in favor of performance longevity, component protection, and operational safety. Trust in the original design to provide the solid foundation your truck’s drivetrain requires—specify the H4161020100A0 for your next clutch overhaul.

Important Note: Always confirm the application of part number H4161020100A0 using your truck’s VIN, engine number, and an official FOTON parts catalog. Clutch system replacement is a complex procedure that must be performed by qualified technicians using proper tools and procedures.
