XCMG Turntable Electric

What is the XCMG Turntable Electric

XCMG Turntable Electric system functions as the centralized electrical hub for the machinery’s upper structure, integrating power, control, and monitoring circuits. The intelligence of this system is managed by the central CONTROLLER and the CENTRAL ELECTRICAL BOX, which houses the FUSE RELAY ASSEMBLY for circuit protection. Operator interface and safety are addressed by the BUTTON SWITCH ASSEMBLY, EMERGENCY STOP SWITCH ASSEMBLY, and alert systems like the WALKING ALARM and dual horns: the BASIN TYPE ELECTRIC HORN (SUBWOOFER) and BASIN ELECTRIC HORN (SUPER TWEETER).
A comprehensive sensor network includes the PRESSURE SENSOR5MPA, PRESSURE SENSOR50MPA, TEMPERATURE SENSOR, ENGINE LIQUID LEVEL SENSOR, FUEL SENSOR, and LIQUID LEVEL SWITCH. Power generation and distribution are handled by the GENERATOR INSURANCE ASSEMBLY, with connectivity ensured by the main MAIN HARNESS 1 and components like the TRANSIT JOINT. Illumination is provided by the WORK LAMP and LEDWORK LAMP.
The physical integrity of the entire XCMG Turntable Electric system is secured by an extensive array of mounting hardware. This includes numerous brackets such as the RADIATOR PUMP HARNESS BRACKET, ENGINE CONTROLLER HARNESS BRACKET, QUADRUPLE VALVE HARNESS BRACKET, and PILOT PRESSURE HARNESS BRACKET. These are fastened using various bolts like BOLT M5×12, BOLT M6×25, BOLT M8×16, BOLT M10×20, BOLT M10×25, and BOLT M12×25, paired with washers like WASHER 4, WASHER 5, WASHER 6, THICKENED FLAT WASHER, and THICKENED LARGE WASHER. Multiple IMPREGNATED HOOP clamps, MOUNTING CLAMP, and fixtures like the DELPHI MOUNTING FIXTURE, AMP MOUNTING FIXTURE, and YAZAKI MOUNTING FIXTURE ensure all wiring and components are organized and protected from vibration. This meticulous integration makes the XCMG Turntable Electric a robust and reliable control nexus.

Parameters of XCMG Turntable Electric

316102698 TURNTABLE ELECTRIC
316102699 ELECTRICAL CONTROL SYSTEM

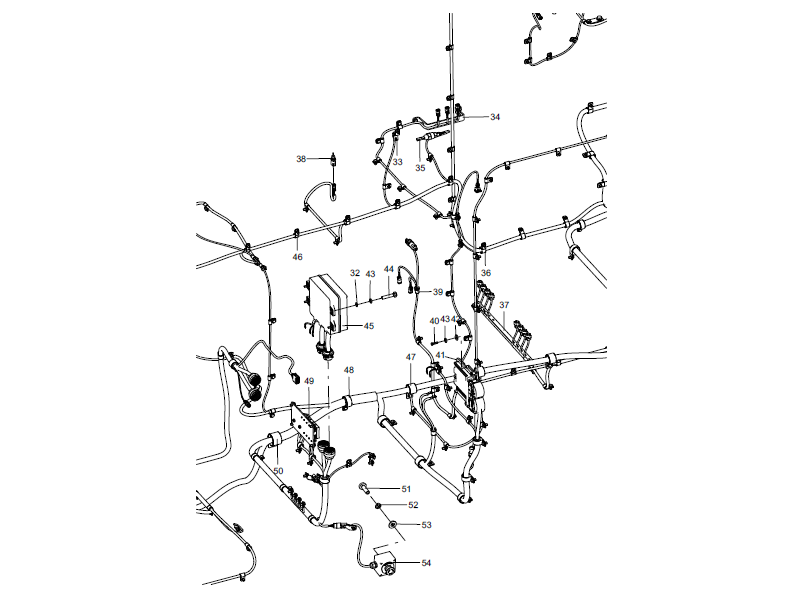

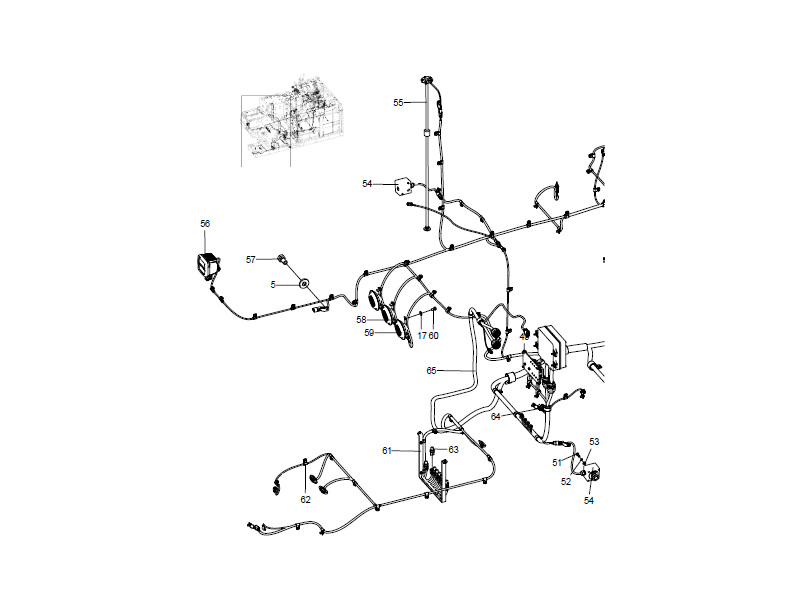

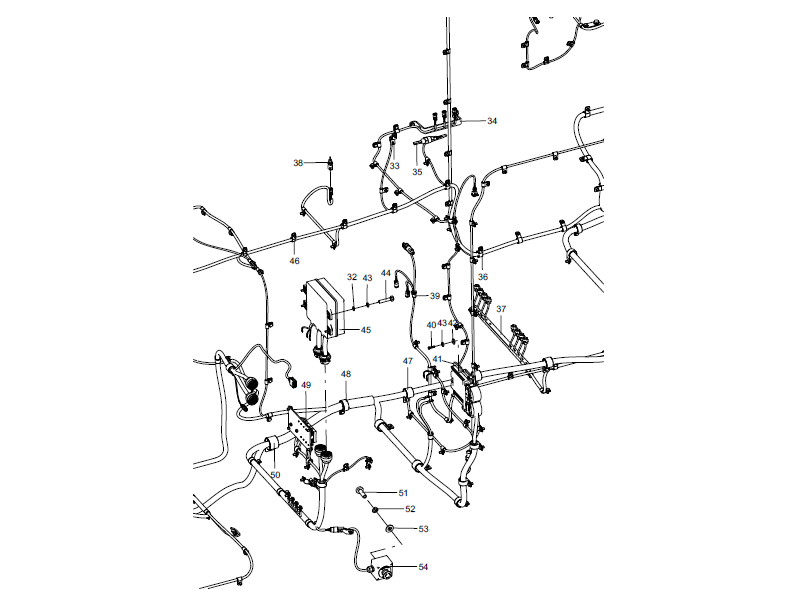

No.	PART NUMBER	NAME
1	316508011	BUTTON SWITCH ASSEMBLY
2	803588657	WORK LAMP
3	316101782	RADIATOR PUMP HARNESS BRACKET
4	805011330	BOLT M10×25
5	329900296	THICKENED LARGE WASHER
6	316102276	ENGINE CONTROLLER HARNESS BRACKET
7	803697899	IMPREGNATED HOOP
8	316102274	GENERATOR INSURANCE ASSEMBLY
9	819948100	MOUNTING CLAMP
10	316101773	GENERATOR HARNESS BRACKET 2
11	803543527	WALKING ALARM
12	819948115	DELPHI MOUNTING FIXTURE
13	805338383	WASHER 5
14	805338380	WASHER 5
15	805046906	BOLT M5×12
16	803697898	IMPREGNATED HOOP
17	329900297	THICKENED LARGE WASHER
18	803697894	IMPREGNATED HOOP
19	805046508	BOLT M8×20
20	316101775	GENERATOR HARNESS BRACKET 1
21	803698903	ENGINE LIQUID LEVEL SENSOR
22	803697895	IMPREGNATED HOOP
23	803451009	TRANSIT JOINT
24	819942516	AMP MOUNTING FIXTURE
25	805046469	BOLT M12×25
26	329900303	THICKENED FLAT WASHER
27	316101779	QUADRUPLE VALVE HARNESS BRACKET
28	803697902	IMPREGNATED HOOP
29	803595717	PRESSURE SENSOR50MPA
30	803697890	IMPREGNATED HOOP
31	803697891	IMPREGNATED HOOP
32	805338264	WASHER 6
33	819942295	YAZAKI MOUNTING FIXTURE
34	316101784	TRIPLE VALVE HARNESS BRACKET
35	803595829	LIQUID LEVEL SWITCH
36	803697889	IMPREGNATED HOOP
37	316101786	QUADRUPLE VALVE HARNESS BRACKET
38	803592543	TEMPERATURE SENSOR
39	803697886	IMPREGNATED HOOP
40	805046497	BOLT M6×25
41	803677200	CONTROLLER
42	805338275	WASHER 6
43	805338258	WASHER 6
44	805046498	BOLT M6×30
45	803763426	CENTRAL ELECTRICAL BOX
46	803697887	IMPREGNATED HOOP
47	803697901	IMPREGNATED HOOP
48	803697885	IMPREGNATED HOOP
49	316510707	FUSE RELAY ASSEMBLY
50	803697892	IMPREGNATED HOOP
51	805140010	SCREW M4×12
52	805338379	WASHER 4
53	805338382	WASHER 4
54	316508013	EMERGENCY STOP SWITCH ASSEMBLY
55	803592872	FUEL SENSOR
56	803589267	LEDWORK LAMP
57	805046504	BOLT M8×16
58	803592246	BASIN TYPE ELECTRIC HORN (SUBWOOFER)
59	803592245	BASIN ELECTRIC HORN (SUPER TWEETER)
60	805046525	BOLT M10×20
61	316101772	PILOT PRESSURE HARNESS BRACKET
62	803697888	IMPREGNATED HOOP
63	803595719	PRESSURE SENSOR5MPA
64	803697900	IMPREGNATED HOOP
65	316102697	MAIN HARNESS 1
