XCMG Frame Assembly

What is the XCMG Frame Assembly

XCMG Frame Assembly constitutes the primary structural skeleton of the machinery, providing foundational strength and integration points for all major components. The core framework is built upon multiple robust COLUMN members interconnected by horizontal CONNECTING BEAM and CONNECTING BEAM 2 elements, forming a rigid FRAME. This structure is capped by a ROOF and includes a LOWER BENDING PLATE ASSEMBLY WELDING for enhanced base integrity.
The assembly is fortified with numerous sealing and protective elements. Various BLANKING PLATE units, SIDE SEALING PLATE (1, 2), INNER SEALING PLATE, and LOWER SEALING PLATE close off openings, while extensive SPONGE sections and specific sealing strips like ADHESIVE TAPE L=231, ADHESIVE TAPE L=130, and ADHESIVE TAPE L=190 ensure environmental protection. Additional components include a PLANK, LSHAPING PLATE, BEAM supports, and multiple BRACKET units for mounting ancillary systems. An ANTI-COLLISION BALL is integrated for impact protection.
The structural integrity of the entire XCMG Frame Assembly is secured by a high-strength bolting system, utilizing BOLT M10×70, BOLT M12×16, BOLT M12×30, BOLT M12×35, and BOLT M12×40, paired with THICKENED LARGE WASHER, THICKENED FLAT WASHER, and NUT M10 fasteners. A PRESSURE PLATE and GUIDE HOLDER contribute to specific functional requirements. The meticulous integration of these elements ensures the XCMG Frame Assembly delivers unparalleled durability, stability, and a solid platform for the machine’s operational systems.

Parameters of XCMG Frame Assembly

316100850 FRAME ASSEMBLY
316100849 HANGAR ASSEMBLY

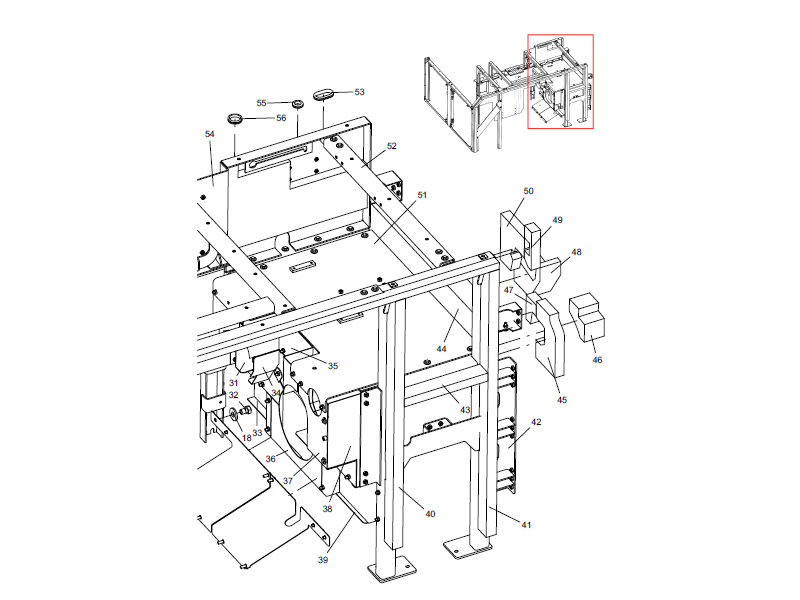

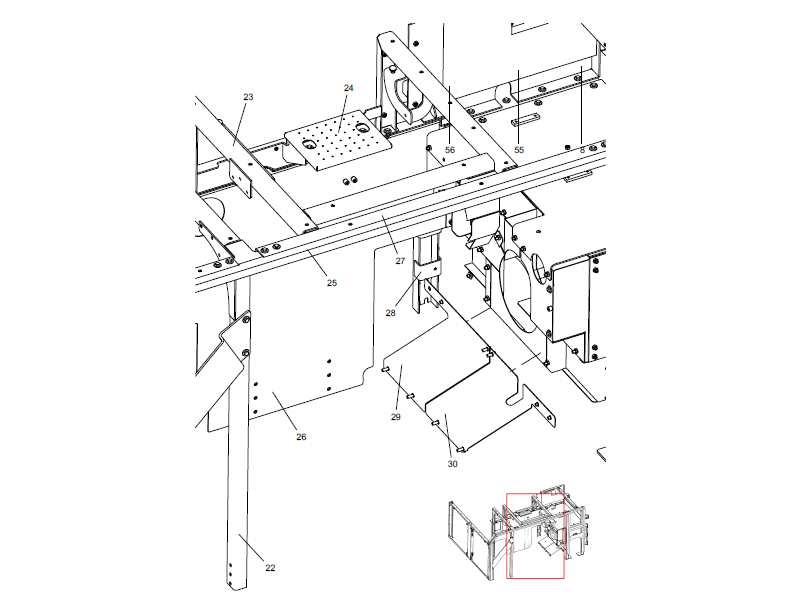

No.	PART NUMBER	NAME
1	316100884	COLUMN
2	316100872	COLUMN
3	316100969	CONNECTING BEAM
4	316100862	COLUMN
5	805046540	BOLT M10×70
6	329900343	THICKENED LARGE WASHER
7	316101023	PRESSURE PLATE
8	801974618	GUIDE HOLDER
9	805238371	NUT M10
10	316101062	ANTI-COLLISION BALL
11	316100972	BOLT
12	329900303	THICKENED FLAT WASHER
13	805006412	BOLT M12×30
14	316100877	COLUMN
15	316100978	SPONGE
16	316100970	CONNECTING BEAM 2
17	805006413	BOLT M12×35
18	329900298	THICKENED LARGE WASHER
19	316100977	SPONGE
20	316100979	PLANK
21	805006287	BOLT M12×40
22	316100892	COLUMN
23	316100901	FRAME
24	316100963	ROOF
25	316100973	SPONGE
26	316100911	INNER SEALING PLATE
27	316100898	BEAM
28	316100934	BRACKET
29	316102289	BLANKING PLATE
30	316100961	LOWER BENDING PLATE ASSEMBLY WELDING
31	316100966	SIDE SEALING PLATE 1
32	805046543	BOLT M12×16
33	316102292	BLANKING PLATE
34	316100952	SIDE SEALING PLATE 2
35	316102287	BLANKING PLATE
36	316102300	BLANKING PLATE
37	316101971	SIDE SEALING PLATE
38	316102294	BLANKING PLATE
39	316100954	LOWER SEALING PLATE
40	316100975	SPONGE
41	316100974	SPONGE
42	316100919	BRACKET
43	316100976	SPONGE
44	316100971	LSHAPING PLATE
45	316102297	SPONGE
46	316101902	SPONGE
47	316102296	SPONGE
48	316101899	SPONGE
49	316102298	SPONGE
50	316101897	SPONGE
51	316100948	COVER PLATE
52	316100860	BEAM
53	801973238	ADHESIVE TAPE L=231
54	316100851	BLANKING PLATE
55	801973668	ADHESIVE TAPE L=130
56	801971851	ADHESIVE TAPE L=190
