XCMG Hangar Assembly

What is the XCMG Hangar Assembly

XCMG Hangar Assembly forms the comprehensive external enclosure and structural framework for the machinery’s power system. The foundation of this assembly is the robust FRAME ASSEMBLY, which supports all other components. It integrates multiple access points, including the LEFT FRONT SIDE DOOR, LEFT REAR SIDE DOOR, and RIGHT DOOR, while a SHIELD FOR DIESEL ENGINE provides dedicated protection for the power source.
Environmental sealing is achieved through various panels: the FRONT SEALING PLATE, REAR SEALING PLATE, RADIATOR SEALING PLATE, and the RIGHT SEALING PLATE Ⅰ. Operator safety is enhanced by several ANTI-SLIP PLATE units (II, III, IV), and a PROTECTION COVER safeguards specific components. The assembly also houses a centralized ELECTRICAL BOX and is finished with a COVER PLATE. The integrity of the entire XCMG Hangar Assembly is secured using high-strength BOLT M12×25 fasteners. This integrated design ensures the XCMG Hangar Assembly provides superior protection, security, and organized component layout.

Parameters of XCMG Hangar Assembly

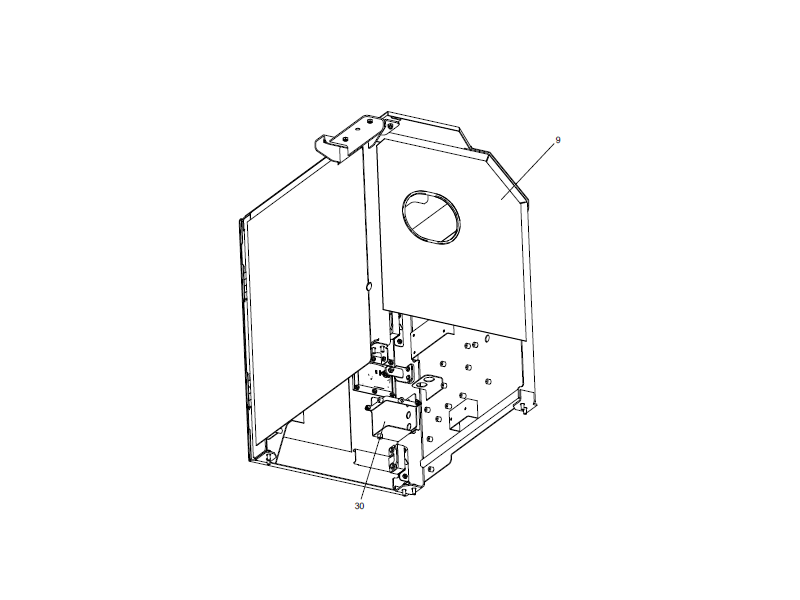

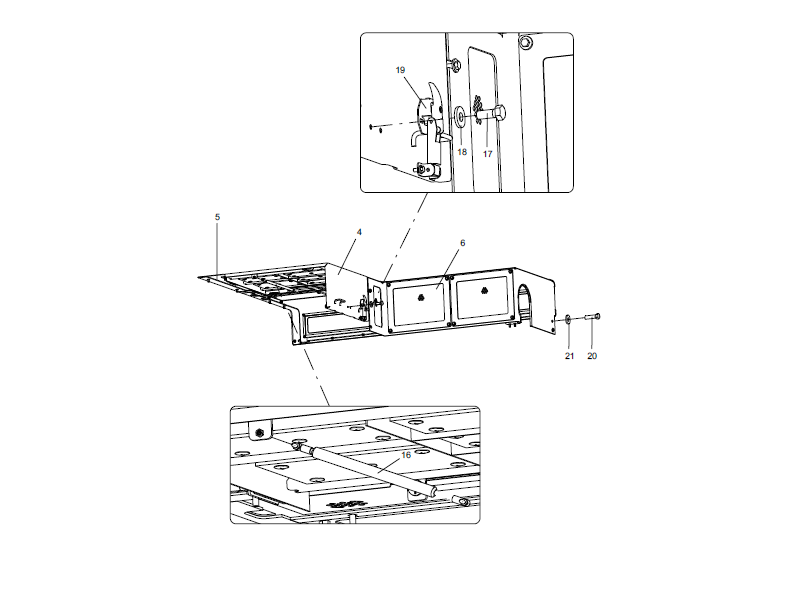

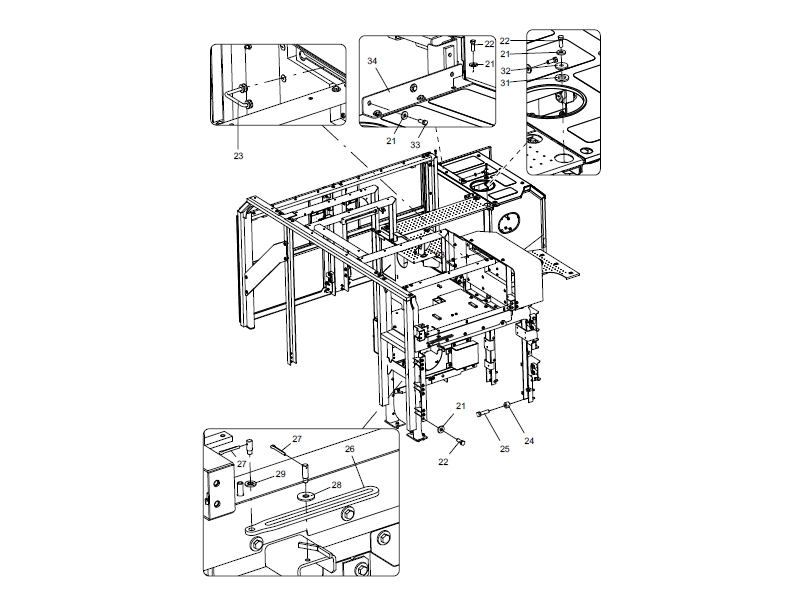

316100849 HANGAR ASSEMBLY
316100001 HYDRAULIC EXCAVATOR
No.	PART NUMBER	NAME
1	316100850	FRAME ASSEMBLY
2	316101178	RIGHT SEALING PLATE Ⅰ
3	316101167	COVER PLATE
4	316101141	SHIELD FOR DIESEL ENGINE
5	316101210	REAR SEALING PLATE
6	316101109	RADIATOR SEALING PLATE
7	316101084	LEFT REAR SIDE DOOR
8	316101070	LEFT FRONT SIDE DOOR
9	316101020	ELECTRICAL BOX
10	316101201	ANTI-SLIP PLATE II
11	316101196	ANTI-SLIP PLATE III
12	316101241	FRONT SEALING PLATE
13	316101193	ANTI-SLIP PLATE Ⅳ
14	316101188	PROTECTION COVER
15	316101093	RIGHT DOOR
35	805046469	BOLT M12×25
16	801737619	GAS SPRING
17	805046508	BOLT M8×20
18	329900296	THICKENED LARGE WASHER
19	801503870	HOOD LOCK (WITH KEY)
20	805006414	BOLT M12×45
21	329900298	THICKENED LARGE WASHER
22	805006413	BOLT M12×35
23	316102011	ACCESS PANEL SUPPORT ROD
24	316101242	PEDESTAL
25	805004815	BOLT M16×60
26	316100980	GUIDE BAR
27	805600001	PIN 3.2×20
28	805338270	WASHER 12
29	805338281	WASHER 12
31	316103527	RUBBER RING
32	316103540	SLEEVE PIPE
33	805006412	BOLT M12×30
34	316103708	PLANK
30	316102409	SPRAY BOTTLE MOUNTING BRACKET ASSEMBLY
