XCMG Cooling System

What is the XCMG Cooling System

The XCMG Cooling System represents a comprehensively engineered thermal management solution designed to maintain optimal operating temperatures in heavy machinery under extreme working conditions. This sophisticated system centers around the high-efficiency RADIATOR that serves as the primary heat exchange unit, working in coordination with multiple WATER PIPE and STEEL PIPE ASSEMBLY components that create a durable fluid circulation network throughout the equipment.
The structural framework incorporates several specialized brackets including the FAN MOTOR BRACKET 4 and FAN MOTOR BRACKET 3 that provide secure mounting points, along with additional BRACKET elements that ensure proper component alignment. Multiple SPONGE elements are strategically positioned throughout the XCMG Cooling System to provide vibration dampening and thermal insulation, while SPACER SLEEVE components maintain precise spacing between critical elements.
Secure fastening is achieved through a variety of high-strength components including BOLT M24×120, BOLT M12×40, and BOLT M10×30, working in conjunction with NUT M24 and NUT M12 fasteners. The assembly utilizes THICKENED FLAT WASHER, THICKENED LARGE WASHER, and WASHER 24 elements to ensure even load distribution and vibration resistance. The PULL ROD and PAD elements work together to maintain proper tension and alignment within the system.
Fluid containment is ensured through multiple HOOP and IMPREGNATED HOOP components that provide leak-proof connections, while the U-SHAPED PIPE CLAMP offers additional pipeline support. The system incorporates specialized TUBE elements and an INTAKE HOSE that facilitate efficient coolant transfer between system components. The precision engineering and robust construction of the XCMG Cooling System ensure reliable thermal regulation, protecting critical components from overheating while maintaining optimal operating efficiency throughout the equipment’s service life.

Parameters of XCMG Cooling System

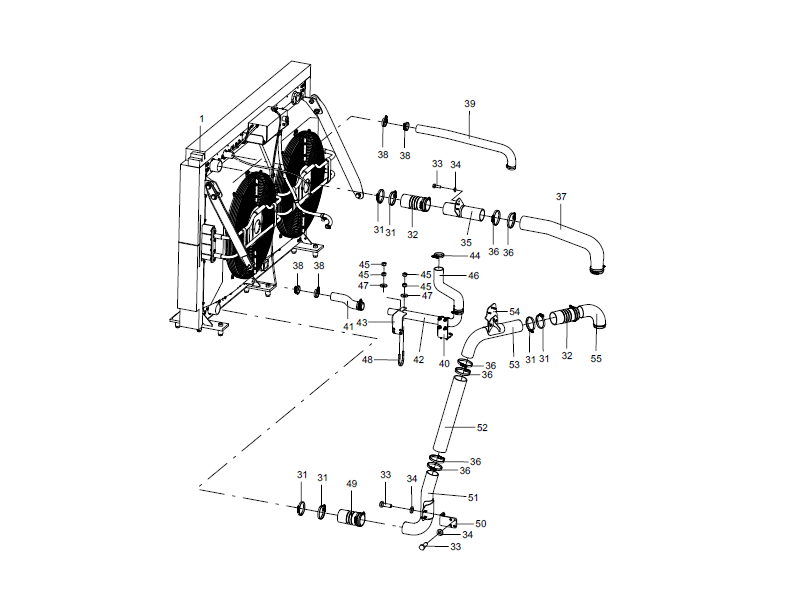

316100462 COOLING SYSTEM
316101286 ENGINE SYSTEM
No.	PART NUMBER	NAME
1	804002007	RADIATOR
2	316508716	SPACER SLEEVE
3	329900932	BOLT
4	316102153	SPONGE
5	316102154	SPONGE
6	316102136	SPONGE
7	316102150	SPONGE
8	316102172	SPONGE
9	805006426	BOLT M24×120
10	805338299	WASHER 24
11	329900962	BOLT
12	805203192	NUT M24
13	316100494	PULL ROD
14	316100503	PAD
15	316100485	PULL ROD
16	316100498	SPACER SLEEVE
17	329900301	THICKENED FLAT WASHER
18	805046508	BOLT M8×20
19	316100502	PAD
20	800155199	WATER PIPE
21	800163896	HOOP
22	803697895	IMPREGNATED HOOP
23	800163861	HOOP
24	800162691	WATER PIPE
25	316100483	BRACKET
26	803697900	IMPREGNATED HOOP
27	316509925	FAN MOTOR BRACKET 4
28	805006287	BOLT M12×40
29	329900303	THICKENED FLAT WASHER
30	316509921	FAN MOTOR BRACKET 3
31	800163893	HOOP
32	800167651	TUBE
33	805046416	BOLT M10×30
34	329900302	THICKENED FLAT WASHER
35	316103613	STEEL PIPE ASSEMBLY
36	800163894	HOOP
37	800164422	INTAKE HOSE
38	800163865	HOOP
39	800164425	WATER PIPE
40	316100471	BRACKET
41	800164408	WATER PIPE
42	316103633	STEEL PIPE
43	316100477	BRACKET
44	800163863	HOOP
45	805238372	NUT M12
46	800164423	WATER PIPE
47	329900298	THICKENED LARGE WASHER
48	329900523	U-SHAPED PIPE CLAMP
49	800167655	TUBE
50	316102969	BRACKET
51	316103631	STEEL PIPE ASSEMBLY
52	800167653	TUBE
53	316103607	STEEL PIPE ASSEMBLY
54	316102454	BRACKET
55	316103615	STEEL PIPE ASSEMBLY
