XCMG Turntable

What is the XCMG Turntable

The XCMG Turntable forms the critical structural core and rotating interface of the machinery, a feat of engineering that begins with its primary WELDING ASSEMBLY. This robust foundation integrates key access platforms, including the RIGHT FRONT PLATFORM, RIGHT REAR PLATFORM, LEFT FRONT PLATFORM, and LEFT REAR PLATFORM, creating a secure and comprehensive operational perimeter. Operator safety is ensured by protective BANISTERS, ANTI-COLLISION BALL components, and secure access points like the DOOR ASSEMBLY and LEFT DOOR, which are fitted with a reliable DOOR LOCK.
A defining feature of the XCMG Turntable is its extensive use of sealing and damping elements. Numerous BLANKING PLATE units seal off openings, while a vast array of SPONGE and SPONGE COMPONENT parts, along with precisely measured sealing strips like ADHESIVE TAPE L=455, ADHESIVE TAPE L=910, and RUBBER STRIP L=425, are applied to dampen vibrations and prevent the ingress of dust and moisture. This meticulous sealing is complemented by components like the LEFT DUST SHIELD ASSEMBLY and RIGHT DUST SHIELD ASSEMBLY.
The entire structure is secured with a high-strength fastening system, utilizing bolts such as BOLT M10×25, BOLT M12×30, and the heavy-duty BOLT M24×110 with its NUT M24, often paired with THICKENED LARGE WASHER and THICKENED FLAT WASHER components. Critical mechanical function is provided by the SHIFTING FORK and the LUBRICATING PLATE. The integration of every element, from the smallest WASHER to the largest platform, makes the XCMG Turntable a masterpiece of durability, safety, and functional design.

Parameters of XCMG Turntable

316101289 TURNTABLE
316100001 HYDRAULIC EXCAVATOR

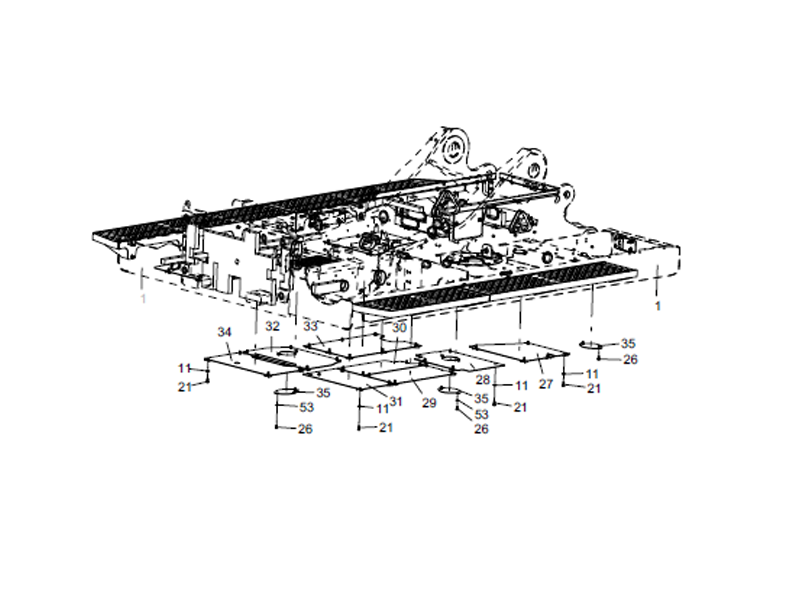

No.	PART NUMBER	NAME
1	316102656	WELDING ASSEMBLY
2	316101505	RIGHT FRONT PLATFORM
3	316101524	RIGHT REAR PLATFORM
4	316101576	BLANKING PLATE
5	805238366	NUT M10
6	316101740	DOOR ASSEMBLY
7	316101483	SPONGE COMPONENT
8	316101480	SPONGE COMPONENT
9	316101540	SPONGE COMPONENT
10	805046469	BOLT M12×25
11	329900298	THICKENED LARGE WASHER
12	316101490	BANISTERS
13	329900300	THICKENED LARGE WASHER
14	805006332	BOLT M16×40
15	316101493	LEFT FRONT PLATFORM
16	316101543	BLANKING PLATE
17	316101548	BLANKING PLATE
18	316101575	ANTI-COLLISION BALL
19	316101511	LEFT DOOR
20	801542438	DOOR LOCK
21	805006412	BOLT M12×30
22	316101552	BLANKING PLATE
23	316101554	BLANKING PLATE
24	316101518	LEFT REAR PLATFORM
25	316101558	BLANKING PLATE
26	805011330	BOLT M10×25
27	316101573	BLANKING PLATE
28	316101571	BLANKING PLATE
29	316101569	BLANKING PLATE
30	316101565	BLANKING PLATE
31	316101567	BLANKING PLATE
32	316101562	BLANKING PLATE
33	316101556	BLANKING PLATE
34	316101560	BLANKING PLATE
35	316101581	BLANKING PLATE
36	316101586	SPONGE
37	801973671	ADHESIVE TAPEL=455
38	801973246	ADHESIVE TAPE L=310
39	316101587	SPONGE
40	316101486	SPONGE COMPONENT
41	801972804	ADHESIVE TAPE L=315
42	316101588	SPONGE
43	801974901	ADHESIVE TAPE L=610
44	801975571	ADHESIVE TAPE L=910
45	801973248	ADHESIVE TAPE L=345
46	316101580	SPONGE
47	801973249	ADHESIVE TAPE L=570
48	801974498	ADHESIVE TAPE L=465
49	801973250	ADHESIVE TAPE L=570
50	801973252	ADHESIVE TAPE L=310
51	316101530	BRACKET
52	805046416	BOLT M10×30
53	329900297	THICKENED LARGE WASHER
54	316101579	SPONGE
55	310201887	ADHESIVE TAPE L=285
56	316101591	SPONGE
57	316101590	SPONGE
58	316101593	SPONGE
59	316101589	SPONGE
60	316101592	SPONGE
61	801972978	ADHESIVE TAPE L=300
62	801972975	ADHESIVE TAPE L=390
63	801974496	RUBBER STRIP L=425
64	801974506	ADHESIVE TAPE L=385
65	801973251	ADHESIVE TAPE L=290
66	801973664	ADHESIVE TAPE L=230
67	310201876	ADHESIVE TAPE L=125
68	801975171	ADHESIVE TAPE L=370
69	316101585	WASHER
70	316101578	SEALING PLATE
71	801972325	ADHESIVE TAPE L=314
72	801975572	ADHESIVE TAPE L=730
73	801974505	ADHESIVE TAPE L=215
74	316101583	LUBRICATING PLATE
75	316101582	WASHER
76	316102338	LEFT DUST SHIELD ASSEMBLY
77	316102340	RIGHT DUST SHIELD ASSEMBLY
78	329900302	THICKENED FLAT WASHER
79	805046525	BOLT M10×20
80	316101584	SHIFTING FORK
81	805203192	NUT M24
82	805046843	BOLT M24×110
