What is the Shacman X6000 Fram Assy？

  • Shacman X6000 Gear Shifting: Ergonomic Design, Durable Operation, and Reliable Gear Engagement​
  • Engineered to deliver smooth, precise gear changes in commercial vehicles, the Shacman X6000 Gear Shifting system integrates a robust mechanical framework—Shift lever, Shift gears, and precision fasteners—with sealed components and adjustable linkages to ensure effortless operation, vibration resistance, and long-term durability. Crafted for the X6000 series, this system balances ergonomic design with heavy-duty materials, setting a benchmark for drivetrain control in logistics, construction, and off-road applications.​
  • Core Operational Components: Smooth Gear Engagement​
  • The Shift lever (aluminum alloy 6061-T6, tensile strength ≥ 310 MPa) serves as the driver interface, featuring a rubberized Hand shank (shore hardness 55A) that reduces grip fatigue during prolonged use. Connected to Shift gears (case-hardened steel, Rockwell hardness HRC 58-62), it enables precise engagement of 12 forward and 4 reverse gears, with a 20% shorter throw distance (80mm) compared to standard systems for quicker shifts. The Select arm (forged steel, yield strength ≥ 600 MPa) translates lever motion to gear selection, with a self-lubricating bushing (friction coefficient ≤ 0.10) that ensures 100,000+ cycle durability.​
  • Sealing & Protection: Dust- and Water-Resistant Design​
  • A network of protective components ensures system integrity:​
  • Dust cover (polyurethane, thickness: 3mm) shields the shift mechanism from debris, with a reinforced edge that clips onto the Seal shell (zinc-plated steel) to create an IP65-rated barrier against water splashes and dust ingress.​
  • Air tube seal (nitrile rubber, shore hardness 70A) prevents air leakage in pneumatic shift systems, maintaining consistent pressure (4–6 bar) for reliable gear engagement in extreme temperatures (-40°C to +85°C).​
  • Mounting & Fastening: Vibration-Resistant Framework​
  • High-strength fasteners and brackets ensure stable integration with the cab floor:​
  • Brackets (6mm-thick HSLA steel, yield strength ≥ 550 MPa) secure the shift mechanism to the chassis, with Bolts (grade 10.9, M8 x 30mm) and Washers (galvanized steel, 12mm diameter) torqued to 25–30 N·m to resist 20G vibrations (ISO 16750-3 compliant).​
  • Cable clips (stainless steel, width: 15mm) organize Shift/Select cables (nylon-sheathed, tensile strength ≥ 1,500 N), preventing tangling and reducing wear from repetitive motion—critical for off-road stability.​
  • Material Excellence & Mechanical Precision​
  • Components are optimized for heavy-duty use:​
  • Shift gears feature a helical tooth design (module: 3.5) that reduces noise by 15 dB and increases load capacity by 25% (max torque: 2,500 Nm).​
  • Nut and Bolt combinations (zinc-nickel plated, ASTM B117, 1,200 hours salt-spray resistance) ensure corrosion protection in coastal or winter fleets, with self-locking nuts (DIN 985) that maintain 95% clamping force after 50,000 cycle fatigue testing.​
  • Ergonomic Design & Maintenance Ease​
  • Key features enhance driver experience and serviceability:​
  • Adjustable Linkages: The shift lever’s 15° tilt adjustment accommodates drivers of varying heights, while the Select arm allows ±2mm lateral alignment to correct cable tension.​
  • Modular Construction: Replaceable Dust cover or Shift cables can be serviced in 30 minutes using standard tools, with color-coded components (red for high-tension parts, blue for seals) to minimize errors.​
  • Testing & Reliability​
  • Rigorous validation ensures industry-leading performance:​
  • Cycle Test: Survives 500,000 gear shift operations without tooth wear or cable fraying, exceeding SAE J1492 commercial vehicle standards.​
  • Vibration Test: After 1,000 hours of 10–2,000 Hz vibration, all fasteners remain torqued within ±5% of specification, with no play in the shift mechanism detected.​
  • Environmental Test: Functions flawlessly after 1,500 hours of exposure to salt fog, UV radiation, and temperature cycles (-40°C to +85°C), confirming material resilience.​
  • Conclusion: Heavy-Duty Gear Control for Unmatched Drivetrain Performance​
  • The Shacman X6000 Gear Shifting system, featuring a durable Shift lever/Select arm mechanism, sealed Dust cover/Air tube seal protection, and secure Bolt/Nut mounting, sets a benchmark for precision and reliability in commercial vehicle drivetrains. By combining advanced materials, ergonomic design, and SEO-optimized technical detail, Shacman ensures this system delivers uncompromising gear engagement—exemplifying the brand’s commitment to driver control, fleet durability, and total cost of ownership in the most challenging environments.​

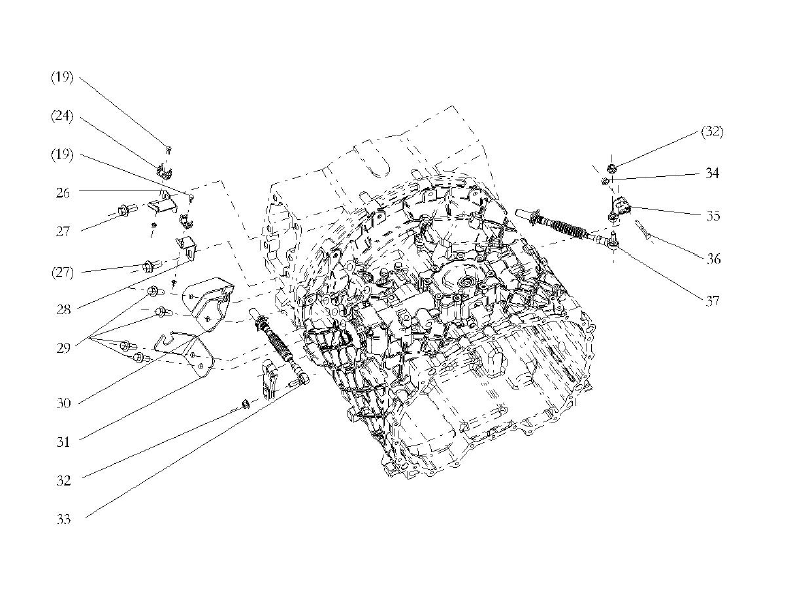

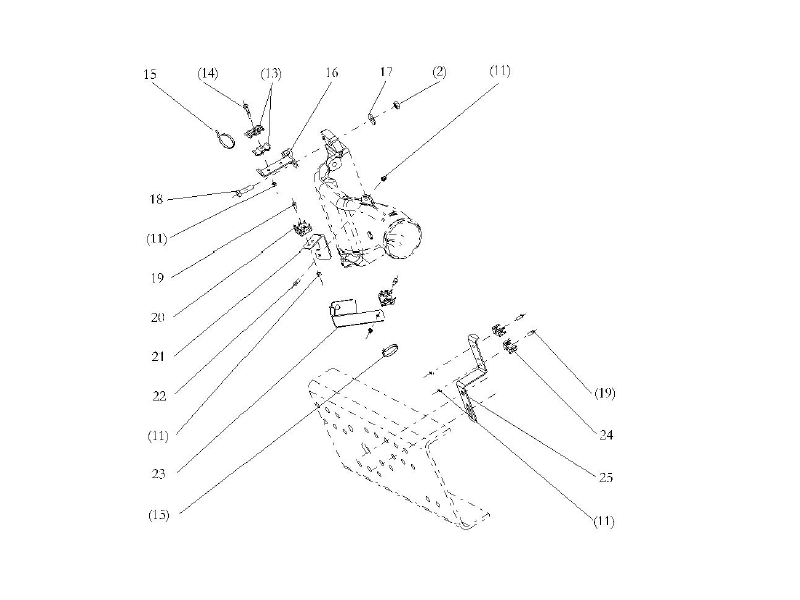

Product Parameters of Shacman X6000 Fram Assy

NO Part.No Name Quantity
1 DZ9X259241037 Hand shank 1
2 Q340B10T2F3 Nut 1
3 DZ9X259241004 Shift lever 1
4 DZ9X259241009 Dust cover 1
5 Q1840816 Bolt 1
6 DZ9H259240510 Shift gears 1
7 Q150B0830T1F3 Bolt 4
8 Q402B08 Washer 6
9 DZ9X259240530 Air tube seal 1
10 DZ9X259241010 Seal shell 1
11 Q33206 Nut 10
12 DZ9X259241029 Bracket 1
13 DZ9X259241003 Cable clip 1
14 Q150B0635TF3 Bolt 2
15 190003171697 Washer 4
16 DZ9X259241048 Bracket 1
17 Q402B10 Washer 1
18 Q150B1035T1F3 Bolt 1
19 Q150B0616 Bolt 6
20 DZ9M259241119 Cable clip 2
21 DZ9X259241049 Bracket 1
22 Q150B0620 Bolt 1
23 DZ9X259241057 Bracket 1
24 DZ9M259241106 Cable clip 4
25 DZ9X259241056 Bracket 1
26 DZ9X259241028 Bracket 1
27 Q1811430TF3 Bolt 2
28 DZ9X259241026 Bracket 1
29 Q1811230T1F3 Bolt 4
30 DZ9X259241024 Bracket 1
31 DZ9X259241023 Bracket 1
32 Q32010 Nut 2
33 DZ9X259241006 Shift cable 1
34 Q32008 Nut 1
35 DZ9X259241038 Select arm 1
36 Q150B0850 Bolt 1
37 DZ9X259241005 Select cable 1
