AZ9231342073 Brake Drum & Lining Set: Guaranteed Stopping Power & Safety for SINOTRUK Howo

For SINOTRUK Howo trucks, reliable braking is the non-negotiable foundation of operational safety and duty cycle confidence. The rear brake assembly, comprising the drum and brake shoes (fibras o zapatas), forms the critical friction interface that converts kinetic energy into heat to halt your vehicle. The genuine AZ9231342073 Tambor De Frenos Trasero – Fibras O Zapatas set is engineered as a complete, matched system to restore factory-specified braking performance. As a trusted source for essential Sinotruk howo parts, we provide this OEM component kit to ensure your truck stops with authority and consistency. The AZ9231342073 is designed for optimal heat dissipation, fade resistance, and long service life under heavy loads. Choosing the correct AZ9231342073 kit is a direct investment in the safety of your driver, your cargo, and the public, while also protecting more expensive components like wheel hubs and axles from damage due to braking inefficiency.

AZ9231342073 Rear Brake Drum & Lining Set

Тормозной барабан и колодки задние AZ9231342073

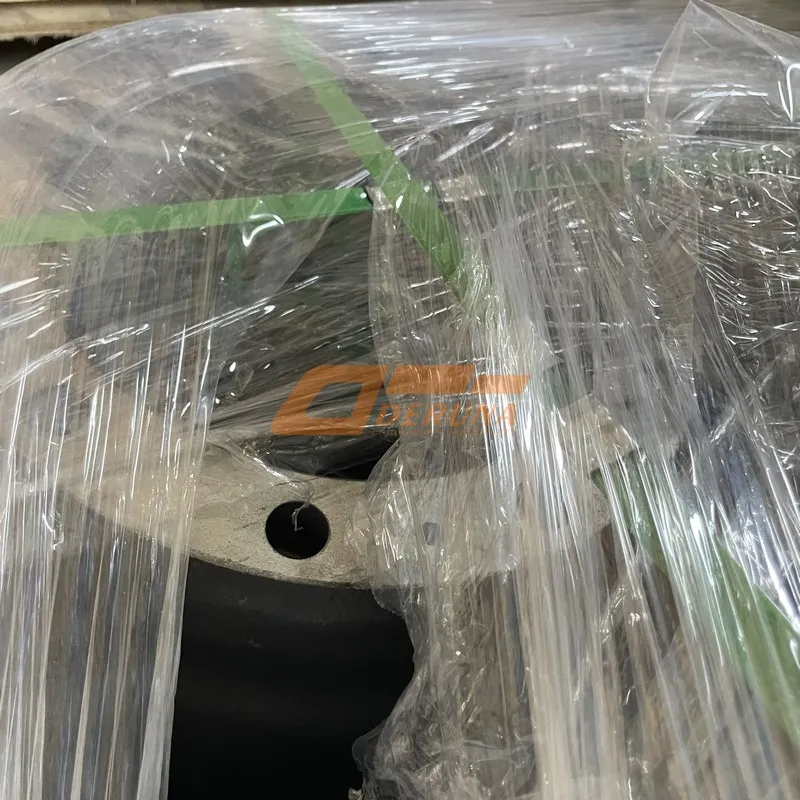

Tambor de Frenos Trasero con Zapatas AZ9231342073

Core Function of the AZ9231342073 Brake Assembly

The AZ9231342073 set is a complete friction solution for the rear drum brakes of SINOTRUK Howo trucks. This OEM kit includes the cast iron brake drum and a set of high-quality brake shoes lined with friction material. The system operates on a simple yet robust principle: when the brake pedal is pressed, hydraulic pressure pushes the wheel cylinder, which in turn expands the two curved brake shoes outward. The friction linings on the shoes make contact with the inner cylindrical surface of the rotating brake drum, creating the friction necessary to slow and stop the wheel.

In heavy-duty applications, the rear brakes, supported by this AZ9231342073 assembly, handle a significant portion of the braking load, especially when the vehicle is laden. The design of the drum brake is inherently self-energizing; the rotation of the drum can help pull one of the shoes tighter against it, providing good stopping power. The enclosed design of the AZ9231342073 drum offers protection from water and dirt, though it also requires effective heat management, which is a key focus of its engineering. The matched design of the drum’s internal diameter and the shoe’s curvature in the AZ9231342073 kit is critical for achieving full, even contact and maximum braking efficiency from the moment of installation.

Technical Specifications for AZ9231342073

The AZ9231342073 brake drum and lining set is manufactured to precise dimensional and performance tolerances. The table below details its key technical specifications for identification, compatibility verification, and performance understanding.

Engineering & Material Science for Heavy-Duty Braking

The performance of the AZ9231342073 set is rooted in advanced metallurgy and friction science. The brake drum is cast from a specialized grade of grey iron, chosen for its excellent thermal conductivity, high heat capacity, and good wear resistance. The alloy composition is controlled to prevent cracking under severe thermal stress. The external fins are not merely cosmetic; they significantly increase the surface area, acting as a heat sink and radiator to expel the immense heat generated during braking into the airstream, directly combating brake fade.

The brake shoes in the AZ9231342073 kit are the business end of the system. The steel shoe platform is stamped or forged for strength and correct curvature. The friction lining is bonded or riveted to this platform. For heavy-duty use, the lining is a complex composite material, often a Non-Asbestos Organic (NAO) mix containing binders, reinforcing fibers, fillers, and friction modifiers. This formulation is engineered to provide a high and stable coefficient of friction across a wide temperature range, resist wear, and produce minimal noise. The specific formulation used in the OEM AZ9231342073 lining is designed to work in perfect harmony with the cast iron drum’s surface characteristics, ensuring smooth engagement and consistent performance.

The Critical Role in Vehicle Safety & Operational Cost

The AZ9231342073 assembly is at the frontline of vehicle safety. Its primary job is to reliably and repeatedly stop a massive, often fully-loaded vehicle. Brake fade—the loss of braking power due to overheating—is a major safety concern for trucks. The engineered heat management of the AZ9231342073 drum and the fade-resistant lining material work together to maintain braking effectiveness on long descents or during repeated stops. Consistent braking force also ensures predictable vehicle behavior, which is crucial for accident avoidance.

Beyond immediate safety, the quality of the AZ9231342073 kit directly impacts operational costs. A warped or out-of-spec drum can cause brake judder (pulsation), which is not only uncomfortable but transmits damaging vibrations through the suspension and steering systems. Worn or mismatched shoes can score and groove the drum, necessitating an early and costly replacement of both components. By installing a matched, high-quality OEM set like the AZ9231342073, you ensure even wear, maximize the lifespan of both the drum and the linings, and protect adjacent chassis components from stress, leading to lower total cost of ownership.

Installation, Bedding-In & Maintenance Guidelines

Professional installation of the AZ9231342073 set is vital. The process involves safely jacking the axle, removing the wheel, and dismantling the old brake assembly. It is crucial to thoroughly clean the backing plate and inspect all hardware—springs, pins, and the wheel cylinder—for wear or damage, replacing them as necessary. The new brake shoes from the AZ9231342073 kit must be installed correctly, with the primary and secondary shoes (if applicable) in their proper positions according to the rotation direction of the drum.

After installation, the AZ9231342073 components require a proper “bedding-in” or break-in procedure. This involves a series of moderate, controlled stops from moderate speed to gradually transfer an even layer of friction material onto the drum surface. This process, typically outlined in the service manual, is essential for establishing full contact, achieving maximum braking efficiency, and preventing noise or glazing. Never subject new brakes to severe overheating immediately after installation. Regular maintenance involves visual inspection through the backing plate or during tire rotation, checking for lining thickness, and ensuring no fluid leaks from the wheel cylinder contaminate the AZ9231342073 linings.

Symptoms of Wear and Failure Indicators

Recognizing the signs of a worn AZ9231342073 brake assembly is key to preventative maintenance and safety. Common symptoms include: Increased Stopping Distance or a “spongy” pedal feel, Brake Fade (loss of power when hot), Pulling to One Side during braking (indicating uneven wear or contamination), Scraping or Grinding Noises (often a sign of severely worn linings contacting the drum), Brake Judder or Vibration felt in the pedal or steering wheel (usually from a warped drum), and a Dashboard Warning Light for the brake system. Any of these signs warrant immediate inspection of the AZ9231342073 components and the entire brake system.

It is a best practice to measure the internal diameter of the brake drum with a micrometer during service. Drums have a “maximum wear diameter” or “discard diameter” specified by the manufacturer. If the drum from the AZ9231342073 assembly is worn beyond this limit, it must be replaced, as it will not dissipate heat properly and may fail under stress. Always replace drums and shoes as a matched set from the same AZ9231342073 kit to ensure optimal performance and safety.

OEM Quality vs. Aftermarket Alternatives

Choosing the genuine AZ9231342073 kit over generic aftermarket parts is a decision that affects safety, performance, and cost. OEM components are engineered as a system. The metallurgical composition of the drum, the exact formulation of the friction material, and the precise dimensions are all developed together to achieve a specific braking performance, wear characteristic, and noise profile for the SINOTRUK Howo.

Aftermarket parts often compromise on these synergies. The cast iron in a non-OEM drum may be of inferior quality, making it more prone to warping or cracking. The friction material might use cheaper, noisier compounds that wear faster or have an inconsistent friction coefficient, leading to unpredictable braking or premature drum wear. Using mismatched components can result in poor contact, noise, vibration, and ultimately, a shorter lifespan for all parts involved. The safety-critical nature of brakes makes the proven, tested performance of the genuine AZ9231342073 the only responsible choice for fleet operators and owners.

Conclusion

The AZ9231342073 Tambor De Frenos Trasero – Fibras O Zapatas is the definitive foundation for safe and reliable rear braking on your SINOTRUK Howo truck. This OEM-matched set goes beyond simple replacement parts; it is an integrated safety system designed for the immense demands of commercial vehicle operation.

Opting for this genuine kit is the most responsible decision for any operator who prioritizes the safety of their drivers and the public, the protection of their cargo and capital equipment, and the management of long-term operating expenses. It eliminates the risks and hidden costs of inferior aftermarket components. Trust in the parts that were engineered together for the job. Choose the authentic AZ9231342073 brake drum and lining set to ensure your truck’s most critical safety system performs with unwavering confidence, stop after stop.
