For the immense torque and heavy loads handled by SINOTRUK Howo trucks, the final drive assembly is the cornerstone of drivetrain durability. At the center of this assembly, the ring gear performs the critical task of torque multiplication and power delivery to the wheels. The genuine 199112340121 Ring Gear is engineered to meet the exacting standards required for reliable, long-lasting performance under extreme stress. As a primary supplier of essential Sinotruk howo parts, we offer this precision-ground component to restore the integrity and efficiency of your truck’s rear axle. Installing the correct 199112340121 component ensures proper gear mesh, optimal power transfer, and protection against catastrophic drivetrain failure. This ring gear is designed for the specific gear ratio and load profile of Howo trucks, making it a fundamental investment in maintaining pulling power, fuel efficiency, and overall vehicle uptime.
199112340121 Ring Gear
Коронавая шестерня 199112340121

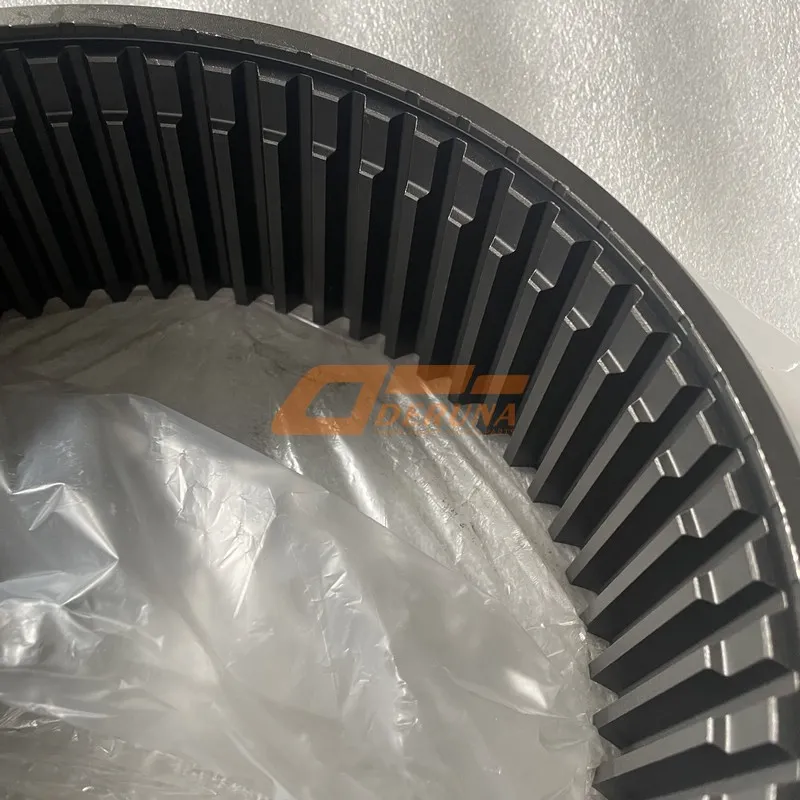

Corona Diferencial 199112340121
The 199112340121 is a large, ring-shaped hypoid gear that forms the central component of the truck’s final drive (differential) assembly. Mounted securely to the differential carrier, its primary function is to mesh with the smaller pinion gear connected to the driveshaft. This interaction achieves the crucial final gear reduction in the drivetrain. The 199112340121 ring gear converts the high-speed, low-torque rotation from the pinion into the low-speed, high-torque output needed to turn the axle shafts and drive the massive wheels of a loaded Howo truck. Its large diameter and numerous teeth allow for a significant reduction ratio, which is essential for starting heavy loads and climbing steep grades.
Beyond simple gear reduction, the 199112340121 is engineered for precise and robust power transfer. The hypoid gear design allows the pinion to be mounted lower relative to the centerline of the ring gear. This design provides a larger, stronger pinion head and allows for more tooth contact between the gears, resulting in smoother operation, greater torque capacity, and quieter running compared to other gear types. The precise meshing of the 199112340121 ring gear and its mating pinion is critical; any error in backlash or contact pattern can lead to rapid wear, noise, and eventual failure, making this OEM component’s precision paramount.
OEM Precision Fit: Guarantees perfect tooth profile and dimensions for flawless meshing with the matching pinion gear.
High-Torque Capacity: Hypoid gear design and robust construction handle the extreme loads of heavy hauling and towing.
Smooth & Quiet Operation: Precision grinding and heat treatment ensure minimal noise and vibration during power transfer.
Superior Durability: Advanced case-hardening and shot peening processes create a wear-resistant, long-lasting gear surface.
Optimized Gear Ratio: Designed for specific Howo models to balance pulling power with fuel-efficient cruising speeds.
Drivetrain Protection: Correct installation prevents stress on bearings, axles, and the differential unit itself.
The 199112340121 ring gear is manufactured to exacting dimensional, metallurgical, and performance standards. The table below details its key technical specifications for correct identification, compatibility verification, and understanding of its role within the final drive system.
| Technical Parameter | Specification / Description |
|---|---|
| OEM Part Number | 199112340121 |
| Component Type | Hypoid Ring Gear (Crown Wheel) |
| Application | SINOTRUK Howo Truck Final Drive / Differential Assembly |
| Gear Type | Spiral Bevel Hypoid |
| Number of Teeth | Specific to the required axle ratio (e.g., 41, 43 teeth) |
| Pitch Diameter | Large diameter to accommodate high reduction ratios |
| Material | High-Carbon Alloy Steel (e.g., 8620 or similar) |
| Heat Treatment | Case Carburized for hard surface, tough core |
| Primary Function | Final Gear Reduction & High-Torque Power Delivery to Axle Shafts |
The durability and performance of the 199112340121 ring gear are a direct result of sophisticated manufacturing and metallurgical processes. It begins with a forged or hot-rolled blank made from a high-carbon alloy steel like SAE 8620. This steel is chosen for its excellent carburizing properties, allowing it to develop an extremely hard, wear-resistant surface while retaining a tough, shock-absorbing core. The gear teeth are first rough-cut using specialized hobbling or shaping machines to form the basic hypoid profile.
The critical step is heat treatment. The 199112340121 undergoes a controlled carburizing process, where carbon is diffused into the surface of the steel at high temperature. This is followed by quenching and tempering, which transforms the carbon-rich surface into a hard, martensitic structure with a hardness often exceeding 58-62 HRC, while the core remains at a much lower, tougher hardness (approx. 28-35 HRC). After heat treatment, the gear teeth are precision ground. This final grinding operation is essential for the 199112340121 to achieve the exact tooth geometry, surface finish, and minimal runout required for silent operation, efficient power transfer, and long life. Any deviation in this process can lead to premature pitting, scoring, or tooth breakage.
Deep Case Carburizing: Creates a thick, hardened surface layer capable of withstanding high contact stresses and preventing wear.
Precision Tooth Grinding: Ensures perfect flank geometry, lead, and surface finish for optimal load distribution and minimal noise.
Shot Peening: Post-grinding, the tooth roots are shot peened to induce compressive stresses, dramatically increasing fatigue life and resistance to cracking.
Stable Microstructure: Controlled tempering ensures a stable, stress-relieved core that resists impact and shock loads.
Accurate Bolt Hole Pattern: Machined for a perfect, concentric fit onto the differential carrier to maintain gear alignment.
Balanced Design: The final product is balanced to minimize dynamic vibrations within the rotating assembly.
The 199112340121 ring gear directly dictates the vehicle’s final drive ratio, which is a key determinant of overall performance. A numerically higher ratio (more teeth on the ring gear relative to the pinion) provides greater torque multiplication, improving gradeability and acceleration from a standstill—crucial for dump trucks and construction vehicles. A lower numerical ratio favors higher top speed and better fuel economy on highway cruises. The specific ratio embodied in the 199112340121 is selected by SINOTRUK engineers to optimally balance these factors for the intended application of the truck model.
The mechanical efficiency of the final drive is also heavily dependent on the quality of the ring gear. A precisely manufactured and properly set up 199112340121 gear set will have minimal power loss due to friction and churning of gear oil. In contrast, a worn or poorly meshed gear set can waste several horsepower, directly increasing fuel consumption. Furthermore, a failing ring gear can cause severe drivetrain bind-up or complete loss of drive, potentially stranding a heavily loaded vehicle in a dangerous situation. The health of this single component is therefore integral to the truck’s productivity, economy, and safety.
Replacing a ring gear like the 199112340121 is a complex task that demands specialized tools, a clean environment, and expert knowledge. It is never a standalone replacement; it must be installed as a matched set with a new pinion gear (and often a new differential bearing kit). The process involves completely disassembling the axle carrier, removing the old ring gear from the differential case, and thoroughly cleaning all components.
The installation of the new 199112340121 ring gear onto the differential case requires careful alignment and torquing of the retaining bolts in a specific sequence to prevent distortion. The core of the job is setting the gear mesh: establishing the correct pinion depth (which determines the contact pattern on the gear teeth) and the precise ring gear backlash (the slight clearance between the gear teeth). These settings are achieved through the use of selective shims and require meticulous measurement with dial indicators. An incorrect setup will lead to premature failure, regardless of the quality of the 199112340121 component itself. This task should only be performed by a qualified technician in a well-equipped drivetrain shop.
A failing ring gear will provide clear audible and performance warnings. The most common symptom is a howling or whining noise from the rear axle that changes with vehicle speed and load (often louder on deceleration). A clunking noise during acceleration or gear changes can indicate excessive backlash due to worn teeth. Visible signs upon inspection include pitting (small craters on the tooth surface), spalling (flaking of the surface metal), scoring (deep scratches), or in severe cases, broken teeth. Metal glitter in the differential oil is a definitive sign of gear wear.
If the 199112340121 ring gear or its pinion mate shows any of these signs, replacement of the entire matched set is mandatory. Continuing to operate with damaged gears will quickly destroy the new gear set if only one component is replaced and will place excessive stress on differential bearings, potentially leading to a complete axle seizure. Regular maintenance, including checking and changing the differential oil at recommended intervals with the correct GL-5 rated gear oil, is the best way to extend the life of the 199112340121 and the entire final drive assembly.
Choosing the genuine 199112340121 over an aftermarket ring gear is a decision with significant long-term implications. OEM gears are part of a validated system. The metallurgy, heat treatment profile, and tooth geometry of the 199112340121 are developed in tandem with its specific pinion mate and the axle’s design parameters. This ensures optimal contact patterns, load distribution, and noise characteristics.
Aftermarket gears often suffer from inconsistencies. The steel alloy may be different, the case depth from carburizing may be insufficient or uneven, and the final grinding may lack precision. These factors lead to gears that are noisier, wear faster, and are more prone to premature tooth failure. The cost of a differential rebuild is high, both in parts and labor. Using a substandard gear set like an imitation of the 199112340121 risks a repeat failure, effectively doubling your repair costs and vehicle downtime. The proven reliability and perfect compatibility of the genuine 199112340121 ring gear make it the only prudent choice for a critical component of this nature.
Validated System Performance: Delivers the exact torque handling, efficiency, and durability intended by SINOTRUK engineers.
Long-Term Reliability: Advanced manufacturing processes ensure extended service life, even under severe operating cycles.
Protection of Investment: Prevents costly collateral damage to the differential carrier, bearings, and axle shafts.
Maintained Resale Value: Using genuine OEM components like the 199112340121 supports the truck’s value and service history.
Warranty & Support: Backed by the traceability and quality assurance of a genuine SINOTRUK Howo part.
Operational Confidence: Ensures predictable performance, whether hauling maximum loads or cruising on the highway.
The 199112340121 Ring Gear is far more than a simple cog; it is a precision-engineered powerhouse central to the drivetrain performance and durability of your SINOTRUK Howo truck. Its role in torque multiplication, power delivery, and overall vehicle efficiency cannot be overstated.
Choosing this genuine OEM component, installed correctly as part of a matched gear set, is the definitive way to safeguard your investment. It eliminates the risks and hidden costs associated with inferior aftermarket parts and ensures your truck’s rear axle operates with the strength, silence, and reliability it was designed for. For fleet managers and owners who depend on maximum uptime and predictable performance, the 199112340121 is the only logical choice. Trust the original engineering. Choose the genuine 199112340121 ring gear to keep your Howo’s drivetrain running strong, mile after demanding mile.
