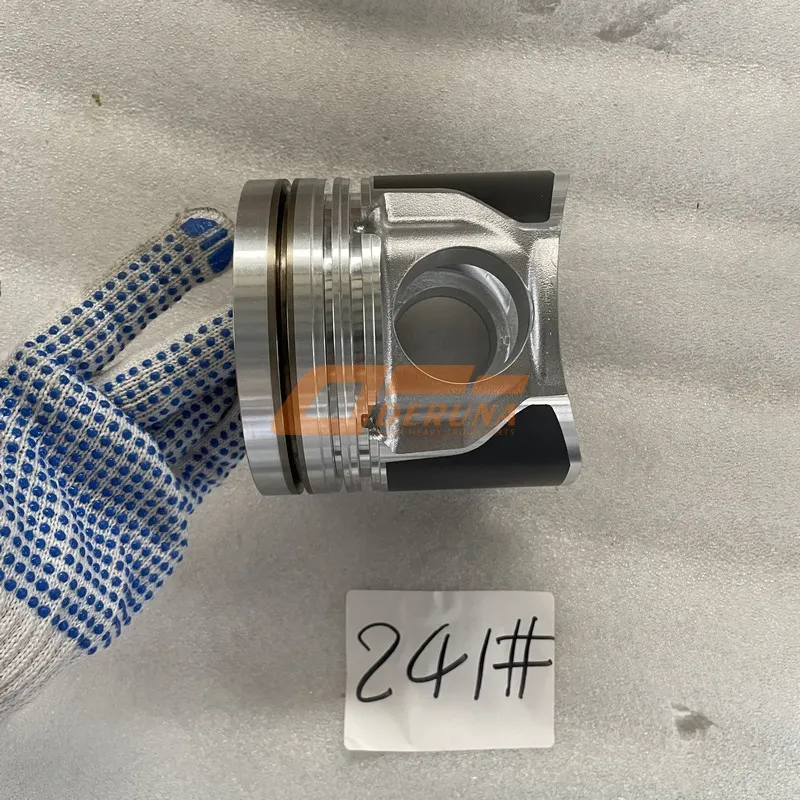

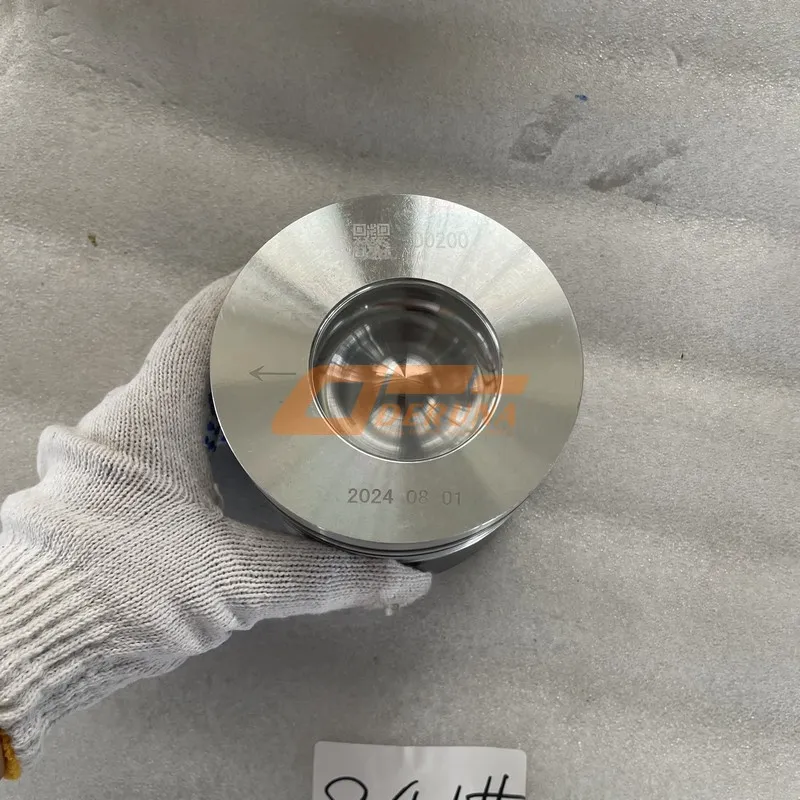

Precision-engineered forged piston for high-output diesel engines – The OEM D020-1004015A Piston is manufactured from high-silicon aluminum alloy with a reinforced steel crown insert, enabling it to withstand extreme combustion pressures and temperatures. Designed for SINOTRUK Homan heavy-duty engines, this piston ensures optimal compression, reduced blow-by, and extended overhaul intervals. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts. The D020-1004015A piston features advanced ring groove hardening, a full-floating wrist pin, and an optimized skirt profile for reduced friction and oil consumption.
The D020-1004015A piston is the heart of the combustion process, converting high-pressure gas force into mechanical motion. Unlike cast pistons, this unit is forged from high‑silicon aluminum alloy (4032 equivalent) which provides superior fatigue strength and thermal conductivity.
The reinforced crown incorporates a steel insert that resists cracking under peak cylinder pressures exceeding 200 bar. Additionally, the piston features anodized ring grooves that reduce micro-welding and extend ring life.
The skirt is coated with a low-friction graphite‑molybdenum layer, reducing scuffing during cold starts. The result is consistent compression, lower oil consumption, and drastically reduced risk of piston seizure even under heavy lugging conditions.
Forged from high-silicon alloy with steel crown insert, the D020-1004015A withstands extreme combustion pressures and detonation.
Three-ring design with hard anodized top groove, plasma-moly coated top ring, and taper-faced second ring for minimal blow-by.
Graphite/MoS2 coating on skirt reduces friction, eliminates scuffing, and improves fuel efficiency by up to 2%.
| OEM Number | D020-1004015A |
| Product Name | Piston (Complete with Rings & Pin) |
| Brand | SINOTRUK Homan |
| Material | Forged high‑silicon aluminum (4032) with steel crown insert |
| Piston Diameter (nominal) | 110.00 mm (standard), class A/B available |
| Compression Height | 75.6 mm ±0.05 mm |
| Overall Length | 102.4 mm ±0.10 mm |
| Wrist Pin Diameter | 38.00 mm (full‑floating, 0.002-0.008 mm clearance) |
| Number of Ring Grooves | 3 (top anodized, second, oil ring) |
| Top Ring Type | Plasma moly coated, Keystone angle 6° |
| Skirt Coating | Graphite + MoS2 (12-18 microns thickness) |
| Max Combustion Pressure | 220 bar (peak) |
| Applicable Engines | SINOTRUK Homan D20 series, D25 series, compatible with D020 platform |
| Manufacturing Process | Precision forging, CNC turning, ring groove hard anodizing, skirt coating, 100% dimensional inspection |
| Standards | IATF 16949, ISO 9001, ASTM B108 |
The D020-1004015A piston starts as a high‑purity aluminum extruded billet, then is hot‑forged into near‑net shape. This forging aligns the grain flow along the piston crown and skirt, dramatically increasing fatigue resistance under cyclic loading.
After forging, the piston is solution heat‑treated and artificially aged (T6 temper) to achieve peak hardness. The ring grooves are machined and then hard‑anodized to a depth of 30‑40 microns, providing a wear‑resistant surface that prevents ring micro‑welding even under high temperature.
The steel crown insert is bonded via a high‑pressure casting technique, creating a seamless thermal barrier. This insert reduces heat transfer to the top ring groove, lowering ring temperatures by nearly 50°C and eliminating carbon buildup.
The top compression ring is plasma‑sprayed with molybdenum, offering exceptional scuff resistance and conformability. The keystone profile prevents sticking in the anodized groove. The second ring is a taper‑faced design that scrapes oil downward, while the three‑piece oil ring assembly provides optimal oil control.
Field tests on D020-1004015A pistons showed blow‑by rates below 10 L/min after 10,000 hours, compared to 25 L/min for cast pistons. This reduces crankcase pressure, extends oil life, and lowers emissions.
Each D020-1004015A piston is CNC‑machined to final dimensions with a tolerance of ±0.005mm on the skirt diameter. Pistons are sorted into classes (A/B) based on actual diameter, allowing engine rebuilders to select the optimal fit for the cylinder bore.
Furthermore, all six pistons in a set are weight‑matched within ±2 grams, ensuring perfect engine balance. This eliminates vibration and premature bearing wear.
Proper installation is essential for longevity. 1) Clean and hone cylinders to final size; verify cylinder bore roundness within 0.02mm. 2) Measure piston skirt diameter at 90° to wrist pin axis, 20mm above skirt bottom.
3) Calculate piston‑to‑cylinder clearance (0.08‑0.12mm for forged pistons). 4) Warm the piston to 80°C before installing wrist pin; use new pin retainers. 5) Install rings with correct orientation (top ring keystone taper up, second ring taper down).
6) Lubricate skirt and rings with clean engine oil. 7) Use a taper‑sleeve ring compressor; never force the piston. 8) Orient piston arrow/toward front of engine. 9) Torque connecting rod bolts to 80 Nm + 60° angle.
After installing the D020-1004015A pistons, follow a proper break‑in procedure: run the engine at varying loads (not exceeding 70% of max) for the first 10 hours. Avoid prolonged idle. Change engine oil and filter after 100 hours.
During regular maintenance, measure crankcase blow‑by at each oil change. Increasing blow‑by indicates worn rings or cylinder bore. Always use quality diesel engine oil with appropriate ash content to keep ring grooves clean.
Every D020-1004015A piston is manufactured in an IATF 16949 certified plant with full material traceability. Each batch undergoes: (a) chemical analysis (spectrometry), (b) hardness testing (Brinell), (c) metallographic examination of grain flow and silicon distribution.
Destructive tests include hot‑shaker testing on a fired engine dynamometer for 1000 thermal cycles from idle to full load. No cracks or ring sticking were observed. Additionally, each piston is 100% inspected using a coordinate measuring machine (CMM) for critical dimensions.
The steel crown insert is tested for bond integrity via ultrasonic scanning. SINOTRUK Homan provides a certificate of conformance with every set.
A large mining fleet in Australia replaced all pistons with the D020-1004015A in their D20‑engined haul trucks. After 25,000 hours of operation (equivalent to 1.2 million km), teardown inspection revealed minimal ring groove wear and no piston cracking.
The fleet reported oil consumption reduced from 0.5L per 100 hours to 0.15L per 100 hours, saving thousands of litres annually. Another case: a power generation station using D020 engines for continuous duty noted that the forged pistons lasted 50% longer than cast alternatives, reducing unscheduled downtime.
Each genuine D020-1004015A piston is supplied in a protective foam‑lined box, including the piston, rings, wrist pin, and circlips. A hologram sticker with a unique QR code is affixed to the box. Scanning the QR code redirects to the SINOTRUK Homan authenticity portal.
The piston itself is laser‑etched with the OEM number and brand logo on the skirt. Counterfeit pistons often lack the steel crown insert, have inconsistent skirt coatings, and fail within short periods. Always purchase from authorized distributors.
Summary: The SINOTRUK Homan Piston (OEM D020-1004015A) delivers forged strength, advanced ring groove protection, and low‑friction skirt coating for D20/D25 engines. Choose genuine OEM for maximum power, reliability, and fuel economy.
