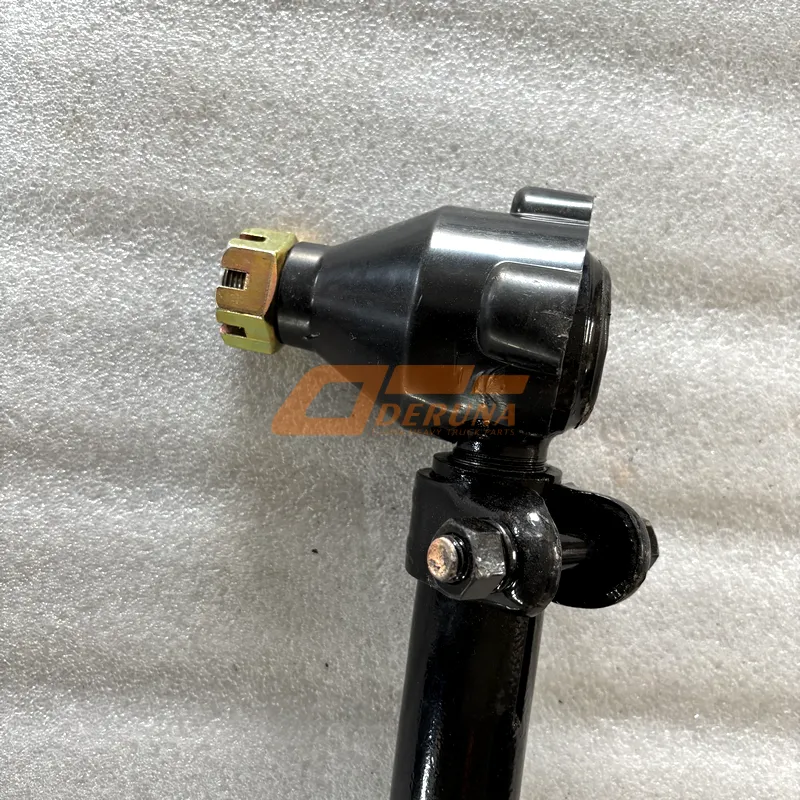

BEIBEN A6474600005 Drag Link | Heavy-Duty Steering Linkage

The A6474600005 is a critical genuine longitudinal drag link engineered for BEIBEN trucks, serving as the primary connection between the steering gear box pitman arm and the steering knuckle or intermediate arm. This robust component translates the rotational motion from the steering box into lateral movement that turns the vehicle’s front wheels. As a direct and pivotal link in the steering mechanism, the integrity of the Beiben truck parts like the A6474600005 is non-negotiable for precise steering control and overall road safety.

< p>Manufactured from high-strength, forged steel, it features precisely machined ends equipped with heavy-duty ball joints or bushing assemblies sealed within durable rubber boots to retain grease and exclude contaminants. The A6474600005 drag link is designed to withstand immense tensile and compressive forces, as well as shock loads from road irregularities, ensuring reliable and predictable steering response. Any wear or play in this component directly translates to vague steering, excessive free play at the steering wheel, uneven tire wear, and compromised vehicle handling, making its timely inspection and replacement with the genuine A6474600005 part essential for maintaining the steering precision and safety standards of BEIBEN commercial vehicles.

Core Function of the A6474600005 Drag Link

The A6474600005 longitudinal drag link performs the fundamental task of transferring steering force from the steering gear box to the steering knuckles. When the driver turns the steering wheel, the gear box rotates the pitman arm in an arc. The drag link, connected at one end to this pitman arm and at the other to a steering arm on the wheel assembly, converts this arcing motion into a precise push-pull action. This action directly moves the front wheels left or right. In many BEIBEN truck configurations, this A6474600005 component is the main connecting rod in a parallelogram steering linkage system, working in conjunction with tie rods to ensure both wheels turn in harmony.

< p>Its length and the angle of its attachment points are precisely calculated to maintain proper steering geometry, including toe alignment. A perfectly functioning drag link like the A6474600005 ensures that steering inputs from the driver are translated immediately and accurately into wheel movement without slack or deflection, providing the driver with a direct feel of the road and confident control over the vehicle’s direction, which is paramount for safety, especially when carrying heavy loads or maneuvering in tight spaces.

Design and Construction Advantages of A6474600005

Technical Specifications for A6474600005

The table below provides the essential technical details for the BEIBEN A6474600005 Longitudinal Drag Link. These specifications are vital for verifying compatibility and understanding the component’s construction for proper maintenance and replacement procedures.

Parameter	Specification
OEM Part Number	A6474600005
Component Name	Longitudinal Drag Link
Brand / Manufacturer	BEIBEN
Primary Material	High-Strength Forged Steel
Joint Type	Sealed Ball Joints / Bushings
Protection Feature	Rubber Boots & Corrosion-Resistant Finish
Mounting Type	Tapered Stud / Castle Nut with Cotter Pin
Application	BEIBEN Truck Steering Linkage System

Integration in BEIBEN Steering System

The A6474600005 drag link is a central element in the steering linkage of applicable BEIBEN truck models. It is typically installed longitudinally along the chassis, connecting the drop arm (pitman arm) of the steering gear box to the steering arm attached to the passenger-side steering knuckle or to an intermediate relay rod. In this configuration, the A6474600005 bears the brunt of the steering force.

< p>Its correct length is critical for maintaining the designed Ackermann steering geometry, which ensures the inner wheel turns at a sharper angle than the outer wheel during a turn, minimizing tire scrub. The component works in tandem with the tie rod assembly, which connects the two steering knuckles together, to form a complete and synchronized steering mechanism. Proper installation of the genuine A6474600005 ensures that all angles and distances within this parallelogram are restored to factory specifications, guaranteeing predictable handling, optimal tire contact, and safe steering response.

Symptoms of a Worn or Failing Drag Link

Installation and Safety Precautions

Replacing the A6474600005 drag link is a critical procedure that directly affects vehicle safety. Always consult the official BEIBEN service manual. Begin by safely supporting the front axle on jack stands, with the wheels chocked. Mark the alignment of the adjusting sleeves if present to approximate the original length. Loosen the castle nuts on the drag link ends and use a proper puller tool to separate the tapered studs from the pitman arm and steering arm—never hammer directly on the joints. Remove the old A6474600005 component. Before installing the new genuine A6474600005 drag link, compare its length to the old one and inspect the rubber boots for integrity.

Post-installation steps are mandatory. A professional front-end wheel alignment is absolutely required after replacing any steering linkage component, including the A6474600005. The alignment technician will set the toe angle to factory specifications, which is impossible to achieve accurately without specialized equipment. Failure to perform an alignment will result in rapid tire wear and poor handling. Before driving, also perform a visual inspection to ensure all nuts are tight and cotter pins are in place. With the vehicle on the ground, have an assistant turn the steering wheel while you observe the drag link and its connections for any abnormal movement.

Routine Maintenance and Inspection Guide

Regular inspection of the A6474600005 longitudinal drag link is a key part of preventive maintenance for BEIBEN trucks. During scheduled service intervals, visually inspect the entire component for any signs of physical damage, such as bends, cracks, or dents. Check the rubber boots at each end for tears, cracks, or missing clamps. Damaged boots allow grease to escape and contaminants to enter, leading to rapid joint failure. Look for signs of grease leakage around the joints, which may indicate a compromised seal. The most important check is for excessive play.

< p> With the vehicle on the ground, have an assistant slowly turn the steering wheel back and forth while you observe and feel each joint of the A6474600005. Any visible or palpable movement at the joint itself (not the normal rotation) indicates wear. You can also try to move the drag link by hand; it should feel solid with no radial or vertical looseness.

Lubrication is crucial if the A6474600005 is equipped with grease fittings (zerk fittings). Using a high-pressure grease gun, apply the type of grease specified by BEIBEN until you see the boot slightly expand and fresh grease purges from the boot seals. Do not over-grease, as this can rupture the boot. If no grease fittings are present, the joints are sealed for life and cannot be serviced; they must be replaced as an assembly when worn.

< p>Always inspect the drag link mounting points (pitman arm and steering arm) for wear or damage as well. Documenting these inspections helps in planning timely replacements, preventing unexpected failures. A proactive replacement schedule for the A6474600005 based on mileage, operating conditions, and inspection results is more cost-effective than dealing with the consequences of a sudden failure, which could include loss of steering control.

Why Choose Genuine BEIBEN Part A6474600005

Selecting the genuine BEIBEN A6474600005 drag link over alternative parts is a definitive choice for safety, reliability, and performance. Original Equipment Manufacturer (OEM) parts like the A6474600005 are engineered and tested as an integral component of the vehicle’s total steering system. Their material composition, heat treatment, dimensional tolerances, and load ratings are validated to work in perfect harmony with the steering gear, knuckles, and other linkage parts.

Non-genuine or counterfeit drag links may appear similar but often fall short in critical areas. They may use inferior grade steel that can bend or fatigue prematurely, have poorly manufactured joints that develop play quickly, or feature substandard boots that fail early. Even a slight deviation in the length of the A6474600005 can alter steering geometry, causing bump steer—a dangerous condition where the vehicle darts or jerks when hitting a bump. In a system where failure can lead to a total loss of steering, compromising on component quality is an unacceptable risk.

Compatibility and Model Application

The A6474600005 longitudinal drag link is designed for specific BEIBEN truck models and steering system configurations. Compatibility is determined by factors such as the chassis design, axle type, steering gear model, and the year of production. This component is not universal; a drag link from a different model or manufacturer will almost certainly have different lengths, end fittings, or load capacities, leading to improper fitment and hazardous steering behavior.

< p>Therefore, it is imperative to verify the OEM part number A6474600005 against your vehicle’s parts catalog or the original component removed during service. This number is the only reliable guarantee of correct application. When sourcing this part, always provide your truck’s VIN (Vehicle Identification Number) to your parts supplier to allow for precise cross-referencing and to avoid errors. Using the correctly specified A6474600005 ensures that your BEIBEN truck’s steering system operates with the precision, reliability, and safety for which it was engineered.

Conclusion and Final Recommendations

The BEIBEN A6474600005 longitudinal drag link is a fundamentally important safety component within the steering linkage system. Its role in accurately and reliably transmitting steering force is critical for maintaining vehicle control and ensuring safe operation under all load and road conditions. The genuine A6474600005 part, with its robust forged construction, precision joints, and protective features, is engineered to deliver durable performance and restore the vehicle’s original steering feel. Recognizing the symptoms of wear and adhering to a regular inspection schedule are key practices for every truck owner and maintenance team.

When replacement becomes necessary, insisting on the genuine A6474600005 component is the only way to guarantee fit, function, and long-term safety. Pair the installation with a professional wheel alignment by a qualified technician. This comprehensive approach ensures that your BEIBEN truck’s steering system remains in peak condition, providing the driver with confidence and control, protecting your investment in tires, and upholding the highest standards of road safety for everyone. Always prioritize OEM-quality steering components like the A6474600005 for all critical maintenance and repair work on your commercial vehicle.
