Sitrak Wings (C5H2376 long)

Sitrak Wings (C5H2376 long)
Sitrak Wings (C5H2376 long)
Download Catalog
Get Quotation

What is the Sitrak Wings (C5H2376 long)

  • The Sitrak Wings (C5H2376 long) are integral parts of the vehicle, designed with precision and durability in mind. Let’s take a detailed look at the various components that make up these wings.
  • Left Wing Components
  • The front section of the left wing panel is securely fastened using multiple sets of hexagon socket cheese head screws paired with large washers (Q2100825F31+Q40208F31). These combinations ensure a tight and stable connection, enhancing the overall integrity of the wing.
  • The left wing front section bracket assembly is attached with hexagon bolts, further reinforced by flat washers. This setup provides a strong foundation for the front part of the left wing. The Wing Skid Plate I on the left wing adds an extra layer of protection, safeguarding the wing from potential damage.
  • Moving to the rear of the left wing, we find the left wing rear section. It is supported by a bracket, and the left fender is also an important part of this area. There are plug covers in place, which are secured by rivets and open – end rivets. Additionally, flexible retaining rings for splash guard connection (81908200340) are used to ensure a proper fit and function of the splash guard.
  • Right Wing Components
  • The right wing front section features a front right wing panel bracket assembly. Similar to the left wing, the right fender and its rear section are crucial elements.
  • To fasten the components of the right wing, various types of screws and nuts are used. Hexagon socket cheese head pan head screws, accompanied by flat washers and spring washers, are employed for a reliable connection. Ⅰ type hexagon nuts are used to secure these screws.
  • Cross recessed pan head screws and flat washers assemblies are also widely used throughout the right wing. These assemblies come in multiple sets, providing a consistent and secure fastening solution. Large washers, reed nuts, and cross recessed pan head tapping screws are also part of the right wing’s component makeup, each playing a vital role in the overall structure and functionality of the Sitrak Wings (C5H2376 long).
  • In summary, the Sitrak Wings (C5H2376 long) are a well – engineered system, with each component carefully selected and installed to ensure optimal performance and durability.

Product Parameters of Sitrak Wings (C5H2376 long)

812-#0470-0502  Wings (C5H2376 long)
No. Part Number Part Name English  Quantity
1 812W61510-0501 Front section of left wing panel 1
2 AZ9003921001 Hexagon socket cheese head screws + large washers(Q2100825F31+Q40208F31) 5
2 AZ9003921001 Hexagon socket cheese head screws + large washers(Q2100825F31+Q40208F31) 2
2 AZ9003921001 Hexagon socket cheese head screws + large washers(Q2100825F31+Q40208F31) 5
2 AZ9003921001 Hexagon socket cheese head screws + large washers(Q2100825F31+Q40208F31) 2
3 812W61510-0507 Left wing front section bracket assembly 1
4 Q151C1225 Hexagon bolts 2
4 Q151C1225 Hexagon bolts 1
4 Q151C1225 Hexagon bolts 2
4 Q151C1225 Hexagon bolts 1
5 Q40112 Flat Washer 2
5 Q40112 Flat washers 2
6 810W61511-0001 Wing Skid Plate I 1
6 810W61511-0001 Wing Skid Plate I 1
7 812W61510-0509 Left wing rear section 1
8 810W61243-0118 Bracket 1
9 812W61510-0505 Left Fender 1
10 810W61230-0117 Plug cover 1
10 810W61230-0117 Plug cover 1
11 810W92201-0115 Rivet 5
11 810W92201-0115 Open end rivet 5
12 AZ1608230117 Flexible retaining ring for splash guard connection/81908200340 3
12 AZ1608230117 Flexible retaining ring for splash guard connection/81908200340 3
13 812W61510-0502 Right wing front section 1
14 812W61510-0508 Front right wing panel bracket assembly 1
15 812W61510-0510 Right fender rear section 1
16 812W61510-0506 Right fender 1
17 ZQ215B0825 Hexagon socket cheese head pan head screws 4
17 ZQ215B0825 Hexagon socket cheese head pan head screws 4
18 Q40108F31 Flat Washers 4
18 Q40108F31 Flat washers 4

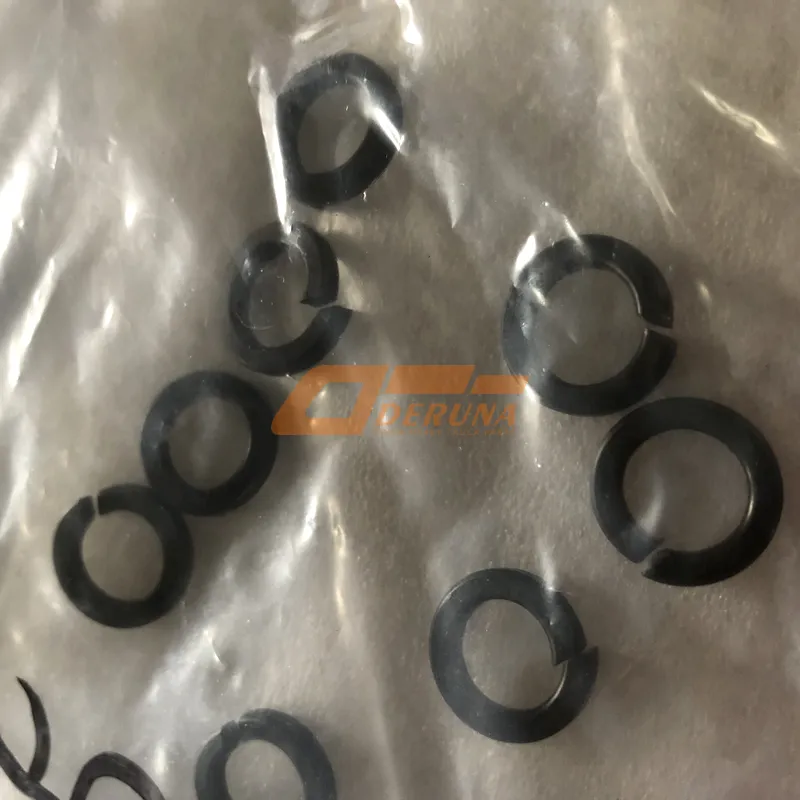

19 Q40308F31 Spring washers 4
19 Q40308F31 Spring washers 4
20 Q340B08F31 Ⅰ type hexagon nuts 4
20 Q340B08F31 Ⅰ type hexagon nuts 4
21 Q2300516F31 Cross recessed pan head screws and flat washers assemblies 2
21 Q2300516F31 Cross recessed pan head screw and flat washer assemblies 2
22 Q2300616F31 Cross recessed pan head screw and flat washer assemblies 3
22 Q2300616F31 Cross recessed pan head screw and flat washer assemblies 3
23 Q40106F31 Flat washers 2
24 Q340B06F31 Ⅰ type hexagon nuts 2
25 Q40212 Large washers 1
25 Q40212 Large washers 1
26 Q2140620 Cross recessed pan head screws 2
26 Q2140620 Cross recessed pan head screws 2
27 Q40106 Flat washers 2
27 Q40106 Flat washers 5
27 Q40106 Flat washers 2
27 Q40106 Flat Washers 4
28 Q39748202F31 Reed Nuts 4
28 Q39748202F31 Reed nuts 4
29 Q2714822F31 Cross recessed pan head tapping screws 4
29 Q2714822F31 Cross recessed pan head tapping screws 4
