What is the SANY Steering System

  • This document details the first quadrant (SANY Steering System), focusing on the foundational hydraulic circuit routing and its secure mounting architecture. This sub-assembly is critical for ensuring leak-free fluid transfer and structural integrity under high pressure. A key sealing element, the O-Ring, is precision-installed within a Flange Split connection, which is secured by a Screw to prevent leaks at critical junctions. The entire network is anchored to the vehicle’s framework via the robust Main plate, which serves as the primary load-bearing surface.
  • Hydraulic fluid is directed through a series of Steel tube assembly lines, shaped and routed for optimal flow. These tubes are supported and isolated using various clamping solutions. A Fixed seat provides a solid mounting point, while a Clamp and specifically a U-CLAMP are fastened with a Screw to a Pipe clamp seat, firmly gripping the Steel tube assembly to dampen vibration and prevent fatigue. Directional changes in the fluid path are managed by specialized connectors, including a Fitting, Tee for flow division and a Fitting, Elbow for 90-degree turns.
  • Secure fastening is paramount, achieved through a combination of a Bolt, multiple Washer types (for load distribution and locking), and a Nut. A second Fixed seat is employed to stabilize another section of the tubing. For flexible hose segments, a Hose clip seat is used in conjunction with another U-CLAMP to ensure a firm, reliable connection, completing this segment of the highly reliable SANY Steering System.

Parameters of SANY Steering System (1/4)

No. Part No. Description Qty
1 B230101002071 O-Ring 2
2 B210780000644 Flange Split 8
3 A210204000215 Screw 12
4 ODT004711810 Main plate 1
5 14498874 Steel tube assembly 1
6 A210204000354 Screw 12
7 14505831 Fixed seat 1
8 14353805 Steel tube assembly 1
9 14353814 Steel tube assembly 1
10 B210780001007 Fitting, Tee 3
11 A311150805016 Bolt 6
12 A210404000005 Washer 2
13 A210405000007 Washer 8
14 A210307000055 Nut 8
15 A210401000017 Washer 8
16 14425162 Fixed seat 1
17 10698669 Clamp 4
18 60008272 U-CLAMP 5
19 24000431 Screw 2
20 14354079 Pipe clamp seat 1
21 14353793 Steel tube assembly 1
22 B210780001310 Fitting, Elbow 7
23 14354078 Pipe clamp seat 1
42 14499618 Hose clip seat 1
55 60008274 U-CLAMP 3
73 ODT004709360 Hose clip seat 1

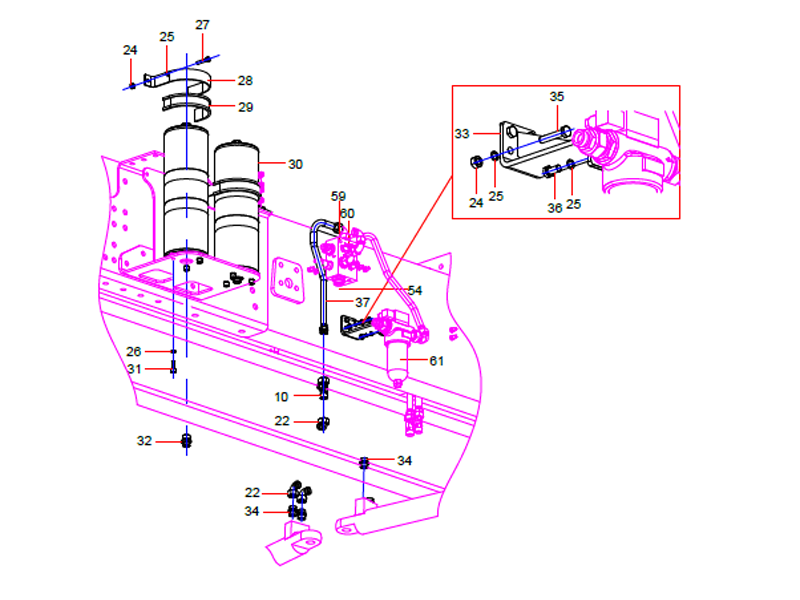

Parameters of SANY Steering System (2/4)

No. Part No. Description Qty
10 B210780001007 Fitting, Tee 3
22 B210780001310 Fitting, Elbow 7
24 A210307000017 Nut 11
25 A210405000011 WASHER-HARD 17
26 A210401000002 Washer 6
27 A210111000024 Bolt 4
28 12877468 Energy Storage Thimble 2
29 12877280 Rubber Pad 2
30 60308391 Piston Type Accumulator 2
31 A210204000337 Screw 6
32 B210780000184 Stud Ends 2
33 14354028 Fixed seat 1
34 B210780000131 Fitting, Adapter 4
35 A210111000029 Bolt 5
36 A210111000012 Bolt 2
37 14353827 Steel tube assembly 1
54 14434714 Steel tube assembly 1
59 A210204000477 Bolt 2
60 14354089 Steering valve assembly 1
61 14353940 Filter pipe connector installation 1

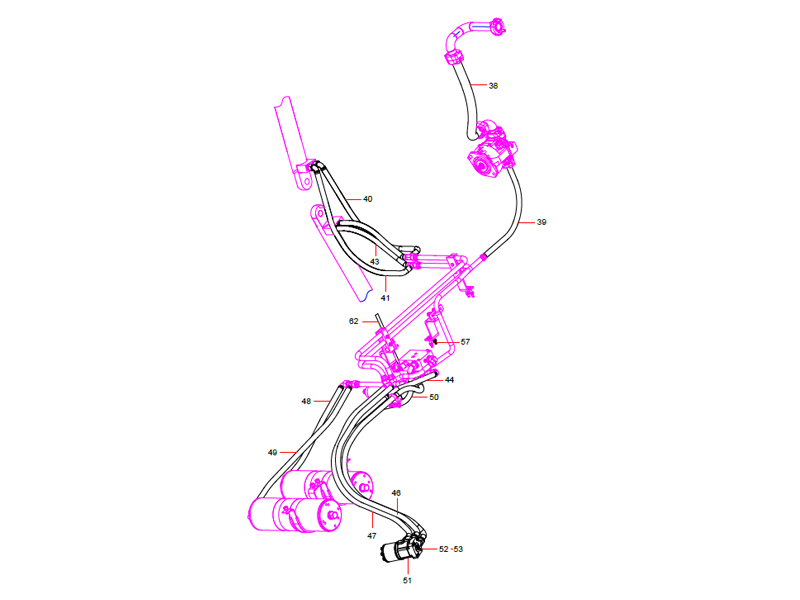

Parameters of SANY Steering System (3/4)

No. Part No. Description Qty
38 151009060023A Rubber Hose 1
39 151006160053A Rubber Hose 1
40 B230103000398 Rubber Hose 1
41 60290238 Rubber hose 1
43 151006160047A Rubber hose 2
44 B230103000381 Hose 2
46 B230103000376 Rubber Hose 1
47 60323608 Rubber hose 1
48 B230103000394 Hose Assembly 1
49 B230103003978 Hose Rubber 1
50 B230103000388 Hose assembly 1
51 14354090 Steering Gear Assembly 1
52 A210111000026 Bolt 4
53 A210401000001 Washer 21
57 21005186 Bolt 4
62 21027072 Rubber Hose 1

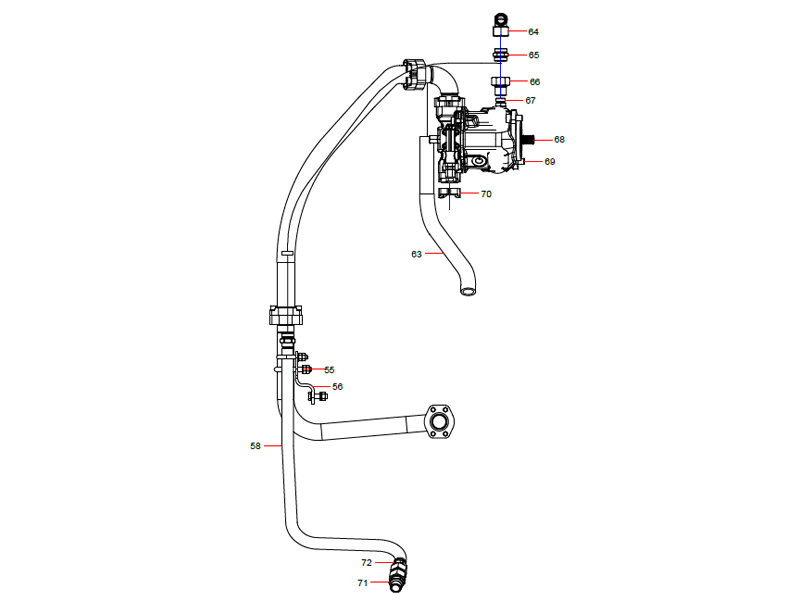

Parameters of SANY Steering System (4/4)

No. Part No. Description Qty
55 60008274 U-CLAMP 3
56 14499660 Hose clip seat 2 1
58 ODT004711809 steel tube assembly 1
63 B230103005259 Hose Assembly 1
64 B210780000028 Fitting, Elbow 1
65 24001352 Fitting, Adapter 1
66 B210780000336 Pipe connector 1
67 B210780000713 Fitting, Adapter 1
68 150101020007A Plunger Pump 1
69 A210204000032 Screw 2
70 B210780000696 Flange Split 2
71 B210780000421 Fitting, Adapter 1
72 B210780000936 Fitting, adapter 1
