What is the SANY PLANETARYGP

  • The SANY PLANETARYGP represents one-third of the complete planetary gear system that forms the heart of SANY’s advanced transmission technology. This sophisticated subassembly features a comprehensive CARRIER-PLANET that houses multiple GEAR-PLANET components, each rotating on precision SHAFT and SHAFTAS-PLANET assemblies with BEARING-RLR and BEARING-SPL bearings for smooth operation. The system incorporates multiple clutch elements including PLATE-CLUTCH plates and DISC-FRICTION friction discs, all working in conjunction with PISTON actuators that utilize RING-SEAL(INT) and RING-SSAL(EXT) seals for perfect hydraulic operation.
  • The SANY PLANETARYGP includes vital thrust management through DISC-THRUST washers and BEARING-THRUST bearings, while the GEAR-RING provides the stationary outer gear interface. The assembly incorporates numerous retention components such as RING-RETAINING rings and RING-LOCK locking rings, along with PIN and PIN-SPRING elements that work with SPRING components to maintain proper clutch pack tension. Sealing is ensured through SEAL-O-RINGO and SEAL-LIPTYPE seals, with GASKET-REARHSG gaskets providing additional sealing surfaces.
  • The SANY PLANETARYGP is housed within a precision HOUSING and connects to the CASEAS-XMSN transmission case, featuring ROTOR-OUTPUT for power delivery and CARRIER-BEARING support for the GEAR-SUN central gear. Fastening is achieved through BOLT-HEXHEAD bolts with WASHER-HARD and standard Washer components, while PLUG-LDSTOR plugs with SEAL-O-RING-STORO seals provide maintenance access points. The meticulous engineering of the SANY PLANETARYGP ensures optimal power distribution, exceptional durability, and reliable performance in the most demanding operating conditions, reflecting SANY’s commitment to transmission excellence.

Parameters of SANY PLANETARYGP (1/3)

No. Part No. Description Qty
1 130202000093A061 GASKET-REARHSG 1
2 130202000093A062 RING-SEAL(EXT) 1
3 130202000093A063 PISTON 1
4 130202000093A064 RING-SEAL(INT) 1
5 130202000093A065 RING-RETAINING 1
6 130202000093A066 BEARINGAS 1
7 130202000093A038 Washer 20
8 130202000093A067 BOLT-HEXHEAD 19
9 130202000093A068 HOUSING 1
10 130202000093A069 ROTOR-OUTPUT 1
11 130202000093A070 PLUG-LDSTOR 2
12 130202000093A071 SEAL-O-RINGO 3
13 130202000093A016 SEAL-LIPTYPE 1
14 130202000093A072 PLUG-LDSTOR 6
15 130202000093A011 SEAL-O-RING-STORO 6
16 130202000093A073 CARRIER-PLANET 1
17 130202000093A074 BEARING-RLR 2
18 130202000093A075 SHAFT 1
19 130202000093A076 GEAR-PLANET 4
20 130202000093A077 BEARING-SPL 4
21 130202000093A078 SHAFTAS-PLANET 4
22 130202000093A079 DISC-THRUST 8
23 130202000093A080 GEAR-RING 1
24 130202000093A081 PLATE-CLUTCH 2
25 130202000093A082 PLATE-CLUTCH 12
26 130202000093A083 DISC-FRICTION 18
27 130202000093A084 BEARING-THRUST 2
28 130202000093A085 SPRING 4
29 130202000093A086 PIN 4
30 130202000093A087 PLATE-CLUTCH 4
31 130202000093A088 PIN 8
32 130202000093A089 SPRING 8
33 130202000093A090 GEAR-RING 1
34 130202000093A091 RING-SEAL(INT) 2
35 130202000093A092 PISTON 2
36 130202000093A093 RING-SEAL(EXT) 2
37 130202000093A094 SEAL-O-RINGO 2
38 130202000093A341 SEAL-O-RINGO 3
39 130202000093A095 BOLT-HEXHEAD 1
40 130202000093A344 WASHER-HARD 1
41 130202000093A096 BOLT-HEXHEAD 1
42 130202000093A097 PLUG-LDSTOR 1
43 130202000093A098 CASEAS-XMSN 1
44 130202000093A099 RING-LOCK 2
45 130202000093A100 CARRIER-PLANET 1
46 130202000093A101 RING-RETAINING 1
47 130202000093A102 PLATE-CLUTCH 1
48 130202000093A103 PIN-SPRING 14
49 130202000093A104 SHAFTAS.-PLANET 4
50 130202000093A105 BEARING 4
51 130202000093A106 GEAR-PLANET 4
52 130202000093A107 DISC-THRUST 8
53 130202000093A108 BEARING-THRUST 2
54 130202000093A109 SHAFT-CENTER 1
55 130202000093A110 CARRIER-BEARING 1
56 130202000093A111 GEAR-SUN 1
57 130202000093A112 RING-RETAINING 1

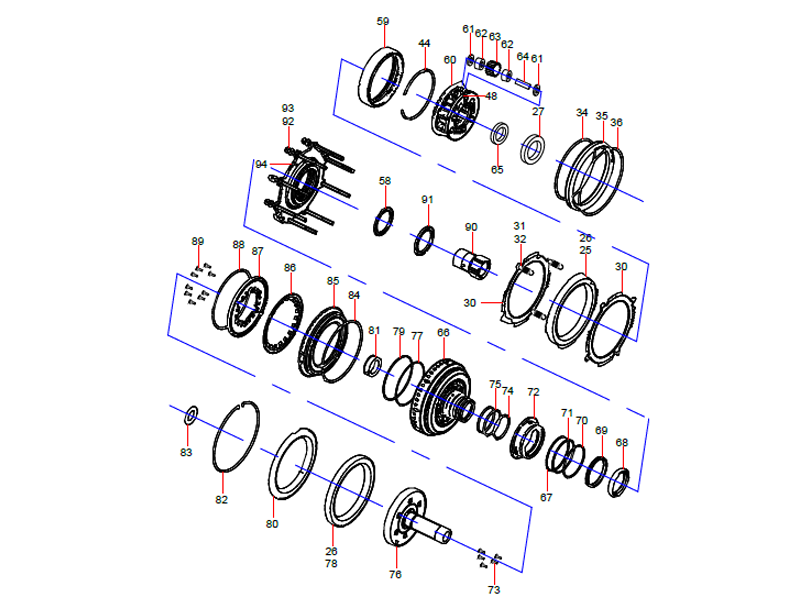

Parameters of SANY PLANETARYGP (2/3)

No. Part No. Description Qty
25 130202000093A082 PLATE-CLUTCH 12
26 130202000093A083 DISC-FRICTION 18
27 130202000093A084 BEARING-THRUST 2
30 130202000093A087 PLATE-CLUTCH 4
31 130202000093A088 PIN 8
32 130202000093A089 SPRING 8
34 130202000093A091 RING-SEAL(INT) 2
35 130202000093A092 PISTON 2
36 130202000093A093 RING-SEAL(EXT) 2
44 130202000093A099 RING-LOCK 2
48 130202000093A103 PIN-SPRING 14
58 130202000093A113 SPRING-WAVE 1
59 130202000093A114 COUPLING 1
60 130202000093A115 CARRIERAS 1
61 130202000093A116 DISC-THRUST 12
62 130202000093A117 BEARING-RLRAS 12
63 130202000093A118 GEAR-PLANET 6
64 130202000093A119 SHAFTAS.-PLANET 6
65 130202000093A120 DISC-THRUST 1
66 130202000093A121 HUBAS 1
67 130202000093A122 SEAL-O-RINGO 1
68 130202000093A123 CONE-TAPEREDRLR 1
69 130202000093A124 CUP-TAPEREDRLR 1
70 130202000093A125 SEAL-O-RINGO 1
71 130202000093A126 SEAL-O-RINGO 1
72 130202000093A127 HOUSING-SEAL 1
73 130202000093A128 SCREW-TRUSSHEA M8X1.25 6
74 130202000093A129 RING-METALSEAL 1
75 130202000093A130 RING-SEAL 2
76 130202000093A131 HUB 1
77 130202000093A132 SEAL-ORINGO 1
78 130202000093A133 PLATE-CLUTCH 3
79 130202000093A134 RING-SEAL 1
80 130202000093A135 PLATE-CLUTCH 1
81 130202000093A136 BEARING-NEEDLE 1
82 130202000093A137 RING-LOCK 1
83 130202000093A138 DISC-THRUST 1
84 130202000093A139 RING-SEAL(EXT) 1
85 130202000093A140 PISTON 1
86 130202000093A141 SPRING-CONED 1
87 130202000093A142 PISTON 1
88 130202000093A143 RING-SEAL(EXT) 1
89 130202000093A144 SCREW-TRUSSHEAD 12
90 130202000093A145 GEAR-SUN 1
91 130202000093A328 BEARING-THRUST 1
92 130202000093A146 WASHER-HARD 8
93 130202000093A147 BOLT 8
94 130202000093A148 MANIFOLDAS. 1

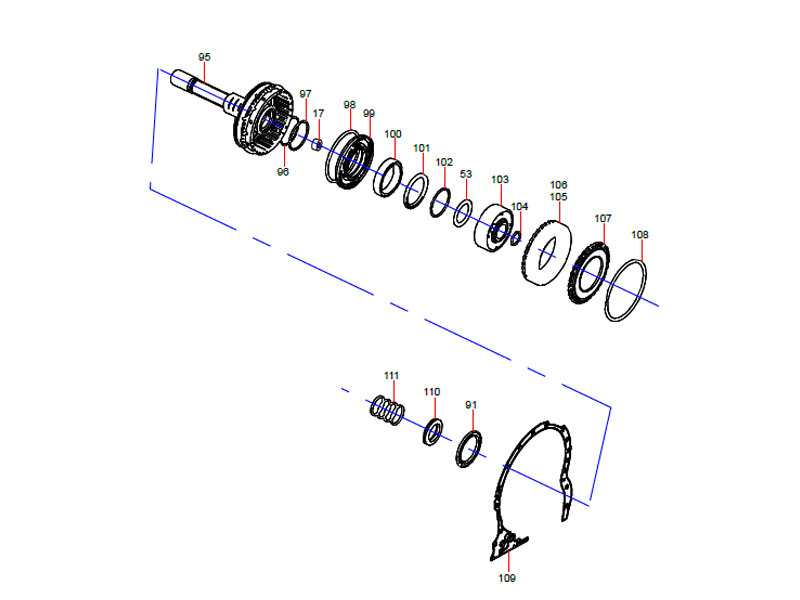

Parameters of SANY PLANETARYGP (3/3)

No. Part No. Description Qty
17 130202000093A074 BEARING-RLR 2
53 130202000093A108 BEARING-THRUST 2
91 130202000093A328 BEARING-THRUST 1
95 130202000093A149 SHAFTAS 1
96 130202000093A150 SEAL-ORINGO 1
97 130202000093A151 RING-SEAL 1
98 130202000093A152 RING-SEAL(EXT) 1
99 130202000093A153 PISTON 1
100 130202000093A154 SPRING-WAVE 1
101 130202000093A155 RING-SPACER 1
102 130202000093A156 RING-RETAINING 1
103 130202000093A157 HUB-CLUTCH 1
104 130202000093A158 RING-RETAINING 1
105 130202000093A159 PLATE-CLUTCH 5
106 130202000093A160 DISC-FRICTION 5
107 130202000093A161 PLATE-REACTION 1
108 130202000093A162 RING-RETAINING 1
109 130202000093A329 GASKET 1
110 130202000093A163 BEARING-INNER 1
111 130202000093A164 RING-SEAL 4
