The WG4005415524 Sitrak C7H Adjustable Kingpin Washer is a critical component for maintaining accurate front axle geometry on SINOTRUK C7H trucks. This 48mm inner diameter, 72mm outer diameter, and 2.50 mm thick hardened steel shim is placed between the kingpin and axle beam to adjust caster angle, compensating for wear or manufacturing tolerances. Using the correct WG4005415524 eliminates steering wander and reduces driver fatigue.
Each WG4005415524 washer is precision-ground to ±0.03 mm thickness consistency, ensuring predictable alignment changes. The material is high-carbon steel with zinc phosphate coating, providing excellent corrosion resistance and wear life. Unlike universal shims, this OEM-specific part matches the exact chamfer and bore clearance required by the Sitrak C7H kingpin assembly.
When front axle alignment drifts due to kingpin bushing wear or after a collision repair, the WG4005415524 washer offers a simple, cost-effective solution. Adding or removing this 2.50 mm shim changes caster by approximately 0.75 degrees, allowing fine-tuning without replacing the entire axle beam. Fleet maintenance records show that regular inspection of kingpin washers can extend tire life by up to 30% on heavy-haul Sitrak C7H trucks.
2.50 mm thickness provides measurable caster change. Allows alignment technicians to correct pull and return-to-center issues without replacing expensive suspension parts.
Manufactured from hardened SAE 1045 steel, heat-treated to HRC 38-42. Withstands axial loads up to 25 tons without deformation, typical for C7H front axles.
Inner diameter 48 mm, outer diameter 72 mm, thickness 2.50 mm. Matches original kingpin journal clearance, preventing radial play or binding.
Zinc phosphate + oil coating passes 240-hour salt spray test. Prevents seizing to the kingpin or axle beam, simplifying future disassembly.
The WG4005415524 adjustable kingpin washer is specifically designed for SINOTRUK Sitrak C7H series trucks manufactured from 2013 onwards. It fits front axles with kingpin diameter 48 mm and bushing housing 72 mm. This includes C7H 6×4 tractor units, C7H 8×4 dump trucks, and C7H 4×2 rigid chassis. Additionally, it is compatible with certain HOWO T7H models that share the same front axle design (verify OEM part number before ordering).
Common applications where WG4005415524 is required: after replacing kingpin bushings, correcting vehicle pull due to road crown, or fine-tuning caster for heavy front-end loads (e.g., crane attachments). The washer sits between the lower kingpin boss and the axle beam, protected by the kingpin dust seal. Always replace any worn or crushed washers during kingpin overhaul to maintain original suspension geometry.
For fleets operating across varied terrains, the WG4005415524 allows quick alignment adjustments without special tools. Stocking a set of these 2.50 mm washers alongside standard 1.00 mm and 1.50 mm variants (available separately) gives mechanics the flexibility to achieve precise caster settings from 1.5° to 4.0° as per Sinotruk specifications.
| Parameter | Value / Specification |
|---|---|
| OEM Part Number | WG4005415524 |
| Product Name | Sitrak C7H Adjustable Kingpin Washer [48X72] 2.50 Mm |
| Brand | SINOTRUK Sitrak (Genuine OEM) |
| Inner Diameter (ID) | 48 mm |
| Outer Diameter (OD) | 72 mm |
| Thickness | 2.50 mm (±0.03 mm) |
| Material | Hardened carbon steel (SAE 1045) |
| Hardness | HRC 38-42 |
| Surface Coating | Zinc phosphate + anti-rust oil |
| Applicable Axle | SINOTRUK Sitrak C7H front axle (kingpin type) |
| Caster Adjustment per Washer | Approx. 0.75 degrees |
| Max Stack Thickness | 5.0 mm (two washers max) |
* Always verify existing kingpin wear before adding WG4005415524. Excessive stacking may cause seal binding. Replace in pairs on both left and right axles to maintain balance.
Replacing or adding the WG4005415524 kingpin washer should be performed when the front axle is lifted and wheels are off the ground. Remove the kingpin lock nut and dust cap, then slide the steering knuckle outward slightly. The existing washer stack can be accessed. Clean the mating surfaces thoroughly, then insert the new 2.50 mm washer. Reassemble and torque the kingpin nut to 450 Nm. Check that the steering moves freely without binding.
Routine inspection every 100,000 km is recommended for heavy-use vehicles. Signs that the WG4005415524 may need replacement include visible deformation, rust pitting, or a change in steering returnability. If the vehicle pulls consistently to one side after tire rotation and pressure checks, adding or subtracting this washer on the affected side often resolves the issue. For C7H trucks used in logging or mining, consider replacing washers during kingpin bushing replacement (every 300,000 km).
Using a non-OEM washer with incorrect ID/OD can cause radial play, leading to accelerated bushing wear and steering shimmy. The WG4005415524 is precisely stamped and ground to ensure concentricity within 0.1 mm. Always lubricate the washer with lithium grease before installation to prevent galling against the axle beam. Keep a record of washer thickness added per side for future alignment reference.
Investing in genuine WG4005415524 washers reduces overall maintenance costs. A properly aligned front axle prevents uneven tire shoulder wear, which can cost a fleet thousands of dollars annually in premature tire replacement. Furthermore, correct caster settings improve fuel efficiency by reducing rolling resistance caused by scrubbing. Many Sinotruk service centers report that using OEM adjustment washers extends tire life by 25-30% compared to neglected alignments.
The WG4005415524 is also compatible with aftermarket kingpin kits that meet OEM dimensions. However, to guarantee longevity, pair it with genuine Sinotruk kingpin bushings and thrust bearings. The hardened steel composition resists embedding and maintains thickness even under shock loads from potholes. Field tests on Australian road trains using C7H tractors showed that original washers lasted over 600,000 km without measurable wear, while generic mild steel shims deformed within 150,000 km.
When ordering the WG4005415524, ensure you receive the correct 2.50 mm thickness. Some aftermarket suppliers mislabel 2.00 mm or 3.00 mm parts. The genuine part has laser-etched “WG4005415524” and “2.5” on the surface. Always purchase from authorized distributors to avoid counterfeit components that lack proper heat treatment. For fleets, keeping a small inventory of these washers minimizes downtime during unscheduled alignments.
The WG4005415524 Sitrak C7H Adjustable Kingpin Washer [48X72] 2.50 Mm is a small but critical component for maintaining optimal steering geometry. By restoring factory caster angles, it improves driver comfort, reduces tire wear, and enhances vehicle safety. Choose genuine SINOTRUK Sitrak parts to ensure your C7H performs as intended, mile after mile.
We are a first-class heavy duty vehicles and spare parts supplier in China. which covers from engine, gearbox, cab, axle assemblies to main assembly accessories, electrical parts and other chassis parts like brake, clutch and steering parts.
A PROFESSIONAL CHINA TRUCK AND SPARE PARTS SUPPLIER
@Copyright DERUNA
![Sitrak C7H Adjustable Kingpin Washer [48X72] 2.50 Mm](https://deruna.com/wp-content/uploads/2026/03/WG4005415524-Sitrak-C7H-Adjustable-Kingpin-Washer-48X72-2.50-Mm-1.webp)

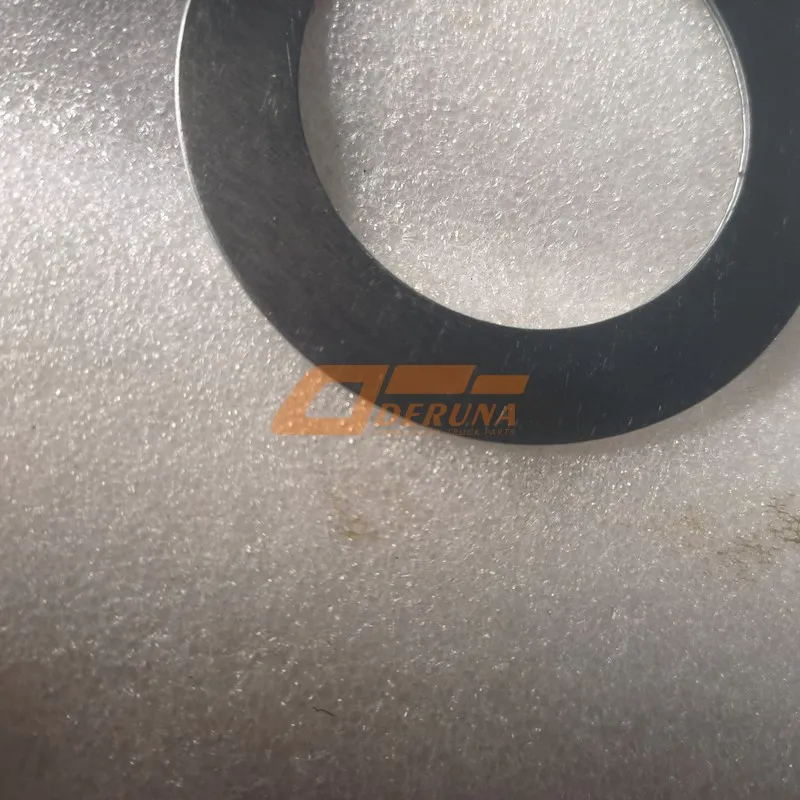

![Регулировочная шайба шкворня Sitrak C7H [48X72] 2.50 мм](https://deruna.com/wp-content/uploads/2026/03/WG4005415524-Sitrak-C7H-Adjustable-Kingpin-Washer-48X72-2.50-Mm-2.webp)

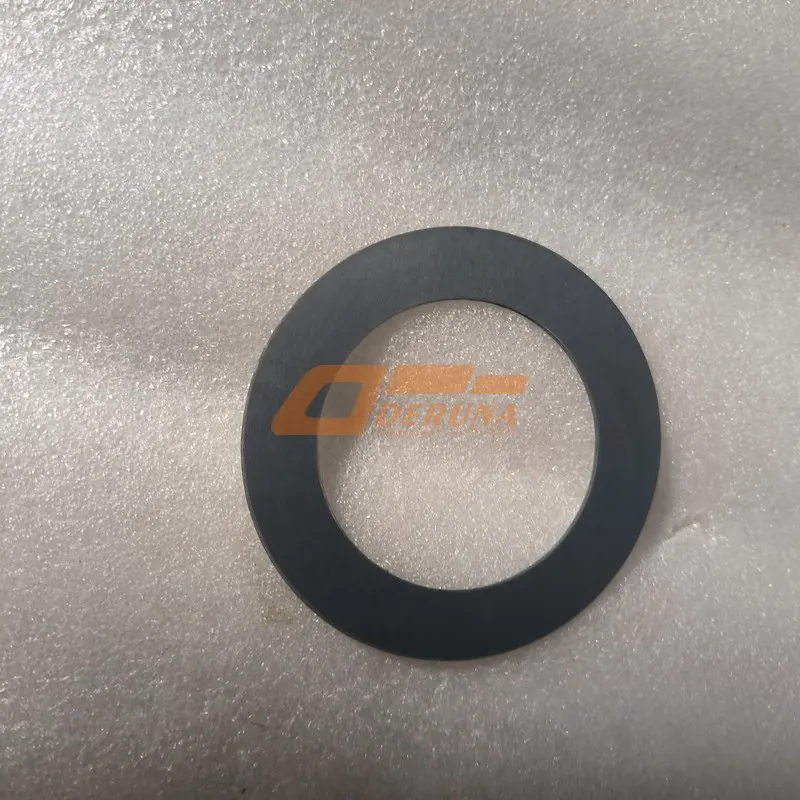

![Arandela ajustable de pivote maestro Sitrak C7H [48X72] 2.50 Mm](https://deruna.com/wp-content/uploads/2026/03/WG4005415524-Sitrak-C7H-Adjustable-Kingpin-Washer-48X72-2.50-Mm-3.webp)
