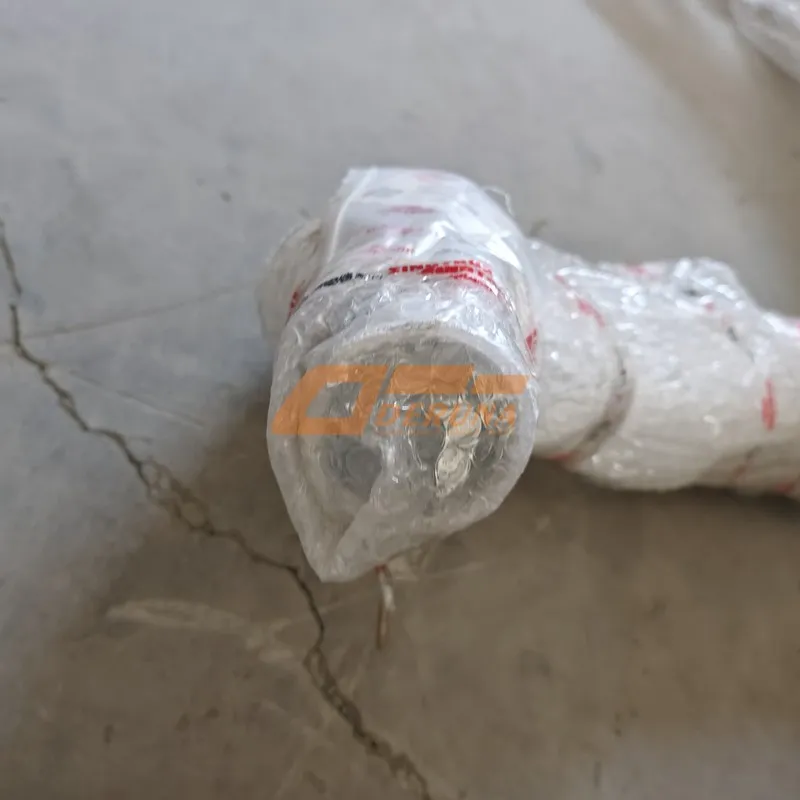

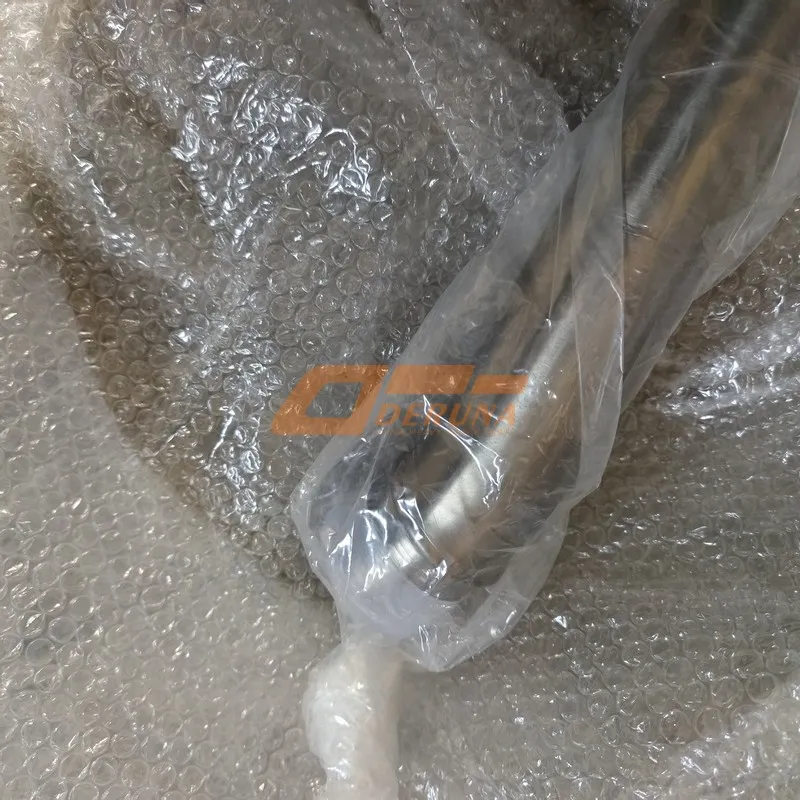

The genuine ZF C7H retarder outlet pipe with OEM number 712W06303-0002 is engineered to ensure reliable, high‑flow fluid return from the ZF retarder to the cooling system on SINOTRUK Sitrak C7H heavy‑duty trucks. Designed to withstand constant pressure pulses, thermal cycling, and vibration, this precision‑formed steel pipe maintains optimal fluid circulation, allowing the retarder to dissipate braking energy efficiently. As a critical component within the Sinotruk sitrak parts portfolio, the 712W06303-0002 ZF C7H retarder outlet pipe guarantees factory‑grade fitment, superior corrosion resistance, and the reliability required for millions of kilometers of operation.
The 712W06303-0002 ZF C7H retarder outlet pipe is not a generic steel tube; it is a precision‑formed component specifically designed for the ZF retarder system on SINOTRUK Sitrak C7H trucks. Manufactured from high‑strength seamless steel, this pipe features a corrosion‑resistant zinc‑nickel coating that withstands road salt, deicing chemicals, and high‑temperature transmission fluid. Its exacting bend geometry ensures proper routing around chassis components, eliminating stress points and preventing contact with moving parts or hot exhaust surfaces.
Durability testing on C7H platforms confirms that the genuine 712W06303-0002 pipe maintains structural integrity under continuous pressure up to 12 bar and temperature spikes to 150°C. Its factory‑installed flare fittings and O‑ring seats ensure a leak‑proof connection to both the retarder and the cooling circuit. For fleet operators, this translates into consistent retarder performance, reduced fluid loss, and lower risk of overheating during extended braking events.
Optimized internal diameter (18 mm) and smooth bends minimize backpressure, ensuring rapid fluid return and consistent retarder cooling.
Zinc‑nickel coating with passivation layer provides 500+ hours salt spray resistance, preventing rust and fluid leaks.
CNC‑mandrel bent to exact C7H chassis geometry, eliminating interference and stress that leads to fatigue cracking.
| Parameter | Specification |
|---|---|
| OEM Number | 712W06303-0002 |
| Product Type | ZF C7H Retarder Outlet Pipe / Steel Return Line |
| Brand | SINOTRUK Sitrak Original Equipment |
| Application | Sitrak C7H – ZF Retarder Cooling Circuit Outlet |
| Material | Seamless steel tube, zinc‑nickel coated |
| Outer Diameter | 20.0 mm ±0.1 mm |
| Inner Diameter | 18.0 mm ±0.1 mm |
| Overall Length (end to end) | 510 mm ±2 mm |
| Max. Operating Pressure | 12 bar (continuous), 18 bar (peak) |
| Temperature Range | -40°C to +150°C |
| Weight | 0.65 kg (approx.) |
The 712W06303-0002 ZF C7H retarder outlet pipe is produced from seamless, cold‑drawn steel tube, ensuring uniform wall thickness and freedom from internal defects. After forming, the pipe undergoes a multi‑stage coating process: zinc‑nickel electroplating followed by a trivalent chromate passivation layer. This combination provides outstanding corrosion resistance, tested to withstand over 500 hours in salt spray chambers per ASTM B117 standards. The pipe ends are precision‑flared using CNC equipment to create a perfect sealing surface for the O‑ring fittings, eliminating the risk of leaks at connection points.
Each pipe is 100% pressure‑tested to 25 bar and inspected for dimensional accuracy using laser measurement systems. This level of quality control ensures that the genuine 712W06303-0002 pipe delivers the same thermal and pressure performance as the original component installed at the factory, providing peace of mind for fleet operators.
When replacing the retarder outlet pipe with the genuine 712W06303-0002 unit, always relieve hydraulic pressure and allow the system to cool. Remove the old pipe using proper tools, taking care not to damage the fittings. Clean the mating ports and install new O‑rings if required. Position the new pipe so that it follows the original routing, ensuring no contact with chassis or exhaust components. Torque the fittings to factory specifications (typically 25–30 Nm). Refill retarder fluid and bleed the system per ZF service instructions.
Regular inspection should include checking for signs of corrosion, leaks at the fittings, or damage from road debris. Any sign of rust or fluid seepage indicates imminent failure and requires immediate replacement. Using the genuine 712W06303-0002 pipe ensures that the factory‑engineered routing is maintained, preventing premature fatigue. For vehicles operating in harsh winter conditions, inspect pipes annually for coating integrity.
A failing outlet pipe often manifests as visible fluid drips near the retarder, a drop in retarder performance, or an illuminated low‑oil warning light. If left unattended, a corroded or cracked pipe can cause sudden loss of braking assistance and significant fluid spillage. Proactive replacement at 500,000 km intervals is recommended for heavy‑haul fleets. Always replace the pipe when performing a retarder service or transmission overhaul.
Using the genuine 712W06303-0002 pipe eliminates the risk of corrosion and ensures that the flare geometry matches the original fitting, preventing leaks. Aftermarket pipes often use plain steel that rusts rapidly, or incorrect bends that stress the fittings. By choosing genuine, you preserve the safety and reliability of the ZF retarder system.
Every 712W06303-0002 ZF C7H retarder outlet pipe is manufactured in IATF 16949 certified facilities, with 100% pressure testing, burst testing, and dimensional verification. Each pipe undergoes 500‑hour salt spray testing to validate coating durability. The flare geometry is 100% inspected using optical comparators to ensure perfect sealing. Counterfeit pipes often use low‑carbon steel without proper coating, leading to rapid corrosion and failure; the genuine 712W06303-0002 guarantees safety, reliability, and full SINOTRUK warranty coverage.
Aftermarket outlet pipes frequently use plain steel tubing without corrosion protection, leading to rust‑through within 1–2 years in salt‑prone regions. Many non‑original pipes also have imprecise bends, requiring force to install and creating stress that leads to fatigue cracking. In contrast, the genuine 712W06303-0002 features a multi‑layer corrosion coating and exact CNC‑mandrel bends that match the original routing.
Additionally, aftermarket pipes often use inferior flare ends that fail to seal properly, causing slow leaks and gradual loss of retarder fluid. The genuine pipe incorporates precision‑formed flares and factory‑installed O‑rings that maintain a leak‑proof seal for the life of the vehicle. By choosing the original 712W06303-0002 ZF C7H retarder outlet pipe, you eliminate the risk of cooling system failure, ensure consistent retarder performance, and maintain the safety and reliability of your fleet.
