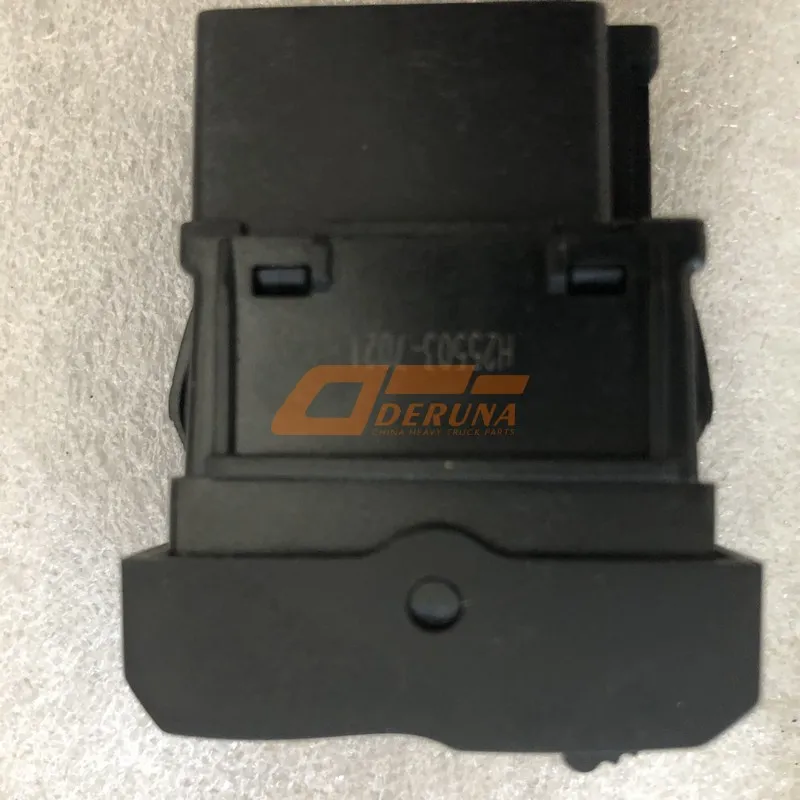

The genuine C7H locking switch with OEM number 812W25503-7021 is engineered to provide reliable, tamper‑proof control of auxiliary functions and security systems on SINOTRUK Sitrak C7H heavy‑duty trucks. Designed to withstand harsh cab environments, this precision switch features a robust locking mechanism that prevents accidental or unauthorized activation, ensuring that critical systems such as differential locks, power take‑off (PTO), and auxiliary lighting remain engaged only when intended. As a key electrical component within the Sinotruk sitrak parts portfolio, the 812W25503-7021 C7H locking switch guarantees factory‑grade fitment, superior durability, and the reliability required for millions of actuation cycles.
The 812W25503-7021 C7H locking switch is not a generic toggle; it is a precision‑engineered control device specifically designed for SINOTRUK Sitrak C7H trucks. This switch incorporates a high‑reliability contact system with silver‑alloy contacts rated for 10A at 24V DC, ensuring consistent performance even after thousands of actuations. The integrated locking mechanism requires deliberate action to engage and disengage, preventing inadvertent activation of critical systems such as inter‑axle differential locks or PTO engagement, which could otherwise lead to driveline damage or safety hazards.
Durability testing on C7H platforms confirms that the genuine 812W25503-7021 switch exceeds 100,000 operating cycles without performance degradation, while aftermarket alternatives often fail within 20,000 cycles. Its sealed construction (IP67 rated) protects against dust, moisture, and cab cleaning agents, ensuring reliable operation in the demanding environment of long‑haul and vocational applications. For fleet managers, this translates into reduced electrical failures, enhanced operator safety, and improved vehicle security.
Key‑operated or push‑to‑lock design ensures intentional engagement only, preventing accidental activation of critical vehicle systems.
Fully sealed against dust and water ingress, maintaining performance after high‑pressure washing and exposure to cab moisture.
Silver‑alloy contacts rated for 10A at 24V DC ensure reliable switching of auxiliary loads, solenoids, and control circuits.
| Parameter | Specification |
|---|---|
| OEM Number | 812W25503-7021 |
| Product Type | C7H Locking Switch (Key‑Operated / Push‑Lock) |
| Brand | SINOTRUK Sitrak Original Equipment |
| Application | Sitrak C7H – Differential Lock, PTO, Auxiliary Control Systems |
| Voltage Rating | 24V DC (12V/24V compatible) |
| Current Rating | 10A resistive / 5A inductive |
| Contact Material | Silver‑alloy, gold‑flash plated |
| Ingress Protection | IP67 (front panel), IP6K9K (high‑pressure wash) |
| Operating Temperature | -40°C to +85°C |
| Mechanical Life | 100,000 cycles minimum |
| Mounting Type | Panel mount, 22mm cutout, M20 thread |
The 812W25503-7021 C7H locking switch is manufactured using high‑grade engineering thermoplastics with UV stabilization, ensuring the switch housing remains intact after years of sun exposure. The internal mechanism uses a stainless steel locking cam and hardened detent spring, providing positive tactile feedback that confirms proper engagement. Contact wiping action during actuation keeps the silver‑alloy surfaces clean, maintaining low contact resistance throughout the switch’s life. Each switch is 100% tested for contact resistance, insulation resistance, and dielectric strength before packaging.
The key‑operated variant features a precision‑cut lock cylinder with anti‑drill pins, providing genuine security against tampering. The switch’s modular design allows it to be configured with different key codes or as a push‑to‑lock unit, offering flexibility for various C7H applications. This level of engineering ensures that the genuine 812W25503-7021 maintains its performance and security features for the life of the vehicle.
When replacing the locking switch with the genuine 812W25503-7021 unit, always disconnect the battery to prevent accidental short circuits. Remove the switch by unscrewing the front bezel or releasing the retaining clips from behind the dash panel. Disconnect the wiring harness by pressing the release tab. Inspect the connector for corrosion before installing the new switch. Connect the harness, ensuring the connector clicks fully, then mount the switch and torque the retaining nut to 3–5 Nm. Verify switch operation before reinstalling panels.
Regular maintenance should include checking for smooth operation and confirming that the locking mechanism engages with a distinct click. If the switch becomes difficult to turn or fails to latch, immediate replacement is recommended. Using the genuine 812W25503-7021 switch ensures that the key coding matches original equipment, preventing the need to carry additional keys. For fleet applications, consider stocking pre‑keyed switches to maintain consistency across vehicles.
Common symptoms of a failing locking switch include intermittent operation, failure to latch in the engaged position, or complete loss of function for the controlled system. Moisture ingress is a leading cause of failure in aftermarket switches; the genuine 812W25503-7021 features an IP67‑rated seal that prevents this. If the switch becomes physically damaged or shows signs of arcing, immediate replacement is essential to avoid short circuits that could affect other cab electronics.
Preventive inspection during routine cab cleaning should include checking the switch’s external condition and confirming that the locking mechanism operates smoothly. Using the genuine 812W25503-7021 ensures that the switch’s internal contacts are protected from oxidation, preventing the intermittent faults that often plague generic replacements.
Every 812W25503-7021 C7H locking switch is manufactured in IATF 16949 certified facilities, with 100% functional testing including contact resistance verification, dielectric strength testing, and mechanical life cycling. Each switch undergoes thermal shock testing from -40°C to +85°C and is validated for IP67 ingress protection. Counterfeit switches often use inferior plastics that become brittle and cheap contacts that corrode; the genuine 812W25503-7021 guarantees safety, reliability, and full SINOTRUK warranty coverage.
Aftermarket locking switches frequently use generic toggle mechanisms that lack a positive locking detent, allowing the switch to be inadvertently bumped out of position. Many non‑original switches also have lower current ratings (often 5A or less), leading to contact welding when switching solenoid loads. In contrast, the genuine 812W25503-7021 provides a distinct locking action and a robust 10A contact rating, ensuring reliable operation even when switching inductive loads.
Additionally, aftermarket switches often omit the sealing components, allowing moisture and dirt to enter and cause corrosion. The genuine 812W25503-7021 features a full IP67 seal, maintaining performance in the harsh cab environment. By choosing the original 812W25503-7021 C7H locking switch, you eliminate the risk of intermittent electrical faults, ensure proper system control, and maintain the vehicle’s original safety features.
