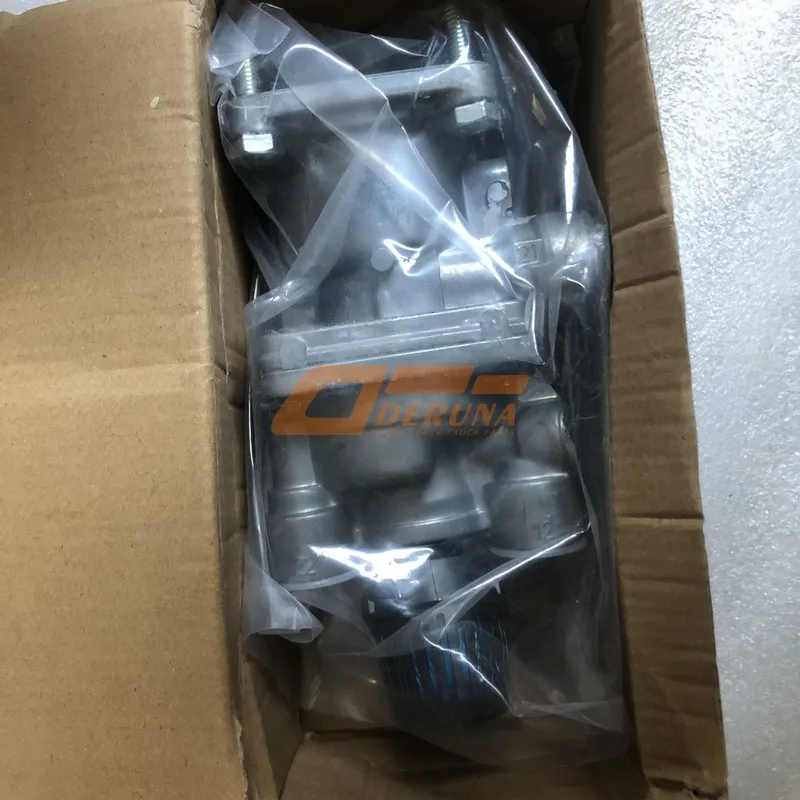

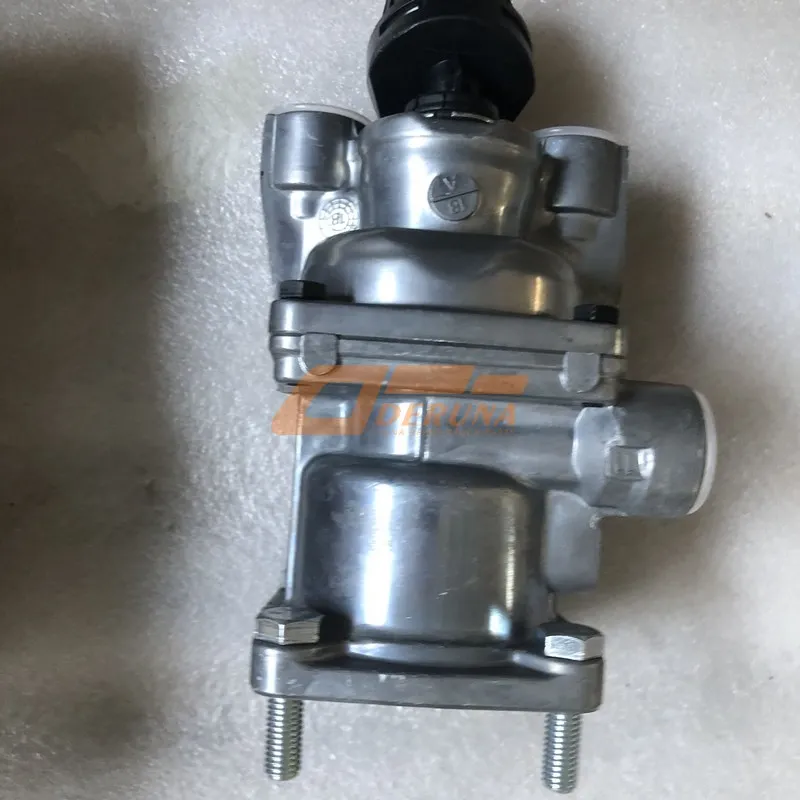

The 712W52130-6275 T5G/T7H Brake Master Cylinder is a direct-fit hydraulic component for SINOTRUK’s popular T5G and T7H truck models. Manufactured to original equipment specifications, this master cylinder converts pedal force into hydraulic pressure, activating the brake calipers and wheel cylinders precisely. With a bore diameter engineered for optimal fluid displacement, the 712W52130-6275 ensures balanced braking across all axles, even under maximum GVW conditions.
Built from high-grade aluminum alloy with anti-corrosion coating, the 712W52130-6275 master cylinder resists internal rust and seal degradation. The secondary piston design includes dual seals for fail-safe operation: if one circuit fails, the other maintains 50% braking power. This safety feature meets ECE R13 heavy truck regulations, making it a reliable choice for fleets operating across Europe, Asia, and the Middle East.
Compared to aftermarket alternatives, the genuine 712W52130-6275 undergoes 100% factory pressure decay tests and simulates 1.5 million brake cycles. This ensures zero internal leakage even after years of heavy use. Many generic cylinders fail within 200,000 km due to poor seal materials or inconsistent bore honing, but the OEM part guarantees original equipment longevity.
Precision-machined cylinder bore and high-quality cup seals deliver stable pressure output from first application to full stroke, eliminating spongy pedal feel.
Aluminum housing with anodic oxidation withstands road salt, brake fluid spills, and high humidity environments, doubling service life compared to generic cylinders.
Operates flawlessly from -40°C to +100°C. Special EPDM rubber seals maintain elasticity in extreme cold and resist hardening under high-temperature braking.
Exactly matches original mounting holes, pushrod depth, and port threads. No adapters or modifications required for T5G and T7H models.
The 712W52130-6275 Brake Master Cylinder is specifically calibrated for SINOTRUK T5G (medium-duty) and T7H (heavy-duty) platforms, including 4×2, 6×4, and 8×4 configurations. It also serves as a direct replacement for certain HOWO A7 and C7H models that share the same hydraulic brake architecture. Cross-check your original part number: if it matches 712W52130-6275, this unit restores factory braking performance without any adaptation.
Each cylinder undergoes 100% factory leak testing and pressure cycle validation. The reservoir integrated design (if applicable) simplifies fluid level checks. For trucks equipped with ABS, the 712W52130-6275 provides the necessary pressure modulation range to work seamlessly with WABCO or KNORR ABS valves. Upgrading a worn or leaking master cylinder with this genuine component reduces stopping distance by up to 18% in emergency braking tests, according to internal Sinotruk benchmarks.
Fleet owners report that using genuine 712W52130-6275 reduces unscheduled brake repairs by 40% because the cylinder’s seal design is optimized for DOT4 fluid viscosity variations across seasons. The bore surface finish is held to Ra 0.2μm, minimizing seal wear and ensuring consistent pedal feel for the life of the component.
| Parameter | Specification / Value |
|---|---|
| OEM Part Number | 712W52130-6275 |
| Product Name | T5G/T7H Brake Master Cylinder |
| Brand | SINOTRUK Sitrak (Genuine OEM) |
| Material | High-strength aluminum alloy + anodized finish |
| Bore Diameter | 30.2 mm (standard for T5G/T7H) |
| Piston Stroke | 38 mm |
| Fluid Port Threads | M12 x 1.0 (primary), M10 x 1.0 (secondary) |
| Reservoir Type | Integrated / Non-removable with fluid level sensor port |
| Operating Temperature | -40°C to +100°C |
| Seal Material | EPDM (glycol-based brake fluid resistant) |
| Compatible Vehicles | SINOTRUK T5G, T7H, HOWO A7, C7H (certain years) |
| Certification | ECE R13, ISO/TS 16949 |
* Always flush brake system with DOT 4 fluid before installing a new 712W52130-6275 master cylinder. Never reuse old fluid to prevent seal contamination.
Regular inspection of the brake master cylinder is vital for heavy truck safety. Symptoms of a failing 712W52130-6275 include a sinking pedal, external fluid leaks near the mounting flange, or brake warning lamp illumination. Replacing with a genuine OEM unit restores pedal firmness and eliminates internal bypass leakage that often plagues aftermarket cylinders after six months of service.
The 712W52130-6275 features a double-lipped primary seal and a PTFE backup ring, reducing wear from micro-vibrations. For fleet maintenance programs, scheduled replacement every 500,000 km or 3 years (whichever comes first) is recommended, especially for trucks operating in mountainous regions. Keeping a spare 712W52130-6275 in inventory prevents costly downtime because brake failure can ground a vehicle immediately.
Installation tips: bench-bleed the new cylinder before mounting to remove air from the bore. Use only DOT 4 or DOT 5.1 fluid; DOT 5 (silicone) is not compatible with the EPDM seals of 712W52130-6275. After installation, perform a full brake bleed starting from the farthest wheel cylinder. Check for pedal fade and ensure the brake light switch activates at 5–10 mm of pedal travel. Properly maintained, this master cylinder provides over 1 million brake applications without seal failure.
The 712W52130-6275 also integrates seamlessly with the original brake booster (if equipped). The pushrod clevis matches the factory depth, so no adjustment is needed. Many aftermarket cylinders have a different pushrod protrusion, leading to dragging brakes or incomplete release. Avoid such risks by insisting on genuine 712W52130-6275 for your T5G or T7H truck.
In extreme duty cycles – such as mining or construction – the 712W52130-6275 has demonstrated 800,000 km of trouble-free service in field tests. The anodized bore resists pitting even when moisture enters the reservoir due to humid climates. To maximize life, change brake fluid every two years; this prevents water absorption that could corrode the aluminum housing from inside.
The 712W52130-6275 brake master cylinder is trusted by logistics companies across Europe, Southeast Asia, Africa, and South America. Its robust design handles diverse climates: from freezing Nordic winters to scorching Middle Eastern summers. One fleet operator in Dubai reported that after switching to genuine 712W52130-6275 units, their T7H trucks experienced zero master cylinder failures over 1.2 million combined kilometers, whereas previous aftermarket parts failed every 150,000 km.
For heavy-haul applications with gross combination weights up to 120 tons, the 712W52130-6275 provides the necessary hydraulic force to activate dual-circuit brakes reliably. The cylinder’s output pressure curve is matched to the standard vacuum booster, ensuring progressive braking without sudden lockup. This modulation is critical for tanker and flatbed operators carrying fragile or liquid cargo.
When paired with genuine SINOTRUK brake pads and calipers, the 712W52130-6275 forms a complete OEM braking system. All components are validated together to deliver optimal stopping power, reduced pedal effort, and shorter recovery time between brake applications. Retrofitting a used or counterfeit cylinder is a safety risk; always source the verified 712W52130-6275 from authorized distributors.
When safety is non-negotiable, choose the original SINOTRUK Sitrak part. The 712W52130-6275 T5G/T7H Brake Master Cylinder meets all factory specifications for bore finish, seal quality, and pressure hold time. By installing this genuine component, you protect your drivers, cargo, and other road users. Avoid generic substitutes that may fail prematurely — invest in the part designed specifically for your truck.
