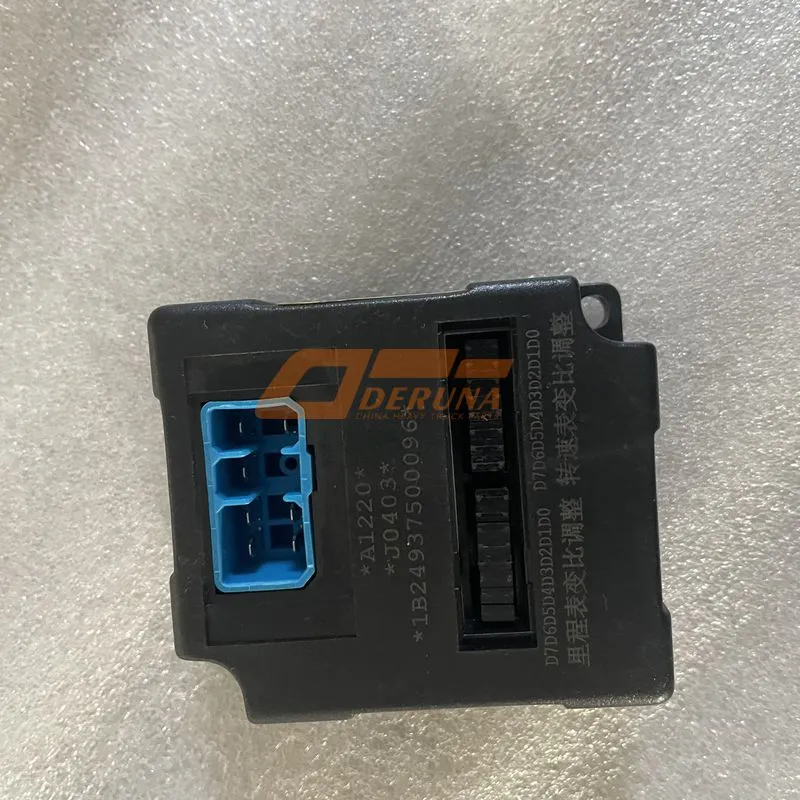

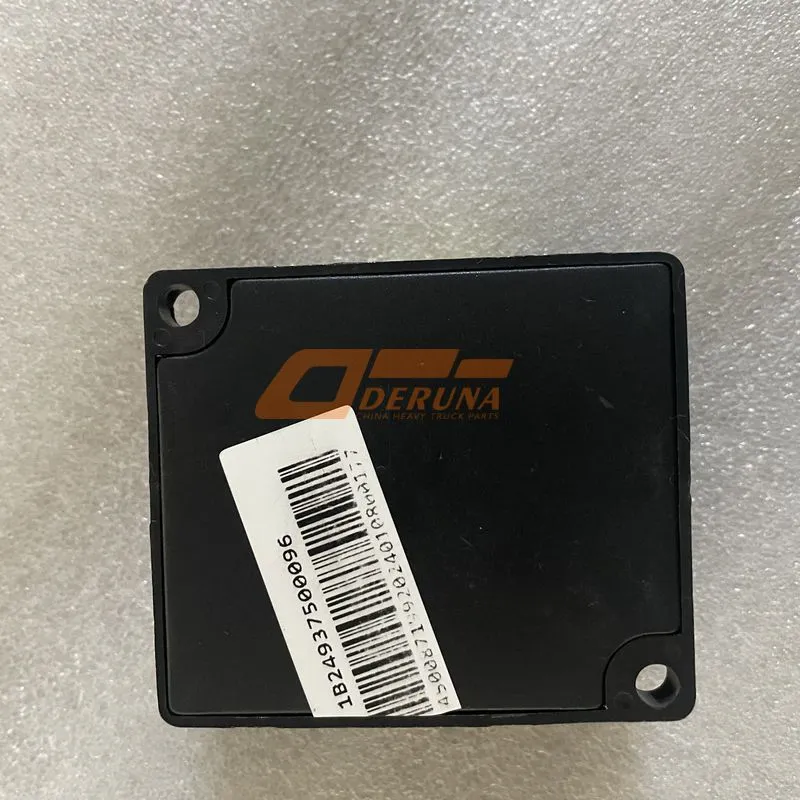

The 1B24937500096 Instrument DIP Switch is a precision-engineered electronic control component designed to provide reliable circuit configuration and setting selection for the instrument panel and auxiliary systems in SINOTRUK Howo heavy-duty trucks. As a trusted supplier of genuine Sinotruk howo parts, we offer this instrument DIP switch as a direct OEM replacement, manufactured to the exacting standards of the original equipment. The 1B24937500096 features a robust, sealed housing, precision gold-plated contacts, and clearly marked switch positions, providing reliable electrical connectivity, excellent corrosion resistance, and long-term durability under the extreme vibration and temperature fluctuations typical of heavy-duty trucking.
This DIP switch is essential for configuring vehicle functions such as speedometer calibration, tachometer settings, odometer adjustments, and other programmable parameters. Its positive detent action ensures secure switch positioning, preventing accidental changes due to vibration. The 1B24937500096 is built to withstand the rigors of long-haul transport, off-road operations, and severe environmental exposure, delivering dependable service over thousands of miles.
OEM direct replacement • Gold-plated contacts • Sealed housing • Positive detent action
The 1B24937500096 instrument DIP switch is a compact, multi-position switch used to configure electronic control units (ECUs) and instrument clusters in SINOTRUK Howo vehicles. It allows technicians and operators to select various operational modes, calibration settings, and diagnostic functions without the need for specialized programming tools.
The switch features a standard 8-position or 10-position DIP configuration (depending on the specific application), with each position clearly labeled for easy identification. The contacts are gold-plated to ensure low resistance and high reliability, even in low-current signal circuits. The housing is constructed from high-temperature thermoplastic that resists warping and cracking, and it is sealed against dust and moisture to IP50 standards.
This DIP switch is an essential component for maintaining accurate instrument readings and vehicle system functionality. Its robust construction and precise engineering ensure that it meets the demanding requirements of heavy-duty trucking, providing reliable signal switching over extended service intervals.
The 1B24937500096 instrument DIP switch is specifically designed for SINOTRUK Howo heavy-duty trucks, including Howo A7, T7H, and other models that use DIP switches for instrument cluster calibration and system configuration. It is compatible with the original equipment PCB footprint and pin-out configuration.
This switch is also used in many other commercial vehicle and industrial applications that require reliable DIP switch functionality for control panels, diagnostic interfaces, and parameter selection. It is a popular choice for fleet maintenance and electronic repair operations.
When replacing, always verify the number of positions and pin spacing to ensure compatibility. The 1B24937500096 is a direct-fit component that simplifies maintenance and ensures accurate instrument settings.
Installing the 1B24937500096 DIP switch requires basic electronic assembly skills and proper ESD precautions. Begin by removing the instrument panel or PCB from the vehicle, and carefully desolder the old switch using a temperature-controlled soldering iron and desoldering braid.
Clean the PCB pads and inspect for any damage. Align the new switch with the correct orientation (pin 1 indicator), insert it into the PCB, and solder all pins with a high-quality electronic solder. Ensure there are no solder bridges or cold joints. Reinstall the PCB and reconnect the instrument cluster.
After installation, set the switch positions according to the vehicle’s service manual for the desired configuration. Test the instrument functions to verify correct operation. Regular maintenance includes visual inspection of the switch for any signs of corrosion or damage during routine service intervals.
If the switch becomes difficult to operate or shows signs of intermittent contact, replace it immediately to ensure accurate instrument readings and system reliability.
The 1B24937500096 instrument DIP switch is manufactured in an ISO 9001-certified facility, with stringent quality controls applied throughout the production process. The gold-plated contacts are tested for thickness and adhesion, and the housing is inspected for dimensional accuracy and sealing integrity.
Each switch is subjected to a functional test to verify contact resistance and actuation force. Insulation resistance and dielectric strength are also checked to ensure electrical safety. We perform random sample testing for thermal shock, vibration, and mechanical endurance to confirm that the switch meets OEM durability requirements.
Our commitment to quality ensures that the 1B24937500096 delivers reliable, consistent signal switching, reducing the risk of instrument errors and electronic control faults. With a comprehensive warranty, this switch offers peace of mind for fleet operators and owner-operators alike.
Choose genuine quality for your electronic components – choose the 1B24937500096.
The 1B24937500096 instrument DIP switch is a critical component for maintaining accurate vehicle instrumentation and electronic control configuration. Its gold-plated contacts, sealed housing, and positive detent action provide reliable signal switching, ensuring that speedometer, tachometer, and other settings remain correct and stable.
By choosing this OEM-quality switch, you eliminate the risks of intermittent connections, incorrect readings, and electronic misconfiguration associated with non-genuine alternatives. The 1B24937500096 is engineered for long-lasting performance, reducing maintenance intervals and ensuring your vehicle’s instrument system remains dependable.
Fleet operators will benefit from improved diagnostic accuracy, reduced instrument-related complaints, and fewer electronic repairs. Owner-operators will gain peace of mind knowing that their vehicle’s configuration is controlled by a part that meets the highest quality standards.
Invest in the 1B24937500096 Instrument DIP Switch and experience the difference that a genuine SINOTRUK Howo part provides. Its proven reliability and engineering excellence make it the preferred choice for professionals.
Order your 1B24937500096 today and ensure your truck’s instrumentation remains accurate and reliable for miles to come.
