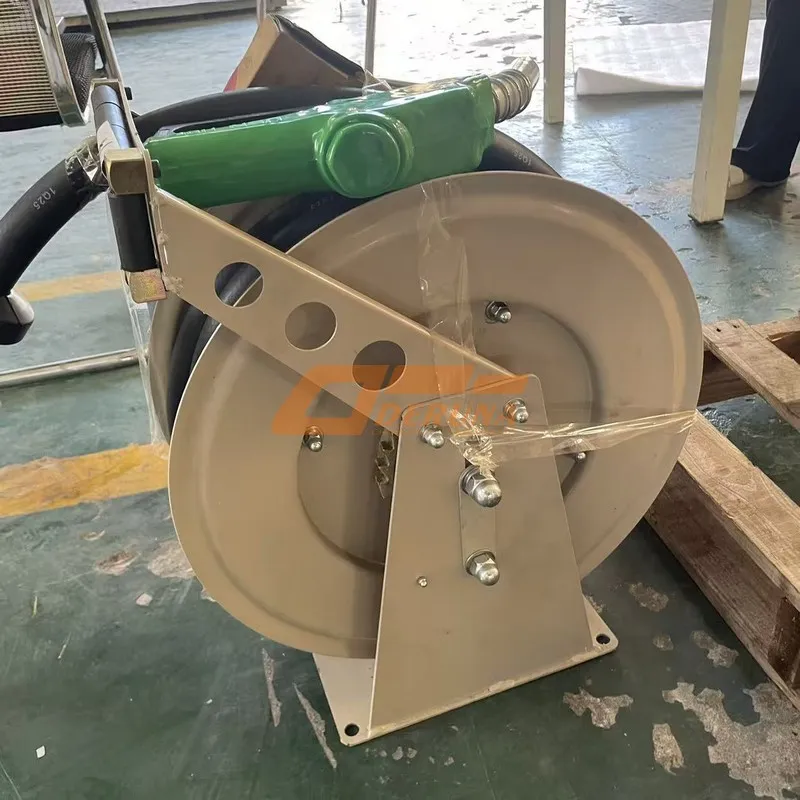

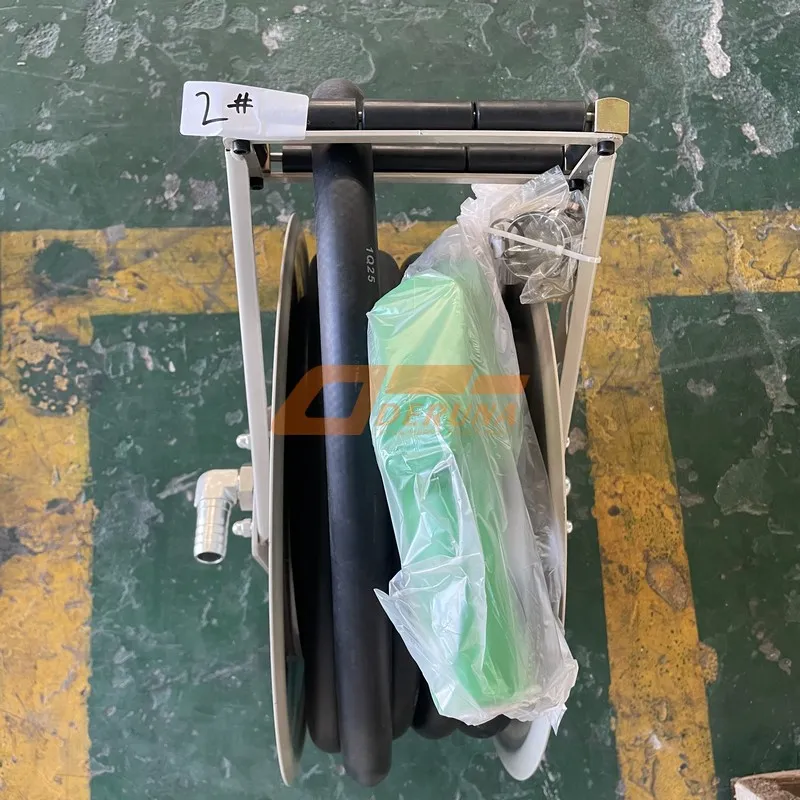

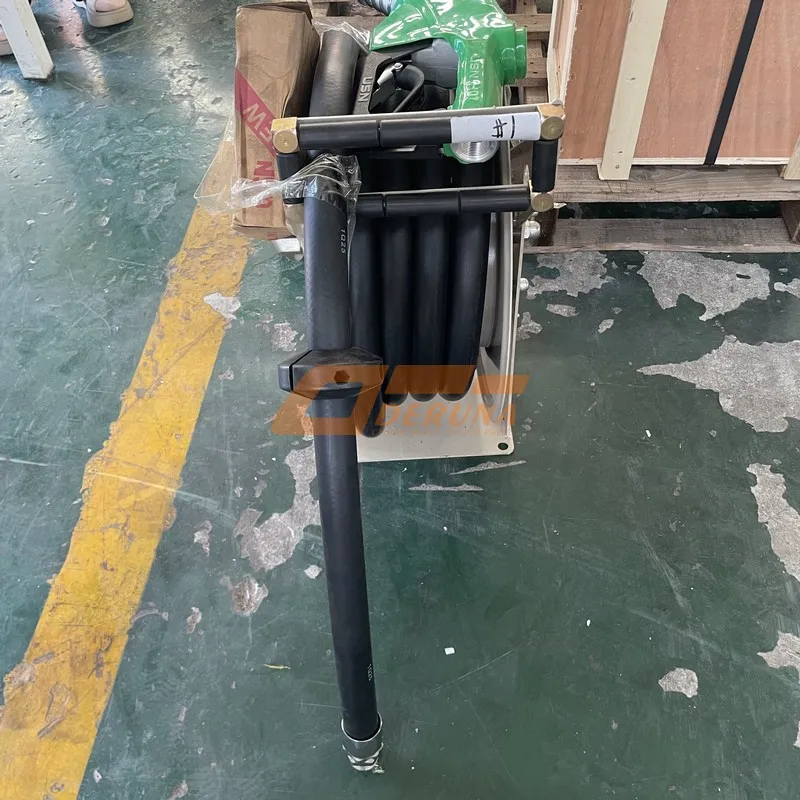

Efficient lubrication delivery for heavy machinery – The OEM W8604170500003 Automatic Reel With Oil Pipe is designed for safe, convenient storage and deployment of lubrication hoses in workshops, service trucks, and mining operations. This spring‑driven reel ensures tangle‑free extension and smooth retraction, reducing hose damage and improving workflow. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts. The W8604170500003 automatic reel is built with a heavy‑duty swivel joint and a 15‑meter oil pipe, ideal for greasing, oil transfer, and fluid dispensing in demanding environments.
The W8604170500003 automatic reel eliminates hose tangling, kinking, and premature wear, keeping workshop floors safe and organized. Its robust spring motor provides consistent retraction force, while the multidirectional guide arm allows reeling at any angle. The included oil pipe is resistant to diesel, engine oil, hydraulic fluid, and grease. This reel is widely used in truck maintenance depots, mining service vehicles, and agricultural workshops to improve productivity and reduce hose replacement costs.
Powerful spring mechanism retracts the W8604170500003 hose smoothly with controlled tension, preventing backlash.
Steel frame with powder coating, stainless steel swivel joint, and a 15m rubber oil hose rated for 300 bar burst pressure.
Wall, ceiling, or vehicle mounting options. The reel occupies minimal space and keeps hoses off the ground, reducing tripping hazards.
| OEM Number | W8604170500003 |
| Product Name | Automatic Reel With Oil Pipe |
| Brand | SINOTRUK Homan |
| Hose Length | 15 meters (50 ft) |
| Hose Inner Diameter | 12.7 mm (1/2 inch) |
| Working Pressure | 200 bar (2900 psi) |
| Burst Pressure | 600 bar (8700 psi) |
| Temperature Range | -20°C to +100°C |
| Reel Material | Steel, powder coated (blue) |
| Swivel Joint Material | Stainless steel / carbon steel with zinc plating |
| Hose Fittings | G1/2″ BSP (inlet and outlet) |
| Mounting Options | Wall / ceiling / floor / vehicle bracket |
| Dimensions (L×W×H) | 550 × 420 × 520 mm |
| Weight | 22 kg (with hose) |
| Media Compatibility | Engine oil, hydraulic oil, diesel, grease, coolant |
The W8604170500003 automatic reel incorporates a high‑tensile spring motor that is factory‑pre‑tensioned for consistent retraction. The four‑roller guide arm reduces hose wear and allows pulling in any direction up to 180°. The swivel joint features dual lip seals and a hardened steel core, eliminating leaks even under continuous swiveling. The reel body is constructed from 3mm thick steel, welded with robotic precision, and coated with epoxy for corrosion resistance in wet or oily environments.
The included oil pipe is a two‑wire braided rubber hose, reinforced with high‑tensile steel wire. It is resistant to diesel, mineral oils, synthetic lubricants, and biodiesel blends up to B20. The outer cover is oil‑ and abrasion‑resistant, while the inner tube is compatible with a wide range of fluids. Each W8604170500003 hose is pressure‑tested at the factory, and a test certificate is provided.
The W8604170500003 can be mounted on walls, ceilings, floors, or directly onto service truck bodies using the included heavy‑duty mounting bracket. The reel is supplied with four mounting holes and adjustable feet for leveling. For mobile applications, an optional vehicle mounting kit with vibration dampers is available. The reel can also be used in lubricant dispensing cabinets or integrated into automated greasing systems.
For correct installation of the W8604170500003, follow these steps: 1) Choose a solid mounting surface capable of supporting the reel weight (22 kg) plus dynamic load. 2) Mount the bracket using M10 bolts (not supplied). 3) Hang the reel on the bracket and secure with locking pin. 4) Connect the inlet hose to the swivel joint (G1/2″ BSP) – do not overtighten. 5) Pull out the hose fully to verify smooth operation, then allow it to retract slowly. 6) Test the reel under operating pressure before final use. 7) For first use, pull the hose all the way out and back in to distribute the spring load evenly.
The W8604170500003 requires periodic inspection. Check the swivel joint for leaks every 500 operating hours. If the reel fails to retract fully, clean the hose and guide arm – grit buildup may cause friction. The spring motor is sealed and requires no lubrication. However, the swivel joint may be lubricated with NLGI 2 grease via the provided grease fitting. Replace the hose every 3‑5 years depending on usage. Use only genuine SINOTRUK Homan replacement hoses to maintain safety ratings.
The W8604170500003 automatic reel is manufactured under ISO 9001:2015 and ISO 14001 certified processes. The hose is compliant with EN 853 2SN and SAE 100R2 standards. The reel assembly is tested for 100,000 retraction cycles at full hose extension. Each unit is pressure‑tested at 1.5× working pressure and leak‑tested at 300 bar. The reel also meets CE machinery directive 2006/42/EC. A test certificate with unique serial number is included.
A mining equipment maintenance facility in Australia installed 30 W8604170500003 reels for greasing large haul trucks. After 18 months, they reported a 60% reduction in hose replacement costs and a 40% decrease in lube bay downtime due to tangle issues. A European truck fleet service center noted that the reel’s compact design allowed mounting on their mobile service vans, improving technician efficiency by 25%. These results confirm the reel’s reliability and operator‑friendly design.
Each W8604170500003 automatic reel is supplied in a heavy‑duty cardboard box with foam padding, including the reel assembly, mounting bracket, hardware kit, and instruction manual. A laser‑etched serial number and QR code are placed on the reel base. Scanning the QR code leads to the SINOTRUK Homan verification page. Counterfeit reels often have weak springs and low‑grade hoses. Always purchase from authorized SINOTRUK Homan distributors to ensure safety and performance.
Summary: The SINOTRUK Homan Automatic Reel With Oil Pipe (OEM W8604170500003) delivers efficient lubrication handling, durable construction, and safe operation. Upgrade your workshop or service vehicle with this genuine OEM component, trusted by maintenance professionals worldwide.
