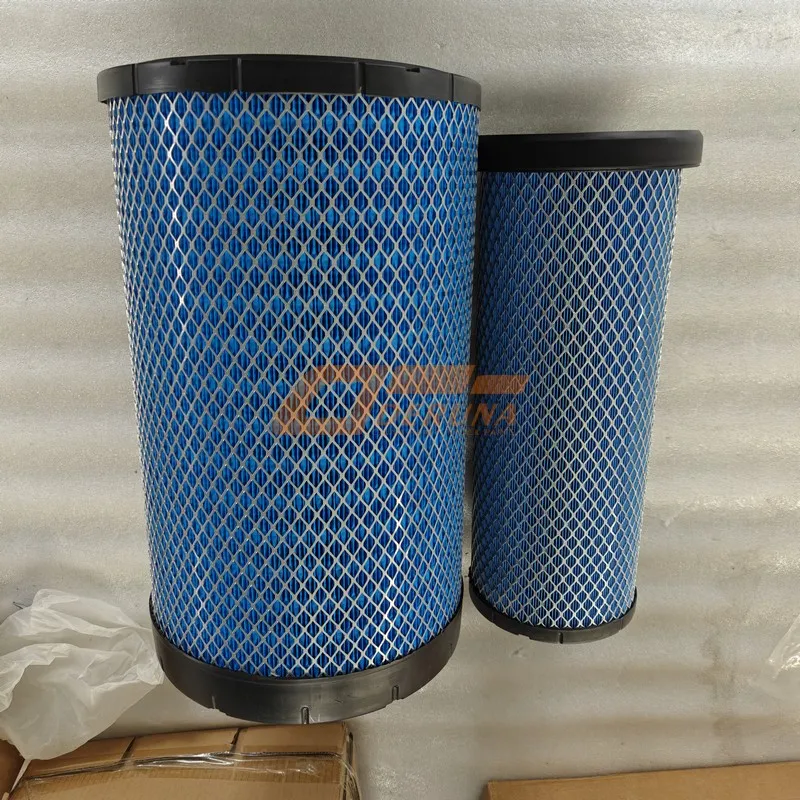

Superior engine protection for heavy-duty trucks – The OEM FG9806190110+001/1 Air Filter Set (Outer & Inner) is engineered to provide maximum filtration efficiency, capturing dust, soot, and airborne contaminants before they enter the engine. Designed for extreme off-road and highway conditions, this two-stage filter system extends engine life and reduces maintenance costs. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts. The FG9806190110+001/1 set includes a primary outer filter and a safety inner filter, ensuring reliable airflow even in high-dust environments.
The FG9806190110+001/1 air filter set uses high-density cellulose and synthetic media to trap particles as small as 5 microns. The outer filter removes coarse dust, while the inner safety filter protects the engine during filter changes. This dual-stage design provides 99.9% filtration efficiency, preventing abrasive wear on cylinders, pistons, and turbochargers. The set is a direct OEM replacement for SINOTRUK Homan trucks, HOWO series, and many other heavy-duty vehicles.
The FG9806190110+001/1 outer filter achieves >99.5% efficiency at 10 microns, protecting the engine from premature wear and oil contamination.
Outer filter captures heavy dust; inner safety filter ensures zero bypass during servicing. No risk of unfiltered air entering the intake system.
High dust-holding capacity allows up to 50,000 km operation in normal conditions, reducing downtime and filter replacement frequency.
| OEM Number | FG9806190110+001/1 |
| Product Name | Air Filter Set (Outer & Inner) |
| Brand | SINOTRUK Homan |
| Outer Filter Dimensions (DxH) | 320 mm x 420 mm |
| Inner Filter Dimensions (DxH) | 280 mm x 380 mm |
| Media Type | High-density cellulose + synthetic microfibre |
| Filtration Efficiency | 99.5% at 10 microns (outer), 99.9% at 5 microns (inner) |
| Dust Holding Capacity | 1200 g (ISO 5011) |
| Max Airflow | 1800 m³/h |
| Operating Temperature | -30°C to +90°C |
| Outer Filter Part No. | FG9806190110 (primary) |
| Inner Filter Part No. | 001/1 (safety) |
| Compatible Models | SINOTRUK Homan N-series, HOWO 6×4, A7, Steyr, SHACMAN |
| Standards | ISO 5011, SAE J726 |

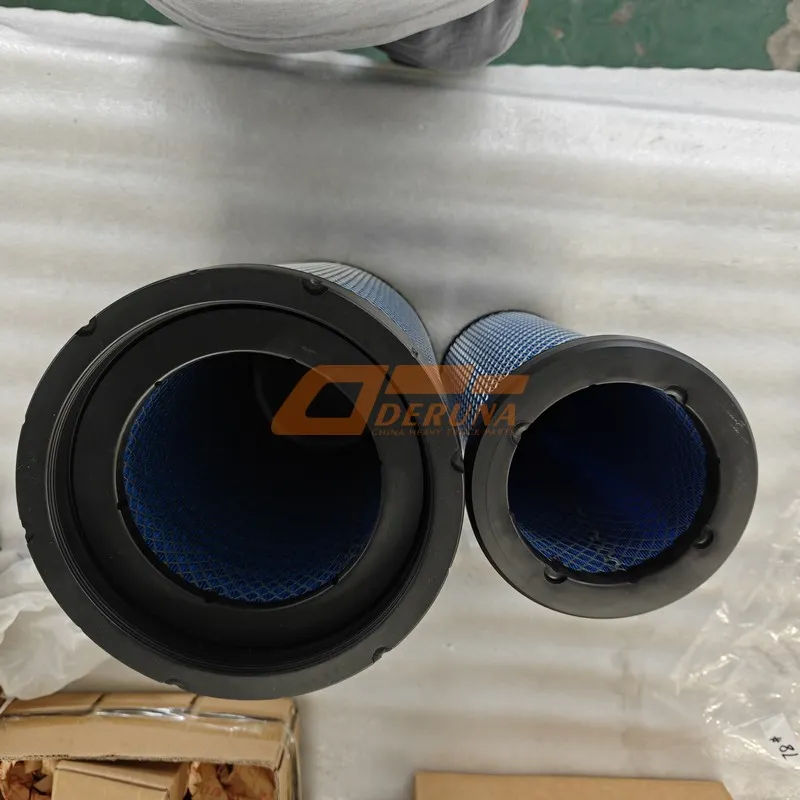

The FG9806190110+001/1 air filter set is manufactured using pleated media with a high-density core and impregnated with a moisture-resistant resin. The outer filter features a radial sealing rubber gasket that ensures a perfect fit in the air cleaner housing, preventing unfiltered air bypass. The inner safety filter acts as a backup, capturing any dust that may escape during outer filter replacement or in case of damage. Both filters are designed to meet or exceed original equipment specifications, delivering consistent airflow with minimal restriction.
The filter media in the FG9806190110+001/1 set combines cellulose fibers with a synthetic nanofiber layer, providing high initial efficiency and extended dirt-holding capacity. The pleats are spaced uniformly and reinforced with hot-melt beads to prevent collapse under high airflow. The entire assembly is bonded with a urethane end cap that resists oil, water, and vibration. This design ensures that the filter maintains its integrity even in extreme dust conditions, such as mining or desert operations.
The FG9806190110+001/1 set is a direct drop-in replacement for SINOTRUK Homan and HOWO air cleaner housings. No modifications or adapters are required. The inner filter is installed first, followed by the outer filter, with a simple push-and-twist locking mechanism. The filters are clearly marked with part numbers and airflow direction arrows. Maintenance intervals are typically every 50,000 km or when the restriction indicator shows increased vacuum. In severe dust conditions, inspect every 10,000 km.
To correctly install the FG9806190110+001/1 air filter set: 1) Open the air cleaner housing and remove the old filters. 2) Clean the housing interior with a rag or compressed air. 3) Insert the inner safety filter (part 001/1) first, ensuring it seats fully. 4) Insert the outer filter (FG9806190110) and align the arrow with airflow direction. 5) Press firmly to seat the rubber seal. 6) Close the housing and secure latches. 7) Reset the restriction indicator. Always replace both filters together – never reuse the inner filter alone.
The FG9806190110+001/1 set should be inspected every 10,000 km in dusty conditions. Signs of clogging include reduced engine power, increased smoke, or a red indication on the filter restriction gauge. Do not attempt to clean the filters by blowing compressed air – this can damage the media. Always replace the set with genuine SINOTRUK Homan parts. Counterfeit filters often use low-grade paper that tears easily and allows dust to pass, causing rapid engine wear.
The FG9806190110+001/1 air filter set is manufactured under ISO 9001:2015 and TS 16949 certified processes. Each filter is tested according to ISO 5011 for dust holding capacity and filtration efficiency. The set meets SAE J726 requirements for heavy-duty engine air cleaners. Additionally, the media is tested for burst strength and resistance to oil mist. A traceable serial number is printed on each box, and the filters carry a holographic SINOTRUK Homan seal.
A fleet of 200 SINOTRUK Homan trucks operating in the Australian outback was equipped with the FG9806190110+001/1 air filter set. After 12 months, engine oil analysis showed silicon levels 60% lower than with previous filters, indicating superior dust protection. The silica contamination risk was reduced, leading to a 25% extension in oil change intervals. In a cement plant application, the filters lasted twice as long as competitors before reaching restriction limits, proving their high dust-holding capacity.
Each FG9806190110+001/1 air filter set is supplied in a sturdy carton containing the outer filter and inner filter individually wrapped in plastic to protect against moisture. The packaging includes installation instructions and a QR code. Scanning the QR code verifies authenticity on the SINOTRUK Homan portal. Counterfeit sets may have loose end caps, irregular pleating, or no safety inner filter. Always purchase from authorized distributors to ensure genuine protection for your engine.
Summary: The SINOTRUK Homan Air Filter Set (OEM FG9806190110+001/1) provides superior engine protection with its dual-stage design, high efficiency, and long service life. Upgrade your heavy vehicle’s air filtration system with this genuine OEM component, trusted by fleets worldwide.
