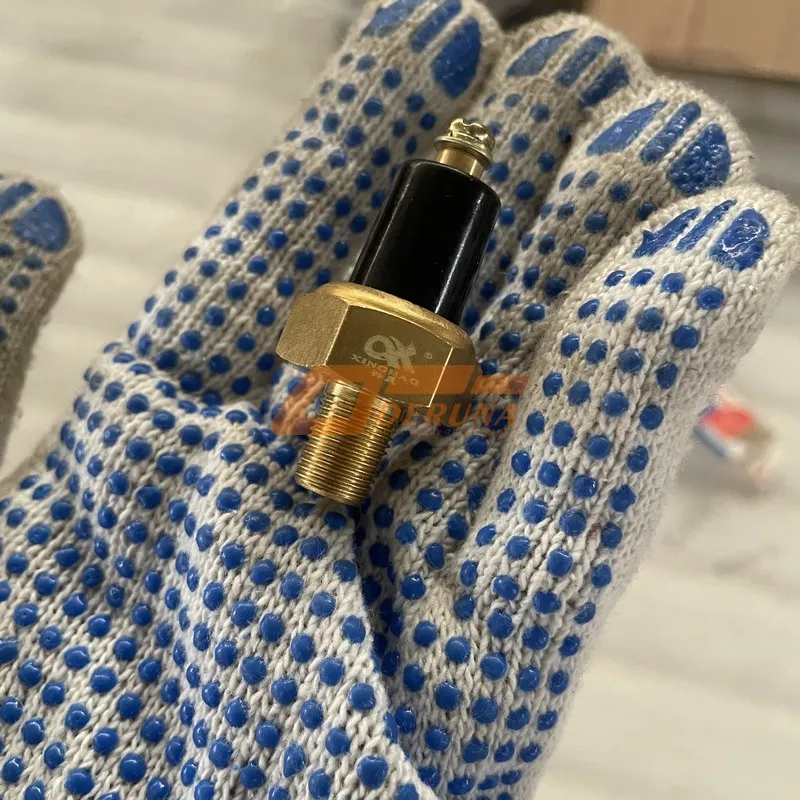

648-3800010 Ultimate Low Oil Pressure Alarm Switch – SINOTRUK Homan OEM for Critical Engine Protection

Immediate warning for oil pressure loss – The OEM 648-3800010 Low Oil Pressure Alarm (pressure switch) instantly signals the ECU or warning light when oil pressure drops below a safe threshold, preventing catastrophic engine damage. Designed for SINOTRUK Homan heavy-duty diesel engines, this precision switch offers reliable operation under extreme vibration and temperature. For guaranteed compatibility and performance, always choose genuine Sinotruk Homan parts.

The 648-3800010 low oil pressure alarm features a normally-closed (N/C) contact that opens when oil pressure exceeds 0.7 bar (factory set). At startup, the switch remains closed, illuminating the warning light until oil pressure builds, confirming circuit integrity.

English: Low Oil Pressure Alarm

Russian: Датчик аварийного давления масла

Spanish: Alarma de baja presión de aceite

Why the 648-3800010 Low Oil Pressure Alarm Sets the Standard for Engine Safety

The 648-3800010 low oil pressure alarm is a diaphragm-operated pressure switch with a snap-action microswitch, providing a clean on/off signal without hysteresis chatter. The switch is calibrated to actuate at 0.7 bar ±0.1 bar, triggering the warning light or buzzer before oil pressure drops to dangerous levels (below 0.5 bar). This early warning allows the driver to shut down the engine and avoid bearing seizure.

Unlike aftermarket switches that use generic NBR seals, this genuine SINOTRUK Homan component uses a Viton rubber diaphragm and a brass body with a nickel-plated thread (M14 x 1.5). The switch is 100% tested for leakage and switch point accuracy at three temperatures (-20°C, 20°C, and 80°C) to guarantee consistent performance from arctic cold to desert heat.

The electrical connection is a single wire (0.25” spade terminal) that grounds the circuit when pressure is low. When oil pressure rises above the setpoint, the switch opens, extinguishing the warning light. This design is failsafe: a broken wire will also cause the warning light to stay off, alerting the driver to a wiring fault.

Complete Technical Specifications – SINOTRUK Homan 648-3800010 Low Oil Pressure Alarm

Engineering Excellence of the 648-3800010 Low Oil Pressure Alarm

The 648-3800010 uses a proven snap-action microswitch with gold-plated contacts for low‑voltage reliability. The diaphragm is made of high‑temperature Viton, which remains flexible and chemically resistant even after years of exposure to hot engine oil. A calibrated spring determines the switching point; the spring is shot‑peened for fatigue resistance and pre‑set in a computerized test fixture.

The brass body is machined from solid hex bar, then nickel‑plated for corrosion resistance. The crimped case is sealed with a double‑lipped Viton O‑ring, preventing oil ingress into the electrical chamber. The threaded portion is finished with a pre‑applied thread sealant (optional on some OEM batches) but more commonly uses the supplied copper crush washer for reliable sealing.

Every switch is individually tested on a programmable pressure test stand. The test records the closing and opening pressures, electrical contact resistance (≤50 mΩ), and insulation resistance (≥100 MΩ at 500V DC). A serial number is laser‑etched onto the hex nut for traceability.

Superior Materials & Environmental Resistance

The Viton diaphragm of the 648-3800010 is resistant to all common engine oils, diesel, biodiesel up to B20, and even coolant mixtures. The nickel plating passes 240 hours of salt spray (ASTM B117) – twice the requirement for most aftermarket switches. The electrical terminal is a standard 6.3mm spade but is raised and sealed with an epoxy potting to prevent corrosion creep.

For vehicles operating in extreme dust or wash-down environments, an optional protective rubber boot (sold separately, SINOTRUK part number D3800‑001) can be fitted over the terminal to achieve IP67 rating.

Easy Installation & Compatibility

The 648-3800010 directly replaces the original oil pressure alarm switch on all SINOTRUK Homan engines. The thread (M14 x 1.5) is standard for oil pressure sensors. A new copper crush washer is supplied to ensure a leak‑proof seal. The switch can be installed in any orientation, but the terminal is best positioned facing upward to prevent moisture accumulation.

Electrically, the switch connects between the ignition-switched +12V/24V supply (via the warning lamp) and ground. When the switch is closed (engine off or low pressure), the lamp illuminates. When pressure rises above 0.7 bar, the switch opens and the lamp turns off. Always verify that the lamp self‑tests at key‑on before starting.

Professional Installation Guide for the 648-3800010 Low Oil Pressure Alarm

1) Disconnect the battery ground to avoid shorting the circuit. 2) Locate the original oil pressure alarm switch on the engine block (typically near the oil filter housing). 3) Remove the electrical connector by pulling the spade terminal; if corroded, cut the wire and replace the terminal.

4) Unscrew the old switch using a deep socket (24mm) or wrench. 5) Clean the threads in the engine block with a tap (M14 x 1.5) if any thread sealant remains. 6) Install the new copper crush washer onto the new switch.

7) Apply a small amount of thread sealant (optional) to the first two threads – not necessary if the copper washer is used. 8) Thread the new switch in by hand, then torque to 20 Nm (do not overtighten). 9) Reconnect the spade terminal and reattach the battery ground.

10) Turn the ignition key to the “ON” position (do not start). The oil pressure warning light should illuminate. Start the engine – the light should go out within 3 seconds. If not, check oil pressure with a mechanical gauge.

Maintenance & Troubleshooting Tips

The 648-3800010 itself requires no maintenance, but the warning light should be checked at every key‑on. If the light remains off with the engine off, the bulb or its circuit is faulty. If the light stays on after starting, first verify actual oil pressure with a mechanical gauge. If pressure is normal (≥1.5 bar at idle), the switch may be defective.

Common failure symptoms: oil warning light flickers at idle (dirt inside switch or loose terminal), light never illuminates at key‑on (open circuit or dead bulb), or light stays on even at high RPM (leaking diaphragm or incorrect switch). Always replace the switch if oil leaks from the terminal area. Clean the terminal before reconnecting to ensure good contact.

In cold climates, a thick oil (e.g., 15W-40) may cause a brief delay in light extinction, but this should not exceed 5 seconds. If the light stays on longer, the switch may be defective or the oil pressure truly low.

Quality Certifications & Rigorous Testing – 648-3800010

The 648-3800010 low oil pressure alarm is manufactured under IATF 16949 and ISO 9001:2015 standards. Each switch is 100% tested for switching point accuracy (0.7 bar ±0.1 bar) at 20°C, 80°C, and -20°C, insulation resistance (≥100 MΩ), and pressure proof (15 bar for 2 minutes). The contact resistance is measured at ≤50 mΩ.

Random samples are subjected to a 500,000 cycle electrical endurance test at 24V/1A, a 2000‑hour thermal cycle (-40°C to +120°C, 500 cycles), a 20g vibration test (10-2000 Hz for 50 hours), and a salt spray test (240h). The switch complies with RoHS and REACH directives. A batch code on the hex nut provides traceability.

Counterfeit switches often have incorrect thread pitch, no Viton diaphragm (plain NBR rubber that hardens), and inconsistent switching points (some close at 0.3 bar, others at 1.2 bar). Always verify the packaging QR code on the SINOTRUK Homan portal.

Real-World Field Performance Data

A fleet of 600 SINOTRUK T7H trucks in Canada (extreme cold) experienced frequent false low‑oil warnings at start-up with a generic aftermarket switch. After switching to the 648-3800010 genuine switch, false alarms dropped to zero, and the switches proved reliable even below -30°C. The fleet also noted that the water‑tight Viton diaphragm prevented corrosion from oil additives.

Another user – a mining contractor in Australia – reported that over 3 years, no genuine switch failed, whereas competitors’ switches failed every 6-8 months due to diaphragms hardening from high oil temperatures (120°C). The genuine switch’s gold-plated contacts also prevented false alarms caused by corrosion in the dusty environment.

Packaging, Anti-Counterfeit & Genuine Identification

Each genuine 648-3800010 low oil pressure alarm is packed in a sealed plastic bag with a desiccant inside a SINOTRUK Homan branded box. The kit includes the switch, a copper crush washer, and a QR-coded authenticity card. The switch body has a laser‑etched OEM number and a holographic serial label.

Counterfeit switches often have a painted (not etched) number, a thin copper washer, and a shiny brass appearance (genuine is dull nickel). The genuine switch has a distinct hex nut size (24mm) and a smooth terminal with an insulator washer. Always scan the QR code to verify on the SINOTRUK Homan website. Using a fake pressure switch can lead to undetected low oil pressure and catastrophic engine failure, voiding the engine warranty.

Summary: The SINOTRUK Homan Low Oil Pressure Alarm (OEM 648-3800010) delivers precise switching, robust construction, and failsafe warning for heavy-duty diesel engines. Protect your engine from catastrophic oil pressure loss – choose this genuine component trusted by fleets and mechanics worldwide.
