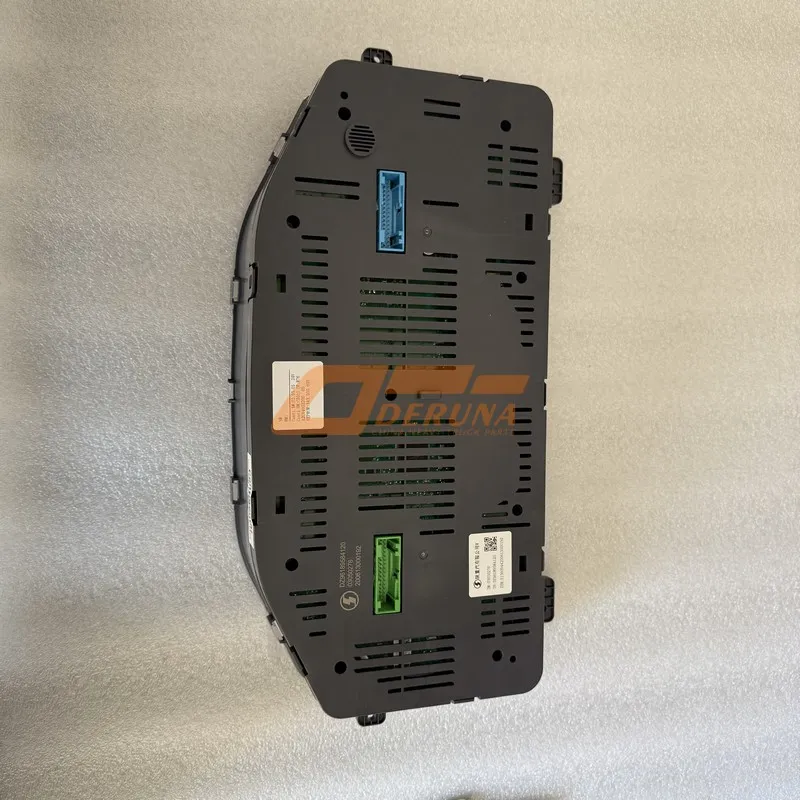

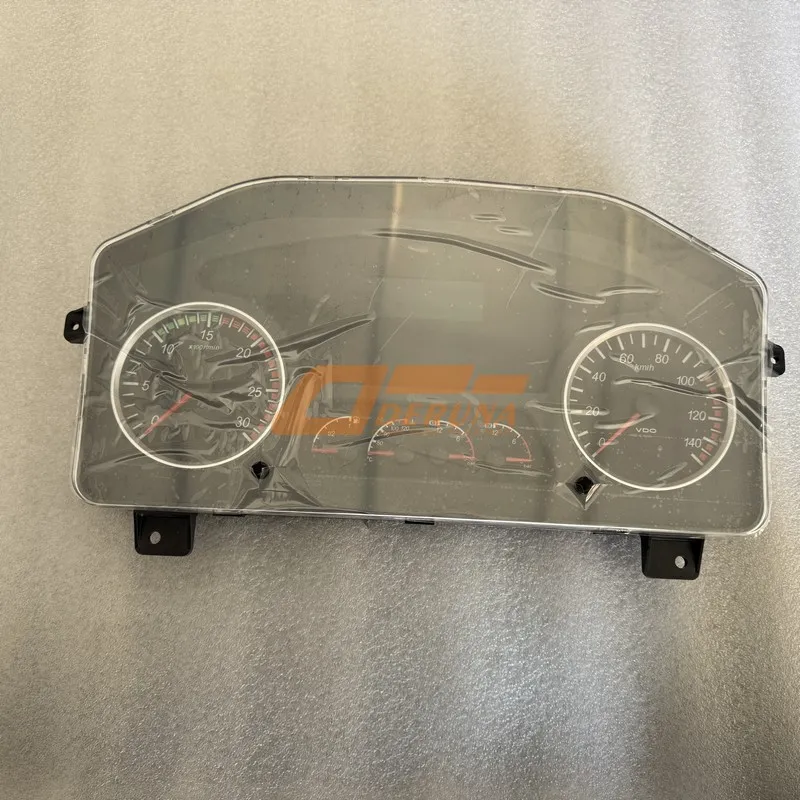

DZ96189584120 Instrument Cluster: Advanced Electronic Engine Control with CAN Bus for Shacman Trucks

Experience cutting-edge vehicle monitoring and control with our genuine Shacman truck parts, featuring the sophisticated DZ96189584120 Instrument Cluster. This state-of-the-art electronic control unit provides comprehensive vehicle data display and engine management through advanced CAN bus technology. Engineered for precision monitoring and reliable performance, the DZ96189584120 delivers the technological excellence and durability that professional fleet operators demand for their Shacman trucks in modern transportation applications.

Key Features of DZ96189584120 Instrument Cluster

Technical Specifications for DZ96189584120

Advanced Electronic Engineering Design

The DZ96189584120 Instrument Cluster represents the pinnacle of automotive electronic engineering, incorporating sophisticated microprocessor technology and advanced display systems. Built around a high-performance 32-bit microcontroller, this instrument cluster processes real-time data from multiple vehicle sensors through CAN bus communication. The integrated electronic engine control module continuously monitors engine parameters, providing precise feedback and enabling optimal engine performance under all operating conditions.

The high-resolution LCD display combines with traditional analog gauges to present critical vehicle information in an intuitive, easily readable format. The CAN 2.0B and J1939 protocol compatibility ensures seamless communication with engine control units, transmission systems, and other vehicle electronic modules. These advanced features distinguish the DZ96189584120 from conventional instrument clusters, providing comprehensive vehicle monitoring and control capabilities.

Installation and Configuration Guidelines

Proper installation of the DZ96189584120 requires specialized knowledge of automotive electronic systems. The cluster must be configured using manufacturer-specific diagnostic software to match the vehicle’s specifications, including engine type, transmission configuration, and optional equipment. All CAN bus connections must be properly terminated to ensure reliable communication. After installation, comprehensive system testing should be performed to verify all functions, including warning indicators, gauge accuracy, and communication with other vehicle control modules.

Performance Under Extreme Conditions

The DZ96189584120 demonstrates exceptional performance across diverse operating environments and temperature extremes. The robust electronic design maintains accurate readings and reliable operation from arctic cold to desert heat conditions. The CAN bus communication system provides fault-tolerant data exchange, ensuring continuous operation even in electrically noisy environments. The display technology offers excellent visibility in direct sunlight while providing adjustable brightness for nighttime operation.

In high-vibration commercial vehicle applications, the cluster’s secure mounting and component design prevent connection failures and display issues. The electronic components are protected against voltage spikes and electromagnetic interference, ensuring long-term reliability. These characteristics make the DZ96189584120 particularly suitable for demanding commercial vehicle operations where accurate information display is critical for operational efficiency and safety.

Durability and Maintenance Advantages

The construction quality of the DZ96189584120 ensures exceptional service life under continuous heavy-duty operation. The electronic components are rated for automotive-grade reliability, with integrated protection against over-voltage, reverse polarity, and short circuits. The display technology provides long-lasting performance without image retention or degradation. The connector system maintains reliable electrical connections throughout the vehicle’s service life.

Regular maintenance primarily involves software updates and occasional display cleaning. The cluster’s diagnostic capabilities include self-test functions that identify potential issues before they affect performance. Properly installed and maintained, the DZ96189584120 can achieve service life matching the vehicle’s operational lifespan in typical commercial applications.

Quality Assurance and Testing Standards

Every DZ96189584120 Instrument Cluster undergoes comprehensive quality testing to ensure it meets international automotive electronic standards. Testing procedures include functional verification, environmental stress testing, electromagnetic compatibility validation, communication protocol testing, and display quality assessment. Each production batch undergoes statistical process control to maintain consistent quality across all units.

The manufacturing facility maintains IATF 16949 certification, ensuring strict adherence to automotive quality management systems. Advanced testing equipment verifies all electronic functions under simulated vehicle operating conditions. These rigorous quality control measures guarantee that every DZ96189584120 delivers reliable performance in demanding Shacman truck applications.

Comparative Performance Advantages

Operational Efficiency Benefits

The advanced engineering of the DZ96189584120 translates directly into operational advantages for fleet operators. The precise engine monitoring enables optimal fuel efficiency and proactive maintenance scheduling. The comprehensive warning system alerts drivers to potential issues before they become critical, reducing unexpected breakdowns and repair costs. The extended service life decreases replacement frequency and associated downtime.

The diagnostic capabilities reduce troubleshooting time and improve workshop efficiency. The customizable display options allow drivers to access the most relevant information for their specific operations. These cumulative advantages significantly impact the total cost of ownership while enhancing vehicle safety and operational effectiveness.

Industry Applications and Compatibility

The DZ96189584120 Instrument Cluster serves essential functions across multiple Shacman commercial vehicle models with electronic engine management systems. Primary applications include heavy-duty trucks, construction vehicles, and specialized transport equipment requiring precise engine monitoring and control. The cluster’s CAN bus compatibility ensures integration with modern electronic systems found in contemporary commercial vehicles.

The robust electronic design makes the DZ96189584120 suitable for construction, mining, logistics, and long-haul transportation applications where reliable vehicle information is critical for operational success. Compatibility with various Shacman electronic engine models ensures optimal performance across different vocational uses and operating conditions.

Technical Innovation and Design Features

Advanced engineering principles distinguish the DZ96189584120 from conventional instrument clusters. The system architecture incorporates redundant processing paths to ensure continuous operation even in case of partial component failure. The display technology utilizes advanced polarizing filters and anti-glare coatings to maintain readability in challenging lighting conditions. The CAN bus implementation includes error detection and correction mechanisms for reliable data transmission.

The electronic design includes comprehensive electromagnetic compatibility measures to prevent interference with other vehicle systems. The software architecture supports field updates and customization without requiring hardware changes. These design innovations collectively contribute to the cluster’s reputation for reliability and advanced functionality in demanding commercial vehicle applications.

Environmental and Sustainability Considerations

Manufacturing processes for the DZ96189584120 prioritize environmental responsibility through efficient material usage and energy conservation. The extended service life reduces replacement frequency, minimizing the environmental impact associated with manufacturing and transportation of replacement components. The electronic components comply with RoHS and other international environmental regulations.

The efficient design minimizes electrical power consumption, contributing to reduced vehicle energy usage. At end of service life, the electronic components can be processed for material recovery according to environmental guidelines. These considerations align with modern sustainability practices in commercial transportation.

Reliability You Can Depend On

The DZ96189584120 Instrument Cluster represents the culmination of precision electronic engineering, advanced display technology, and rigorous quality control. As a critical information and control component for Shacman trucks, it delivers the performance and reliability that professional drivers and fleet managers require for successful operations. The cluster’s proven track record in demanding applications underscores its technological excellence and value proposition.

With OEM specification compliance, robust electronic construction, and optimized performance characteristics, the DZ96189584120 provides an ideal solution for maintenance, upgrade, and performance enhancement of commercial vehicle information systems. This advanced instrument cluster continues to establish industry benchmarks for quality and technological innovation in heavy-duty transportation components, ensuring your Shacman truck operates with optimal efficiency, safety, and reliability throughout its service life.
