SANY PTO Shaft QDP005099477: Front Axle to Gearbox Power Transfer

The efficient and reliable transmission of power from the engine to auxiliary systems is a cornerstone of heavy machinery functionality. The genuine QDP005099477 PTO Shaft (Power Take-Off Shaft) from SANY is a critical driveline component engineered specifically to transfer rotational power from the front axle to the gearbox or an auxiliary transmission. As a high-precision and durable SANY parts, this shaft forms the mechanical backbone for operating front-mounted attachments like winches, pumps, or specialized work equipment. The OEM shaft QDP005099477 is designed to handle high torque loads, maintain precise alignment under stress, and ensure smooth, uninterrupted power delivery, making it indispensable for machines where front power output is required for core operational functions.

PTO Shaft From Front Axle To Gear Box

Вал ВОМ от переднего моста к коробке передач

Eje TDF del Eje Delantero a la Caja de Cambios

Core Function: Enabling Front-Mounted Auxiliary Power

The primary function of the PTO Shaft QDP005099477 is to provide a dedicated, mechanically-driven power outlet from the vehicle’s front driveline. Unlike the main propulsion system, this shaft taps into the rotation of the front axle’s differential or a dedicated PTO gear case. It then transmits this engine-derived power forward to a secondary gearbox or directly to an attachment interface. This setup is common in specialized SANY equipment, such as all-terrain cranes with front winches, fire trucks with front-mounted pumps, or industrial vehicles requiring front power for drilling or boring attachments.

This configuration allows the machine to power heavy-duty tools without relying on hydraulic systems alone, offering direct mechanical efficiency and often higher torque capacity. The shaft designated as QDP005099477 must, therefore, be engineered to synchronize with the vehicle’s gearing, operate reliably at various engine RPMs, and withstand the shock loads inherent in starting and stopping heavy auxiliary equipment. Its role is to be an invisible yet unbreakable link in the power chain, enabling the machine’s primary work function.

Heavy-Duty Construction & Precision Engineering

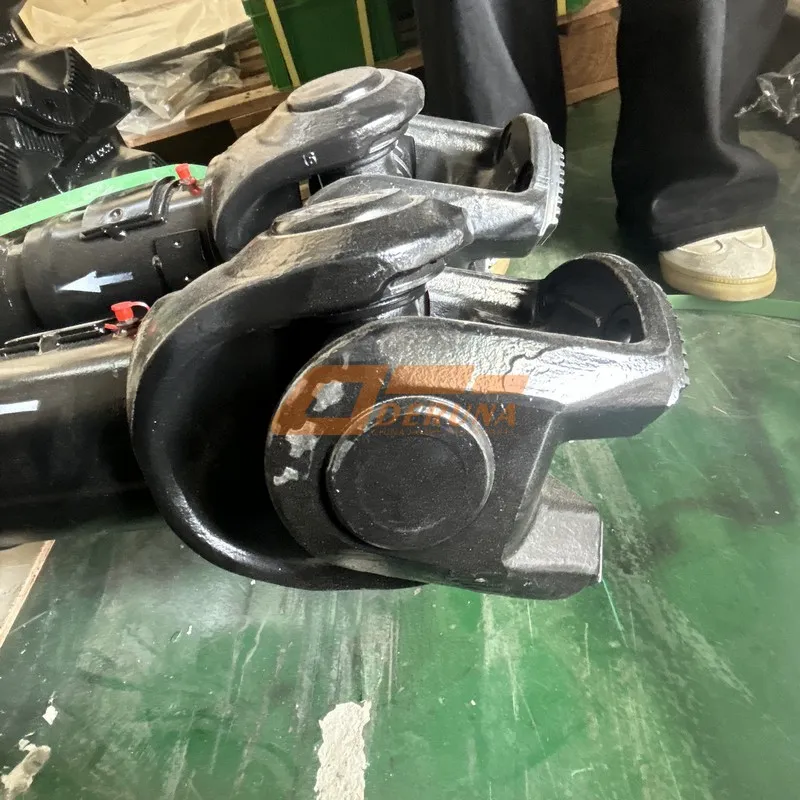

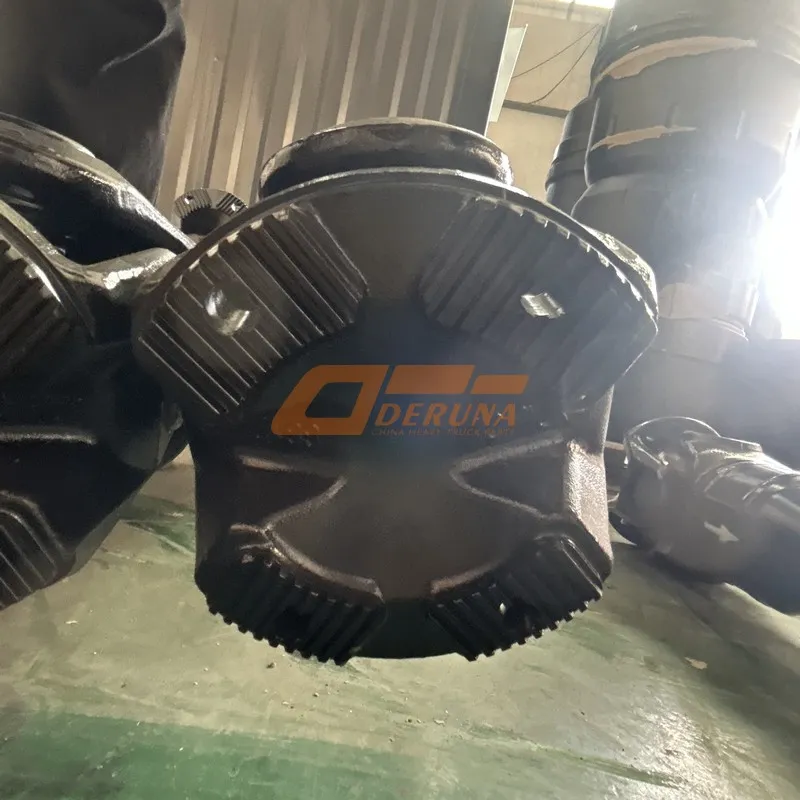

The SANY PTO Shaft QDP005099477 is a robust assembly, not a simple solid bar. It is designed to accommodate misalignment, absorb vibrations, and allow for slight relative movement between the axle and gearbox. The central tube is typically made from high-strength, seamless steel tubing, providing an optimal balance of torsional rigidity and weight. The shaft’s most critical features are its end connections, which are engineered for maximum power transfer and durability.

The entire assembly is balanced to minimize vibration at operational speeds, which is crucial for preventing premature bearing failure and ensuring smooth power delivery. The genuine QDP005099477 is the result of precise calculations for length, working angles, and torque capacity, making it a vehicle-specific component rather than a universal part.

Technical Specifications: PTO Shaft QDP005099477

The table below details the comprehensive technical specifications for the SANY Front Axle to Gearbox PTO Shaft. This data is essential for correct parts identification, verifying compatibility, and understanding the component’s design parameters.

Installation, Phasing, and Alignment Procedures

Installing the PTO Shaft QDP005099477 requires careful attention to detail to ensure smooth operation and long service life. The machine should be positioned so both the axle output flange and the gearbox input flange are accessible and clean. The shaft is offered up, engaging the splines on one end first, typically at the axle. It is crucial not to hammer the shaft onto the splines; it should slide on with firm hand pressure, indicating correct alignment and lack of damage.

Once both ends are splined into place, the yokes must be “phased” correctly. This means the orientation of the U-joints at each end must be aligned relative to each other (often yokes in the same plane) to ensure constant velocity and minimize vibration. The retaining snap rings or bolted flanges are then secured. Finally, the operating angles of the U-joints should be checked; ideally, they should be equal and less than the maximum specified angle to ensure balanced wear. Proper installation of the genuine QDP005099477 is key to preventing premature U-joint failure and noisy operation.

Symptoms of Wear and Mandatory Maintenance Regimen

A failing PTO shaft presents unmistakable symptoms. The most common is a pronounced vibration or shudder that increases with shaft speed, felt throughout the chassis, especially when the front PTO is engaged. This often indicates worn U-joint bearings, imbalance from a missing weight, or a bent tube. Audible clicking or clunking noises during engagement or under load point to excessive spline wear or severely worn U-joint trunnions.

Maintenance for the QDP005099477 shaft is preventive. The most critical task is regular lubrication of all grease fittings on the U-joints and slip splines (if present) with the specified high-pressure grease. This purges old, contaminated grease and prevents metal-to-metal wear. During service intervals, visually inspect the shaft for any dents in the tube, check for loose or missing bolts on flange connections, and grasp the shaft to feel for any radial play in the U-joints. Any sign of rust-colored dust (dried grease mixed with iron wear) around the joint crosses is a clear indicator of internal bearing failure and necessitates immediate replacement to avoid catastrophic shaft separation.

Operational & Economic Benefits of Genuine Part QDP005099477

Conclusion: The Critical Driveline Link for Auxiliary Power

The SANY PTO Shaft with OEM number QDP005099477 is far more than a simple connecting rod; it is a precision power transmission component that enables the core functionality of many specialized machines. Its ability to reliably deliver high-torque mechanical power from the front axle dictates the performance and capability of front-mounted work systems. Compromising on this component risks not just attachment failure, but also the integrity of the vehicle’s own driveline.

Therefore, specifying the genuine QDP005099477 for replacement or repair is a decision that prioritizes operational integrity, worksite safety, and machine uptime. It ensures perfect compatibility, engineered performance, and the durability required for severe service. For fleet managers and equipment operators who depend on reliable auxiliary power, this OEM PTO shaft is the definitive and necessary choice to keep critical equipment functioning at its peak.
