SANY Front Springs 131699000039A001: Heavy-Duty Load Support & Stability

The foundation of any heavy-duty vehicle’s performance lies in its ability to manage weight and absorb terrain imperfections. The genuine 131699000039A001 Front Springs from SANY are engineered as the primary suspension component, responsible for supporting the front axle load, ensuring ride stability, and protecting the chassis from impact shocks. As a critical and robust SANY parts, these leaf springs are designed to withstand the relentless stresses of construction, mining, and transport applications. The OEM spring set 131699000039A001 provides the calibrated stiffness and resilience needed to maintain proper ride height, control axle articulation, and deliver a balance between load capacity and driver comfort, forming the literal backbone of the vehicle’s front suspension system.

Front Springs

Передние рессоры

Muelles Delanteros

The Foundation of Suspension: Core Functions and Mechanics

The SANY Front Springs, part number 131699000039A001, serve as the fundamental load-bearing element of the front suspension. Their primary role is to support the static weight of the vehicle’s front end, including the engine, cab, and a portion of the payload. Beyond static support, they dynamically manage the forces generated when the vehicle encounters bumps, potholes, and uneven ground. As the wheel rises over an obstacle, the spring compresses, absorbing the kinetic energy. It then releases this energy in a controlled manner as the wheel drops, preventing the chassis from experiencing a violent shock.

This spring assembly, 131699000039A001, also plays a crucial role in maintaining vehicle geometry. By dictating the ride height, it ensures proper alignment of steering components and maintains the designed operating angles for drive axles. Furthermore, the leaf spring pack itself acts as a locating link, helping to control the lateral and longitudinal position of the axle relative to the chassis. This dual function of load support and axle location makes the front spring a critical component for safety, tire wear, and overall handling characteristics. A failure or significant sag in these springs compromises all these functions.

Advanced Engineering and Multi-Leaf Design

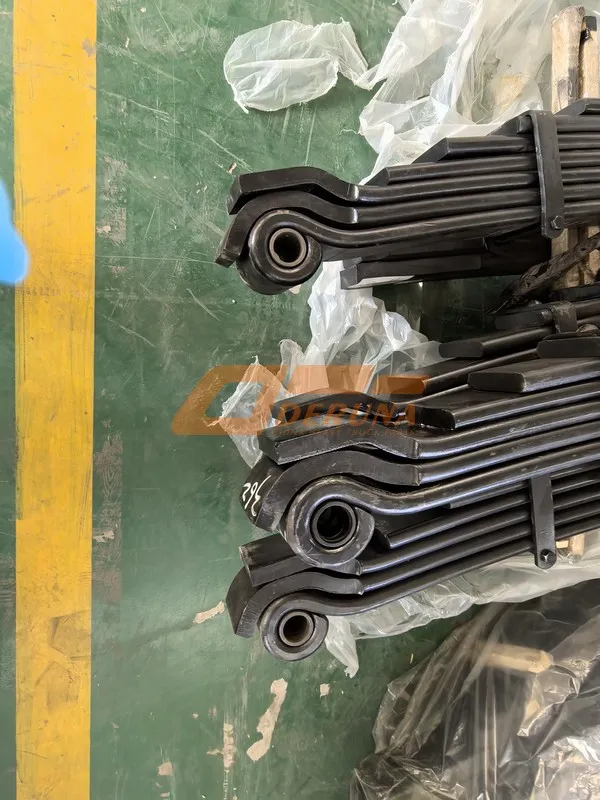

The 131699000039A001 front spring is a multi-leaf spring assembly, a design chosen for its superior strength, durability, and progressive spring rate. It is constructed from multiple layers (leaves) of high-carbon, alloy spring steel. Each leaf is precision-rolled to a specific length, curvature, and taper. The main leaf (master leaf) has eyes formed at each end for attachment to the chassis hangers and shackles. Successively shorter leaves are stacked beneath, creating a parabolic or semi-elliptical shape that distributes stress evenly along their length.

The entire assembly is designed with a specific camber (arch) when unloaded. This pre-set arch is engineered to flatten predictably under the vehicle’s weight to achieve the correct ride height. The materials, heat treatment (quenching and tempering), and protective coatings are all specified to meet the demanding lifecycle of a SANY machine, making the genuine 131699000039A001 a product of extensive testing and validation.

Technical Specifications: Spring Assembly 131699000039A001

The table below details the comprehensive technical specifications for the SANY Front Spring assembly. This data is critical for correct parts identification, verifying load capacity, and ensuring compatibility during suspension repair or refurbishment.

Installation Procedure and Critical Safety Steps

Replacing front springs, especially a set like 131699000039A001, is a major suspension job requiring proper equipment and safety protocols. The vehicle must be securely supported on heavy-duty stands, with the front axle safely suspended to remove all load from the springs. The process involves disconnecting the shock absorbers, U-bolts, and shackle pins to release the old spring pack from the axle and chassis hangers. Extreme caution is needed as the spring may be under residual tension.

The new genuine 131699000039A001 spring pack is positioned on the axle pad. It is crucial to ensure the center bolt head seats correctly in the axle’s locating hole. The U-bolts are then installed and progressively tightened in a cross pattern to the manufacturer’s specified torque. This secures the axle to the spring. Finally, the spring eyes are connected to the front fixed hanger and the rear shackle assembly. All bolts must be torqued to specification with the vehicle resting on its wheels at normal ride height to ensure the bushings are in a neutral state, preventing premature binding and wear.

Signs of Wear, Failure Modes, and Maintenance Checks

Front springs wear gradually, and several key indicators signal the need for inspection or replacement of part 131699000039A001. The most common sign is a noticeable sag in the vehicle’s front end, often accompanied by a change in headlight aim. This indicates a loss of camber and spring rate. A vehicle that bottoms out easily over bumps or leans excessively during cornering also points to weakened springs. Audible squeaking or clunking from the front suspension can indicate worn inter-leaf liners or a broken center bolt.

Visual inspection is paramount. Look for a broken leaf, identified by a visible crack or complete separation, usually at the point of maximum stress near the center or eye. Check for severe corrosion that can pit and weaken the steel. Examine the spring eyes for worn or cracked bushings. “Spring drift,” where the axle appears shifted sideways under the vehicle, can indicate a broken center bolt. Regular maintenance should include checking U-bolt torque and lubricating shackle and eye bushings if they are serviceable, as binding bushings can inhibit spring movement and lead to premature failure.

Benefits of Choosing Genuine SANY Springs 131699000039A001

Conclusion: Investing in Foundational Suspension Integrity

The SANY Front Spring assembly, bearing the OEM number 131699000039A001, is far more than a simple component; it is the fundamental element that defines the vehicle’s stance, stability, and capacity to work. Its health directly influences safety, tire wear, driver comfort, and the longevity of the entire front suspension and steering system. Compromising on this critical component can have cascading effects on vehicle performance and operating costs.

Therefore, selecting the genuine 131699000039A001 for replacement is a strategic decision that prioritizes long-term reliability, safety, and optimal machine performance. It is an investment in the structural integrity of the vehicle, ensuring it can continue to perform its demanding duties without compromise. For fleet managers and equipment owners who understand that true durability starts from the ground up, these OEM front springs are the definitive and necessary choice for any serious suspension overhaul.
