The WG9725530099 C7H retarder connection hose is a genuine SINOTRUK HOWO component engineered to transmit hydraulic fluid between the retarder control unit and the heat exchanger, ensuring consistent auxiliary braking performance. As a vital element of the trusted Sinotruk howo parts family, this hose is manufactured from high‑temperature synthetic rubber reinforced with aramid braiding, providing exceptional resistance to high pressure, thermal cycling, and hydraulic oil degradation. The WG9725530099 unit features precision‑swaged end fittings that guarantee a leak‑proof connection, even under the extreme demands of mining, construction, and long‑haul applications. Investing in this authentic component ensures your C7H retarder operates reliably, extending brake life and enhancing vehicle safety.
C7H Retarder Connection Hose
Соединительный шланг ретардера C7H
The WG9725530099 hose is constructed from a specially formulated synthetic rubber (NBR/PVC blend) that offers excellent resistance to hydraulic fluids, engine oils, and extreme temperatures ranging from -40°C to +135°C. The reinforcement consists of two layers of high‑tensile aramid fiber braid, providing superior strength and flexibility while resisting kinking and abrasion. The hose maintains its dimensional stability under high‑pressure pulses, ensuring consistent fluid flow to the retarder heat exchanger.
End fittings are precision‑machined from zinc‑plated carbon steel and attached using a 100% swaging process that creates a permanent, leak‑proof bond with the hose. Each assembly is pressure‑tested to 150% of the maximum working pressure and inspected for any signs of leakage or deformation. The hose also features a protective outer cover that resists ozone, UV radiation, and road chemicals, making it ideal for harsh under‑vehicle environments. This meticulous engineering guarantees reliable performance for the life of your C7H retarder system.
The table below provides detailed technical data for the genuine SINOTRUK HOWO WG9725530099 retarder connection hose. These specifications are essential for verifying compatibility and understanding its performance capabilities.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | WG9725530099 | SINOTRUK HOWO Original Code |
| Product Name | C7H Retarder Connection Hose | Hydraulic hose assembly |
| Hose Material | Synthetic rubber (NBR/PVC) | Oil & heat resistant |
| Reinforcement | Two layers aramid braid | High strength, flexible |
| Fitting Material | Carbon steel, zinc plated | Corrosion resistant |
| Inner Diameter | 12.5 mm (½”) | ±0.2 mm |
| Outer Diameter | 21.0 mm | ±0.5 mm |
| Length (overall) | 850 mm | ±10 mm |
| Max Working Pressure | 50 bar (725 psi) | Continuous duty |
| Burst Pressure | ≥ 250 bar (3600 psi) | 4:1 safety factor |
| Temperature Range | -40°C to +135°C | Fluid & ambient |
| Applicable Models | Howo C7H with retarder | Check routing |
The WG9725530099 retarder connection hose is a direct OEM replacement for the hydraulic lines used in the Voith or ZF retarder systems installed on Howo C7H trucks. It connects the retarder control valve to the oil‑to‑water heat exchanger, circulating hot hydraulic fluid for cooling. This hose is critical for maintaining proper retarder function, which provides wear‑free auxiliary braking on long descents, reducing service brake wear and improving safety.
In heavy‑duty applications such as mining and mountainous haulage, the retarder is used frequently, subjecting the hose to high‑pressure pulses and thermal stress. The genuine WG9725530099 hose is engineered to withstand these conditions without swelling, leaking, or bursting. It is also used in some C7H chassis equipped with hydraulic retarders for vocational vehicles like concrete mixers and dump trucks. A failure of this hose can result in loss of retarder function and potential overheating of the hydraulic fluid, making its integrity essential for vehicle safety.
When replacing the retarder hose, always use new copper washers or O‑rings at the fittings. Torque the banjo bolts to the specification in the service manual (typically 40‑50 Nm). Bleed the system according to the retarder manufacturer’s instructions.
Correct installation of the WG9725530099 hose is essential to ensure leak‑free operation and long service life. Follow these steps:
Drain the retarder hydraulic fluid. Clean the fitting ports thoroughly. Inspect the old hose for routing to ensure the new hose follows the same path without kinks.
Install new sealing washers or O‑rings. Connect the hose to the retarder and heat exchanger hand‑tight, then torque to specification. Ensure the hose is not twisted and has sufficient clearance from hot or moving parts.
Refill with the recommended hydraulic oil. Start the engine and activate the retarder briefly to check for leaks. Test under load to verify proper operation.
A worn or damaged retarder hose can cause fluid leaks and loss of braking power. Common signs that replacement is needed include:
If any of these symptoms are observed, immediate replacement with a genuine WG9725530099 hose is recommended. Continuing to operate with a compromised hose can lead to sudden fluid loss and complete retarder failure, especially on steep grades.
The hose maintains consistent fluid flow under high pressure, ensuring the retarder delivers full braking power when needed.
High‑quality materials and robust construction resist heat, pressure, and chemical attack, providing years of trouble‑free service.
Leak‑proof fittings and pressure‑tested assemblies prevent sudden fluid loss, protecting the driver and cargo during critical braking events.
To maximize the service life of your WG9725530099 retarder connection hose, follow these best practices:
By adhering to these guidelines, you ensure that the WG9725530099 hose performs optimally throughout its intended service interval.
Aftermarket hydraulic hoses often use lower‑grade rubber compounds that harden or soften over time, leading to leaks and reduced pressure capacity. The genuine WG9725530099 is manufactured to the exact specifications of the original equipment, using a proprietary rubber compound and precision‑swaged fittings that guarantee a perfect seal. Each hose is pressure‑tested and inspected for dimensional accuracy, ensuring it will perform exactly as the original part.
By choosing authentic SINOTRUK HOWO parts, you protect your investment and ensure your truck maintains its safety, reliability, and resale value. The Sinotruk howo parts catalog includes a full range of retarder and hydraulic system components engineered for maximum durability. For fleet managers and owner‑operators who demand the best, the genuine WG9725530099 is the only responsible choice.
The WG9725530099 retarder connection hose is designed specifically for Howo C7H trucks equipped with Voith or ZF hydraulic retarders. It may also fit certain T7H models with the same retarder system. Always verify the hose length and fitting types (banjo or threaded) using the service manual.

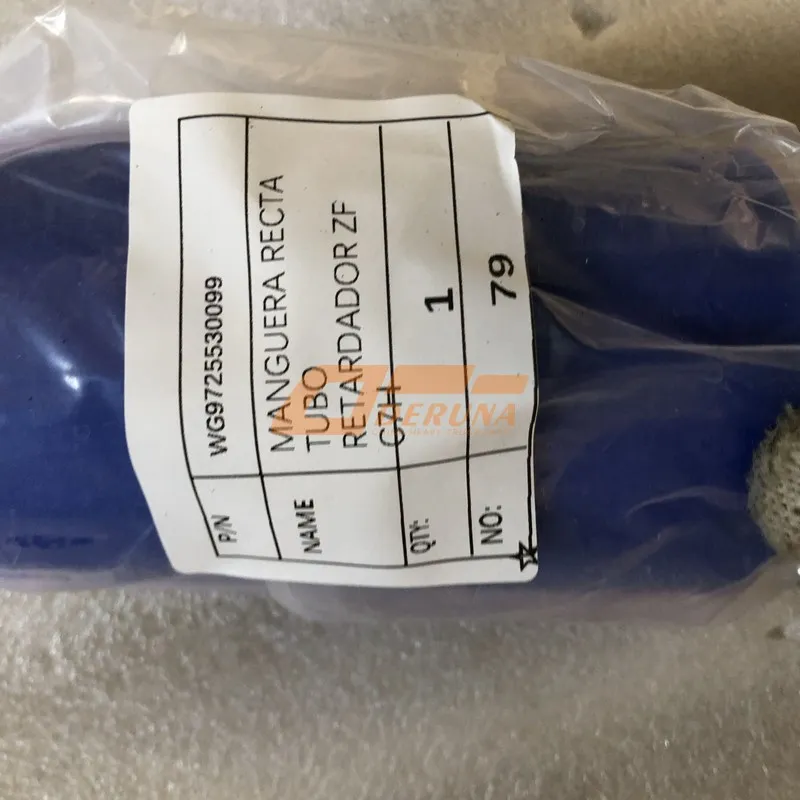

Each WG9725530099 is individually packaged in a sealed plastic bag with protective caps on the fittings to prevent contamination. The package includes the hose only; sealing washers or O‑rings must be ordered separately if needed.
Production of the WG9725530099 takes place in IATF 16949 certified facilities, using automated hose cutting, crimping, and testing equipment. Statistical process control ensures that every assembly meets the stringent requirements for pressure, flow, and dimensional accuracy. Every batch is accompanied by a material certificate and pressure test report, guaranteeing that the hoses delivered are identical to those fitted on new Howo trucks at the factory.
