The air outlet pipe of the air filter is a critical component that channels filtered air from the air cleaner housing to the engine’s turbocharger or intake manifold. The genuine SINOTRUK HOWO WG9725193339 Air Outlet Pipe Of Air Filter is an OEM‑grade component manufactured to exacting tolerances for a perfect fit and lasting durability. As a critical element of the trusted Sinotruk howo parts family, this outlet pipe guarantees a leak‑free connection, superior airflow, and long‑term reliability. Engineered for HOWO heavy‑duty trucks, the WG9725193339 unit withstands extreme temperatures, vibration, and pressure pulsations in mining, construction, and long‑haul applications.

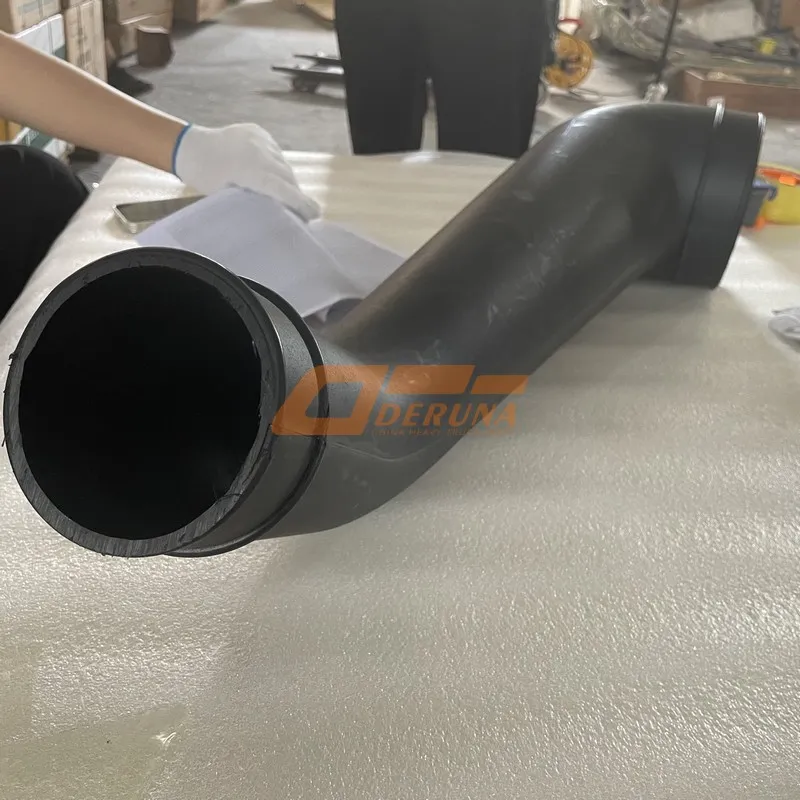

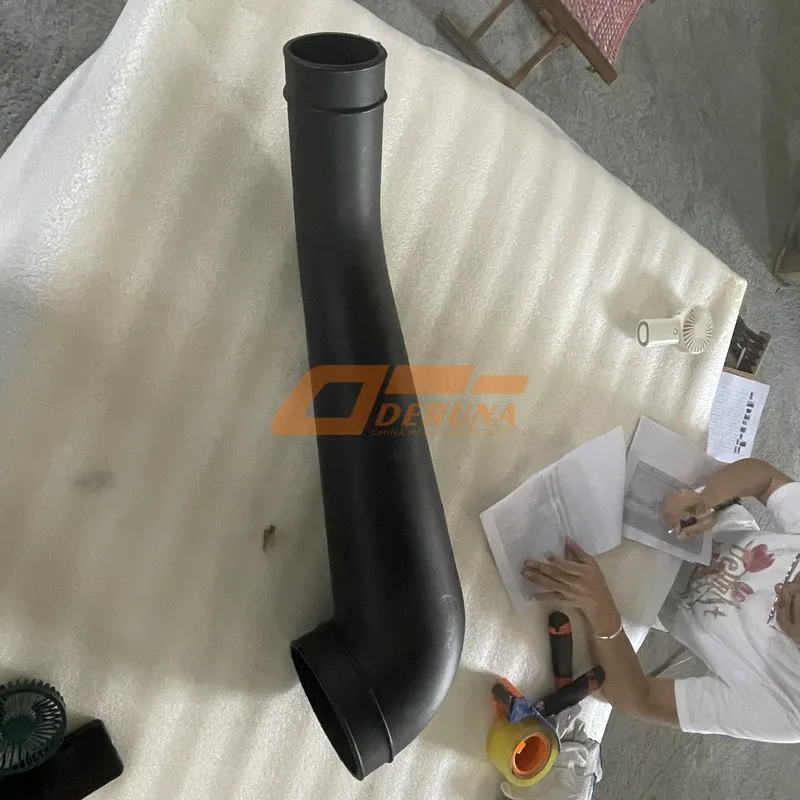

Air Outlet Pipe Of Air Filter
Выпускной патрубок воздушного фильтра
Tubo de salida del filtro de aire
The WG9725193339 air outlet pipe is manufactured from high‑grade EPDM or silicone rubber, reinforced with multiple layers of polyester fabric. This construction provides exceptional flexibility for easy installation while maintaining shape under high vacuum or boost pressure (up to 2.5 bar). The material is resistant to ozone, oil, and extreme temperatures ranging from -50°C to +200°C, ensuring long service life in harsh engine compartments.
The pipe features molded ends with integrated sealing beads that ensure a tight, leak‑free connection with the air filter housing and turbocharger inlet. The beads are designed to accommodate slight misalignment and prevent the pipe from slipping off under pressure. All dimensions are precision‑controlled to match the original factory specifications, guaranteeing a perfect fit without the need for cutting or modification.
The interior surface is smooth and free of flash or irregularities, minimizing airflow restriction and preventing turbulent flow that could affect sensor readings. The exterior is protected with a UV‑resistant coating that prevents cracking and hardening from sunlight exposure. Each WG9725193339 pipe is factory‑tested for pressure integrity and is ready for immediate installation.
The table below provides detailed technical specifications for the genuine SINOTRUK HOWO WG9725193339 Air Outlet Pipe Of Air Filter. This data is essential for verifying compatibility and performance characteristics.
| Parameter | Specification | Details |
|---|---|---|
| OEM Part Number | WG9725193339 | SINOTRUK HOWO Original Code |
| Product Name | Air Outlet Pipe Of Air Filter | Connects air filter to turbocharger |
| Material | Reinforced EPDM / Silicone rubber | Oil, ozone, and heat resistant |
| Inner Diameter | 102 mm (4 inches) | Consistent throughout |
| Overall Length | 380 mm (approx.) | Center to center |
| Wall Thickness | 5 mm | Reinforced with fabric plies |
| Working Pressure | Up to 2.5 bar | Suitable for turbocharged engines |
| Burst Pressure | > 10 bar | Safety margin |
| Temperature Range | -50°C to +200°C | Withstands extreme underhood heat |
| Sealing Beads | Integral molded beads at both ends | Prevent hose slippage |
| Weight (approx.) | 0.9 kg | Lightweight and flexible |
| Compatible Models | SINOTRUK HOWO 6×4, 8×4, Tractor, Dump (select years) | Verify with original pipe |
Replacing the air outlet pipe is a straightforward procedure that can be completed with basic hand tools. Begin by safely parking the vehicle and allowing the engine to cool. Loosen the clamps at both ends of the old pipe using a screwdriver or socket. Carefully twist and pull the pipe to detach it from the air filter housing and turbocharger inlet. Inspect the mating surfaces for any debris or damage.
Before installing the new WG9725193339 pipe, apply a small amount of silicone lubricant to the inside of the ends to ease installation. Slide the pipe onto the turbocharger inlet first, ensuring it seats fully against the flange or bead. Then attach the other end to the air filter outlet. Position the pipe so that it is not twisted and has adequate clearance from moving parts and hot surfaces. Tighten the clamps evenly to the recommended torque. The pipe is a direct OEM replacement for SINOTRUK HOWO trucks; always verify compatibility by comparing the shape and dimensions with the original part.
Use constant‑torque clamps (e.g., worm‑drive or spring‑loaded) to maintain a secure seal as the pipe expands and contracts with temperature. After installation, start the engine and check for leaks by spraying soapy water around the connections.
The smooth internal bore and robust construction of the WG9725193339 pipe minimize pressure drop, ensuring the turbocharger receives maximum air density for optimal combustion and power.
Integrated sealing beads and precision‑molded ends guarantee a tight connection, preventing unfiltered air from entering the engine and maintaining proper air‑fuel ratios.
Made from high‑temperature, oil‑resistant materials, this pipe resists cracking, hardening, and collapse for hundreds of thousands of kilometers, reducing maintenance intervals.
Replacing a worn or cracked outlet pipe with a genuine OEM part prevents turbocharger damage and performance loss, saving costly repairs down the road.
Over time, rubber intake pipes can deteriorate due to heat, oil exposure, and ozone. Common indicators that the WG9725193339 pipe needs replacement include visible cracks, soft or bulging areas, collapsed sections (under vacuum), oil seepage indicating porosity, and loose clamps that cannot maintain a seal. A hissing sound under boost or a check engine light for mass airflow or turbocharger performance may also indicate a leak.
Ignoring a damaged air outlet pipe can lead to turbocharger overspeed, incorrect fuel trims, increased emissions, and loss of power. Replacing it promptly with a genuine WG9725193339 restores proper intake system integrity and ensures your HOWO performs reliably.
To extend the life of your WG9725193339 air outlet pipe, regularly inspect it for signs of cracking, softening, or abrasion. Keep the engine compartment clean to prevent oil and fuel from soaking into the rubber. Ensure that the pipe is properly supported and not rubbing against sharp edges or hot surfaces. During routine maintenance, check that all clamps are tight and not over‑tightened, which can cut the rubber.
If you operate in extreme temperatures or dusty environments, consider inspecting the pipe more frequently. When replacing the pipe, always use new clamps if the old ones are worn. Following these practices will help your WG9725193339 pipe provide reliable service for years.
Generic aftermarket air outlet pipes often use inferior rubber compounds that harden quickly, crack under temperature cycling, or collapse under vacuum. The genuine SINOTRUK HOWO WG9725193339 air outlet pipe is engineered to the exact specifications of your truck’s intake system, ensuring correct flexibility, pressure rating, and fit. It is manufactured under strict quality controls using the same materials and processes as the original part fitted at the factory.
By choosing the authentic WG9725193339, you protect your investment, maintain engine performance, and ensure reliable operation in the harshest environments. For fleet managers and owner‑operators who demand the best, the genuine WG9725193339 is the only responsible choice.
The WG9725193339 Air Outlet Pipe Of Air Filter is part of SINOTRUK’s comprehensive line of genuine intake components. Whether you operate in extreme cold, desert heat, or humid coastal environments, this pipe delivers dependable performance. Its robust construction resists heat and oil, providing peace of mind for every journey. Always insist on genuine parts to keep your HOWO running at its best.
For workshops and service centers, stocking the genuine WG9725193339 ensures that every intake repair meets the highest standards. Customers will appreciate the reliable fit, leak‑free connections, and extended service life. With the WG9725193339, you are not just replacing a hose—you are restoring the efficiency and reliability of the air intake system.
Remember, a leak‑free intake system is essential for engine performance. Using genuine SINOTRUK HOWO parts like the WG9725193339 is an investment in reliability, performance, and operational efficiency. Trust the original, trust the WG9725193339.
