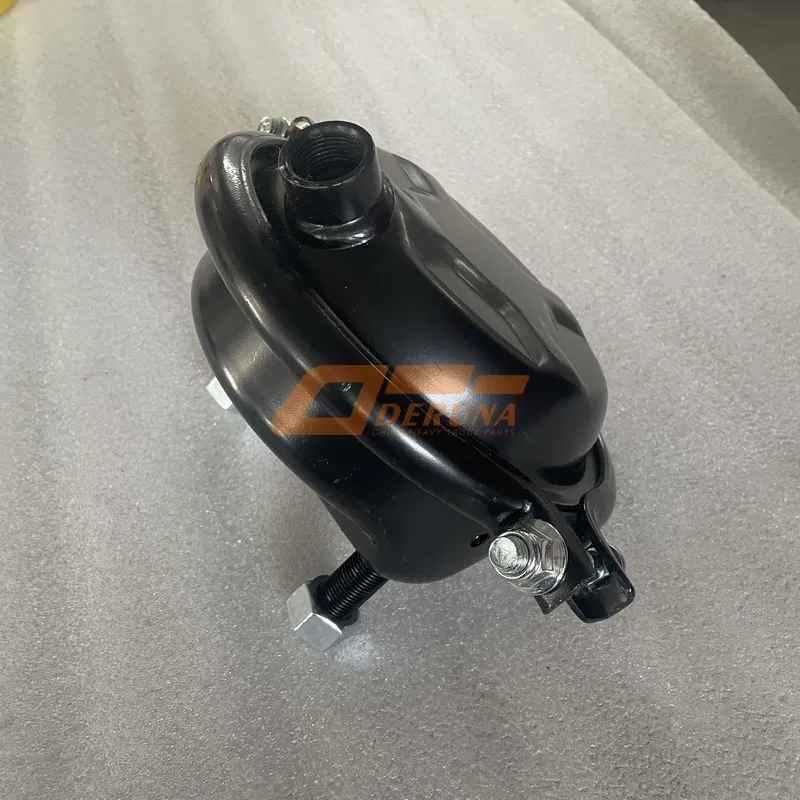

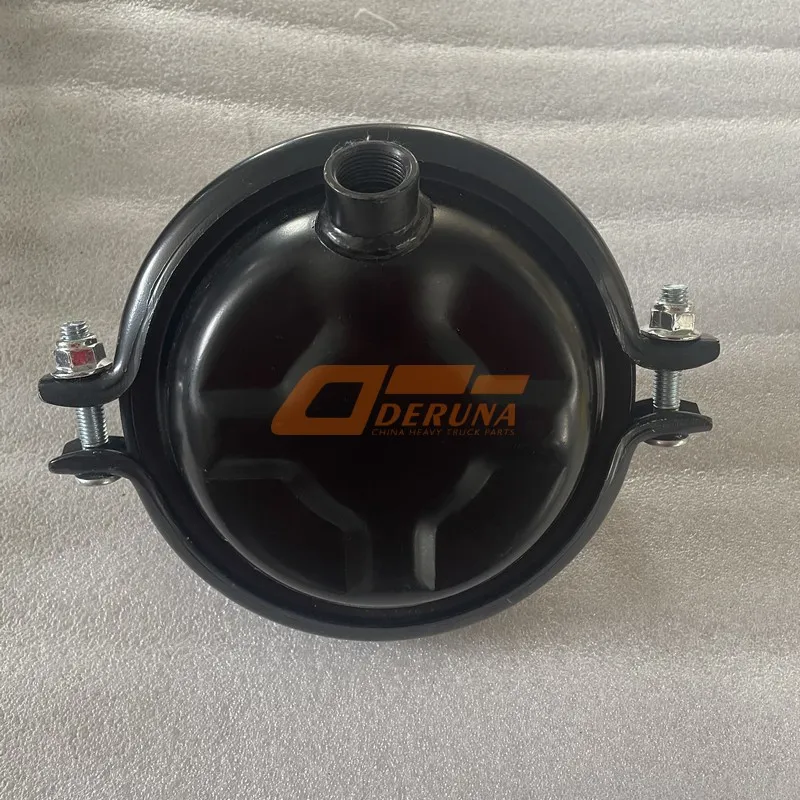

WG9100360410: Reliable Brake Cylinder for SINOTRUK Howo Safety

Core Function and Design of the WG9100360410 Brake Cylinder

The brake cylinder, part number WG9100360410, is a fundamental actuator within the drum brake system of SINOTRUK Howo trucks. Mounted on the brake backing plate, its primary function is to translate hydraulic pressure from the master cylinder into linear mechanical motion. When the brake pedal is pressed, brake fluid is forced into the cylinder, causing its internal pistons to push outward against the brake shoes. This action forces the friction-lined shoes to press against the rotating brake drum, creating the friction necessary to slow down or stop the vehicle. The performance and reliability of the entire wheel brake assembly hinge directly on the integrity of this component.

The genuine WG9100360410 cylinder is a precision assembly. Its housing is typically made from high-grade cast iron or aluminum alloy, designed to withstand continuous hydraulic pressure and corrosive elements like road salt and moisture. Inside, carefully machined pistons travel within precision bores, sealed by high-temperature rubber cups (seals) that prevent fluid leaks. The cylinder also features a bleeder screw to allow for the removal of air from the hydraulic system during maintenance. Each WG9100360410 unit is built to exact OEM tolerances, ensuring consistent piston travel and equal force application to both brake shoes, which is critical for balanced braking and preventing wheel pull.

A failure of this component, such as a leaking seal or a corroded piston bore, leads directly to a loss of braking power at that wheel. This can cause dangerous braking imbalance, increased stopping distances, and potential damage to other brake components. Therefore, using the authentic, high-quality WG9100360410 brake cylinder is a direct investment in the predictable and safe braking performance of your truck. Its robust design ensures it can handle the heat generated during braking and the harsh environmental conditions encountered in daily trucking operations.

Key Benefits of the Genuine WG9100360410 Brake Cylinder

Technical Specifications: Brake Cylinder WG9100360410

Symptoms of Failure and Replacement Guide for WG9100360410

A failing brake cylinder, identifiable by part number WG9100360410, exhibits clear warning signs that demand immediate attention. The most common symptom is a soft or spongy brake pedal that travels closer to the floor, often caused by internal fluid leaks past the piston seals. Visible brake fluid leaks behind the wheel, on the inside of the tire, or on the backing plate are a definitive sign of seal failure. Another indicator is uneven braking or the vehicle pulling to one side during stops, which occurs when one cylinder fails to apply equal force, causing asymmetric brake shoe engagement. In severe cases, contamination of the brake lining with fluid will drastically reduce braking power and create a burning smell.

Replacing the brake cylinder WG9100360410 is a precise task best performed by a qualified mechanic. The process begins with safely lifting and securing the truck, removing the wheel, and then the brake drum. After cleaning the area, the hydraulic brake line connected to the old cylinder must be carefully disconnected, and the cylinder mounting bolts removed. Before installing the new genuine WG9100360410 cylinder, it is crucial to bench-bleed it if possible and to lubricate the new piston seals with clean brake fluid as specified by the manufacturer. The new cylinder is then mounted, the brake line reconnected, and the system refilled with the correct grade of fresh brake fluid.

The final and most critical step is bleeding the brake system to remove all air, starting with the wheel farthest from the master cylinder and ending with the one closest. A proper bleeding procedure ensures a firm pedal. It is highly recommended to replace brake cylinders in pairs (both left and right on the same axle) to maintain balanced braking performance. Additionally, inspect the brake shoes, drums, and springs during this service, as fluid contamination often necessitates shoe replacement. Using the correct OEM part like WG9100360410 ensures the new cylinder matches the original equipment’s bore size and stroke, preserving the designed braking dynamics.

Preventive maintenance is key to longevity. Regularly check brake fluid levels and inspect for leaks during routine service intervals. Fluid should be replaced according to the manufacturer’s schedule, as old, moisture-contaminated fluid can corrode the cylinder bore and degrade seals. Listening for unusual sounds and paying attention to pedal feel are daily checks every driver can perform. Investing in the genuine WG9100360410 brake cylinder during repairs guarantees a perfect fit, optimal performance, and, most importantly, restores the full safety integrity of your SINOTRUK Howo’s braking system, protecting your cargo, your vehicle, and everyone on the road.

Conclusion: The Foundation of Safe Stopping Power

The Brake Cylinder WG9100360410 is a testament to the principle that true reliability lies in precision engineering and quality materials. As the critical actuator in your truck’s drum brake system, its flawless operation is non-negotiable for safe vehicle operation. This component works silently but decisively every time you need to slow down or stop, translating your command into action.

Never compromise on the quality of such a vital safety component. Choosing the authentic WG9100360410 ensures compatibility, durability, and performance that meets SINOTRUK’s rigorous standards. It is a direct investment in predictable braking, reduced downtime, and ultimate peace of mind. Secure your journeys and protect your investment by trusting only genuine OEM parts for your braking system’s heart.
