FAW 2801070-1063 Torque Bar Bracket for Suspension Stability

Maintaining precise axle alignment and controlling driveline forces are critical for the handling and safety of heavy-duty trucks. The FAW Torque Bar Bracket, identified by the genuine OEM part number 2801070-1063, is a fundamental mounting component that securely anchors the torque rod (or track bar) to the truck’s frame or axle housing. This bracket plays a pivotal role in managing the rotational forces generated during acceleration and braking, preventing axle wind-up and ensuring stable wheel alignment. For technicians and fleet managers focused on durability, sourcing this specific bracket from our comprehensive catalog of Faw truck parts guarantees a perfect fit and factory-grade strength.

The 2801070-1063 is engineered from high-tensile steel to withstand immense stress, providing a rigid and reliable pivot point for the torque rod. A properly functioning bracket is essential for preserving suspension geometry, reducing abnormal tire wear, and ensuring predictable vehicle handling under all load conditions.

Torque Bar Bracket

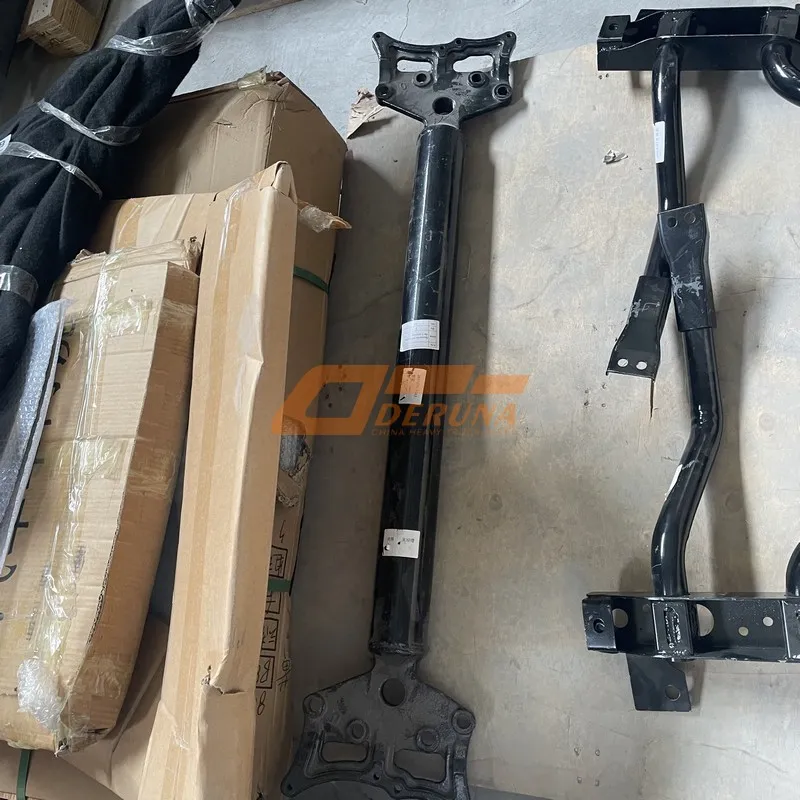

Кронштейн реактивной штанги

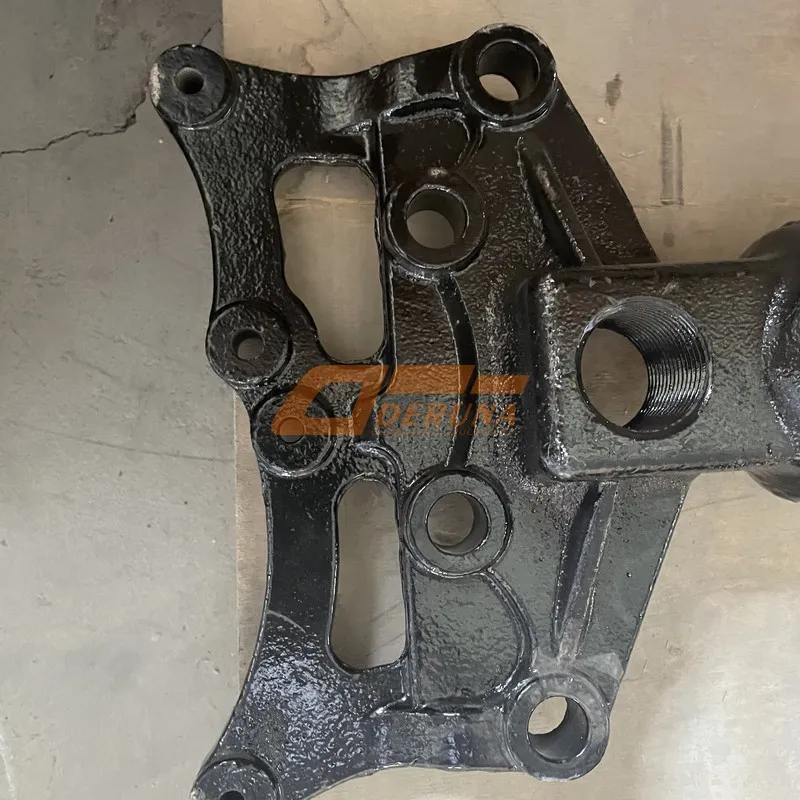

Soporte de Barra de Torque

Core Function in Driveline and Suspension Control

The FAW 2801070-1063 Torque Bar Bracket serves as the critical anchor point for a torque rod, also known as a track bar or radius rod. This rod is part of the suspension system that connects the axle housing to the vehicle’s frame. Its primary function is to control axle rotation (wind-up) caused by the application of driving torque during acceleration and braking torque during deceleration.

Without a secure bracket like the 2801070-1063, these forces would cause the axle to twist excessively, leading to unstable suspension geometry, uneven tire wear, and compromised handling. The bracket provides a fixed, strong pivot that allows the torque rod to do its job effectively, transferring these rotational forces to the frame and maintaining proper axle alignment relative to the chassis.

Material Strength and Structural Integrity

The 2801070-1063 bracket is subjected to tremendous cyclical stresses, requiring exceptional material strength. It is typically fabricated from thick, high-carbon or alloy steel plate, cut and formed using precise stamping or laser-cutting methods. Critical areas, especially around the bushing eye or mounting bolt holes, are often reinforced with gussets or extra weld material. The bracket may undergo heat treatment or stress-relieving processes after welding to eliminate internal weaknesses. This robust construction ensures the 2801070-1063 can endure the constant pushing and pulling forces from the torque rod without cracking, bending, or suffering from metal fatigue over the truck’s operational lifespan.

Precision Fitment and Mounting Alignment

Accurate alignment is paramount for the torque rod system to function correctly. The 2801070-1063 bracket is engineered to mount at a specific location and angle on the axle housing or frame rail of compatible FAW trucks. Its mounting hole pattern is drilled to exact tolerances to match the existing bolt holes. The bracket’s design ensures that when installed, the torque rod is positioned at the intended operating angle. Incorrect alignment due to a poorly manufactured or wrong bracket can pre-load the torque rod bushing, causing premature bushing failure, binding, and incorrect force transfer, ultimately defeating the purpose of the component.

Role in Preventing Axle Wrap and Wheel Hop

One of the most noticeable issues a failing torque rod system allows is axle wrap and wheel hop, especially under heavy acceleration. Axle wrap refers to the twisting of the axle housing itself, which can lead to violent wheel hop—a condition where the tires lose and regain traction rapidly. The 2801070-1063 bracket, by providing a solid anchor for the torque rod, directly combats this. The rod resists the twisting force, stabilizing the axle and ensuring that power from the differential is converted into forward motion rather than wasted in destructive suspension oscillation. This stabilization is crucial for maintaining traction, protecting driveline components like U-joints, and providing a smoother, more controlled driving experience.

Impact on Tire Wear and Handling Stability

A secure 2801070-1063 bracket directly influences tire longevity and vehicle safety. By preventing unwanted axle rotation and movement, it maintains consistent wheel alignment settings (such as pinion angle and axle parallelism). If the bracket is loose, cracked, or misaligned, the axle can shift slightly under load, causing rapid and uneven tire wear, often seen as cupping or scalloping on the tread. Furthermore, predictable handling relies on stable suspension geometry. A compromised bracket can introduce play or deflection in the suspension, leading to vague steering, increased body roll during cornering, and a general reduction in driver confidence and vehicle safety at highway speeds.

Technical Specifications

Installation and Torque Specifications

Installing the 2801070-1063 bracket correctly is as important as the part itself. The procedure involves safely supporting the vehicle, removing the old bracket (which may require pressing out the old bushing), and thoroughly cleaning the mounting surface. The new bracket is positioned, and high-grade mounting bolts are inserted. It is critical to follow the manufacturer’s specified torque sequence and values. Overtightening can distort the bracket or strip threads, while undertightening can lead to loosening under vibration. If the bracket includes a bushing, it must be pressed in squarely to avoid damage. Proper installation ensures the bracket becomes a solid, integral part of the axle or frame assembly.

Common Failure Modes and Inspection Points

Regular inspection of the 2801070-1063 bracket can prevent larger issues. Common failure signs include visible cracks emanating from weld points or mounting holes, significant corrosion that compromises metal thickness, and elongated bolt holes caused by movement. A bent or distorted bracket is also a clear failure. During inspection, check for play by attempting to move the torque rod near the bracket; any noticeable movement indicates a problem with the bracket, bolts, or the bushing inside. Unusual clunking or banging noises from the suspension during acceleration or gear changes often point to a failing torque rod system, starting with the bracket or its bushings.

Corrosion Resistance and Environmental Durability

Positioned underneath the truck, the 2801070-1063 bracket is exposed to road salt, water, and chemicals. To combat corrosion, genuine FAW brackets are treated with protective coatings such as phosphate priming or electrocoating before receiving a final paint layer. This protection is vital for maintaining structural integrity in harsh winter climates or coastal regions. During replacement, it’s advisable to apply an additional anti-corrosion spray to the bracket and fasteners. A rust-weakened bracket can fail catastrophically without the visible cracking associated with fatigue, making corrosion resistance a key feature of a quality part.

Integration with Bushing and Bearing Systems

The 2801070-1063 bracket typically houses a bushing—a rubber or polyurethane component that isolates vibration and allows for minor articulation. The bracket’s design includes a precisely sized bore to accommodate this bushing. The quality of the bracket’s machining determines how well the bushing is retained and how it functions. A poorly machined bore can allow the bushing to spin or walk out, leading to rapid failure. The genuine FAW bracket ensures the bore diameter, surface finish, and depth are correct for the specified bushing, creating a complete and functional assembly that manages forces while providing some compliance.

Genuine FAW OEM vs. Aftermarket Brackets

Choosing the genuine 2801070-1063 bracket over an aftermarket copy is a decision for guaranteed performance and safety. The OEM part is manufactured from steel with a known and tested grade, formed on factory tooling for perfect dimensional accuracy, and finished with corrosion protection that meets FAW’s standards. Aftermarket brackets may use thinner gauge metal, have imprecise hole alignment leading to installation stress, or lack proper reinforcement. In a component that acts as a foundational anchor, these compromises can lead to early failure, unpredictable handling, and potentially dangerous situations. The genuine part ensures the suspension system operates as originally engineered.

Impact on Heavy-Duty and High-Torque Applications

In applications where FAW trucks are used for heavy towing, construction, or logging, the demands on the torque rod system are magnified. The 2801070-1063 bracket in these scenarios must handle not just higher torque loads but also increased shock loads from rough terrain. Its robust design is tested for these conditions. For fleet operators in these industries, more frequent inspection of this component is warranted. Upgrading to the genuine replacement bracket at the first sign of wear is a cost-effective strategy to prevent downtime caused by a failed suspension anchor that could disable a valuable asset.

Identifying and Ordering the Correct Bracket

To ensure a correct fit, always use the OEM part number 2801070-1063 when ordering. It is also helpful to know your truck’s model, axle type, and whether the bracket mounts to the frame or the axle housing itself. Providing the Vehicle Identification Number (VIN) is the most reliable method for parts lookup, as it can specify the exact suspension configuration. This diligence prevents receiving a bracket that may look similar but has a slightly different offset, bolt pattern, or bushing bore size, which would render it incompatible and unsafe to use.

Conclusion: A Foundational Component for Control

The FAW 2801070-1063 Torque Bar Bracket is a foundational yet often overlooked component that is vital for axle control, suspension stability, and overall driving safety. Its role in managing driveline torque and maintaining alignment makes it indispensable for tire longevity and predictable handling. Constructed for strength and durability, it is designed to last in the demanding environment of commercial trucking. Proactive inspection and timely replacement with the genuine FAW part protect more expensive downstream components and ensure the vehicle remains safe, efficient, and reliable. For any FAW truck maintenance schedule, the integrity of this bracket deserves specific attention.
