DONGFENG Center Support Assembly HTP-DG2202D082: Critical Driveline Stability Component

Product Overview: Function of the HTP-DG2202D082

The DONGFENG Center Support Assembly, part number HTP-DG2202D082, is a crucial bearing and bracket unit mounted at the midpoint of a long, multi-section driveshaft. Its primary function is to provide a stable rotating pivot point for the driveshaft, preventing excessive whip, sag, and harmonic vibration under torque. This assembly absorbs radial and axial loads, ensuring that the driveshaft rotates smoothly and in precise alignment between the transmission and the rear axle. The HTP-DG2202D082 is specifically engineered for DONGFENG truck models that require a supported driveshaft due to their extended wheelbase.

A failure in this component can lead to severe driveline vibration, accelerated wear on universal joints, and even driveshaft separation. The genuine HTP-DG2202D082 restores the critical support needed for safe and efficient power delivery. For fleet managers, this part is essential for maintaining vehicle drivability and preventing catastrophic drivetrain failures that result in expensive downtime.

Design & Construction Details

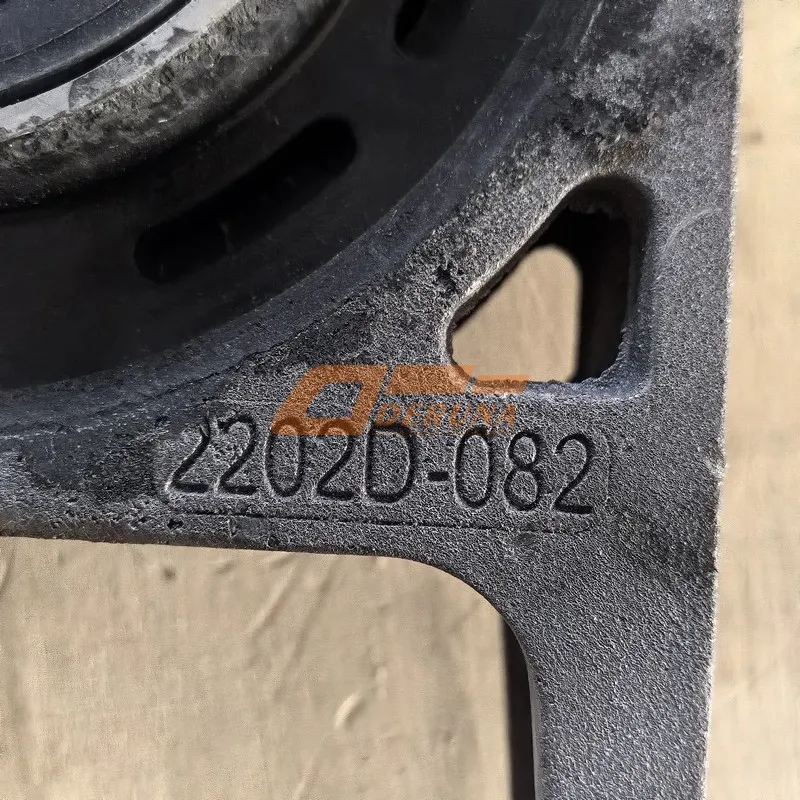

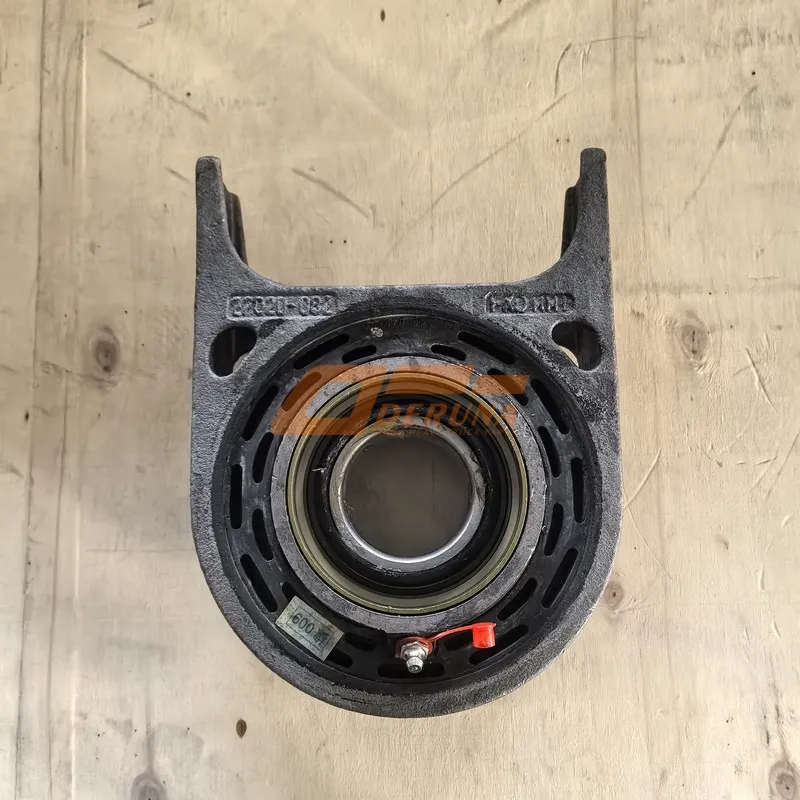

The HTP-DG2202D082 is a robust assembly comprising a high-capacity sealed ball bearing, a durable rubber insulator or mount, and a sturdy steel bracket. The bearing is typically a precision-ground, pre-lubricated unit with sealed ends to retain grease and exclude contaminants. The rubber mount is vulcanized to the outer bearing race and is designed to absorb vibrations and minor driveline misalignment while providing a secure attachment to the vehicle’s crossmember.

The bracket is fabricated from high-strength steel and is often bolted or welded to the truck’s frame. The entire HTP-DG2202D082 assembly is built to withstand the constant torque reversals, vibration, and environmental exposure typical in heavy truck operations. The design ensures proper driveshaft height and angle, which is critical for minimizing universal joint operating angles and wear.

Technical Specifications Table for HTP-DG2202D082

Complete technical specifications for the DONGFENG Center Support Assembly (HTP-DG2202D082) are detailed below.

The specifications for the HTP-DG2202D082 confirm its role as a heavy-duty, precision support component. The sealed bearing and robust mounting design are engineered for longevity and reliable performance in the demanding environment of the truck’s undercarriage.

Key Benefits & Operational Advantages

Eliminates Driveline Vibration: The primary benefit of the HTP-DG2202D082 is its ability to dampen and control driveshaft oscillations. By providing stable intermediate support, it prevents the resonant vibration that can occur at certain speeds, leading to a smoother ride and reduced cabin noise.

Extends U-Joint and Driveshaft Life: By maintaining proper driveshaft alignment and preventing sag, the center support bearing reduces stress and angular operating loads on the universal joints. This significantly extends the service life of these more expensive driveline components.

Ensures Reliable Power Transfer: A stable driveshaft is essential for efficient torque delivery from the transmission to the differential. The HTP-DG2202D082 ensures that power loss due to driveline bind or imbalance is minimized, contributing to consistent vehicle performance.

Prevents Catastrophic Failure: A failed center support bearing can lead to the driveshaft dropping or violently whipping, causing severe damage to the undercarriage and posing a safety hazard. The durable construction of the HTP-DG2202D082 provides a critical safety margin.

Compatibility & Vehicle Applications

The HTP-DG2202D082 Center Support Assembly is designed for specific DONGFENG truck models with longer wheelbases that necessitate a two or three-piece driveshaft. These are commonly found in models used for heavy hauling, dump truck operations, and certain tractor configurations. It is not a universal part; its bearing bore size, bracket bolt pattern, and overall dimensions are precisely engineered for a direct fit on designated vehicles.

Before ordering, it is imperative to verify compatibility using the vehicle’s VIN or a confirmed parts interchange. Using the correct assembly, like the HTP-DG2202D082, ensures proper driveline geometry, preventing premature wear and vibration issues.

Installation & Maintenance Guidelines

Replacing the HTP-DG2202D082 requires proper support of the vehicle and often partial removal of the driveshaft. The procedure involves safely supporting the truck, marking the driveshaft yokes for reassembly alignment, unbolting the driveshaft sections, and removing the old center support assembly from the frame crossmember.

The new HTP-DG2202D082 is then mounted to the frame, ensuring it is square and torqued to specification. The driveshaft is reassembled with careful attention to the alignment marks. It is crucial not to preload the bearing by forcing the driveshaft into position. Regular maintenance involves listening for growling or whirring noises from the undercarriage, which indicate bearing wear, and inspecting the rubber mount for cracks or excessive softness during routine service.

Durability Testing & Quality Assurance

Every HTP-DG2202D082 Center Support Assembly undergoes rigorous testing to meet DONGFENG’s standards. The sealed bearing is subjected to extended life cycle tests under load and speed conditions that exceed normal operating parameters. The rubber isolator is tested for its vibration damping properties, adhesion strength to the metal components, and resistance to ozone and oil degradation.

The entire assembly is also checked for dimensional accuracy to guarantee a perfect fit. This comprehensive validation process ensures that the HTP-DG2202D082 you receive is built to provide reliable, long-lasting support in the most demanding driving conditions.

Symptoms of a Failing Center Support

Recognizing the signs of a worn HTP-DG2202D082 (or its equivalent) can prevent further damage. The most common symptom is a pronounced humming, growling, or whirring noise that changes with vehicle speed and may seem to come from directly under the cab or seat. A visible wobble in the driveshaft at the center point is another clear indicator.

Increased vibration felt in the floorboard, especially at highway speeds, is also a key sign. If the rubber isolator is severely deteriorated, the entire driveshaft may be misaligned. Upon noticing any of these symptoms, immediate inspection and replacement with a genuine HTP-DG2202D082 is recommended.

Genuine DONGFENG Part vs. Aftermarket

Choosing the genuine HTP-DG2202D082 over an aftermarket center support assembly offers critical advantages. OEM parts are guaranteed to have the exact bearing specifications, rubber compound hardness, and bracket dimensions required for your specific truck model. This ensures perfect alignment, optimal vibration damping, and long service life.

Aftermarket units often use generic bearings of lesser quality or incorrect rubber isolators that are either too soft (leading to excess movement) or too hard (transmitting too much vibration). The bracket may also have slight dimensional variances, causing installation difficulties and improper driveline angles. For a component critical to driveline safety and smoothness, the genuine HTP-DG2202D082 is the reliable choice.

Conclusion: The Foundation of a Smooth Driveline

The DONGFENG Center Support Assembly, part number HTP-DG2202D082, is an indispensable component for the stability and longevity of your truck’s driveline. Its precision engineering, robust construction, and perfect OEM fit make it the definitive choice for eliminating vibration, protecting universal joints, and ensuring reliable power delivery.

Investing in the genuine HTP-DG2202D082 for maintenance or repair is an investment in vehicle safety, driver comfort, and reduced long-term operating costs. Trust in DONGFENG’s engineering to provide the critical support your heavy-duty driveline requires.
