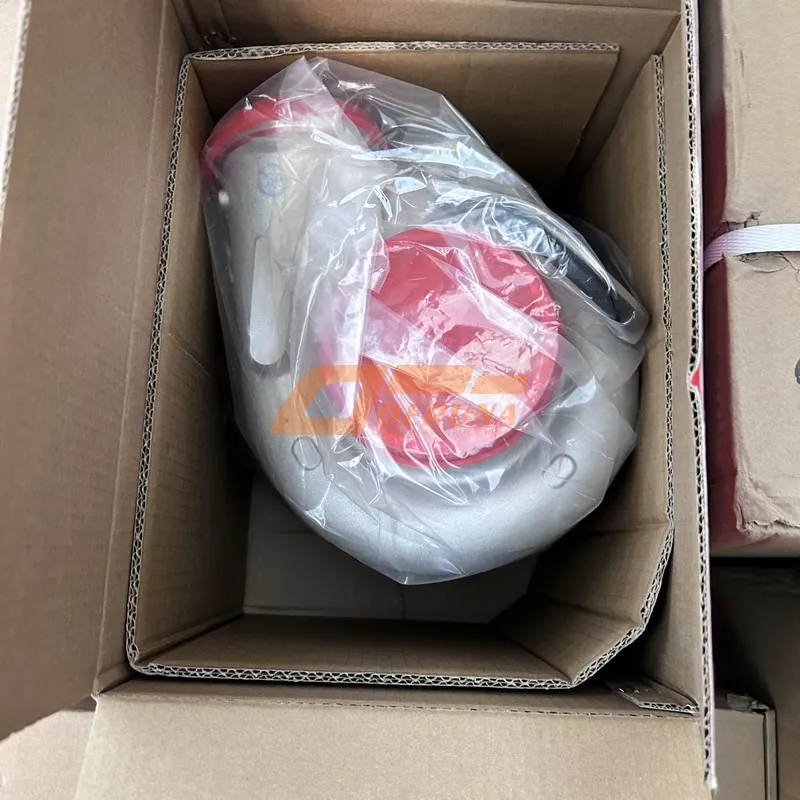

DONGFENG Turbocharger C5555942: Boost Engine Power & Efficiency for Heavy-Duty Performance

Core Function & Performance Role of the C5555942

The DONGFENG Turbocharger, part number C5555942, is a centrifugal air pump driven by the engine’s exhaust gases. Its primary function is to force more air into the engine’s combustion chambers than would be possible with natural aspiration alone. This process, known as turbocharging, allows the engine to burn more fuel efficiently, generating significantly more power and torque from the same displacement. The C5555942 accomplishes this through a turbine wheel spun by hot exhaust gases, which is connected via a common shaft to a compressor wheel that draws in, compresses, and delivers ambient air to the intake manifold.

This technology is essential for modern diesel engines, providing the “boost” needed for strong low-end torque and high-altitude performance. A properly functioning C5555942 turbocharger ensures optimal air-fuel ratios across the engine’s operating range, leading to improved throttle response, reduced exhaust emissions through more complete combustion, and better overall fuel efficiency by extracting more energy from each unit of fuel. It transforms exhaust waste energy into usable power, making it a critical component for performance and economy.

Advanced Engineering & Robust Construction

The C5555942 is engineered to withstand extreme thermal and mechanical stresses. The turbine housing is cast from high-nickel, heat-resistant alloy to endure continuous exposure to exhaust gases that can exceed 1000°C. The compressor housing is typically made from cast aluminum for optimal heat dissipation and weight savings. At the heart of the C5555942 is the center housing rotating assembly (CHRA), which contains the precision-machined turbine and compressor wheels mounted on a common shaft.

This shaft rotates on high-performance, oil-cooled journal bearings or ball bearings designed for ultra-high rotational speeds (often exceeding 150,000 RPM). Critical sealing systems prevent oil leakage into the intake or exhaust tracts. The entire assembly of the C5555942 is balanced to microscopic tolerances to ensure smooth, vibration-free operation and long service life under the demanding conditions of commercial trucking, where reliability is non-negotiable.

Technical Specifications Table for Turbocharger C5555942

The table below details the key technical specifications for the genuine DONGFENG Turbocharger, part number C5555942.

These specifications for the C5555942 highlight its role as a high-performance air induction component. The materials and bearing technology are selected to provide reliable operation under extreme temperatures and rotational speeds, which are characteristic of modern diesel turbocharging.

Key Features & Operational Advantages

Significant Power & Torque Increase: The primary benefit of the C5555942 turbocharger is a substantial gain in engine output. By forcing denser air into the cylinders, it allows for more complete fuel combustion, resulting in up to 40% more power and a much broader, flatter torque curve. This translates to improved hill-climbing ability, easier overtaking, and better overall drivability, especially when carrying heavy loads.

Enhanced Fuel Efficiency: By extracting more mechanical work from the same amount of fuel through forced induction and improved combustion efficiency, the C5555942 helps reduce specific fuel consumption. This “downsizing” effect allows a smaller, turbocharged engine to perform the work of a larger naturally aspirated one, leading to meaningful fuel savings over hundreds of thousands of kilometers.

Reduced Emissions: More efficient combustion facilitated by the C5555942 leads to lower levels of harmful exhaust pollutants, particularly particulate matter (soot). Modern turbochargers like this one are integral to meeting stringent Euro and EPA emission standards by ensuring optimal air-fuel ratios and supporting exhaust gas recirculation (EGR) and aftertreatment systems.

Improved Altitude Compensation: Naturally aspirated engines lose power at high altitudes due to thinner air. The C5555942 automatically compensates for this by increasing boost pressure to maintain the correct air mass entering the cylinders, ensuring consistent power output regardless of elevation, which is crucial for trucks operating in mountainous regions.

Compatibility & Engine Integration

The C5555942 Turbocharger is engineered for specific DONGFENG diesel engine platforms. Compatibility is determined by the engine’s displacement, airflow requirements, exhaust manifold flange design, oil feed and return port locations, and the control system (wastegate actuator or variable geometry mechanism). It is a direct replacement for the original turbocharger in designated models.

Using an incorrect turbocharger can lead to severe engine damage, including over-boosting (causing piston or head gasket failure) or under-boosting (resulting in poor performance and excessive smoke). The C5555942 is calibrated to provide the exact boost profile required by the engine’s electronic control unit (ECU). Always verify your engine’s model number, serial number, and existing turbo part number against the official application guide for C5555942 to ensure perfect compatibility and performance.

Professional Installation & Break-In Procedure

Installing a new turbocharger, part number C5555942, requires precision and attention to detail. The procedure involves safely removing the old unit, which includes disconnecting the intake and exhaust pipes, oil feed and return lines, coolant lines (if water-cooled), and the actuator control linkage or electrical connector. Before installing the new C5555942, it is critical to prime the turbo’s oil system by filling the oil inlet port with clean engine oil and manually cranking the engine (without starting) to establish oil pressure and lubrication to the bearings.

The new C5555942 is then mounted, ensuring all gaskets and seals are new and correctly positioned. All connections are reattached and torqued to specification. After installation, a proper break-in procedure is essential: start the engine and allow it to idle for several minutes to circulate oil, then avoid high engine loads or RPM for the first 50-100 kilometers. This allows the bearings to seat properly and ensures the long-term reliability of your new C5555942 turbocharger.

Rigorous Quality Control & Dynamic Balancing

Each C5555942 turbocharger undergoes extensive quality validation. The rotating assembly (CHRA) is dynamically balanced on a computer-controlled machine to eliminate vibration at operational speeds, a process critical for bearing life and smooth operation. The housing assemblies are pressure-tested for leaks. The actuator or variable geometry mechanism is calibrated to ensure it meets precise boost control specifications.

Materials are verified for composition and heat tolerance. A sample from each production batch may undergo a hot test on a gas stand to verify performance maps for flow and efficiency. This comprehensive testing ensures every genuine C5555942 delivered meets DONGFENG’s standards for performance, reliability, and durability in the harsh environment of a commercial vehicle engine bay.

Symptoms of a Failing C5555942 Turbocharger

Recognizing turbocharger failure symptoms early can prevent collateral damage. Common signs include: excessive blue or gray smoke from the exhaust (indicating oil burning due to seal failure), a pronounced loss of power and slow acceleration (lack of boost), a loud whining, screeching, or grinding noise from the turbo area (bearing or wheel damage), and increased oil consumption with no visible leaks.

Other indicators are the illumination of the check engine light with turbo-related fault codes, and noticeable shaft play (side-to-side or in-and-out movement) when the turbo is manually inspected. If any of these symptoms are present, immediate diagnosis is required. Continuing to operate with a failing C5555942 can lead to catastrophic engine failure if debris from the turbo enters the cylinders.

Genuine DONGFENG C5555942 vs. Rebuilt/Aftermarket Units

Choosing the genuine new C5555942 turbocharger offers unmatched reliability and performance assurance. The OEM unit is manufactured entirely from new components, including new housings, wheels, bearings, and seals, all built to original specifications and balanced as a complete assembly. It comes with a comprehensive warranty and is guaranteed to match your engine’s exact performance and durability requirements.

Rebuilt or aftermarket turbochargers often reuse worn housings and may incorporate inferior bearing kits or unbalanced rotating assemblies. Their performance and longevity are unpredictable. For a component that operates at extreme speeds and temperatures, the engineered precision and quality control of the genuine C5555942 make it the only recommended choice for professional fleet maintenance and owner-operators seeking long-term value.

Maintenance Best Practices for Turbo Longevity

The lifespan of your C5555942 turbocharger is heavily dependent on proper engine maintenance. The most critical factor is oil quality and change intervals. Always use the specified grade of full-synthetic or high-performance diesel engine oil and change it along with the filter at recommended intervals. Contaminated or degraded oil is the leading cause of turbo bearing failure.

Allow the engine to idle for 1-2 minutes after heavy load operation before shutting down. This allows the turbo to slow down while oil is still circulating, preventing oil from “coking” in the hot center housing. Regularly inspect air filters and intake piping for leaks, as ingested dirt is extremely abrasive to the compressor wheel. Addressing these simple practices will maximize the service life of your C5555942 turbocharger.

Conclusion: Invest in Reliable Forced Induction Power

The DONGFENG Turbocharger, part number C5555942, is a transformative component that defines the performance, efficiency, and capability of your commercial truck’s engine. Its reliable operation is key to achieving the power needed for heavy loads, the economy required for profitability, and the low emissions mandated by modern regulations.

Investing in the genuine C5555942 for replacement or repair guarantees perfect compatibility, factory-calibrated performance, and the durability needed for the long haul. For any compatible DONGFENG turbo diesel engine, specifying this exact OEM turbocharger and following professional installation and maintenance procedures is the definitive step towards restoring peak engine performance and securing reliable operation for years to come.
