DONGFENG Heater Core 8101EE0-020: Restore Your Truck’s Reliable Heat Source

Core Function & Critical Role of the 8101EE0-020

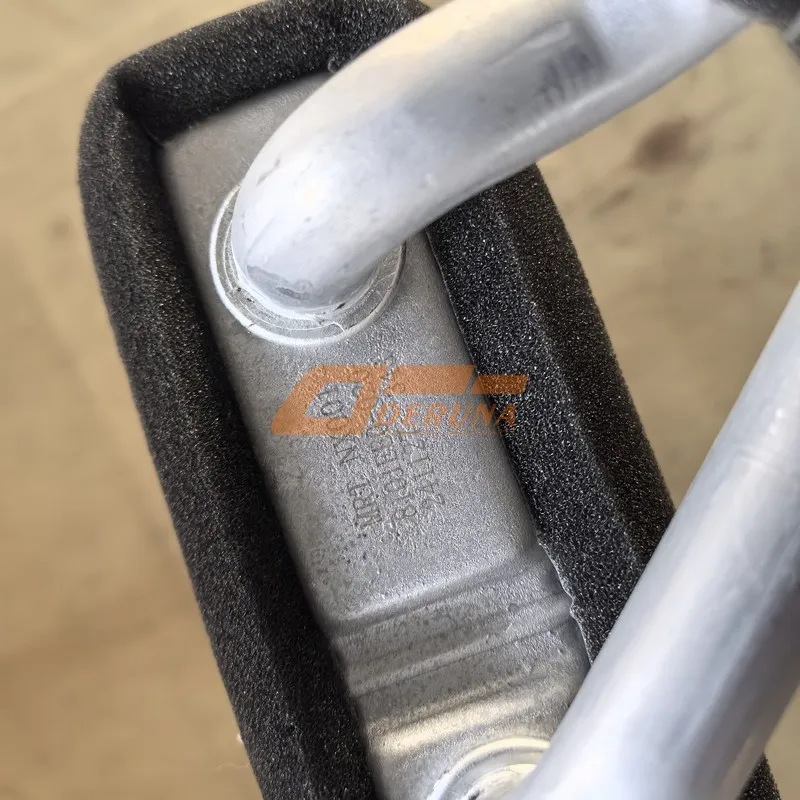

The DONGFENG Heater Core with part number 8101EE0-020 is a vital heat exchanger located within your truck’s dashboard HVAC assembly. Its primary function is to provide warmth to the cabin by utilizing hot engine coolant. As coolant circulates from the engine through the 8101EE0-020 core’s small tubes, the heater core’s fins dissipate this heat. The vehicle’s blower motor then forces air across these hot fins, transferring the heat into the air stream distributed through the vents.

This process is essential for two primary reasons: driver comfort and safety. A fully functional 8101EE0-020 heater core ensures the cab reaches and maintains a comfortable temperature in cold weather. More critically, it provides the hot air necessary for the defroster to effectively clear fog and ice from the windshield and side windows, maintaining clear visibility—a non-negotiable aspect of safe winter driving.

Superior Construction & Design of the 8101EE0-020

The 8101EE0-020 is engineered for maximum durability and thermal efficiency. It is typically constructed from high-grade aluminum or brass/copper alloys, materials chosen for their excellent heat transfer properties and resistance to corrosion from coolant. The core consists of a network of flat tubes and corrugated fins, a design that maximizes the surface area for heat exchange while maintaining structural integrity.

The tanks and inlet/outlet ports of the 8101EE0-020 are designed to match the exact flow requirements and connection points of your DONGFENG truck’s cooling system. Robust soldering or brazing at all joints prevents leaks, a common failure point in inferior parts. This precise OEM engineering ensures the 8101EE0-020 integrates seamlessly, providing reliable heat output without compromising the engine’s cooling system.

Technical Specifications Table for 8101EE0-020

The table below outlines the complete technical specifications for the genuine DONGFENG Heater Core, part number 8101EE0-020.

These detailed specifications for the 8101EE0-020 highlight its role as a critical thermal component. The material and pressure ratings are essential for ensuring safe, long-term operation within your truck’s closed cooling and heating system.

Key Features & Operational Advantages

Optimal Heat Transfer Efficiency: The 8101EE0-020 is engineered with a high-density fin and tube matrix. This design maximizes the contact area between the hot coolant and the metal, and subsequently between the metal and the passing air. The result is rapid and efficient heat transfer, allowing your truck’s heater to produce warm air quickly after engine start-up.

Corrosion Resistance for Longevity: Constructed from quality materials and often treated with protective coatings, this heater core is built to resist corrosion from ethylene glycol-based coolants and electrolysis. This resistance is crucial for preventing pinhole leaks, which are the most common cause of heater core failure, thereby extending the service life of the 8101EE0-020 significantly.

Robust Leak Prevention: Manufacturing techniques such as robust brazing at all tube-to-header joints ensure the 8101EE0-020 can withstand the thermal expansion, contraction, and vibration experienced in a truck’s HVAC system. This durability prevents internal and external leaks that could lead to coolant loss, heater malfunction, or windshield fogging from coolant vapor.

Precision Fit and Easy Integration: As a genuine OEM part, the 8101EE0-020 is a direct replacement. Its dimensions, mounting points, and hose connections are identical to the original, guaranteeing a perfect fit within the tight confines of the heater box assembly. This eliminates modification needs and reduces installation time and complexity.

Vehicle Compatibility & Model Fitment

The 8101EE0-020 Heater Core is designed for specific DONGFENG medium and heavy-duty truck models. Compatibility is determined by the vehicle’s HVAC system design, cooling system configuration, and the physical dimensions of the heater box under the dashboard. Using the correct OEM number is paramount.

Installing a heater core that does not match precisely, such as a generic “universal” part, can lead to poor heat output, coolant leaks, or physical interference with other components. Always verify your truck’s model, year, and VIN against the application guide for part number 8101EE0-020 to ensure correct fitment and optimal performance of your heating system.

Installation Overview & Professional Guidance

Replacing the heater core, part number 8101EE0-020, is a significant repair that typically requires dashboard disassembly to access the heater box housing. The process involves safely draining and capturing engine coolant, disconnecting the heater hoses from the firewall, and then carefully removing numerous interior trim pieces, the dashboard, and finally the HVAC housing itself.

Once accessed, the old 8101EE0-020 core is removed from the housing. It is critical to thoroughly clean the housing and inspect the blend door and seals before installing the new core. The new genuine 8101EE0-020 heater core is then fitted, the housing reassembled, and everything reinstalled in reverse order. The cooling system must be properly refilled and bled of air to prevent overheating and ensure the new core functions correctly. Due to the complexity, this job is often best left to experienced technicians.

Quality Testing & Durability Assurance

Every 8101EE0-020 heater core undergoes rigorous quality control checks to meet DONGFENG’s strict standards. This includes pressure testing where the core is subjected to pressures significantly higher than normal operating conditions to verify there are no leaks in the tubes, fins, or solder joints.

Flow testing ensures the internal passages provide the correct resistance to coolant flow, matching the engine’s cooling system requirements. Additionally, the 8101EE0-020 may undergo thermal cycle testing to simulate years of expansion and contraction, proving its long-term durability. This comprehensive validation ensures the component you receive is reliable and built to last.

Symptoms of a Failing 8101EE0-020 Heater Core

Recognizing the signs of a failing heater core can prevent further damage and restore cabin comfort. Key symptoms include a persistent lack of heat from the vents even when the engine is at normal operating temperature, a sweet, syrupy smell (from coolant) inside the cabin, and visible fogging or filming on the interior of the windshield that recurs quickly after cleaning.

More obvious signs are coolant leaks on the passenger side floor mat (often damp and with a colorful residue) or a noticeable drop in the engine coolant level without an obvious external leak. If you experience any of these issues, it is likely time to inspect and replace the 8101EE0-020 heater core to restore system integrity and cabin safety.

Genuine DONGFENG 8101EE0-020 vs. Aftermarket Cores

Choosing the genuine 8101EE0-020 over an aftermarket heater core provides guaranteed compatibility and performance. OEM parts are built to the exact specifications of your truck, ensuring perfect fit, optimal heat exchange, and correct coolant flow dynamics. The materials and construction methods used in the genuine 8101EE0-020 are validated for long-term durability.

Aftermarket cores may use thinner materials, less efficient fin designs, or inferior soldering, leading to reduced heat output, premature clogging, or early failure from leaks. Given the labor-intensive nature of heater core replacement, investing in the reliable, genuine 8101EE0-020 is the most cost-effective choice in the long run, avoiding repeat repairs and downtime.

Maintenance Tips for Longevity

Proper cooling system maintenance is the best way to extend the life of your new 8101EE0-020 heater core. Always use the correct type and mix of coolant recommended by DONGFENG. Regularly flush and replace the coolant at specified intervals to prevent the buildup of corrosive scale and debris that can clog the core’s small tubes.

Address any cooling system leaks or overheating issues promptly, as these conditions can put extra stress on the heater core. Ensuring the cooling system is free of air pockets (properly bled) after any service is also crucial, as air can create hot spots and reduce the core’s efficiency and lifespan.

Conclusion: Invest in Warmth, Safety, and Reliability

The DONGFENG Heater Core, part number 8101EE0-020, is a fundamental component for ensuring a safe, comfortable, and operational truck during cold months. Its reliable performance is directly tied to driver well-being and visibility, making it a critical safety-related part.

Investing in the genuine 8101EE0-020 for replacement guarantees perfect integration, engineered durability, and the restoration of factory-level heating performance. For any compatible DONGFENG truck experiencing heater issues, specifying this exact OEM part is the definitive step towards reliable warmth and clear windows for the long haul.
