FAW Front Door Electric Components Module

FAW Front Door Electric Components Module
FAW Front Door Electric Components Module
Download Catalog
Get Quotation

What is the FAW Front Door Electric Components Module

  • The FAW Front Door Electric Components Module seamlessly integrates the essential electrical systems, power mechanisms, and interior trim foundations for the front doors of FAW vehicles. This sophisticated module delivers effortless operation of windows and locks while ensuring a refined interior finish and integrated cabin ventilation.
  • Interior Trim Integration & Ventilation
  • Left/Right Front Door Trimming Board Welding Assembly: Forms the primary structural base for attaching interior trim panels and components.
  • Left/Right Front Door Trimming Board Assembly Assembly: Represents the complete, finished interior door trim panel assembly, housing controls and providing the cabin-facing aesthetic surface.
  • Front Door Trim Panel Buckle: Enables secure, tool-less attachment of the trim panel to the door structure.
  • Left/Right Front Door Air intet Airpipe & Air intet Grille: Facilitate controlled airflow from the door cavity into the passenger compartment, contributing to cabin ventilation and pressure equalization.
  • Left/Right Front Door Air intet Grille Seal Ring: Ensures an airtight seal between the air intake grille and the trim panel, preventing leaks and rattles.
  • Power Window System (Left & Right)
  • Left Front Door Glass Lifter Module Assembly Assembly & Right Front Door Glass Lifter Module Assembly Assembly: The complete, pre-assembled units combining motor, regulator mechanism, and mounting hardware for smooth, reliable window operation.
  • Left Front Door Motor Assembly & Right Front Door Motor Assembly: The electric drive units providing the power to raise and lower the window glass.
  • Lifter Installation Assy Of Front Left Door & Lifter Installation Assy Of Front Right Door / Rh Front Door Electromotion Glass Lifter Assy: Alternative designations for the complete power window regulator assemblies, including the scissor mechanism or cable system.
  • Left Front Door Glass Lifter Assembly & Left Front Door Glass Lifter Mounting Panel / Right Front Door Glass Lifter Mounting Panel: Key structural elements that securely mount the power window mechanism within the door cavity.
  • Glass Lifter Mounting Panel Plug Cover: Provides a finished cover for mounting holes on the inner door structure.
  • Power Locking System
  • Left Front Door Electric Lock Body Assembly & Right Front Door Electric Lock Body Assembly: The core electromechanical latch units enabling remote or interior switch-controlled door locking/unlocking, integrating seamlessly with central locking systems.
  • Sealing & Electrical Management
  • Front Door Window Interior Seal Strip: Ensures a tight seal and smooth interface between the inner door trim and the window glass, reducing wind noise and preventing water ingress.
  • Door Lock Harness, Wiring Shield: Protects and routes the electrical wiring harness for the door locks, window motors, switches, and speakers within the door structure.
  • Cable Ties: Essential for organizing and securing wiring harnesses and cables, preventing rattles and damage.
  • Tape Marking: Used for precise component positioning during assembly or service identification.
  • Comprehensive Fastening System
  • Robust and specialized hardware ensures secure, long-lasting assembly:
  • Cross Recessed Pan Head Tapping Screw: Versatile fastener used extensively for securing trim, brackets, and components.
  • Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly: Pre-assembled screw and washer combinations for efficient installation and reliable load distribution.
  • Hexagon Flange Bolt Thick Rod (Standard Type): High-strength bolt (listed 5 times) used for critical structural mounts like motor assemblies and lifter mounting panels, providing superior clamp load and vibration resistance.
  • Hexagon Flange Bolt: Standard flange bolt used for various mounting points.
  • Hexagon Lobular Socket Raised Pan Head Screw: Provides a tamper-resistant or specific-profile fastening solution.
  • Plastic Nut: Offers lightweight, corrosion-resistant threaded anchors for securing trim or electrical components.
  • Washer / Plain Washer: Ensures load distribution and protects surfaces.
  • This meticulously engineered FAW Front Door Electric Components Module exemplifies FAW’s commitment to convenience, comfort, and integrated technology. It combines powerful and reliable electric operation (Motor Assembly, Electric Lock Body Assembly, Glass Lifter Module Assembly) with a foundation for premium interior aesthetics (Trimming Board Assembly Assembly) and thoughtful features like integrated ventilation (Air intet Grille, Airpipe). The robust fastening system (Hexagon Flange Bolt Thick Rod, Cross Recessed Screws) and precise electrical management (Wiring Shield, Cable Ties) ensure durability, quiet operation, and seamless functionality within the vehicle’s door system.

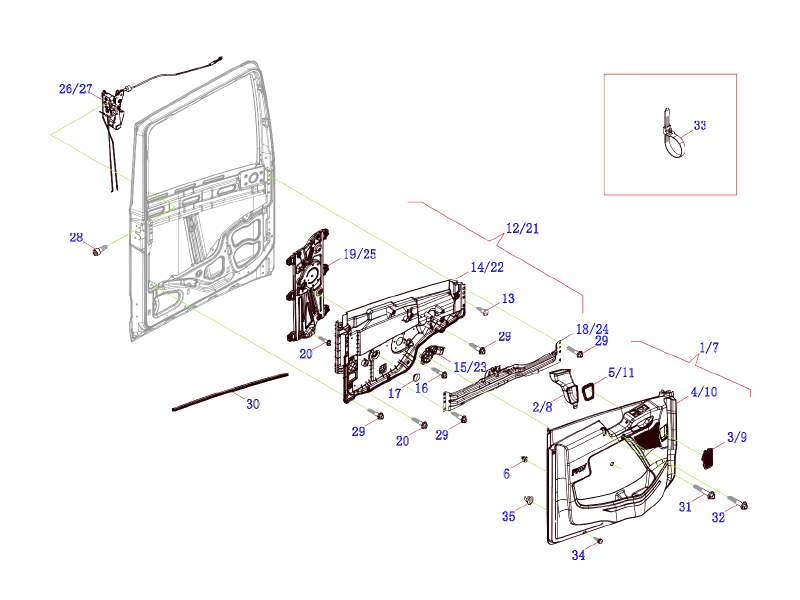

Product Parameters of FAW Front Door Electric Components Module

Order Part NO. Part Name And Standards Oty
Front  Door Electric Components Module 1
1 6102015AB45-C00 Left Front Door Trimming Board Assembly  Assembly 1
2 6102053-B45-C00 Left Front Door Air intet  Airpipe 1
3 6102063-B45-C00 Left Front Door Air intet  Grille 1
4 6102025AB45-C00 Left Front Door Trimming Board Welding  Assembly 1
5 6102067-B45-C00 Left Front Door Air intet  Grille Seal Ring 1
6 6102081-B45-C00 Front Door Trim Panel Buckle 14
7 6102020AB45-C00 Right  Front Door Trimming  Board Assembly Assembly 1
8 6102054-B45-C00 Right Front Door Air intet  Airpipe 1
9 6102064-B45-C00 Right Front Door Air intet  Grille 1
10 6102030AB45-C00 Right Front Door Trimming Board Welding  Assembly 1
11 6102068-B45-C00 Right Front Door Air intet Grille Seal  Ring 1
12 6104015AB45-C00 Left Front Door Glass Lifter Module Assembly Assembly 1
13 CQ2714813 Cross Recessed Pan Head Tapping  Screw 4
14 6104051-B45-C00 Left Front Door Glass Lifter Mounting  Panel 1
15 6104035AB45-C00 Left Front Door Motor Assembly 1
16 Q1840630 Hexagon Flange Bolt   Thick Rod (Standard Type) 8
17 6104057-B45-C00 Glass Lifter Mounting Panel Plug  Cover 4
18 6104105-B45-C00 Lifter Installation Assy Of Front Left  Door 1
19 6104025AB45-C00 Left Front Door Glass Lifter  Assembly 1
20 Q1840612 Hexagon Flange Bolt Thick Rod (Standard  Type) 10
21 6104020AB45-C00 Right Front Door Glass Lifter Module Assembly Assembly 1
22 6104052-B45-C00 Right Front Door Glass Lifter Mounting  Panel 1
23 6104040AB45-C00 Right Front Door Motor Assembly 1
24 6104110-B45-C00 Lifter Installation Assy Of Front Right  Door 1
25 6104030AB45-C00 Rh Front Door  Electromotion Glass Lifter Assy 1
26 6105025AB45-C00 Left Front Door Electric Lock Body  Assembly 1
27 6105030AB45-C00 Right Front Door Electric Lock Body  Assembly 1
28 Q215B0610T1F62(HB) Hexagon Lobular Socket Raised Pan Head  Screw 8
29 Q1840820 Hexagon Flange Bolt Thick Rod (Standard  Type) 22
30 6102057-B45-C00 Front Door Window Interior Seal  Strip 2
31 Q1840670 Hexagon Flange Bolt   Thick Rod (Standard Type) 2
32 Q1840655 Hexagon Flange Bolt 2
33 3506111-DV111 Cable Ties 2
34 CQ2204816F6 Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly 6
35 5201060-E18 Plastic Nut 6
