What is the FAW Front Door Basic Components Logic Assembly

  • The FAW Front Door Basic Components Logic Assembly represents the meticulously coordinated core structure and functional systems for FAW vehicle front doors. This essential assembly integrates structural elements, window mechanisms, sealing systems, safety components, and trim foundations into a cohesive, reliable unit designed for durability, occupant protection, and smooth operation.
  • Window Guidance & Sealing System
  • Left/Right Front Door Glass Assembly: The primary glazing units.
  • Left/Right Front Door Window Exterior Chute & Interior Chute: Define the precise vertical path for window glass movement, ensuring smooth operation and preventing misalignment.
  • Guide Rail Assembly Before Left/Right Front Door: Provides the critical forward track for stable window travel.
  • Front Door Under the Former Chute & Rear Chute: Manage water drainage from the window area within the door cavity.
  • Front Door Upper Seal, Seal, Hole Seal & Under Seal: Comprehensive sealing system preventing water ingress, dust intrusion, and wind noise at the door’s interface with the body and window glass. Includes specific seals for holes and the lower door edge.
  • Lh/Rh Front Window Frame on Guard: Protective elements shielding the window frame mechanism.
  • Structural Integrity & Mechanism
  • Front Door Collision Chock: A critical reinforcement component designed to absorb and manage impact energy during a side collision, enhancing passenger safety.
  • Front Door Arrester Assembly & Front Door Catch: Work together to control the door’s opening arc, holding it securely at intermediate positions and preventing over-extension or slamming.
  • Front Door Lock Pin: The striker component mounted on the vehicle body that interfaces with the door latch.
  • Left/Right Front Door Cable Assy & Cable the Plaque: The regulator cables and associated mounting plates that drive the window glass up and down within the chutes and guide rails.
  • Left/Right Front Door Cable Inshall the Seat: Specific mounting points or brackets securing the window regulator cable assembly within the door structure.
  • Reinforcement Tube Fixing Bracket: Provides structural support within the door assembly.
  • Hardware & Fastening System
  • Robust and specialized fasteners ensure secure assembly and long-term reliability:
  • Cross Recessed Button Head Screw: Used where a lower-profile head is needed.
  • Cross Recessed Pan Head Tapping Screw & Subassembly (with Plain Washer): Versatile fasteners extensively used for metal-to-substrate connections, often paired with washers.
  • Hexagon Flange Bolt Thick Rod (Standard Type): High-strength bolts for critical structural joints.
  • Hexagon Flange Bolt & Hexagon Flange Lock Nut: Provide secure, vibration-resistant fastening with integrated load distribution and locking.
  • Hexagon Lobular Socket Raised Pan Head Screw & Hexagon Lobular Socket Countersunk Head Screw: Tamper-resistant or specific-profile fasteners for specialized applications.
  • Hexagon Socket Cap Head Screw: Used for high-torque applications.
  • Washer, Large Washer, Lock Washer: Essential for load distribution, surface protection, and vibration prevention.
  • Plastic Nut: Lightweight, corrosion-resistant fastening points for trim or less critical components.
  • Sealing & Interior Trim Foundation
  • Left/Right Front Door Seal Film: A large, adhered barrier membrane crucial for waterproofing the inner door panel, preventing moisture from reaching the interior trim and cabin.
  • Seal Film Rubber Strip: Supplementary sealing elements used with the main seal film or at specific junctions.
  • Front Door Interior Trimming Button Seat: Mounting points integrated into the door structure for attaching interior trim panels or components.
  • Trim Integration & Finishing Elements
  • Left/Right Front Door under decorative Assembly: Forms the lower interior aesthetic trim panel.
  • Left/Right Front Door rear box Ornamental Cover & Interior Trimming Plug Cover/Rear Plug Cover: Decorative covers concealing access holes, mounting points, or cavities (like the loudspeaker area) on the interior trim panel.
  • Right Front Door Trimming Board Plug Cover: Specific cover for the trim board.
  • Door Lock Harness, Wiring Shield: Protects and routes electrical wiring for door locks and window controls within the door cavity.
  • Tape Marking: Used for precise component positioning during assembly or for service identification.
  • This logically structured FAW Front Door Basic Components Logic Assembly exemplifies FAW’s commitment to safety, quality, and precision engineering. Every component, from the robust Hexagon Flange Bolt Thick Rod securing the Front Door Collision Chock to the precise Window Chutes guiding the Glass Assembly and the vital Seal Film, is designed for optimal interaction, ensuring long-lasting structural integrity, weather protection, quiet operation (NVH reduction), smooth window function, and a secure foundation for the vehicle’s interior trim and electrical systems.

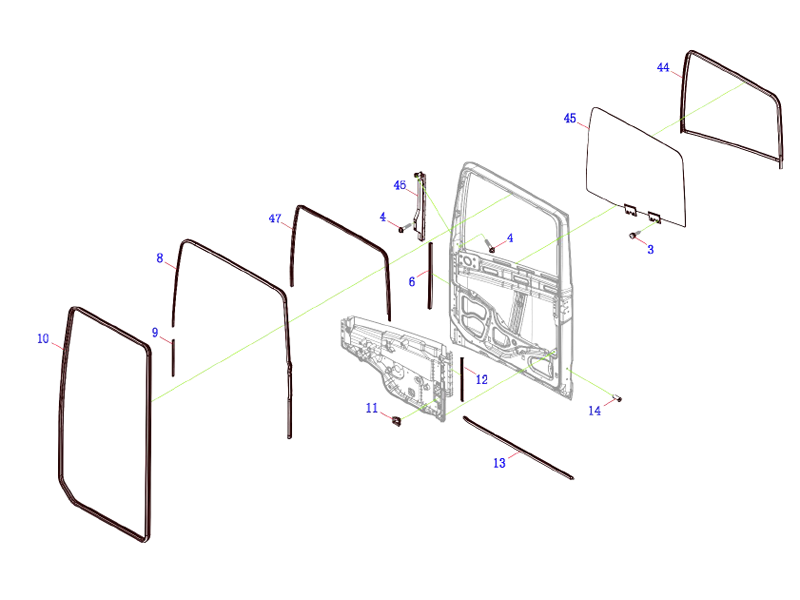

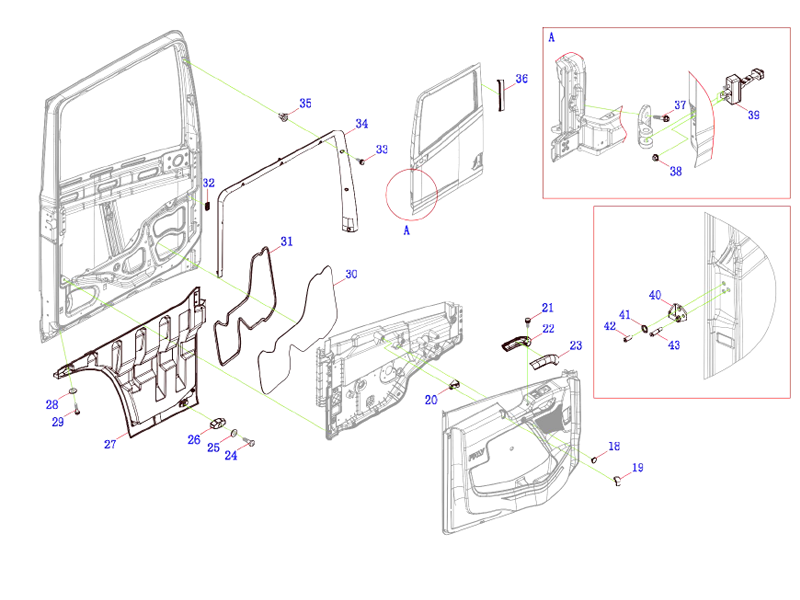

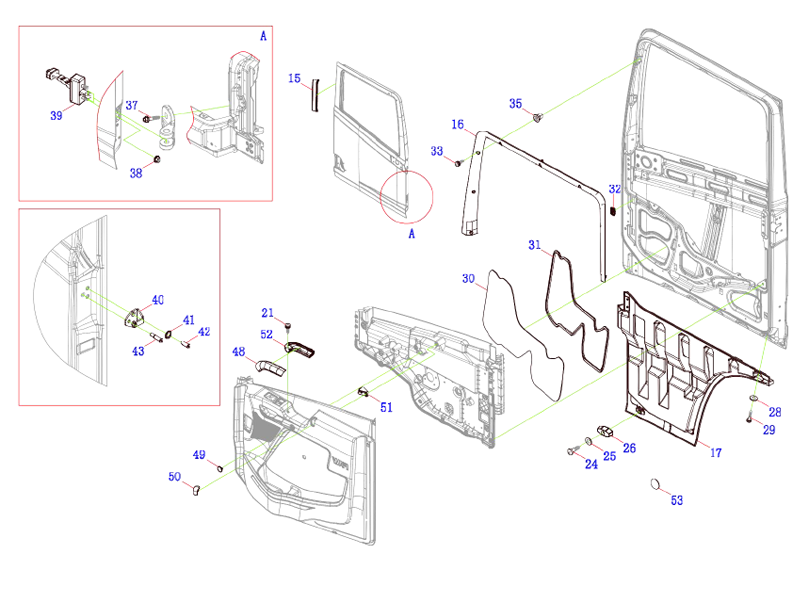

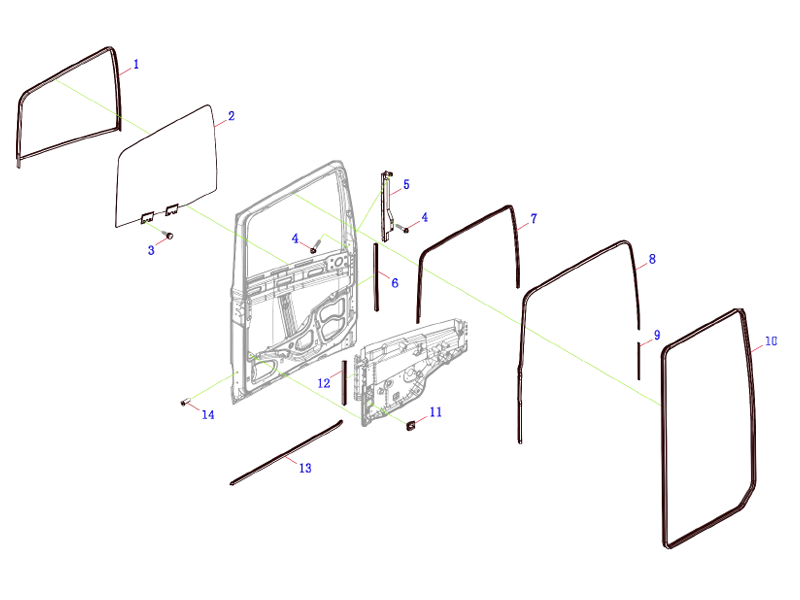

Product Parameters of FAW Front Door Basic Components Logic Assembly

Order Part NO. Part Name And Standards Oty
Front  Door Basic Components Logic Assembly 1
1 6103041-B45-C00 Left Front Door Window Exterior  Chute 1
2 6103015-B45 Left Front Door Glass Assembly 1
3 Q2360620 Cross Recessed Button Head Screw 4
4 Q1840612 Hexagon Flange Bolt Thick Rod (Standard  Type) 6
5 6103215-B45 Guide rail assembly befor left front  door 1
6 6103071-B45-C00 Front Door Under the fromer  Chute 2
7 6103061-B45-C00 Left Front Door Window Interior  Chute 1
8 6107031-B45-C00 Front Door upper seal 2
9 6107091-B45-C00 Front Door seal 2
10 6107021-B45-C00 Front Door hole seal 2
11 6100091-B45 Door Lock Harness, Wiring Shield 2
12 6103081-B45-C00 Front Door Under the rear Chute 2
13 6107061-B45-C00 Front Door under seal 2
14 Q215B0610T1F62(HB) Hexagon Lobular Socket Raised Pan Head  Screw 8
15 6100032-B45 Right Front Door rear box Ornamental  Cover 1
16 6102152-B45-C00 Right Front Window Frame on guard 1
17 6101590-B83 Right  Front Door under decorative Assembly 1
18 6102141-B45-C00 Left Front Door Interior Trimming Plug  Cover 1
19 6102131-B45-C00 Left Front Door Interior Trimming rear  Plug 1
20 6102087-B45-C00 Cover
21 CQ2204822 Left Front Door Cable Inshall the  seat 1
22 6102083-H02-C00 Cross Recessed Pan Head Tapping Screw and Plain  Washer Subassembly 4
23 6102091-H02-C00 Left Front Door Cable Assy 1
24 Q2140612F6 Left Front Door Cable the plaque 1
25 Q40106 Cross Recessed Pan Head Screw 2
26 6100051-B83 Washer 2
27 6101585-B83 Front  Door Collision Chock 2
28 Q40208F6 Left Front Door under  decorative Assembly 1
29 T2180825F6B Large Washer 14
30 5704232-H40 Hexagon Socket Cap Head Screw 14
30 6102171-B45 Left Front Door Seal Film 2
31 6102181-B45 Seal Film Rubber Strip 2
32 6102093-B45-C00 Front  Door Interior Trimming Button Seat 6
33 CQ2204832F6 Cross Recessed Pan Head Tapping Screw and Plain  Washer Subassembly 16
34 6102151-B45-C00 Lh Front Window Frame on guard 1
35 Q39905 Plastic Nut 14
36 6100031-B45 Left Front Door rear box Ornamental  Cover 1
37 Q1840825F6 Hexagon Flange Bolt 4
38 CQ32606 Hexagon Flange Lock Nut 4
39 6109015-B45-C00 Front  Door Arrester Assembly 2
40 6105151-B45-C00 Front Door Catch 2
41 Q41408 Lock Washer 4
42 Q2580816(HB) Hexagon Lobular Socket  Countersunk Head Screw 4
43 6105161-B45-C00 Front Door Lock Pin 2
44 6103042-B45-C00 Right  Front Door Window Exterior Chute 1
45 6103020-B45 Right  Front Door Window Assembly 1
46 6103220-B45 Guide rail assembly befor Right front  door 1
47 6103062-B45-C00 Right  Front Door Window Interior Chute 1
48 6102092-H02-C00 Right Front Door Cable the plaque 1
49 6102142-B45-C00 Right Front Door Trimming Board Plug  Cover 1
50 6102132-B45-C00 Right Front Door Interior Trimming rear Plug Cover 1
51 6102088-B45-C00 Right Front Door Cable Inshall the  seat 1
52 6102084-H02-C00 Right Front Door Cable 1
53 6100011-50 Tape Marking 2
