FAW Driver Seat Logic Assembly

FAW Driver Seat Logic Assembly
FAW Driver Seat Logic Assembly
Download Catalog
Get Quotation

What is the FAW Driver Seat Logic Assembly

  • The FAW Driver Seat Logic Assembly represents a sophisticated integration of mechanical structure, ergonomic adjustment, comfort technology, and safety systems, meticulously engineered to provide superior support, customization, and well-being for the vehicle operator during short commutes or extended journeys.
  • Core Seat Structure & Adjustment
  • Driver’s Seat Assembly: The complete, integrated seat unit.
  • Seat Base Assembly: Forms the foundational structure mounted to the vehicle floor.
  • The Slide Assembly: Enables precise fore/aft positioning adjustment of the entire seat for optimal pedal and steering wheel reach.
  • Lazyback Assy (Backrest Assembly): The supportive backrest structure.
  • Camber Angle Adjusting Mechanism Assembly: Allows tailored adjustment of the backrest’s lateral angle (camber) for enhanced lumbar and upper back support alignment.
  • Handrail Assy: Provides a sturdy grip point for driver entry, exit, and adjustment.
  • Premium Comfort & Support Systems
  • Seat Pad Assy: The primary cushioning element, designed for long-term comfort and pressure distribution.
  • Waist Support Air Pocket Assembly: Inflatable air bladders integrated within the lumbar region of the backrest, providing dynamic lower back support.
  • Waist Support Control Valve Assy: The control interface (typically on the seat side) allowing the driver to adjust inflation level and firmness of the lumbar air pockets.
  • Ventilation System: Actively circulates air through the seat pad and/or backrest, drawing away heat and moisture to enhance comfort, especially in warm conditions.
  • Air Spring Assy: A key component within the Shock Absorber Assy, utilizing pressurized air to provide a smooth, adaptive ride quality by absorbing road vibrations transmitted through the seat base, significantly improving comfort over rough surfaces.
  • Integrated Suspension & Pneumatics
  • Shock Absorber Assy: Works in conjunction with the Air Spring Assy to dampen vibrations and impacts, isolating the driver from road harshness. This assembly is central to the seat’s dynamic comfort.
  • Gas Circuit Control System Assy: Manages the flow and pressure of air throughout the seat’s pneumatic systems, including the Waist Support Air Pocket Assembly and the Air Spring Assy, ensuring precise control and reliability.
  • Intake Pipe Assy-Driver Seat & Air Pipe Assembly-Air Seat Air Intake: Form the critical air supply lines, channeling compressed air from the vehicle’s system into the Gas Circuit Control System Assy for distribution to the air spring and lumbar support systems.
  • Safety & Restraint Integration
  • Left Safety Belt Assembly: The integrated seat belt receptacle (buckle) mounted directly onto the seat structure, ensuring optimal belt geometry and consistent positioning relative to the driver.
  • Lock Buckle Assy: Likely refers to the buckle mechanism itself or its secure mounting point within the seat frame.
  • Critical Fastening
  • Hexagon Socket Head Cap Screw: Provides high-strength, reliable fastening for critical structural joints within the seat frame and adjustment mechanisms, capable of handling significant loads and vibrations.
  • The FAW Driver Seat Logic Assembly exemplifies FAW’s commitment to driver-centric design. By seamlessly integrating robust mechanical adjustment (Slide Assembly, Camber Angle Adjusting Mechanism), adaptive pneumatic comfort (Air Spring Assy, Waist Support Air Pockets), active climate control (Ventilation System), and vital safety (Left Safety Belt Assembly), this assembly delivers an unparalleled driving experience. The sophisticated Gas Circuit Control System and associated Air Pipe Assemblies ensure precise operation of the air-based features, while high-grade Hexagon Socket Head Cap Screws guarantee structural integrity and long-term durability. Every component works in concert to reduce fatigue, enhance support, and promote driver well-being

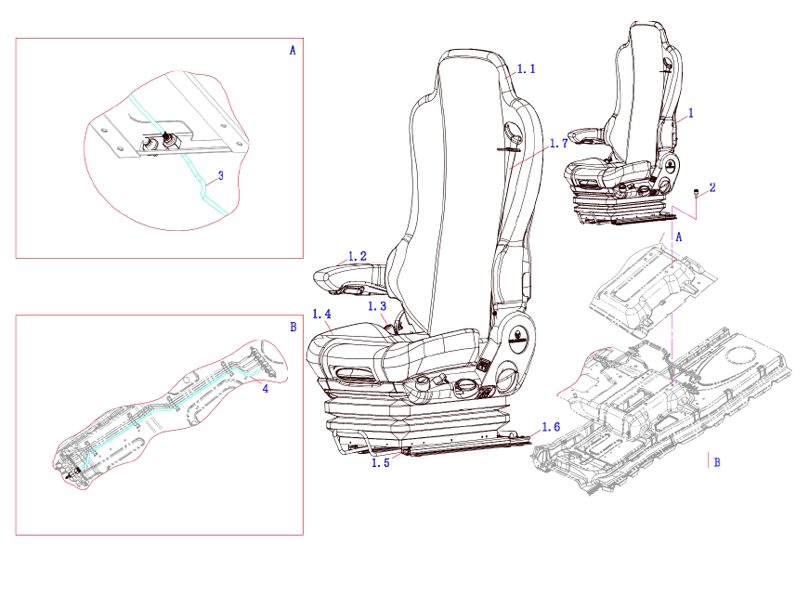

Product Parameters of FAW Driver Seat Logic Assembly

Order Part NO. Part Name And Standards Oty
Driver Seat Logic Assembly
1 6800010SB83-C00 Driver’s  Seat Assembly 1
1.1 6805010RB83-C00 Lazyback Assy 1
1.2 6806010NB83-C00 Handrail Assy 1
1.3 8212035-H43-C00 Lock Buckle Assy 1
1.4 6803010RB83-C00 Seat Pad Assy 1
1.5 6804030MB83-C00 The Slide Assembly 1
1.6 6807010MB83-C00 Seat Base Assembly 1
1.7 8212025AB90-C00 Left Safety Belt Assembly 1
1.8 6804010-B90-C00 Camber Angle Adjusting Mechanism  Assembly 1
1.9 6805070-B90-C00 Waist Support Control Valve  Assy 1
1.1 6805080-B90-C00 Waist Support Air Pocket  Assembly 1
1.11 6800070-B90-C00 Ventilation System 1
1.12 6800050-B90 Transit  Connector Assembly 1
1.13 6804060-B90-C00 Shock  Absorber Assy 1
1.14 6804040-B90-C00 Air Spring Assy 1
1.15 6804070-B90-C00 Gas Circuit Control System Assy 1
2 CQ2180830F6 Hexagon socket head cap screw 6
3 6800015AB45 Intake Pipe Assy-Driver Seat 1
4 6800025AB45 Air Pipe Assembly-Air Seat Air  Intake 1
