XCMG Right Boom Cylinder

What is the XCMG Right Boom Cylinder

The XCMG Right Boom Cylinder represents a sophisticated hydraulic actuation system engineered for precise boom movement control in demanding working conditions. This robust assembly features a durable CYLINDER BODY Φ226/Φ190X2189 that forms the main structural housing, working in conjunction with the precision-machined PISTON ROD Φ130X2345 to deliver reliable linear force transmission. The heart of the system includes the PISTON Φ190XΦ100X101 with integrated sealing components such as the CONTAMINANT SEAL Φ181.93XΦ190X8.9, GUIDE RING Φ190XΦ181.86X28.2, and ORIFICE SEALING RING Φ190XΦ170.62X9.63 that ensure optimal performance under high pressure conditions.
Hydraulic fluid management is handled through the RIGHT OIL PIPE COMPONENT A and RIGHT OIL PIPE COMPONENT B, securely mounted with PIPE CLIP fixtures and RUBBER SEAT vibration dampeners. The assembly employs multiple clamping mechanisms including CLAMP ASSEMBLYB Φ226 and CLAMP ASSEMBLYA Φ226 stabilized with HEXAGONAL HEAD BOLT fasteners and FLAT WASHER components. Advanced sealing technology incorporates the DUST-PROOF LOOP CHECK RING, SPLIT DAMPING RING, and multiple ORING elements including the specialized ORING Φ177.17X5.33 to prevent fluid leakage and contamination ingress.
The XCMG Right Boom Cylinder utilizes a comprehensive fastening system featuring HEXAGON SOCKET CAP SCREW components, NUT M100X4 for major connections, and SCREW M30×110 for critical assembly points. Protection elements include the COVER Φ292XΦ190XΦ130X202, CUSHION SLEEVE D130/Φ138XΦ120X65, and DUSTPROOF WASHER that safeguard internal components from environmental damage. The integrated STRAIGHT-THROUGH TYPE FORCED FILLING OIL CUP facilitates efficient lubrication, while the STEEL BALL Φ10 and MAT Φ137XΦ105X0.5 contribute to smooth operation and vibration absorption.
Every component within the XCMG Right Boom Cylinder is precision-manufactured to withstand extreme operational stresses, ensuring consistent performance and extended service life. The sophisticated engineering behind the XCMG Right Boom Cylinder demonstrates XCMG’s commitment to reliability and efficiency in heavy machinery hydraulic systems, delivering powerful and precise boom control for optimal equipment productivity.

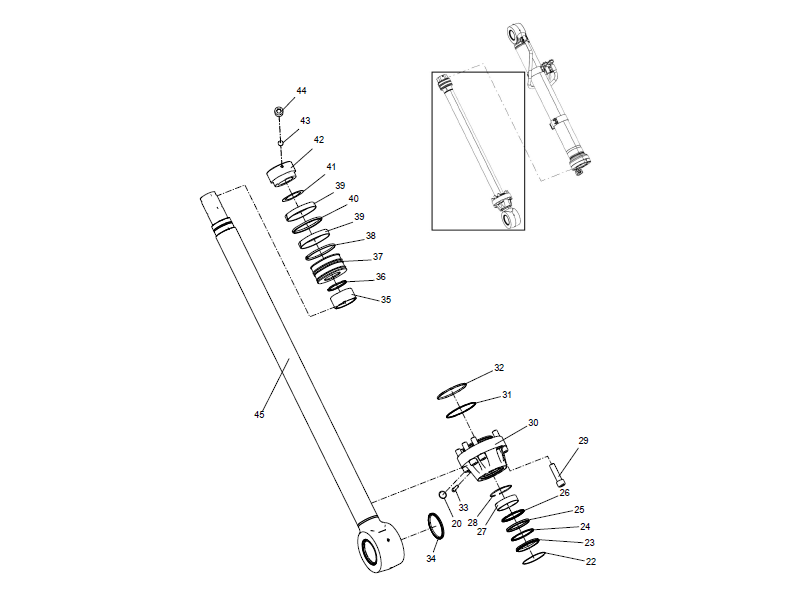

Parameters of XCMG Right Boom Cylinder

804014597 RIGHT BOOM CYLINDER
316101667 WORKING DEVICE PIPING
No.	PART NUMBER	NAME
1	860202490	PLUG PLUG
2	860169323	CLAMP ASSEMBLYB Φ226
3	860164223	HEXAGONAL HEAD BOLT
4	860164222	FLAT WASHER
5	860545637	NUT M10
6	860164221	HEXAGONAL HEAD BOLT
7	805338846	SPRING WASHER 16
8	860168135	PRESSURE PLATE
9	860169338	WASHER
10	860169322	CYLINDER BODY Φ226/Φ190X2189
11	860169349	RIGHT OIL PIPE COMPONENT A
12	860169346	PIPE CLIP
13	805238441	WASHER16
14	860169296	HEXAGONAL HEAD BOLT M16X45
15	860128146	RUBBER SEAT
16	860200823	COVER PLATE
17	804002438	HEXAGON SOCKET CAP SCREW
18	860169327	CLAMP ASSEMBLYA Φ226
19	860169351	RIGHT OIL PIPE COMPONENT B
20	860164224	ORING
21	860203664	STRAIGHT-THROUGH TYPE FORCED FILLING OIL CUP
22	860150870	DUST-PROOF LOOP CHECK RING
23	860169330	DUSTPROOF WASHER
24	860544303	SEALING RING FOR ROD
25	860169301	SPLIT DAMPING RING
26	860544304	BUFFER RING
27	860544305	SLIDING BUSHING
28	860150874	STEEL CABLE BAFFLE RING FOR HOLE D130/?141×?3.5
29	860150856	SCREW M30×110
30	860169345	COVER Φ292XΦ190XΦ130X202
31	860169313	ORING Φ177.17X5.33
32	860169328	O CHECK RING Φ190XΦ181.3X2
33	860164225	HEXAGON SOCKET CAP SCREW
34	860200693	DUSTPROOF WASHER
35	860169332	CUSHION SLEEVE D130/Φ138XΦ120X65
36	860169333	BUFFERING RING Φ121A
37	860169348	PISTON Φ190XΦ100X101
38	860169298	CONTAMINANT SEAL Φ181.93XΦ190X8.9
39	860169354	GUIDE RING Φ190XΦ181.86X28.2
40	860169339	ORIFICE SEALING RING Φ190XΦ170.62X9.63
41	860169321	MAT Φ137XΦ105X0.5
42	860169318	NUT M100X4
43	800513294	STEEL BALL Φ10
44	860169294	INNER HEXAGON FLAT TIGHTENING BOLT
45	860169303	PISTON ROD Φ130X2345
