XCMG Working Device

What is the XCMG Working Device

The XCMG Working Device represents a sophisticated hydraulic mechanical system engineered to deliver precise movement and powerful force transmission in heavy equipment applications. This integrated assembly combines robust structural components with advanced damping technology to ensure reliable performance under the most demanding working conditions.
Central to the XCMG Working Device is the massive BOOM structure that forms the primary load-bearing framework, working in coordination with multiple precision SHAFT components that provide critical pivot points for articulated movement. The system incorporates numerous CUSHION elements strategically positioned throughout the assembly to absorb operational shocks and vibrations, significantly enhancing component longevity and operator comfort. Multiple PRESSURE PLATE components work in conjunction with specialized RETAINER elements to maintain proper alignment and distribute structural loads effectively.
The engineering excellence of the XCMG Working Device is further demonstrated through its precision fastening system utilizing high-strength BOLT M20×55, BOLT M20×50, and BOLT M24×80 components, combined with WASHER 20 and WASHER 24 elements that ensure proper load distribution. The inclusion of DUSTPROOF WASHER components provides essential contamination protection, while SLEEVE elements facilitate precise component alignment and wear resistance.
Through its integrated design combining structural robustness, advanced damping technology, and precision engineering, the XCMG Working Device delivers exceptional performance that enables heavy machinery to execute complex tasks with accuracy and reliability in challenging industrial environments.

Parameters of XCMG Working Device

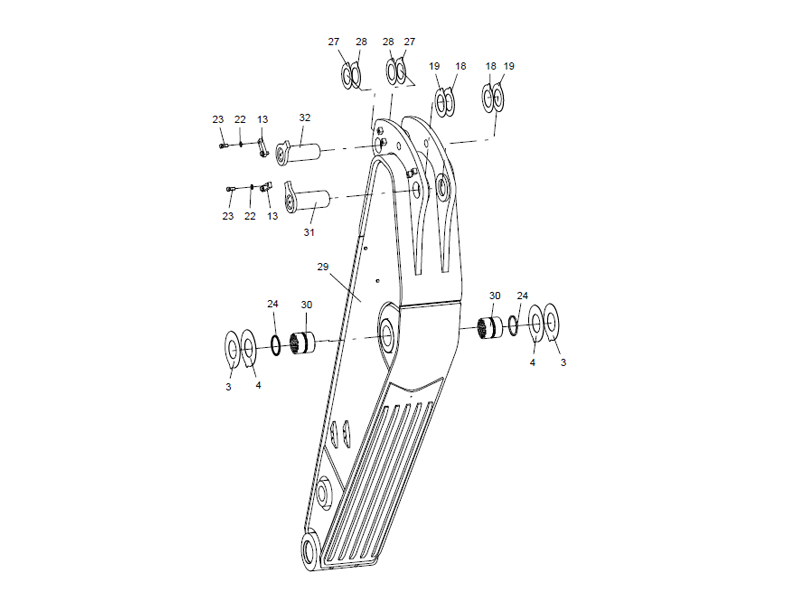

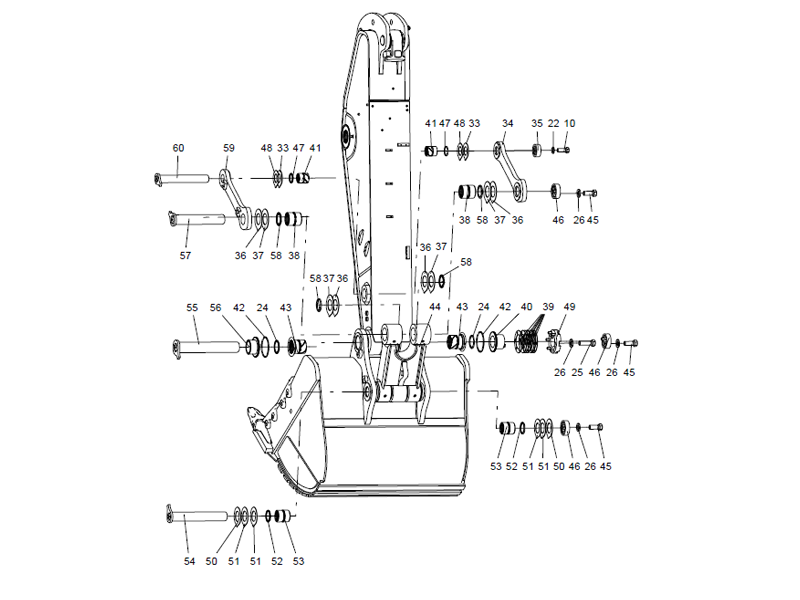

316100208 WORKING DEVICE
316100001 HYDRAULIC EXCAVATOR
No.	PART NUMBER	NAME
1	316100233	PRESSURE PLATE
2	316100354	SHAFT
3	316100226	CUSHION
4	316100225	CUSHION
5	316100232	SLEEVE
6	316100236	CUSHION
7	316100235	CUSHION
8	316100357	SHAFT
9	316100234	PRESSURE PLATE
10	805006286	BOLT M20×55
11	316100282	BOOM
12	316100360	SHAFT
13	316100237	PRESSURE PLATE
14	316102921	SHAFT
15	316100231	CUSHION
16	316100230	CUSHION
17	316102920	RETAINER
18	316100239	CUSHION
19	316100238	CUSHION
20	316100351	SHAFT
21	316101703	PRESSURE PLATE
22	805338289	WASHER 20
23	805046591	BOLT M20×50
24	329900871	DUSTPROOF WASHER
25	805005960	BOLT M24×80
26	805338299	WASHER 24
27	316100240	CUSHION
28	316100241	CUSHION
29	316100251	BUCKET ROD
30	316100227	SLEEVE
31	316101638	SHAFT
32	316100363	SHAFT
33	316100219	CUSHION
34	316100333	RIGHT ROCKER
35	316100224	RETAINER
36	316100223	CUSHION
37	316100222	CUSHION
38	316100221	SLEEVE
39	316100211	MAT
40	316100212	T-SHAPED SLEEVE
41	316100220	SLEEVE
42	329900912	O-RING
43	316100213	SLEEVE
44	316100242	LINK ROD
45	805046596	BOLT M24×60
46	316100209	PRESSURE SLEEVE
47	329900867	DUSTPROOF WASHER
48	316100218	CUSHION
49	316100210	BLIND FLANGE
50	316100215	CUSHION
51	316100216	CUSHION
52	329901159	DUSTPROOF WASHER
53	316100217	SLEEVE
54	316100342	SHAFT
55	316100339	SHAFT
56	316102922	T-SHAPED SLEEVE
57	316100348	SHAFT
58	329900972	DUSTPROOF WASHER
59	316100337	LEFT ROCKER
60	316100345	SHAFT
