XCMG Flywheel Case

What is the XCMG Flywheel Case

The XCMG Flywheel Case represents a critically engineered housing assembly designed to provide secure enclosure and precise alignment for the flywheel and associated drive components in heavy machinery power systems. This robust assembly serves as the structural foundation connecting the engine and transmission, featuring precision-machined interfaces with THE FRONT GEAR TRAIN through specialized BUSH and PIN components that ensure perfect alignment and minimal vibration transmission.
The comprehensive sealing system of the XCMG Flywheel Case incorporates multiple O-RING elements and a durable SEAL RING that collectively create a leak-proof barrier against oil and contaminants. Secure fastening is achieved through an extensive array of high-strength BOLT components working in conjunction with WASHER elements that distribute clamping force evenly across all mating surfaces. The assembly includes several COVER PLATE units that provide protected access to internal components, while multiple PLUG elements create secure ports for maintenance and inspection.
The XCMG Flywheel Case integrates a BEARING CAP for critical shaft support and an ADAPTER section that facilitates connection to the DIESEL PIPE via a specialized CONNECTOR. Additional SCREW fasteners provide supplementary retention at key stress points. The precision manufacturing and robust construction of the XCMG Flywheel Case ensure reliable containment of rotating components, effective vibration damping, and long-term structural integrity in the most demanding operating conditions, contributing significantly to the overall durability and performance of the power transmission system.

Parameters of XCMG Flywheel Case

800169510 FLYWHEEL CASE
800160419 ENGINE ASSEMBLY

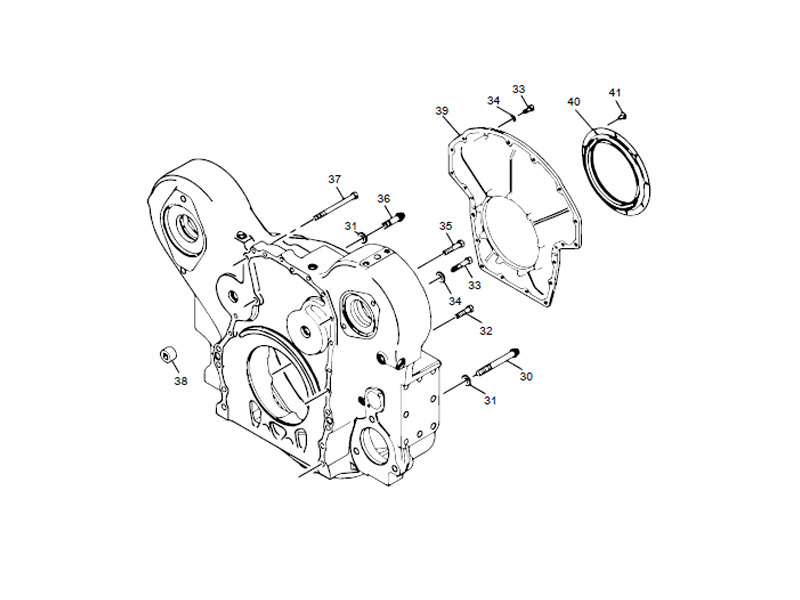

No.	PART NUMBER	NAME
1	800167950	FLYWHEEL CASE
2	800168404	BUSH
3	800168230	PIN
4	800167984	THE FRONT GEAR TRAIN
5	800168170	WASHER
6	800168399	PLUG
7	800167949	O-RING
8	800168163	PLUG
9	800168036	O-RING
10	800168167	DIESEL PIPE
11	800168081	CONNECTOR
12	800168336	O-RING
13	800167999	ADAPTER
14	800168315	O-RING
15	800168270	BOLT
16	800168386	WASHER
17	800167971	COVER PLATE
18	800167951	O-RING
19	800168222	PLUG
20	800167983	O-RING
21	800168325	BEARING CAP
22	800168166	BOLT
23	800168040	O-RING
24	800168304	PLUG
25	800168384	BOLT
26	800168221	WASHER
27	800168293	BOLT
28	800167937	COVER PLATE
29	800168008	SEAL RING
30	800168089	BOLT
31	800167965	WASHER
32	800167985	BOLT
33	800168266	BOLT
34	800168273	WASHER
35	800168407	BOLT
36	800168234	BOLT
37	800168122	BOLT
38	800168109	PLUG
39	800168037	COVER PLATE
40	800169406	SEAL RING
41	800168371	SCREW
