XCMG Base Plate Assembly

What is the XCMG Base Plate Assembly

The XCMG Base Plate Assembly forms the fundamental, integrated platform for operator interface and control mounting within the cab. This critical structure provides a secure and stable foundation for the operator’s SEAT, which is firmly anchored via the SEAT MOUNTING PLATE. The assembly’s robustness is ensured through a series of high-tensile fasteners, including BOLT M8×20, BOLT M10×25, and BOLT M10×30, each consistently paired with a THICKENED FLAT WASHER to resist loosening under constant vibration.
Further enhancing operator functionality, the MOUNTING PLATE OF ARMREST BOX is precisely attached using a SCREW M8×16, offering a dedicated and secure point for ancillary controls. The core operational elements, the LEFT CONTROL LEVER ASSEMBLY and RIGHT CONTROL LEVER ASSEMBLY, are directly and reliably mounted onto this unified base. The precise engineering and secure fastening of every component within the XCMG Base Plate Assembly guarantee a solid, responsive, and durable control interface, directly contributing to operator precision, comfort, and machine reliability. This integrated design is a testament to XCMG’s focus on foundational quality.

Parameters of XCMG Base Plate Assembly

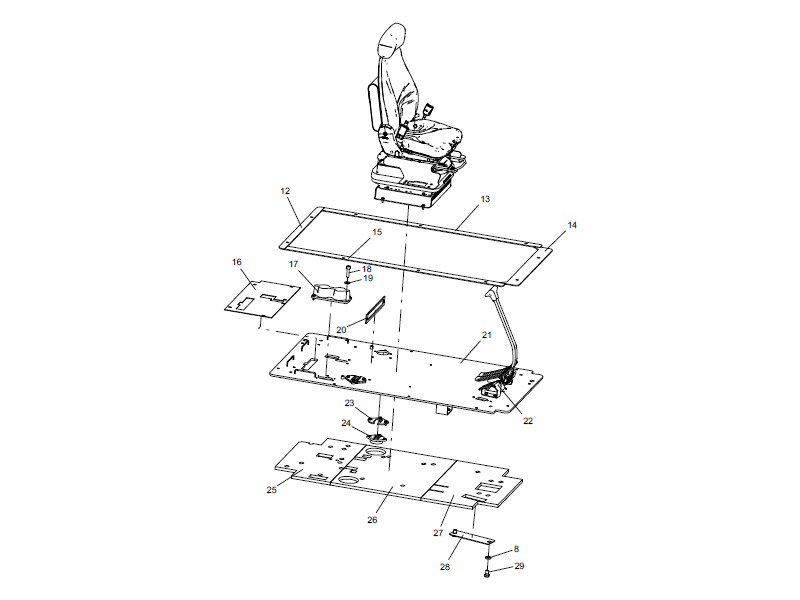

316102406 BASE PLATE ASSEMBLY
316102398 DRIVER’S CAB
No.	PART NUMBER	NAME
1	316103120	SEAT
2	805046508	BOLT M8×20
3	329900301	THICKENED FLAT WASHER
4	316102402	MOUNTING PLATE OF ARMREST BOX
5	805139814	SCREW M8×16
6	316102395	SEAT MOUNTING PLATE
7	805011330	BOLT M10×25
8	329900302	THICKENED FLAT WASHER
9	802154939	LEFT CONTROL LEVER ASSEMBLY
10	802154935	RIGHT CONTROL LEVER ASSEMBLY
11	805046416	BOLT M10×30
12	316102383	SPONGE
13	316102390	SPONGE
14	316102391	SPONGE
15	316102387	SPONGE
16	316102403	SPONGE
17	801973321	CABLE SEAL
18	805141132	SCREW M4×16
19	805338382	WASHER 4
20	316102384	SPONGE
21	316102404	BASE PLATE
22	802154941	PEDAL
23	316101655	LIMIT BLOCK
24	316101631	HOSE COVER
25	316102388	SPONGE
26	316102389	SPONGE
27	316102386	SPONGE
28	316102399	PLATE
29	805046524	BOLT M10×16
