XCMG Bucket Cylinder

What is the XCMG Bucket Cylinder

The XCMG Bucket Cylinder represents a precision-engineered hydraulic component specifically designed to deliver powerful and responsive bucket movement in excavating machinery. This robust assembly features a heavy-duty CYLINDER BODY Φ243/Φ200X1917 that forms the primary pressure vessel, working in conjunction with the high-strength 01384.0526Y.100 PISTON ROD Φ140X2065 to transmit substantial linear force to the bucket mechanism. Hydraulic fluid is efficiently channeled through OIL PIPE COMPONENT A Φ48.6X5.7 and OIL PIPE COMPONENT B Φ48.6X5.7, ensuring consistent flow to both cylinder chambers.
The heart of the actuation system is the precision-machined PISTON Φ200XΦ115X101, which incorporates multiple advanced sealing elements including the 147-577 CONTAMINANT SEAL Φ199.83XΦ191.93X8.9, 147-5738 GUIDE RING Φ199.82XΦ191.86X28.2, and 8C-9179 ORIFICE SEALING RING Φ200XΦ174.73X9.63 to maintain optimal performance under extreme pressure conditions. The rod sealing system features comprehensive protection with SEALING RING FOR ROD Φ140XΦ155X10, DUST-PROOF LOOP CHECK RING, and multiple DUSTPROOF WASHER components that prevent contamination ingress.
Secure mounting is achieved through the CLAMP ASSEMBLY Φ243 stabilized with HEXAGONAL HEAD BOLT fasteners and FLAT WASHER elements, while the RUBBER SEAT provides essential vibration damping. The assembly employs various fastening solutions including SCREW M30×110, HEXAGON SOCKET CAP SCREW M16×25, and INNER HEXAGON FLAT TIGHTENING BOLT for critical connection points. Advanced sealing is further enhanced by multiple ORING components including the specialized ORING Φ189.87X5.33 and ORING 47.22×3.53.
The XCMG Bucket Cylinder incorporates several specialized components including the STRAIGHT-THROUGH TYPE FORCED FILLING OIL CUP for efficient lubrication, CUSHION SLEEVE D140/Φ148×Φ115×65 for impact absorption, and COVER Φ317XΦ200XΦ140X228 for comprehensive end protection. The integration of SPLIT DAMPING RING Φ140XΦ155X3, BUFFER RING Φ140XΦ155.5X6.3, and SLIDING BUSHING Φ140XΦ145X50 ensures smooth operation and extended service life. Every component within the XCMG Bucket Cylinder is manufactured to withstand the most demanding working conditions, delivering reliable performance and precise control for efficient loading operations throughout the equipment’s service life.

Parameters of XCMG Bucket Cylinder

804014598 BUCKET CYLINDER
316101667 WORKING DEVICE PIPING

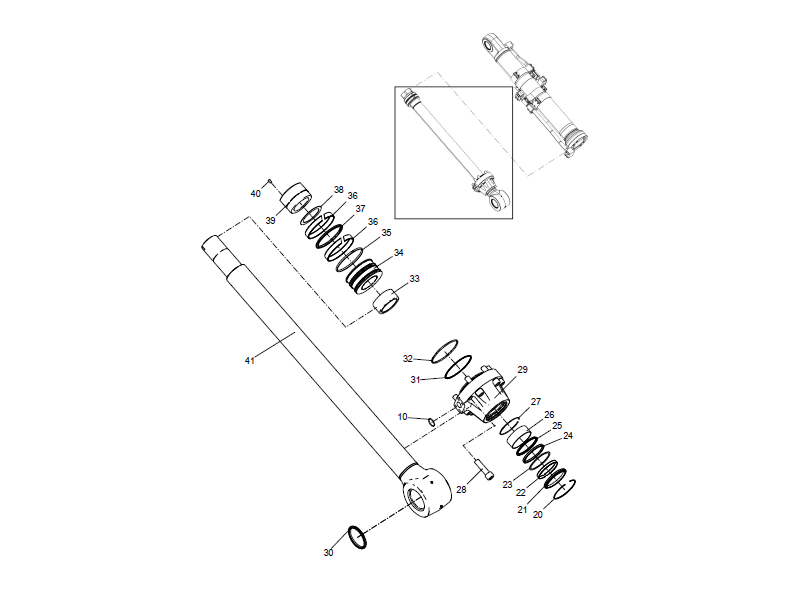

No.	PART NUMBER	NAME
1	860202490	PLUG PLUG
2	860150908	NUT M16
3	860169299	CLAMP ASSEMBLY Φ243
4	860164222	FLAT WASHER
5	860164223	HEXAGONAL HEAD BOLT
6	860202451	RUBBER SEAT
7	860202450	OIL PORT END COVER
8	804002475	HEXAGON SOCKET CAP SCREW M16×25
9	860169304	OIL PIPE COMPONENT A Φ48.6X5.7
10	803196432	ORING 47.22×3.53
11	860203664	STRAIGHT-THROUGH TYPE FORCED FILLING OIL CUP
12	860169335	DUSTPROOF WASHER Φ120XΦ140X8
13	860169311	CYLINDER BODY Φ243/Φ200X1917
14	860169308	OIL PIPE COMPONENT B Φ48.6X5.7
15	860164221	HEXAGONAL HEAD BOLT
16	805338846	SPRING WASHER 16
17	860168135	PRESSURE PLATE
18	860167890	WASHER
19	860202449	SCREWM16×105 SCREW
20	804002458	DUST-PROOF LOOP CHECK RING
21	804002459	DUSTPROOF WASHER
22	860169337	GUIDE RING Φ145XΦ140X15
23	860169314	SPLIT DAMPING RING Φ140XΦ155X3
24	860169367	SEALING RING FOR ROD Φ140XΦ155X10
25	860169300	BUFFER RING Φ140XΦ155.5X6.3
26	860169310	SLIDING BUSHING Φ140XΦ145X50
27	804002463	STEEL CABLE BAFFLE RING FOR HOLE D140/Φ151×Φ3.5
28	860150856	SCREW M30×110
29	860169343	COVER Φ317XΦ200XΦ140X228
30	860168139	DUSTPROOF WASHER
31	860169297	ORING Φ189.87X5.33
32	860169336	O CHECK RING Φ200X191.3X2
33	804002482	CUSHION SLEEVE D140/Φ148×Φ115×65
34	860169342	PISTON Φ200XΦ115X101
35	860169309	147-577 CONTAMINANT SEAL Φ199.83XΦ191.93X8.9
36	860169347	147-5738 GUIDE RING Φ199.82XΦ191.86X28.2
37	860169305	8C-9179 ORIFICE SEALING RING Φ200XΦ174.73X9.63
38	860202429	MAT Φ160×Φ120×0.5
39	860202428	NUT M115×4
40	804002469	INNER HEXAGON FLAT TIGHTENING BOLT
41	860169352	01384.0526Y.100 PISTON ROD Φ140X2065
