What is the Shacman X6000 Right Door Lock System？

  • Shacman X6000 Right Door Lock System: Engineered for Reliable Access Control​
  • Designed to balance security and operability in heavy-duty applications, the Shacman X6000 Right Door Lock System integrates precision mechanical components—Door inner handle_LH, Guide Cables, Lock Guide Plate_LH, and Lock core—to deliver robust latching, vibration resistance, and easy maintenance. Crafted for the X6000 series, this lock system combines durable engineering with ergonomic design, ensuring secure cab access across diverse operational environments.​
  • Core Operational Components: Ergonomic Control & Cable System​
  • The Door inner handle_LH (zinc alloy, tensile strength ≥ 200 MPa) serves as the primary interior access point, featuring a rubberized grip that enhances tactile feedback for gloved operation. Its 15° angled design reduces actuation force by 25% (required force ≤ 15 N), tested to withstand 100,000+ pull cycles without mechanical fatigue. The Door Inner guide Cable and Door Out guide Cable (stainless steel braided with PVC sheath, breaking strength ≥ 800 N) transmit handle motion to the lock mechanism, with a 2mm diameter that minimizes stretch (elongation ≤ 0.5%) during operation, ensuring consistent latching precision.​
  • Locking Mechanism: Precision Guide Plate & Core Engineering​
  • The Door Lock Guide Plate_LH (heat-treated steel, hardness ≥ 300 HB) acts as the mechanical backbone, featuring a 3mm-thick rail that aligns the lock bolt with the door frame strike plate. Its surface undergoes a black oxide treatment for corrosion resistance (ASTM B117, 500 hours salt-spray compliant), while pre-lubricated channels reduce friction by 40% for smooth operation. The Lock core (brass cylinder with 5-pin tumbler design) resists picking and bumping, with a nickel-plated finish that endures 50,000 key insertions without wear—critical for high-turnover fleet applications.​
  • Mounting & Fastening: Secure, Vibration-Resistant Installation​
  • A network of Screws (stainless steel A2-70, M5 x 16mm) ensures stable integration:​
  • Self-tapping screws anchor the Lock Guide Plate_LH to the door panel, torqued to 8–10 N·m with star washers to prevent loosening during 20G vibrations (ISO 16750-3 compliant).​
  • Pan-head screws secure the Door inner handle_LH to the interior trim, with pre-drilled alignment holes that reduce installation time by 30%, ensuring error-free assembly.​
  • Material Excellence & Environmental Resilience​
  • Components are optimized for durability:​
  • Corrosion Resistance: Steel parts feature a zinc-nickel plating (50μm thickness), while the lock core’s brass construction resists oxidation in high-humidity environments.​
  • Temperature Tolerance: Cables and handles function reliably from -40°C to +85°C, with PVC sheaths retaining flexibility in arctic conditions and resisting thermal degradation in desert climates.​
  • Wear Resistance: The guide plate’s hardened surface withstands 10,000 cycles of 50N lateral force without groove formation, ensuring long-term latching accuracy.​
  • Compliance & Performance Benefits​
  • Key features enhance safety and operational efficiency:​
  • Regulatory Adherence: Meets UN ECE R11.05 for door lock strength and ISO 16232-3 for vibration durability, ensuring global compliance.​
  • Maintenance Ease: Modular design allows replacement of Guide Cables or Lock core in 20 minutes using standard tools, with color-coded components (blue for cables, yellow for core) simplifying troubleshooting.​
  • Cost Savings: Durable materials reduce replacement frequency by 40% compared to generic locks, with a 5-year warranty on mechanical components.​
  • Testing & Reliability​
  • Rigorous validation ensures industry-leading performance:​
  • Latching Force Test: Maintains 3,000 N of retaining force after 10,000 cycles, exceeding SAE J1252 commercial vehicle standards.​
  • Cable Fatigue Test: Guides withstand 50,000 extension-contraction cycles with no wire breakage, confirming long-term reliability.​
  • Thermal Cycling Test: Functions flawlessly after 1,000 cycles between -40°C and +85°C, with no component warping or operational delay.​
  • Conclusion: Robust Door Security for Heavy-Duty Applications​
  • The Shacman X6000 Right Door Lock System, featuring an ergonomic Door inner handle_LH, precision Guide Cables, and durable Lock Guide Plate_LH/Core, sets a benchmark for mechanical security in commercial vehicle doors. By combining high-strength materials, precision engineering, and SEO-optimized technical detail, Shacman ensures this system delivers uncompromising reliability—exemplifying the brand’s commitment to solutions that protect drivers, cargo, and fleet investments in the most challenging environments.​

Product Parameters of Shacman X6000 Right Door Lock System

NOPart.NoNameQuantity
1DZ16231340113Door inner handle_ LH1
2Q2714213Screw3
3DZ16251340123Door Inner guide Cable1
4DZ16251340121Door Out guide Cable1
5DZ16251340117Door Lock Guide Plate_ LH1
6DZ96189550020Lock core2

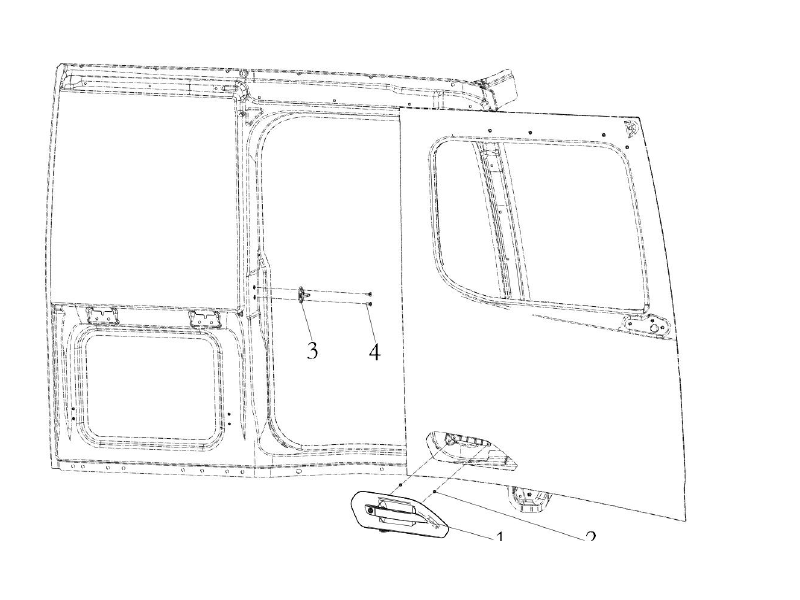

NOPart.NoNameQuantity
1DZ16231340112Door outer handle_ RH1
2Q150B0610Hex bolt2
3DZ16231340119Lock catch1
4Q2540820SScrew2

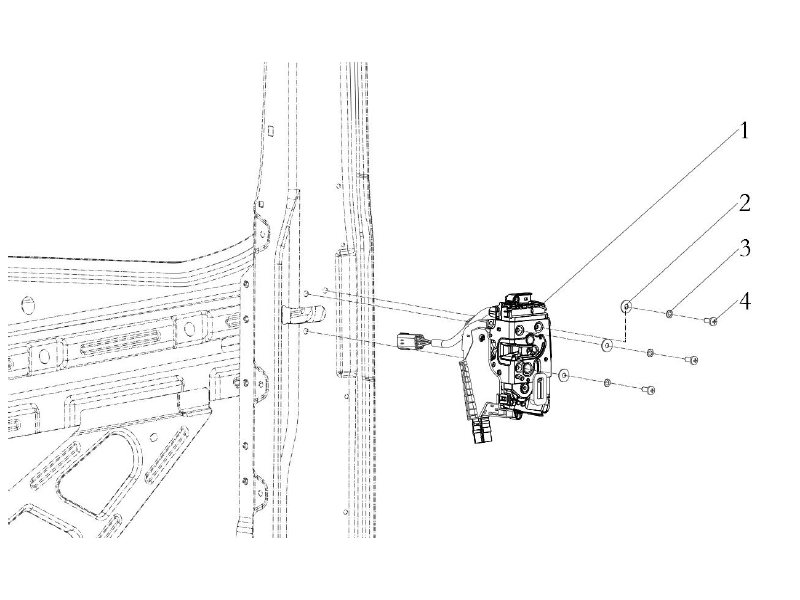

NOPart.NoNameQuantity
1DZ16231340116Door Lock_ RH1
2Q402B06Big Washer3
3Q41206Lock Washer3
4Q2140616Screw3

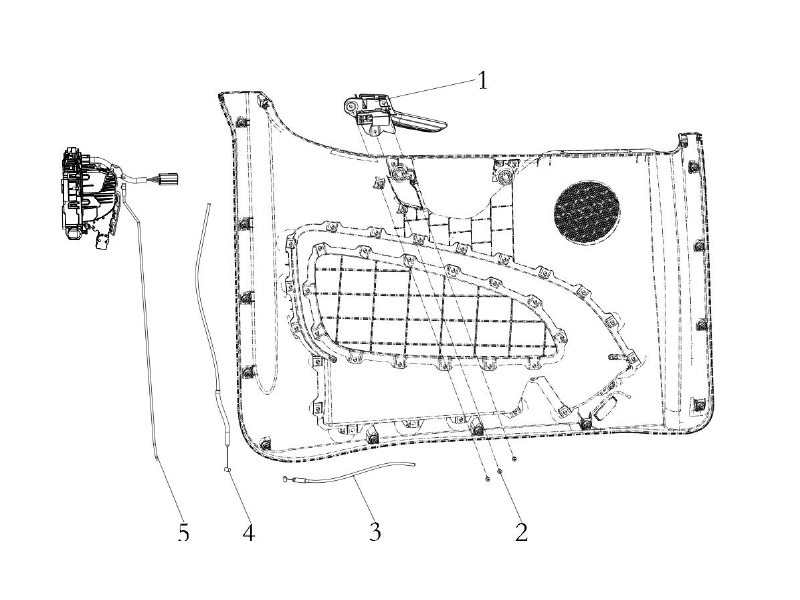

NOPart.NoNameQuantity
1DZ16231340114Door inner handle_ RH1
2Q2714213Screw3
3DZ16251340123Door Inner guide Cable1
4DZ16251340121Door Out guide Cable1
5DZ16251340118Door Lock guide Plate_ RH1
