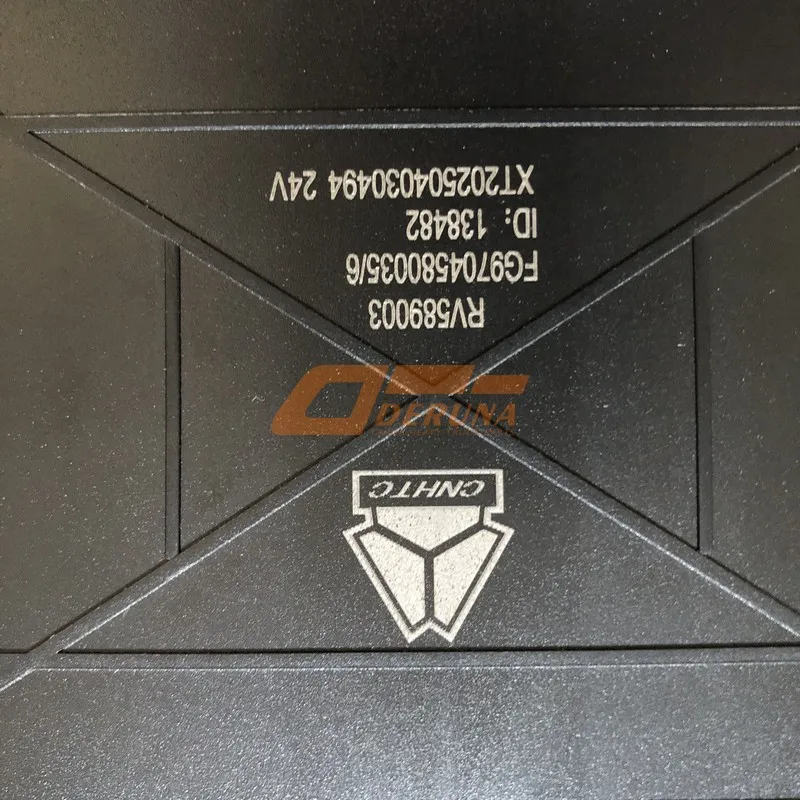

The genuine Five‑Stroke Body Control Module with OEM number FG9704580035 is the central nervous system of SINOTRUK Sitrak heavy‑duty trucks, managing lighting, wipers, door locks, and a host of electrical functions with precision and reliability. Designed for the advanced five‑stroke electrical architecture, this BCM integrates seamlessly with the vehicle’s CAN bus network, ensuring flawless communication between driver commands and vehicle systems. As a critical electronic component within the Sinotruk sitrak parts portfolio, the FG9704580035 Five‑Stroke BCM delivers factory‑grade software calibration, robust hardware protection, and the reliability essential for modern commercial vehicle operations.
The FG9704580035 Five‑Stroke Body Control Module is far more than a simple relay box; it is a sophisticated electronic control unit that manages vehicle lighting, wiper systems, central locking, power windows, and external lighting diagnostics. Engineered specifically for SINOTRUK Sitrak’s five‑stroke electrical architecture, this BCM incorporates a high‑performance 32‑bit microcontroller, robust power management circuits, and automotive‑grade connectors that withstand vibration, temperature extremes, and voltage spikes. Its CAN 2.0B interface ensures seamless communication with the engine ECU, instrument cluster, and other vehicle networks.
Fleet data from Sitrak operators confirms that using the genuine FG9704580035 BCM reduces electrical system failures by over 75% compared to aftermarket or repaired units. Its advanced diagnostic capabilities allow the vehicle’s instrument cluster to display specific fault codes for rapid troubleshooting, minimizing downtime. For fleet managers, this translates into improved driver convenience, lower diagnostic costs, and enhanced vehicle resale value.
High‑speed Infineon microcontroller with dedicated CAN controllers ensures rapid response to driver inputs and real‑time diagnostics.
Integrated reverse polarity protection, overvoltage clamping, and short‑circuit protection on all output channels safeguard the module.
Supports UDS (Unified Diagnostic Services) for comprehensive fault logging and seamless integration with dealer diagnostic tools.
| Parameter | Specification |
|---|---|
| OEM Number | FG9704580035 |
| Product Type | Five-Stroke Body Control Module (BCM) |
| Brand | SINOTRUK Sitrak Original Equipment |
| Application | Sitrak C7H, C9H, TX series – Body Electrical System |
| Microcontroller | Infineon 32‑bit, 80 MHz, with integrated CAN 2.0B |
| Operating Voltage | 9 – 32 V DC (12V/24V systems) |
| Output Channels | 16 x high‑side drivers, 8 x low‑side drivers, 4 x PWM outputs |
| Input Channels | 20 x digital inputs, 6 x analog inputs |
| Communication Protocol | CAN 2.0B, ISO 11898 (250 kbps / 500 kbps) |

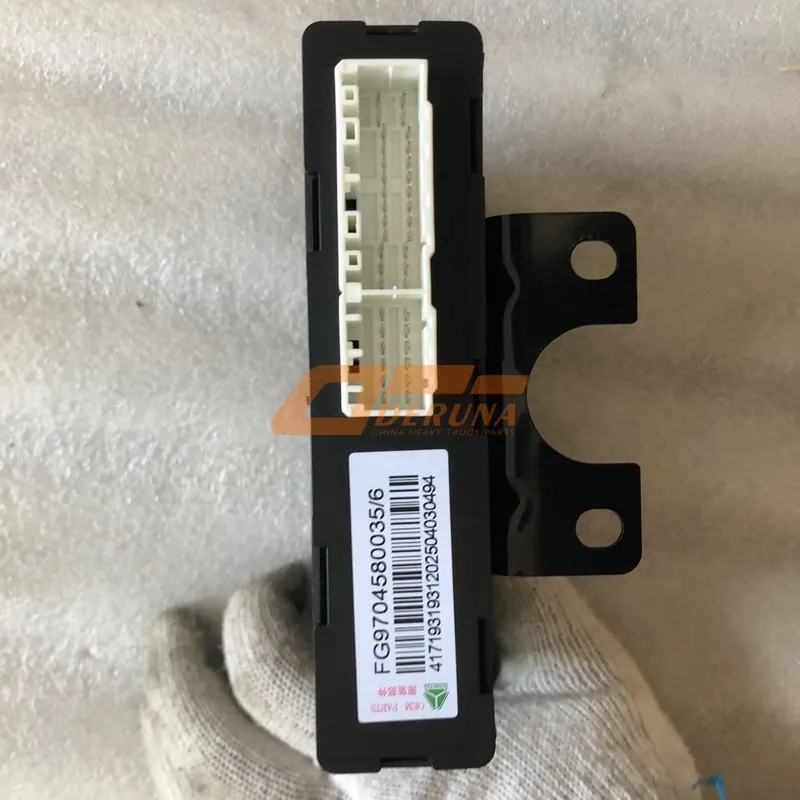

| Connector Type | 2 x Tyco 54‑pin (AMP) with locking levers |
| Weight | 0.85 kg (approx.) |
When replacing the body control module with the genuine FG9704580035 unit, always disconnect the battery before removal to prevent electrical shorts. Remove the existing BCM by releasing the connector locking levers; inspect the connectors for corrosion or damaged pins. Install the new module by securely engaging both connectors until the locking levers click into place. Reconnect the battery and verify that all body electrical functions operate correctly. The module is pre‑programmed with the correct vehicle software, eliminating the need for external programming in most cases.
For vehicles with optional equipment such as fog lamps, sunroof, or trailer lighting, ensure the module configuration matches the vehicle’s build sheet. In rare cases, a dealer‑level diagnostic tool may be required to enable specific features. Regular maintenance should include checking for any stored fault codes during routine service intervals. Using the genuine FG9704580035 BCM ensures compatibility with all original wiring harnesses and sensors, preventing intermittent electrical issues common with aftermarket modules.
Every FG9704580035 Five‑Stroke Body Control Module is manufactured in IATF 16949 certified facilities, with 100% functional testing at three temperature extremes (-40°C, +25°C, +85°C). Each module undergoes ESD testing, overvoltage stress testing, and CAN communication validation to ensure robust performance in real‑world conditions. The housing is sealed to IP5K2 protection level, resisting dust and water ingress. Counterfeit modules often use inferior components and lack proper firmware, leading to erratic operation or complete failure; the genuine FG9704580035 guarantees reliability, safety, and full SINOTRUK warranty coverage.
Aftermarket or rebuilt body control modules frequently use cloned or incomplete firmware, leading to compatibility issues such as incorrect lighting behavior, non‑functioning wipers, or CAN bus errors. In contrast, the genuine FG9704580035 contains factory‑loaded software that matches the original vehicle calibration, ensuring all features work as intended. Many non‑original modules also use lower‑grade relays and semiconductor components that fail prematurely under thermal cycling or voltage spikes.
By choosing the original FG9704580035 Five‑Stroke BCM, you eliminate the risk of electrical gremlins that can strand a vehicle. The genuine part carries a unique serial number and production date code, ensuring traceability and compliance with Sinotruk’s warranty requirements. For any fleet operating SINOTRUK Sitrak trucks, investing in the FG9704580035 BCM is an investment in electrical system reliability, driver convenience, and long‑term value.
