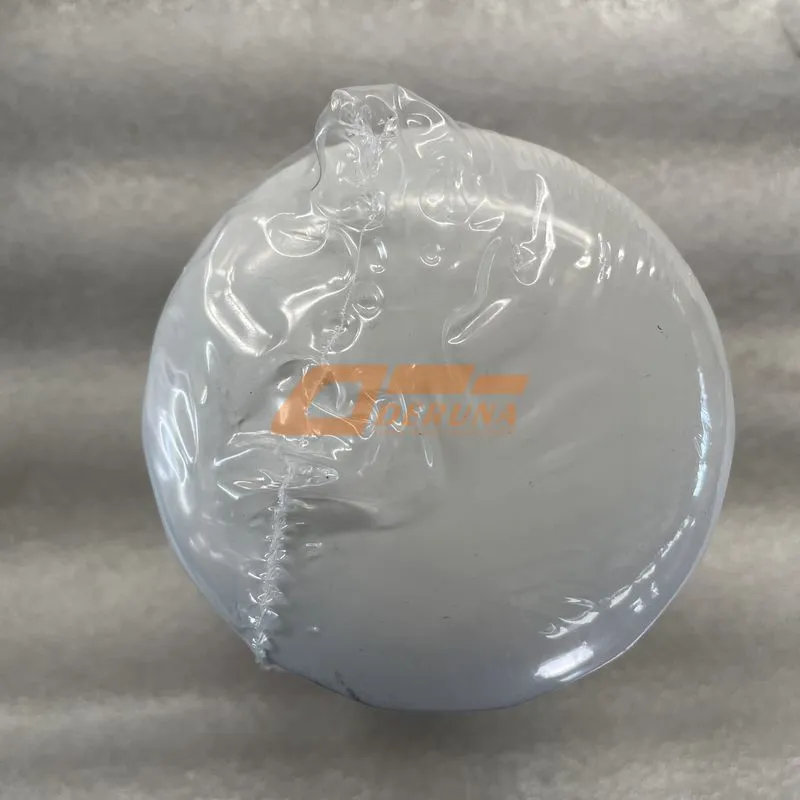

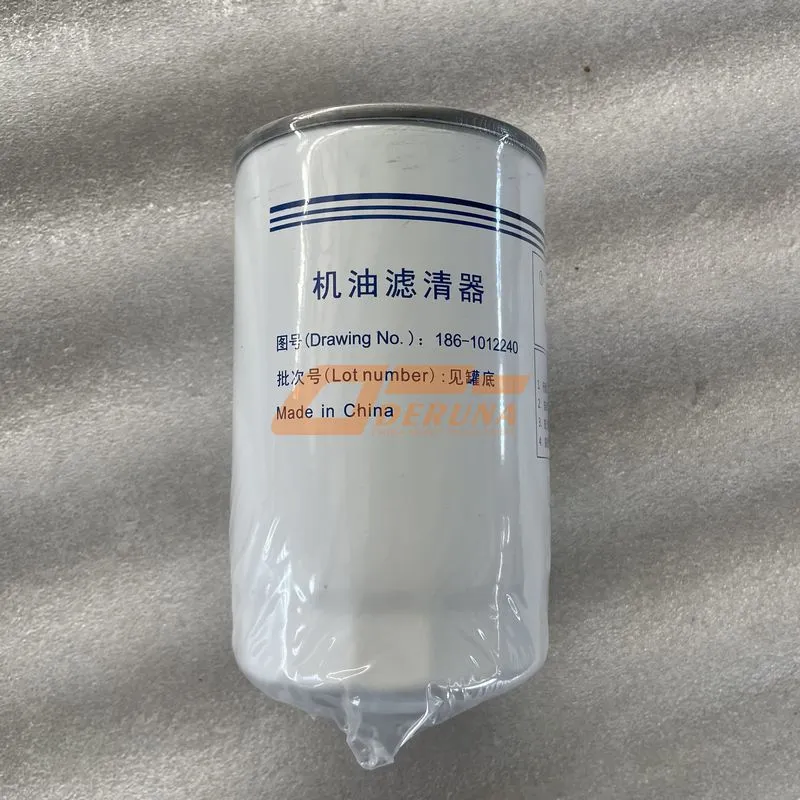

The FG038Y005002+001/1 Oil Filter is a high-capacity, precision-engineered filtration component designed to protect SINOTRUK Sitrak diesel engines from harmful contaminants. This OEM-grade filter removes sludge, carbon particles, and metallic wear debris, ensuring clean oil circulation and extended engine life. As a vital element among Sinotruk Sitrak parts, the FG038Y005002+001/1 delivers superior filtration efficiency, maintaining oil pressure and reducing friction. Whether your fleet operates in extreme heat, freezing cold, or dusty construction sites, this oil filter guarantees reliable performance. The FG038Y005002+001/1 is manufactured with high-grade filter media, a robust steel housing, and a built-in bypass valve to safeguard your engine during cold starts or clogged conditions.
Oil Filter
Масляный фильтр
Filtro de Aceite
The FG038Y005002+001/1 Oil Filter is a direct replacement for the original equipment filter used in SINOTRUK Sitrak C7H, T7H, and A7 series trucks. Its primary function is to remove abrasive particles and sludge from engine oil, preserving the integrity of bearings, cylinder liners, and turbochargers. With a filtration efficiency of 99.5% at 10 microns, the FG038Y005002+001/1 ensures that your engine receives consistently clean oil, reducing wear and extending oil change intervals.
This filter features a high-strength steel canister that withstands pressure differentials up to 15 bar, and its advanced synthetic-blend media offers superior dirt-holding capacity. By choosing the genuine FG038Y005002+001/1, you protect your engine from premature failure and maintain optimal performance across all operating conditions.
High-Efficiency Multi-Pass Media: The FG038Y005002+001/1 uses a resin-impregnated cellulose/synthetic fiber blend that captures particles as small as 8 microns while maintaining low flow restriction, ensuring full oil flow even at high RPM.
Heavy-Duty Steel Shell: The housing is constructed from cold-rolled steel with an anti-rust e-coat finish, providing excellent resistance to corrosion, impact, and vibration – ideal for off-road and long-haul applications.
Integrated Bypass Valve: A precision-calibrated bypass valve opens at 2.5 bar to ensure oil flow continues even if the filter becomes clogged, protecting the engine from oil starvation during extreme conditions.
Anti-Drainback Valve: The silicone anti-drainback valve prevents oil from draining back into the sump when the engine is off, ensuring immediate lubrication on start-up and reducing cold-start wear.
Additionally, the FG038Y005002+001/1 features a high-strength center tube that prevents media collapse under pressure, and a nitrile rubber gasket that provides a perfect seal against the filter housing. These design elements make it a top-tier choice for SINOTRUK Sitrak engines.
The table below provides complete technical details for the FG038Y005002+001/1. All values are verified against SINOTRUK’s OEM standards.
Always confirm compatibility of the FG038Y005002+001/1 with your engine’s part number. Using the correct filter is essential for maintaining warranty coverage and optimal lubrication.
The FG038Y005002+001/1 Oil Filter is designed for use in SINOTRUK Sitrak trucks, including the C7H, T7H, and A7 series, as well as in buses, construction equipment, and marine applications powered by Sitrak engines. It is suitable for both mineral and synthetic engine oils, and its robust design handles extended oil change intervals common in modern fleets.
This filter is also cross-compatible with several other heavy-duty truck brands that use the same thread and bypass valve specifications, making the FG038Y005002+001/1 a versatile spare for workshops serving mixed fleets.
Installation Guide: Drain the engine oil, remove the old filter, and clean the mounting surface. Apply a thin film of fresh oil to the rubber gasket of the new FG038Y005002+001/1. Screw it on until the gasket contacts the base, then tighten by hand an additional 3/4 turn. Refill with the recommended oil quantity and check for leaks after starting the engine.
Maintenance Advice: Replace the FG038Y005002+001/1 at every oil change, typically every 30,000 to 50,000 km depending on operating conditions. In severe dust or heavy-load applications, shorten the interval to 20,000 km. Always inspect the old filter for metal particles – excessive debris may indicate internal engine wear.
Using a genuine FG038Y005002+001/1 ensures proper bypass valve calibration and media integrity. Never reuse a filter – always install a new one with each oil change to maintain engine protection.
Choosing the authentic FG038Y005002+001/1 means you are selecting a filter that has undergone rigorous testing for burst strength, flow capacity, and filtration efficiency. Unlike cheap aftermarket units, this filter maintains its structural integrity under high-pressure pulses and does not shed media fibers that can damage bearings.
The FG038Y005002+001/1 is also backed by SINOTRUK’s original quality assurance, with each unit traceable to its production batch. Fleet owners who standardize on this filter report fewer oil-related failures and extended engine overhaul intervals.
The FG038Y005002+001/1 complies with ISO 4548 and SAE J806 standards for oil filter performance. It also meets DIN 7332 for pressure resistance and is manufactured under IATF 16949 quality management systems.
To avoid counterfeits, purchase the FG038Y005002+001/1 only from authorized distributors. Look for the holographic security label and the engraved part number on the canister. Using non-certified filters can void your engine warranty and lead to costly repairs.
While the FG038Y005002+001/1 is extremely reliable, some conditions can reduce its effectiveness. A clogged filter may trigger a bypass valve opening, leading to unfiltered oil circulation – always replace the filter at recommended intervals. Oil leaks at the gasket usually result from over-tightening or a damaged seal; replace the filter and torque correctly.
If you notice low oil pressure after installing a new FG038Y005002+001/1, check the bypass valve calibration and ensure you have the correct filter for your engine. Always prime the filter by filling it with clean oil before installation to avoid dry starts.
SINOTRUK is committed to reducing environmental impact, and the FG038Y005002+001/1 is manufactured using low-emission processes and recyclable steel. Its extended service life, when compared to low-quality filters, reduces waste generation and resource consumption.
By choosing the FG038Y005002+001/1, you also contribute to better fuel economy and lower emissions, as clean oil reduces internal friction and improves combustion efficiency. Dispose of used filters at certified collection centers to ensure proper recycling of steel and oil residues.
The FG038Y005002+001/1 Oil Filter is an essential component for maintaining the health and performance of your SINOTRUK Sitrak engine. With its superior filtration media, robust construction, and precise bypass valve, it offers uncompromising protection against wear and contamination.
In this detailed guide, we have covered the key features, technical specifications, installation best practices, and sustainability benefits of the FG038Y005002+001/1. Armed with this information, you can confidently select the genuine filter that ensures long engine life and reliable operation.
Explore our full range of authentic SINOTRUK Sitrak components and keep your fleet running at its best. Choose the FG038Y005002+001/1 – the trusted choice for professionals who demand quality and durability.
